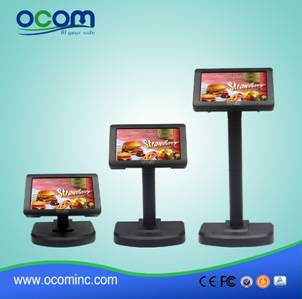

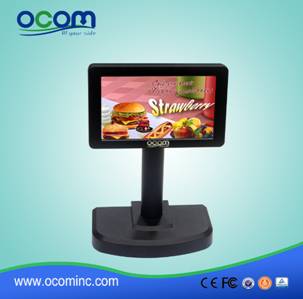

New 7inch LED Customer Display, VGA & DC Adapter OCPD-LED702
Features:
800 * 480 pixel resolution 16:9 color screen
High Brightness TFT-LCD(Digital-Panel) LED backlight
Support asynchronous display
Same apperance with OCPD-LED700
Same function with OCPD-LED701, Except communication:VGA +DC for OCPD-LED702, USB for OCPD-LED701
Parameters:
|
Display size |
7 Inch wide |
|
Technical Solution |
displaylink |
|
Interface |
USB,RS232 |
|
Resolution |
800x480 |
|
Power Supply |
DC Power adapter 12V |
|
Display Area |
154(H)X86(V)mm(16:9) |
|
Display Type |
High Brightness TFT-LCD(Digital-Panel) |
|
Back Light |
LED |
|
White Luminance |
350 cd/m² |
|
Response Time |
25ms |
|
Viewing Angle |
0-60 degrees |
|
Rotation Angle |
0-270 degrees |
|
Working T&H |
Operating:-30℃ -50℃ 30%-80% |
|
Base Dimension |
182*85*115 |
|
Weight |
0.9kg |
 |
|||
 |
|||
