(OCBS-D8000) Android Based Industrial PDA(OCBS-D8000) Android Based Industrial PDA(OCBS-D8000) Android Based Industrial PDA(OCBS-D8000) Android Based Industrial PDA(OCBS-D8000) Android Based Industrial PDA(OCBS-D8000) Android Based Industrial PDA

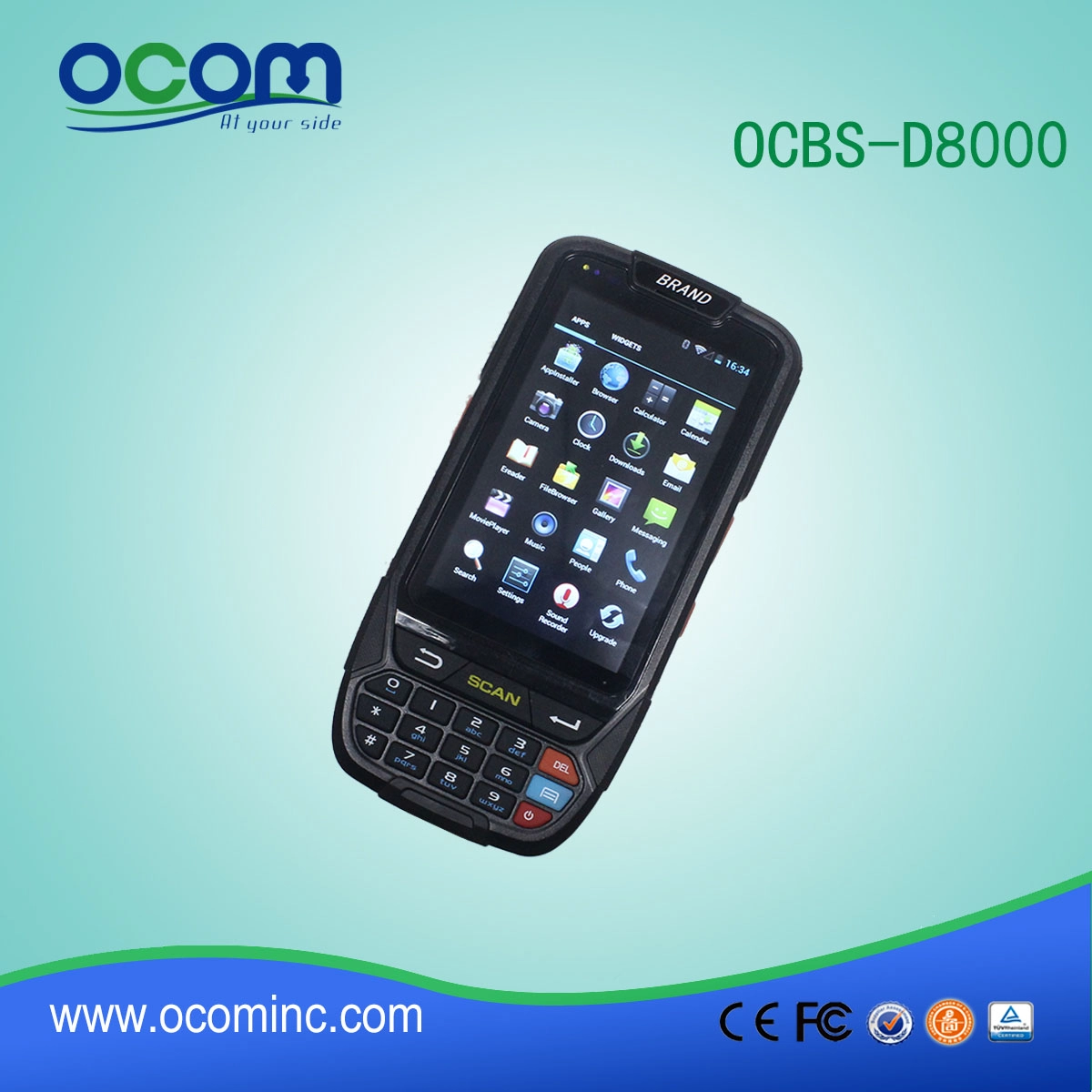

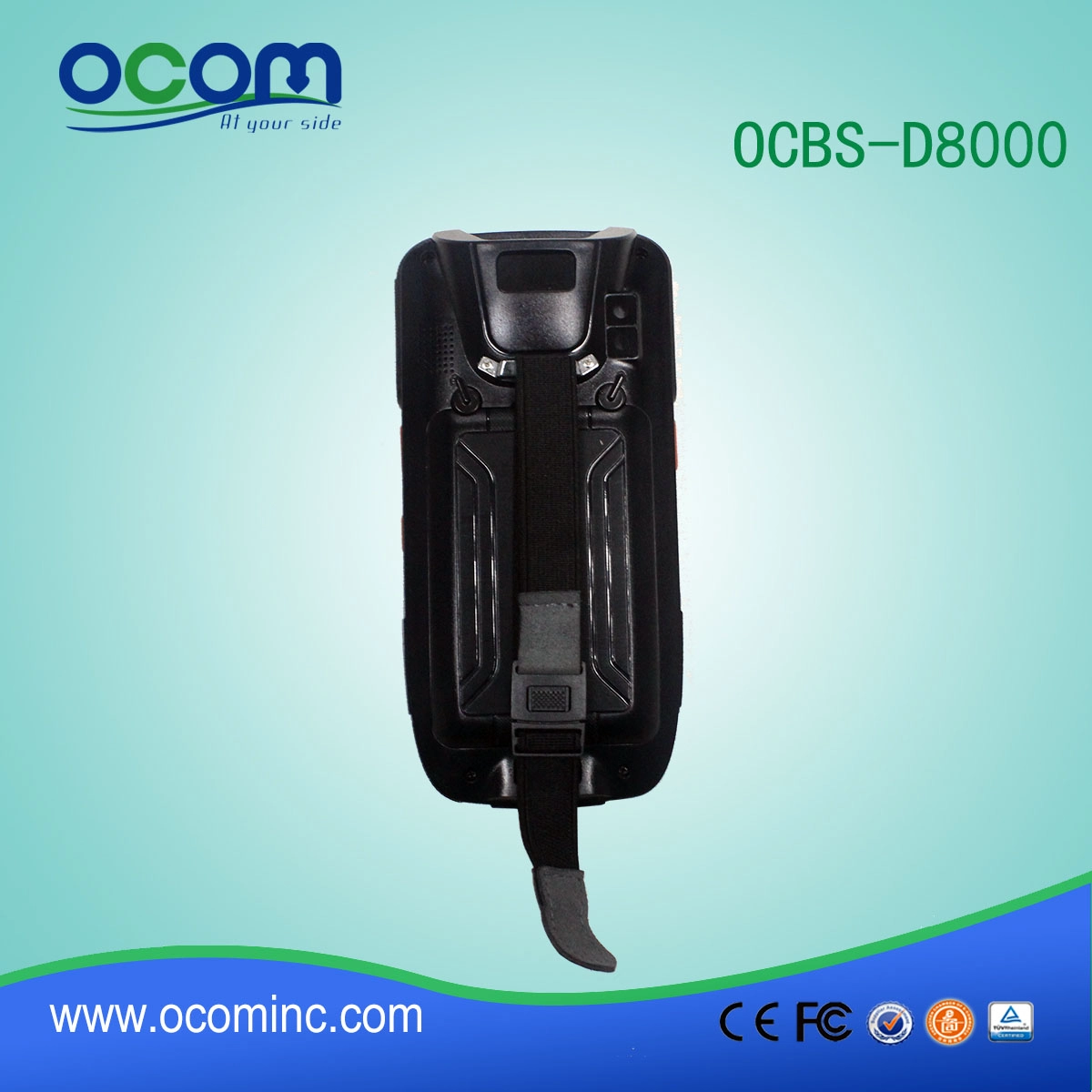

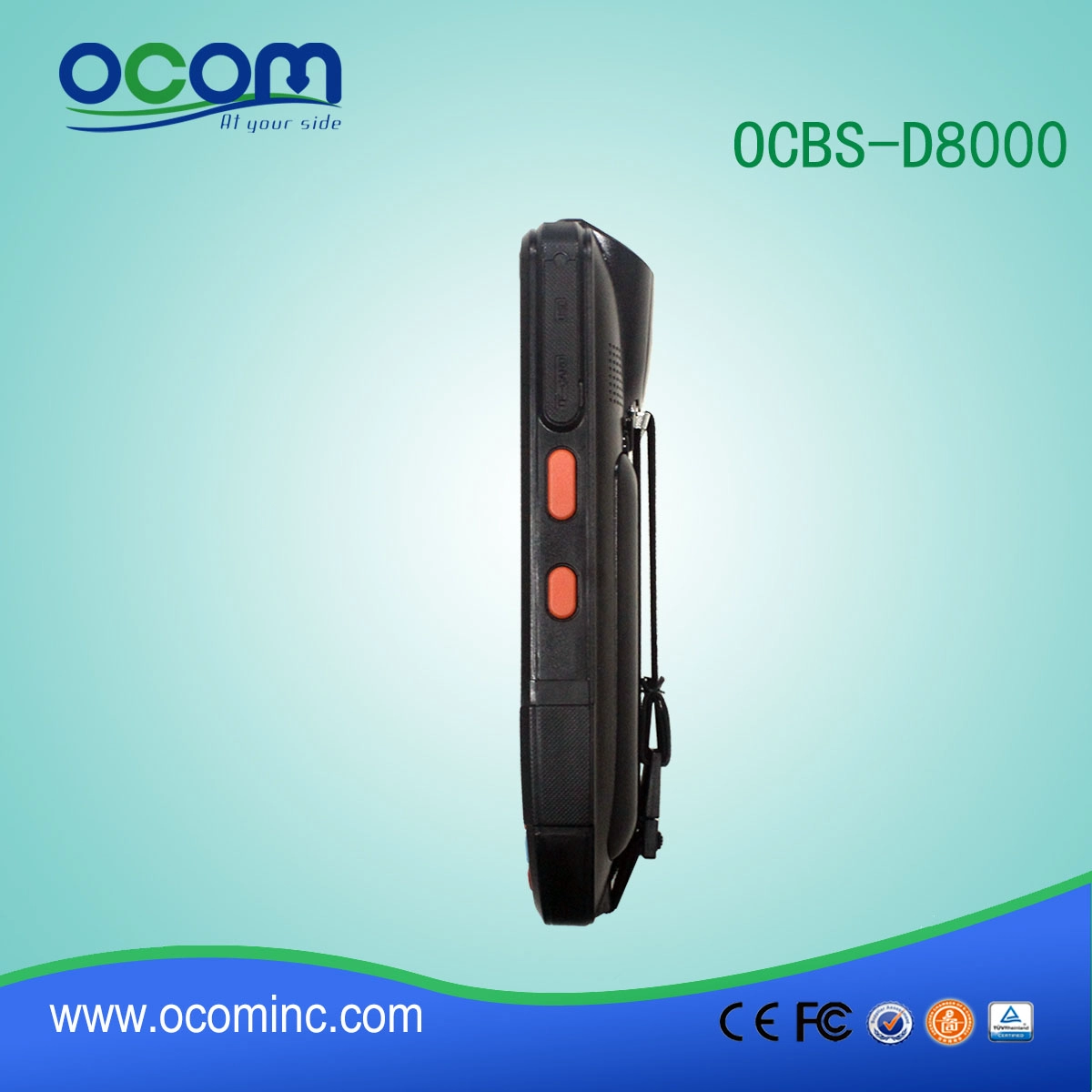

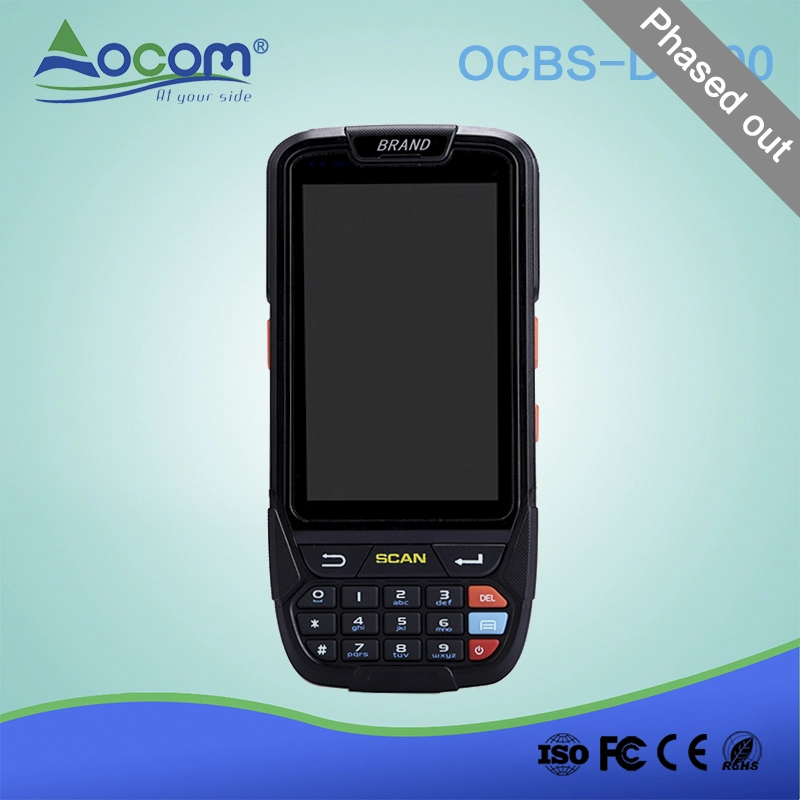

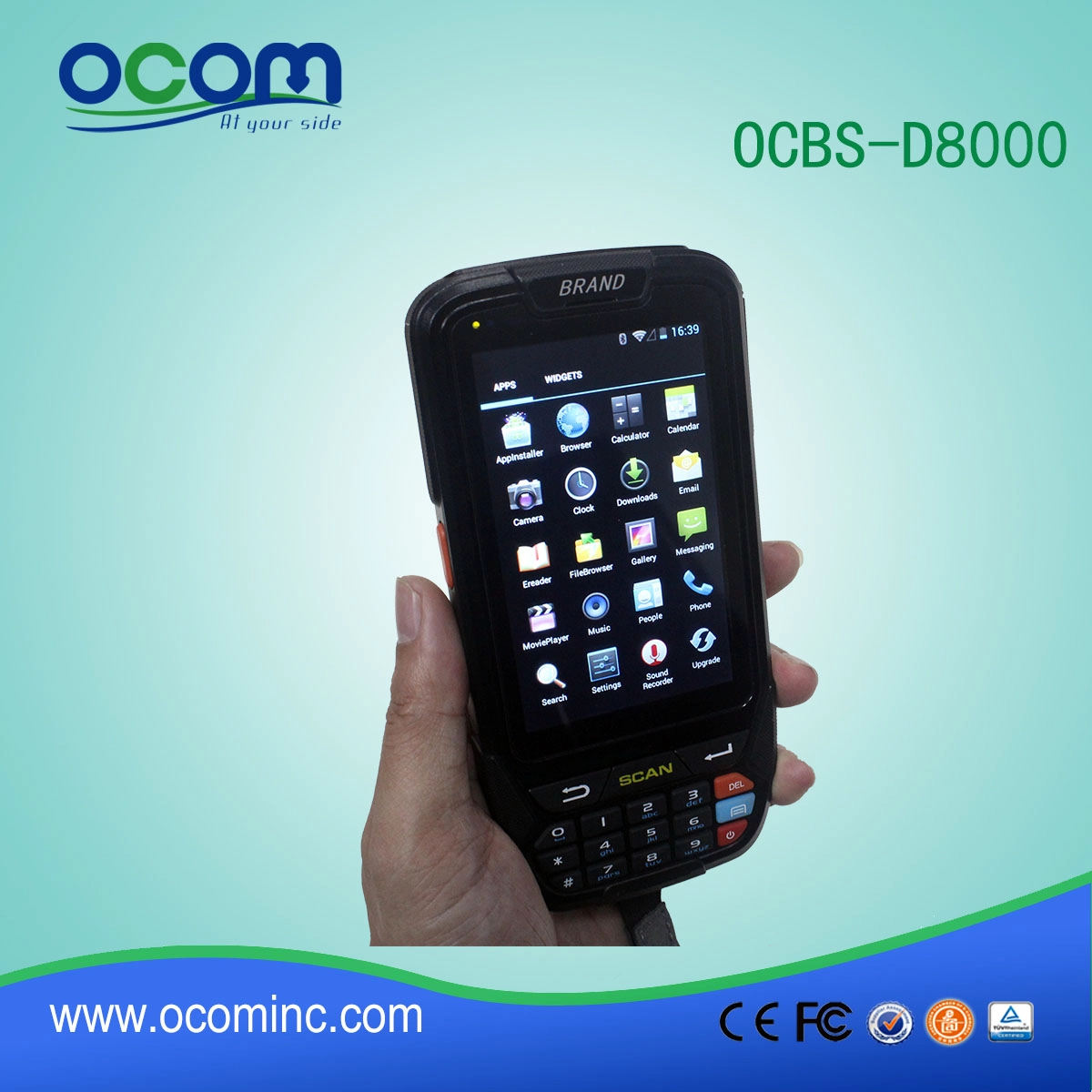

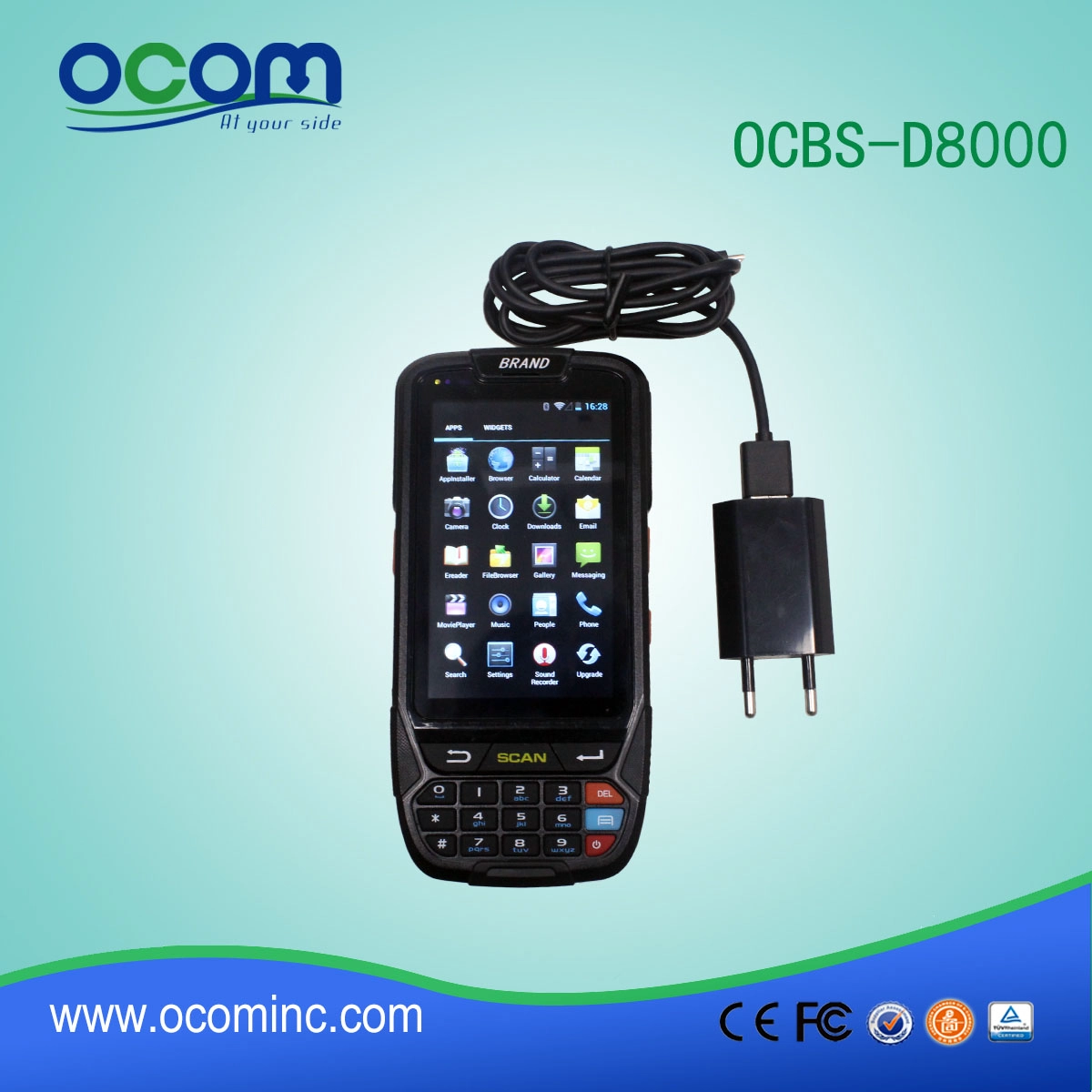

(OCBS-D8000) Android Based Industrial PDA

  • Android5.1 Operation System;
  • 2G RAM,16G ROM,TF card can up to32 GB ;
  • ARM Cortex-A53 64bit Quad-Core 1.3GHZ;
  • Support 4G LTE and 3G WCDMA;
  • GPS,A-GPS satellite positioning;
  • Hd 8 million pixels, with LED, automatic focusing;
  • SIM card, PSAM card, Micro SD (TF) Card Expand Port;
  • Rechargeable Li-polymer Battery 3.7V 4000mAh Option;
  • Color 4.0 inch QVGA imitative glass durable touch screen;
  • Sealed Environment: IP65;
  • 6 sides can bear impact from 1.5m drop to cement floor.

 AndroidBased Industrial PDA

       (Model No.:OCBS-D8000)



Feature:

Android5.1 Operation System;



2G RAM,16G ROM,TF card can up to32 GB ;

ARM Cortex-A53 64bit Quad-Core 1.3GHZ;

Support 4G LTE and 3G WCDMA;

GPS,A-GPS satellite positioning;

Hd 8 million pixels, with LED, automatic focusing;

SIM card, PSAM card, Micro SD (TF) Card Expand Port;

Rechargeable Li-polymer Battery 3.7V 4000mAh Option;

Color 4.0 inch QVGA imitative glass durable touch screen;

Sealed Environment: IP65;

6 sides can bear impact from 1.5m drop to cement floor.

Specification:

Physical Parameter



Size

152mm(L)×77mm(H)×29mm(W)

Weight

<500g

Display Screen

Color 4.0 inch QVGA imitative glass durable touch screen

TFT-LCD, 650000 colors, 480*800 (QVGA size)

The brightness of LED Backlight is adjustable

Expand Port

SIM card, PSAM card, Micro SD (TF) Card

Communication Interface

USB2.0 Device, RS-232(Optional)

Input Mode

Standard Stylus, Handwriting, touching input or keyboard input

Battery Capacity

Rechargeable Li-polymer Battery 3.7V 4000mAh Optional

Frequency

8Ω1W speaker

Key

29pcs soft silicon key

Performance Parameter



CPU

ARM Cortex-A53 64bit Quad-Core,1.3GHz

RAM

2G RAM

Flash ROM

Standard 16G NAND Flash Storage

Micro SD/TF port (Max up to 32G)

Data Communication



WI-FI

Support IEEE802.11b/g protocol, it need effective wireless LAN signal cover

FDD-LTE



Uplink:  1920MHZ-1980MHZ;  Downlink:  2110MHZ-2170MHZ

Uplink:  1710MHZ-1785MHZ;  Downlink:  1805MHZ-1880MHZ

Uplink:  2496MHZ-2690MHZ;  Downlink:  2496MHZ-2690MHZ



WCDMA/GSM



WCDMA:

Uplink:1850MHZ-1910MHZ;  Downlink: 1930MHZ-1990MHZ

Uplink:880MHZ-915MHZ;  Downlink: 925MHZ-960MHZ

GSM:

850MHZ,  Uplink:824MHZ-849MHZ;  Downlink: 869MHZ-894MHZ

900MHZ,  Uplink:880MHZ-915MHZ;  Downlink: 925MHZ-960MHZ

1800MHZ,Uplink:1710MHZ-1785MHZ;  Downlink: 1805MHZ-1880MHZ

1900MHZ ,Uplink:1850MHZ-1910MHZ;  Downlink: 1930MHZ-1990MHZ





Bluetooth

Support Bluetooth 2.0+EDR, transmission distance is 5-10m

Operating Environment



Operating Temperature

-20℃ to 50℃

Storage Temperature

-25℃ to 70℃

Environment Humidity

5%RH--95%RH(no condensation)

Drop Specifications

6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature

Roll Specifications

1000 times/0.5m, roll on 6 sides contact area

Sealed Environment

IP65

Development Environment



Operating System

Android5.1

SDK

exclusive use software development kit

Supported Language

JAVA

Development Tool

Eclipse

A one-dimensional bar code collect



One dimensional CCD scanners

Symbol SE655

Resolution

5Mil minimum width

Ambient Light

0ft.candles-10000ft.candles

Scanning Speed

50/sec

Scanning Angle

53º±3º

Support Bar Code Type

UPC/EAN, Bookland EAN, Code 128, Code39, Code 93,Code 11, Interleaved 2 of 5,Discrete 2 of 5, Chinese 2 of5, Matrix 2 of 5,Inverse 1D, MSI, Gs1 DataBar, etc.

One dimensional laser scanner

Mingde966 Standard ,Symbol 955, HoneywellN4313(for optional)

Resolution

4Mil minimum width

Ambient Light

10000ft.candles(107640 lux)

Scanning Speed

104(±)12/sec (bothway)

Scanning Angle

47º±35º(Standard) / 35º±3º(narrow angle)

Support Bar Code Type

UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS

Two-dimensional bar code acquisition



CMOS Scanner

Newland 3096 Standard  ,HONEYWELL N3680 for optional

The Sensor Resolution

752(level)×480(vertical)pels(gray level)

Ambient Light

All dark 9000ft.candles/96900 lux

Focus element (VLD)

655nm ± 10nm

Support bar code type

PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3

RFID



LF

125K;ISO11784/ISO11785 protocol

HF

13.56MHz;ISO14443A/B protocol

Camera

Hd 8 million pixels, with LED, automatic focusing

GPS

Support A-GPS









































































Relevant documents:



      *OCBS-D8000 CD
