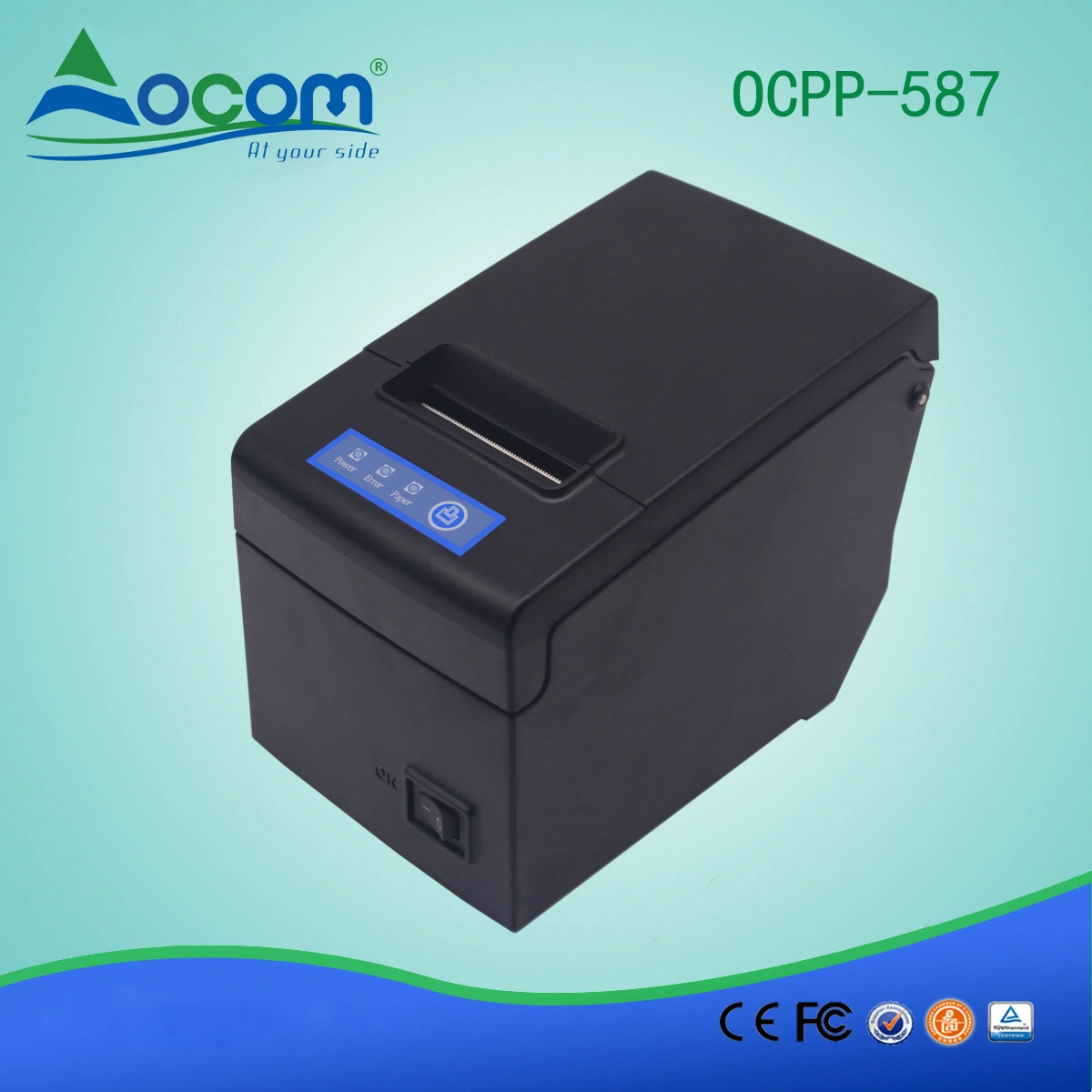

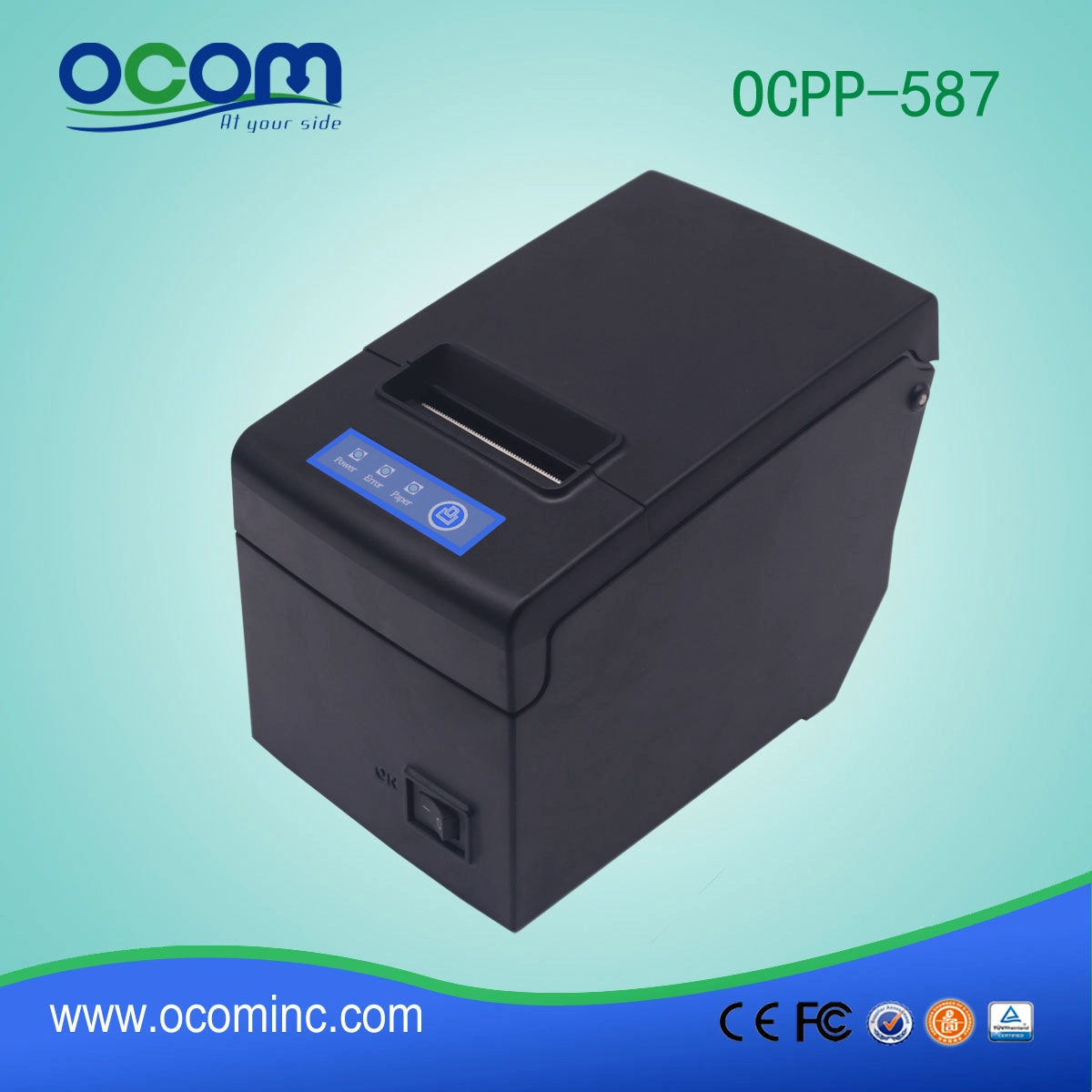

58mm thermal receipt printer with big paper holder OCPP-587-L LAN/Ethernet Port58mm thermal receipt printer with big paper holder OCPP-587-L LAN/Ethernet Port

58mm thermal receipt printer with big paper holder OCPP-587-L LAN/Ethernet Port

  • Appearance compact design, fashion technology;
  • Easy paper feed structure, simple and convenient operation;
  • High reliability of large motor and large gear movement;
  • 130 mm / s speed print, significantly improve the printing efficiency;
  • Big paper warehouse design, the perfect support for 83MM large diameter rolls;
  • Rich interface optional: USB, COM, Internet (100M), WIFI, Bluetooth, GPRS;
  • Support GB18030 large font and multi language ;
  • Supports LOGO and graphics downloads and print;
  • Supports Windows, Linux, Android and IOS system print;
  • 100M Ethernet interface, print quickly while avoiding losing bills.

58mm thermal receipt printer with big paper holder OCPP-587-L LAN/Ethernet Port

                          (M/N:OCPP-587-L)



Product description:


OCPP-587 is a Mini 58MM thermal printer, the design exquisite fashion, small and smart,

with highly technological sense. Using large motor and a big gear movement design, drag 83MM large diameter roll and  achieve 130 mm / s high speed printing at the same time, the perfect solution to solve the  problem of common 58mm printer support small diameter roll, print speed slow ,enable print more efficient. At the same time, provides a rich interface ,including network port (100M), WIFI, Bluetooth, GPRS, enable print more flexible and convenient.


Product performance:


●Appearance compact design, fashion technology;

●Easy paper feed structure, simple and convenient operation;

●High reliability of large motor and large gear movement;

●130 mm / s speed print, significantly improve the printing efficiency;

●Big paper warehouse design, the perfect support for 83MM large diameter rolls;

●Rich interface optional: USB, COM, Internet (100M), WIFI, Bluetooth, GPRS;

●Support GB18030 large font and multi language ;

●Supports LOGO and graphics downloads and print;

●Supports Windows, Linux, Android and IOS system print;

●100M Ethernet interface, print quickly while avoiding losing bills.



Printer Parameters:


Items

Parameters











Print parameters

Printing Method

Thermal Line

Printing Method

48MM

Resolution

384dots/Line8dots/mm203dpi

Printing Speed

130mm/Second

Interface Type

USBCOMInternet100M),WIFIGPRSBluetooth

Line Spacing

3.75 mmCan adjust line spacing by command

Line No.

Font A:32 character /Line

Font B:42 character/Line

Simple,traditional Chinese-16 lines

Character

Standard GB18030 simplified / traditional Chinese Fonts

Character Size

ANKcharacterFont A1.5×3.0mm12×24
Font B1.1×2.1mm9×17 Simplified/Traditional Chinese3.0×3.0mm(24×24 Dots

Bar code Character

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

Bar code

1D bar codeUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128

2D bar codeQRCODE

Graphics printing

Graphics printing

Supports bitmap download and print



Paper

Type

Thermal Roll

Width

57.5±0.5mm

Diameter

83mm

Feed Method

Easy feed(Clameshell feed)

Print commands

Commands

ESC/POS

Power

Power Adaptor

InputAC 100V-240V,50-60Hz

OutputDC 12V/2A

Casher Drawer output

DC 12V/1A

Buffer

Input Buffer

4K

NV Flash

40K

physical characteristics

Weight

750g

Dimension

180*115*127(MM)

Environment

Working

Temp5 ~ 45℃, Humidity10 ~ 80%



Storage

Temp-10 ~ 50℃ Humidity10 ~ 90%No dew

Reliability parameter

Print Head Life

100KMprint density≤12.5

Software

Driver

Android,IOS,Linux,,WinXP,Win7,Win8,Win8.1,Win10
