Competitive Price 58MM Mini Thermal Printer For AndroidCompetitive Price 58MM Mini Thermal Printer For AndroidCompetitive Price 58MM Mini Thermal Printer For AndroidCompetitive Price 58MM Mini Thermal Printer For AndroidCompetitive Price 58MM Mini Thermal Printer For AndroidCompetitive Price 58MM Mini Thermal Printer For Android

Competitive Price 58MM Mini Thermal Printer For Android

  • 1,Mini size suitable for portable application;
  • 2,Windows, Java, Linux, Android (or Android +IOS ) operation system supported;
  • 3,Bluetooth, USB and RS232 communication supported;
  • 4,SDK for Android available;
  • 5,1D, 2D barcode (QR code), and image printing supported;
  • 6,Can change the printer name, password, baud rate online;
  • 7,One printer can connected with up to 8 smart devices (7 Android, one Apple device) visa blue tooth;
  • 8,Low power consumption and large capacity Lithium battery (1500mAh), 4~5 days standby;
  • 9,Powered by rechargeable battery, power adapter, or car charger (specified models)

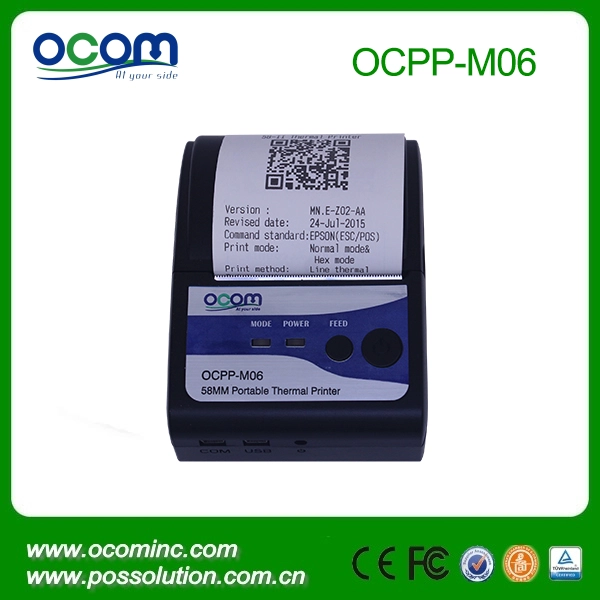

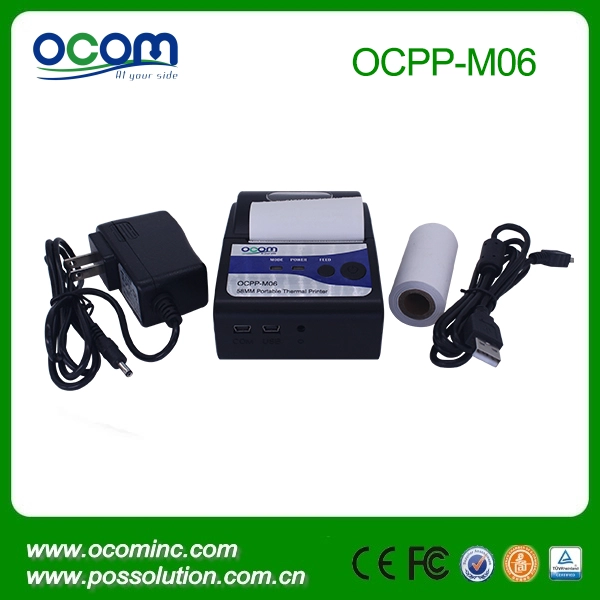

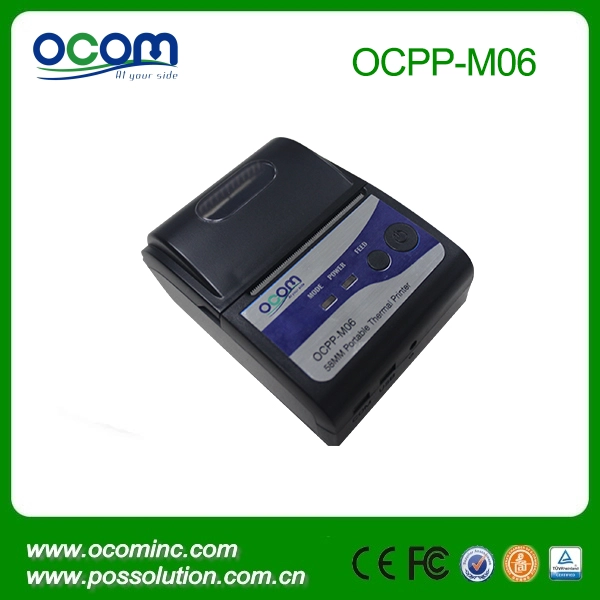

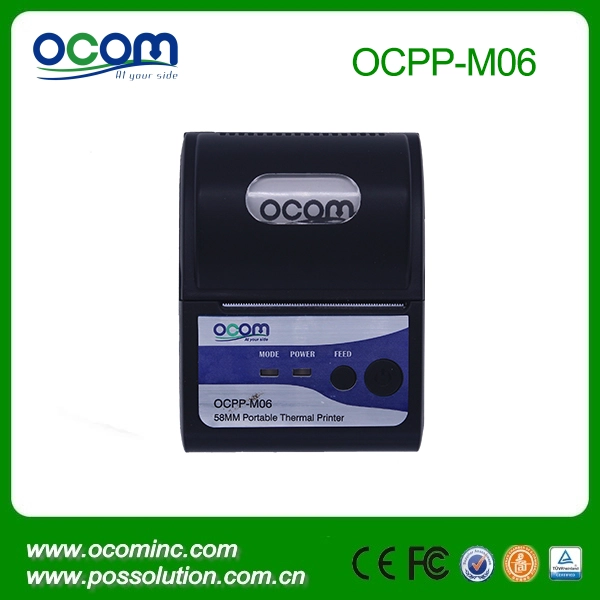

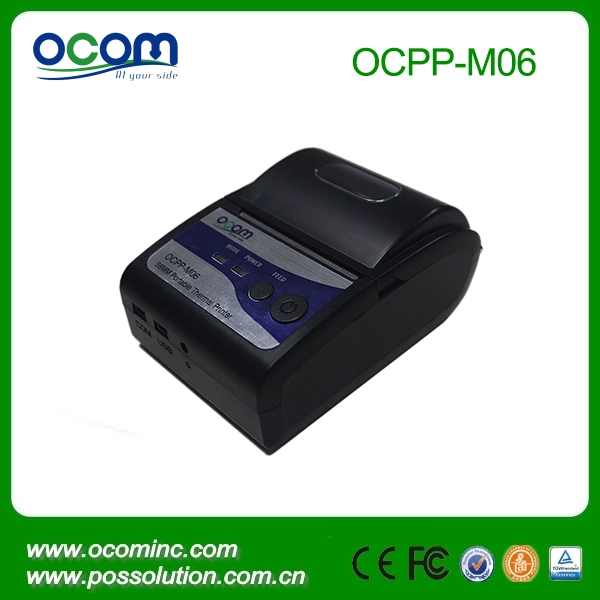

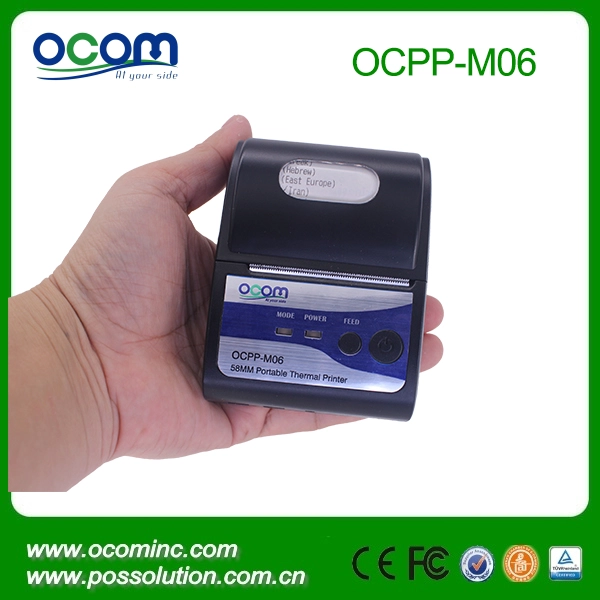

Competitive Price 58MM Mini Thermal Printer For Android

                                                                  (Model Number: OCPP- M06)

This mini printer OCPP-M06 is a Android (or IOS+ Android ) ,Window, Linux, JAVA compatible battery powered 58mm portable mobile thermal pos printer which combines USB,RS232 Serial and Bluetooth (optional) communication ways together. This printer could be powered by rechargeable battery, power adapter, or car charger (depending on specified models) . Special model can connect with 8 smart devices for printing at same time. We have CE, FCC and other required certifications.

Specification:

Overall Dimension (W×D×H)

105×75×45mm

Weight

134g

Color

Black

Print method

Thermal line printing

Print commands

ESC/POS compatible command set

Effective print width

48mm

Print speed

Up to 90mm/sec

Resolution

8 dots/mm(203dpi)

Print font

12x24/ 24x24

Column capacity

32 columns/ 16columns

Character size

1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

Paper dimensions

58.0±0.1mm x diameter 40.0mm

Paper thickness

0.06 to 0.08mm

Character set

Alphanumeric/ Chinese Kanji

Interface

USB, RS-232,Bluetooth (optional)

Flash

256KB

Power Adapter

9V DC/2A

Battery Power

7.4V DC/ 1500mAh; battery can stay by for 4-5 days,

when it is full power, it can print 120-150m paper

Other features

Paper detection, manual shut down

Working conditions

Temperature:-10~50 degC, Humidity:10%~90%

Storage conditions

Temperature:-20~70 degC, Humidity:5%~95%

Device name

Can be customized, letter and digital for option, at max 30 ASCII characters.

Password

Enter default pairing code “1234”, it can be customized or change

 by customer itself. At max 6 digitals.

Power plug dimension

3.5*1.1mm

Ordering Info.

OCPP-M06-BB

Android, USB+COM+Bluetooth, Battery.

OCPP-M06-BB-AI

Android+IOS, USB+COM+Bluetooth, Battery.

OCPP-M06-B

Android, USB+COM+Bluetooth, without Battery;

OCPP-M06-U

Mini printer, Android, USB+COM, without Battery.

OCPP-M06-BB-AA

Android+IOS, USB+COM+Bluetooth, Battery, 7 android +1 apple devices supported

Application Area:

Compared to the traditional thermal receipt printer, mini printer has smaller body, more reliable capability, more steady printing and portable advantages. The Mini printer can work on a lot of locations, such as the TAXI bill printing, administrative fees receipt printing, post receipt printing, restaurant ordering information printing, online payment information printing, etc. With the rapid popularity of smart-mobile, tablet and so on, Mini printer will be more widely used in the near future.

Key words: thermal printer, bluetooth printer, mini printer, portable printer, pos printer, mobile printer, receipt printer, wireless printer, ticket printer, bill printer, qr code printer, pocket printer, invoice printer, mini printer, 58mm bluetooth printer, 2inch bluetooth printer.

Relevant documents:



*Program Manual

*Instruction Manual

*Driver for WinXP Win2000 WinVista Win8-32bit

*Driver for Win8-64bit

*Driver for Linux

*Printer Parameters Setting Tools

*USB Printdemo(Application Software demo)

*Bluetooth Printdemo(Application Software demo)

*SDK for Android

*CD Files
