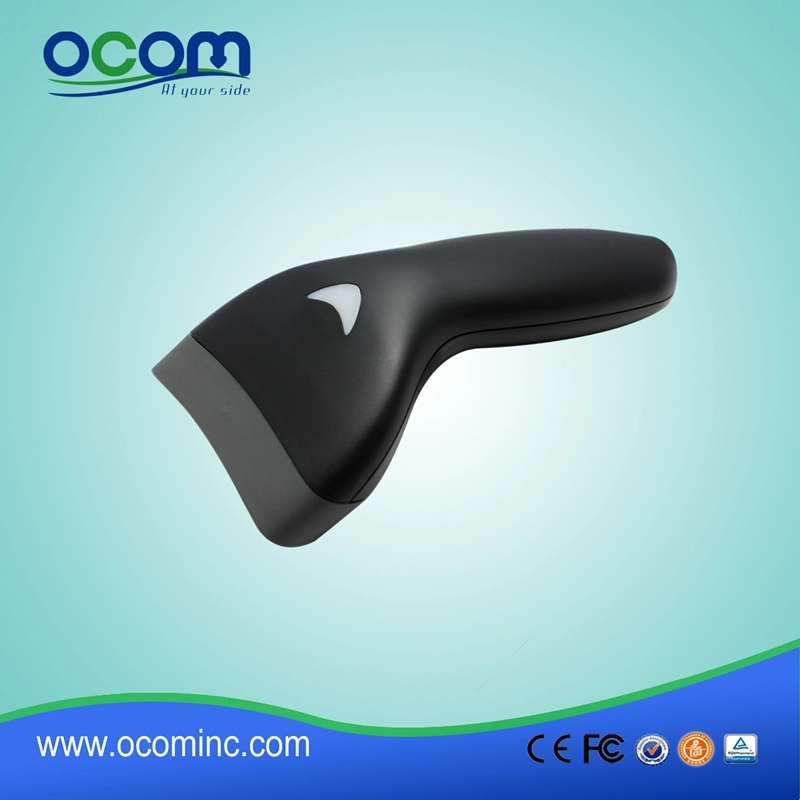

Good Performed CCD Screen Barcode Reader OCBS-C004

Good Performed CCD Screen Barcode Reader OCBS-C004

  • Light design, linear flexible;
  • Easy operation;
  • 1.2 meters free fall protection;
  • Super decoding (32 bit processor);
  • Double color LED lights, good for working in noisy environment;
  • Multiple scan mode (test, trigger, flash, continuous), suitable for different use of the environment.
 Good Performed CCD Screen Barcode Reader

                                                (Model No.: OCBS-C004)


Features and advantages:


1. Light design, linear flexible;
2. Easy operation;
3. 1.2 meters free fall protection;
4. Super decoding (32 bit processor);
5. Double color LED lights, good for working in noisy environment;
6. Multiple scan mode (test, trigger, flash, continuous), suitable for different use of the environment.

Parameters:

Optical system

2500 Pixel CCD sensor

Scan speed

200 times per second

Light source

RED LED (Wave length 630~660nm)

Resolution

0.1mm (4 mil)

Density contrast

30% or more

Reading angle

43°

Barcode width

Up to 110mm (PCS90%)

Scanning distance

4mil: 0~12mm(PCS=90%)- 5mil: 0~30mm(PCS=90%)

10.5mil: 0~115mm(PCS=90%)-13mil: 0~140mm(PCS90%)

40mil: 0~240mm(PCS-90%)

Interface

Keyboard Wedge, RS232, USB interfaces for option

Decoding type

Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93, Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13, EAN-8, UPC-A, UPC-E, EAN-128), Interleave 2 of 5, STD 2 of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Option decodable, Pharmacy Code, Industrial 2 of 5, BC-412, RSS-14, RSS Limited, RSS Expanded,

Voltage

4.5V~5.25V DC±5%

Standby current

20~30mA

Working current

125mA

Ambient light resistance

10000 Lux max. (Fluorescence)

5000 Lux max. (Sunlight)

Anti vibration

Can withstand free fall from 1.2m high to the cement ground

Guarantee

1 Year

Industrial grade

IP30

Material

ABS, UL94UO

Cable length

2m

Net weight

0.17Kg

Gross weight

0.22Kg
