Handheld 2D image barcode scanner Can read the barcode on the screen

  • Handheld Barcode Scanner for 1D/2D barcode
  • API Available
  • Many special function setting supported
  • Multi interfaces optional
  • High compatibility for different barcode format
  • 4mil scanning accuracy
  • Stand for option

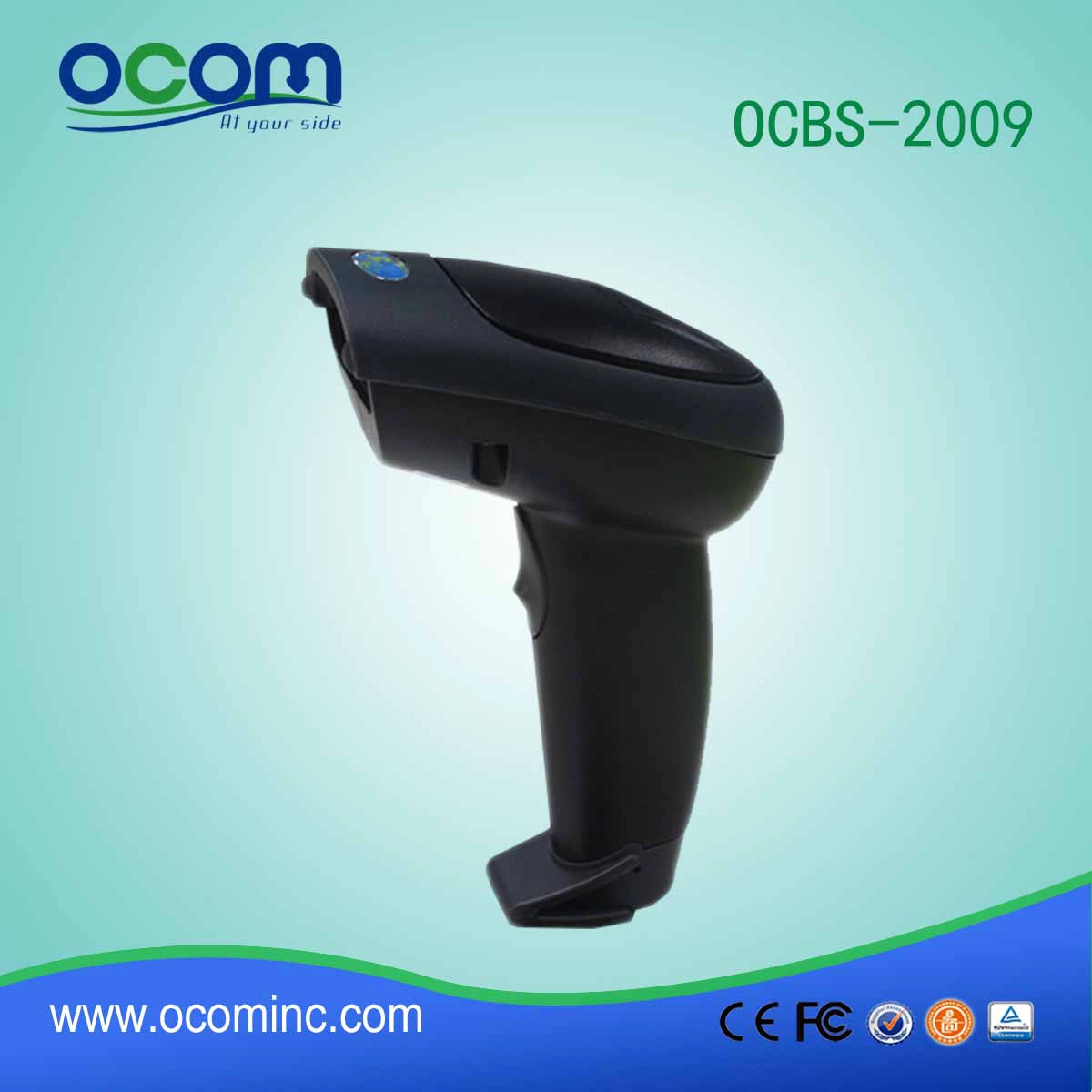

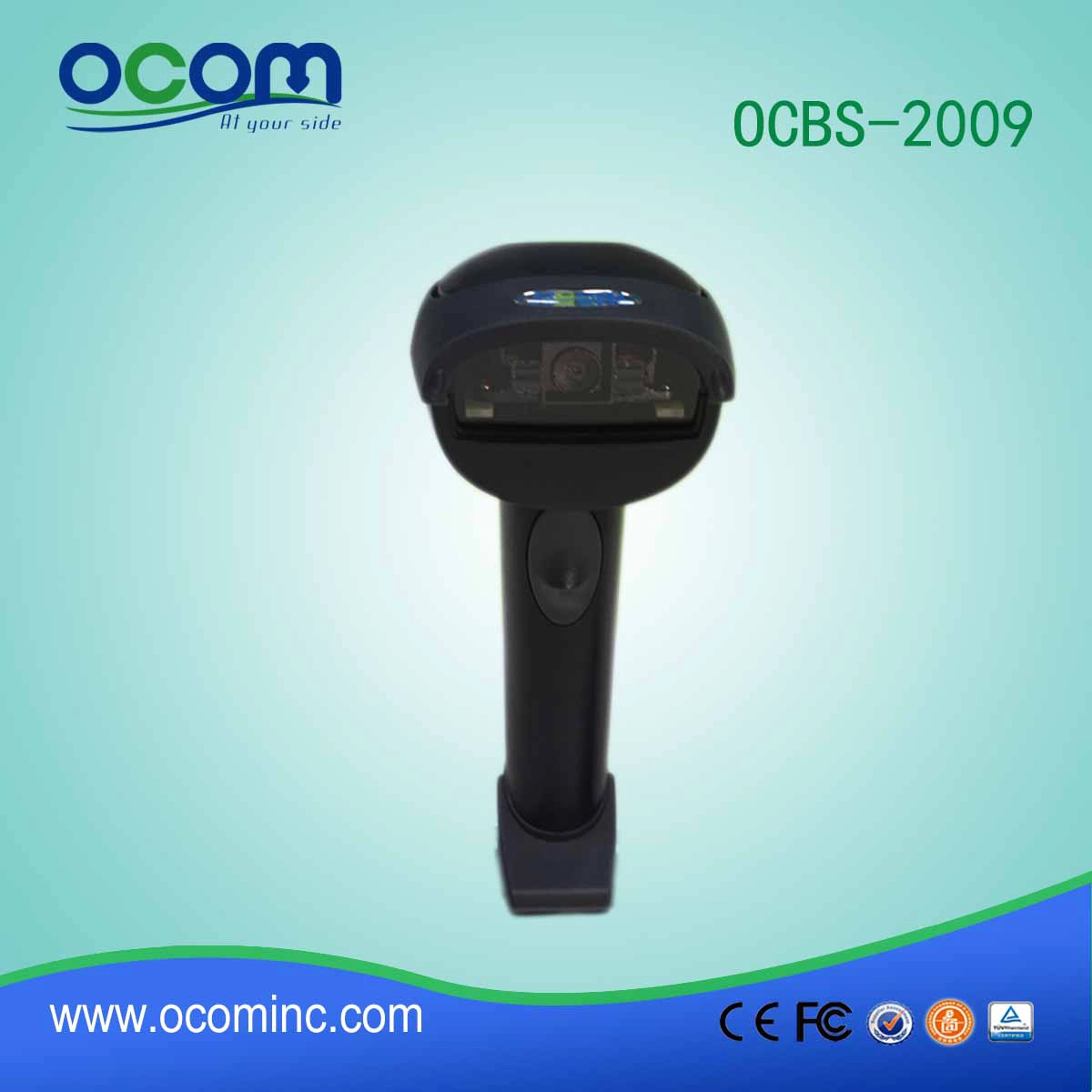

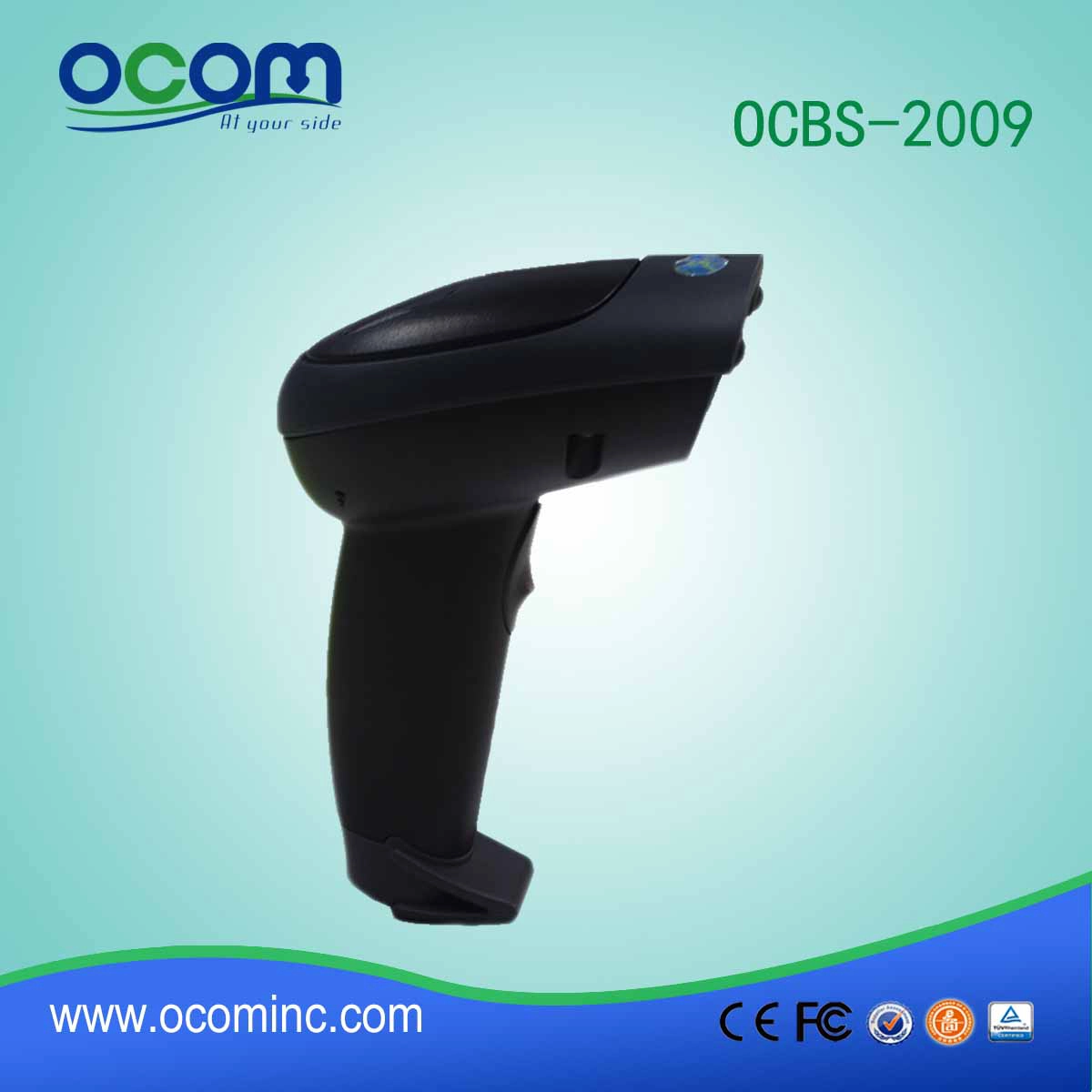

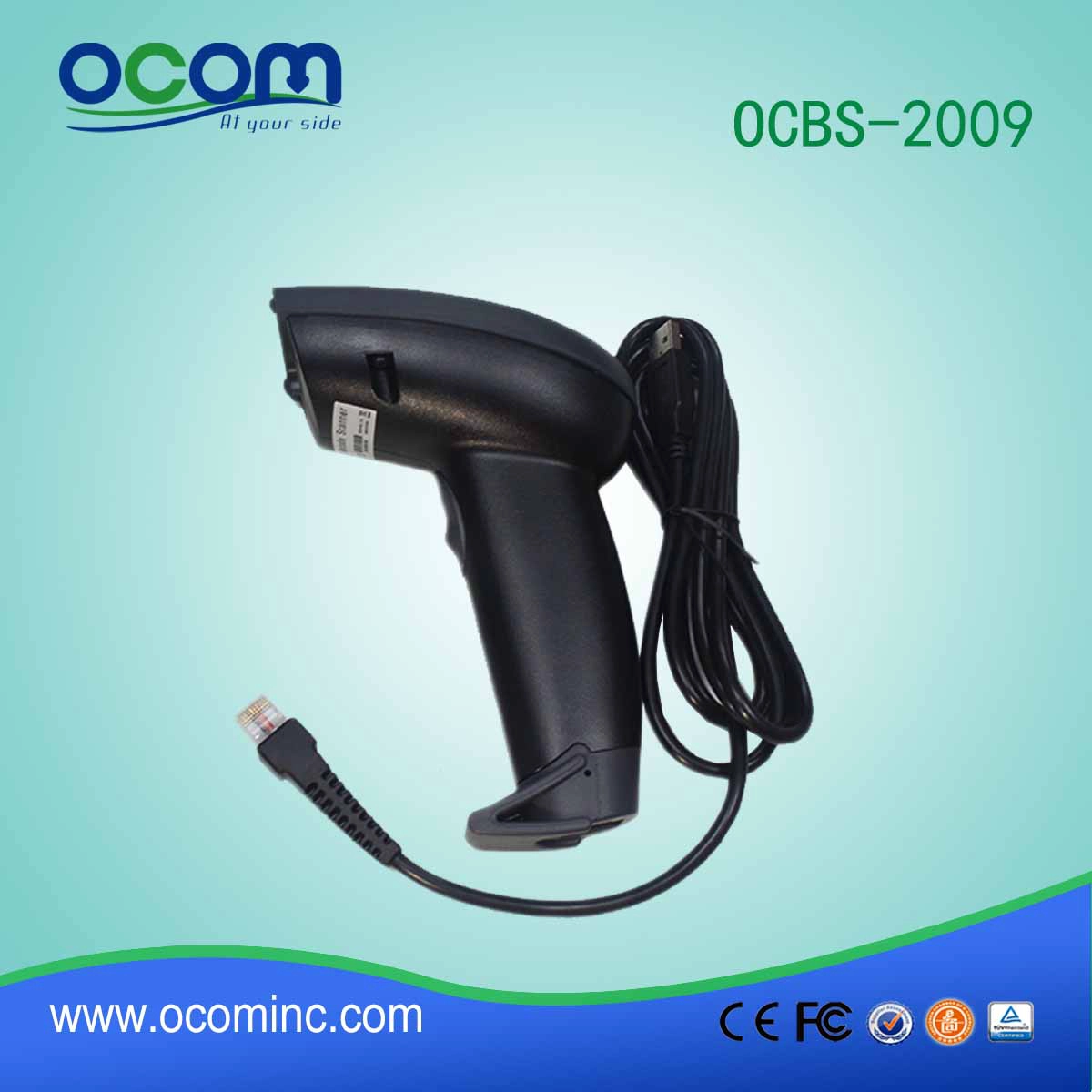

Handheld 2D image barcode scanner Can read the barcode on the screen

 (M/N:OCBS-2009)



Product Description


FEATURE:



High performance imaging technology;

Omni-directional scanning, easy to scan;

High compatibility for all major 1D and 2D symbols;

Can read the barcode on the screen and color barcode;

4mil excellent scanning accuracy ;

Multi special function setting supported;

Multi interfaces optional;

Stand for option.



SPECIFICATION:







Parameters

Resolution

640*480 256gray levels

Work mode

manual single scan, continuous scanning

Standard

2m cable line

Light source

visible red light 630nm + 10nm

Data interface

USB, USB COM (virtual serial port)

Symbologies: 1D

Korea Post, China Post, TRIOPTIC,MSI/Plessey,

UPC-A, UPC-E, EAN-8, EAN-13, ISBN, ISSN, ISBT, TELEPEN,UCC/EAN-128,

Code 128, Code 11, Matrix 2 of 5, Interleaved 2 of 5,Industrical 2 of 5, Standard

 2of 5, NEC 2 of 5, Code 39, Code 39 Full ASCII,Code 93,Codabar/NW7,UK/Plessey,TLC39, GS1 Databar (RSS)

2D

PDF417, Micro PDF417, QR Code, Maxicode, Aztec, Code,Data Martix Code,

HanXin Code, Codeblock F, Codeblock A

Reading depth

 Code 39 (5MIL):50mm~120mm

UPC/EAN (13mil):20mm~320mm

Data Matrix (7.5mil):63mm~150mm

PDF417 (6.6mil):62mm~145mm

Scan angle

45 degrees (level), 30 degrees (vertical)

Alarm mode

buzzer voice prompts, LED lights

Physical parameters

Specification

182*65*109mm (L*W*H)

Weight

195g (without bracket)

Cable line standard

more than 2m

Appearance material:

ABS+PC flame retardant materials

DC power supply voltage

+5V + 5%

Standby current

40mA

Environmental parameters

Working temperature

-20 C ~ 60 C

Storage temperature

-30 C ~ 70 C

Relative humidity

0% ~ 95% (no condensation)

Ambient illumination

normal indoor and outdoor direct sunlight

Package level

IP54 sealing air dust particles resist invasion

Certification

by CE, FCC and ROHS certification





OCBS-2009 China new product infrared 1d/2d barcode reader scanner

china barcode scanner, infrared barcode scanner, 1d /2d barcode reader
