OCBS-C380 Long Distance CCD Barcode ScannerOCBS-C380 Long Distance CCD Barcode ScannerOCBS-C380 Long Distance CCD Barcode ScannerOCBS-C380 Long Distance CCD Barcode Scanner

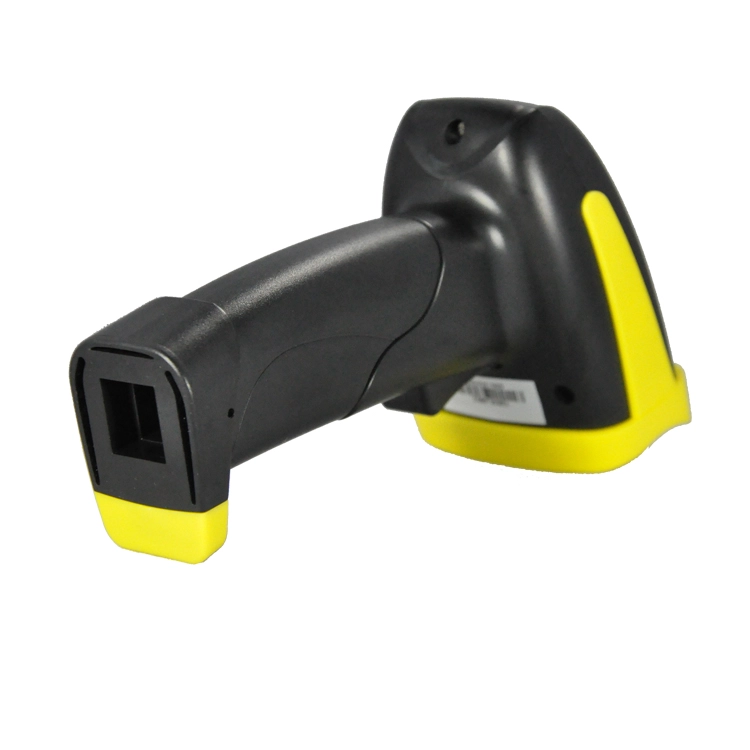

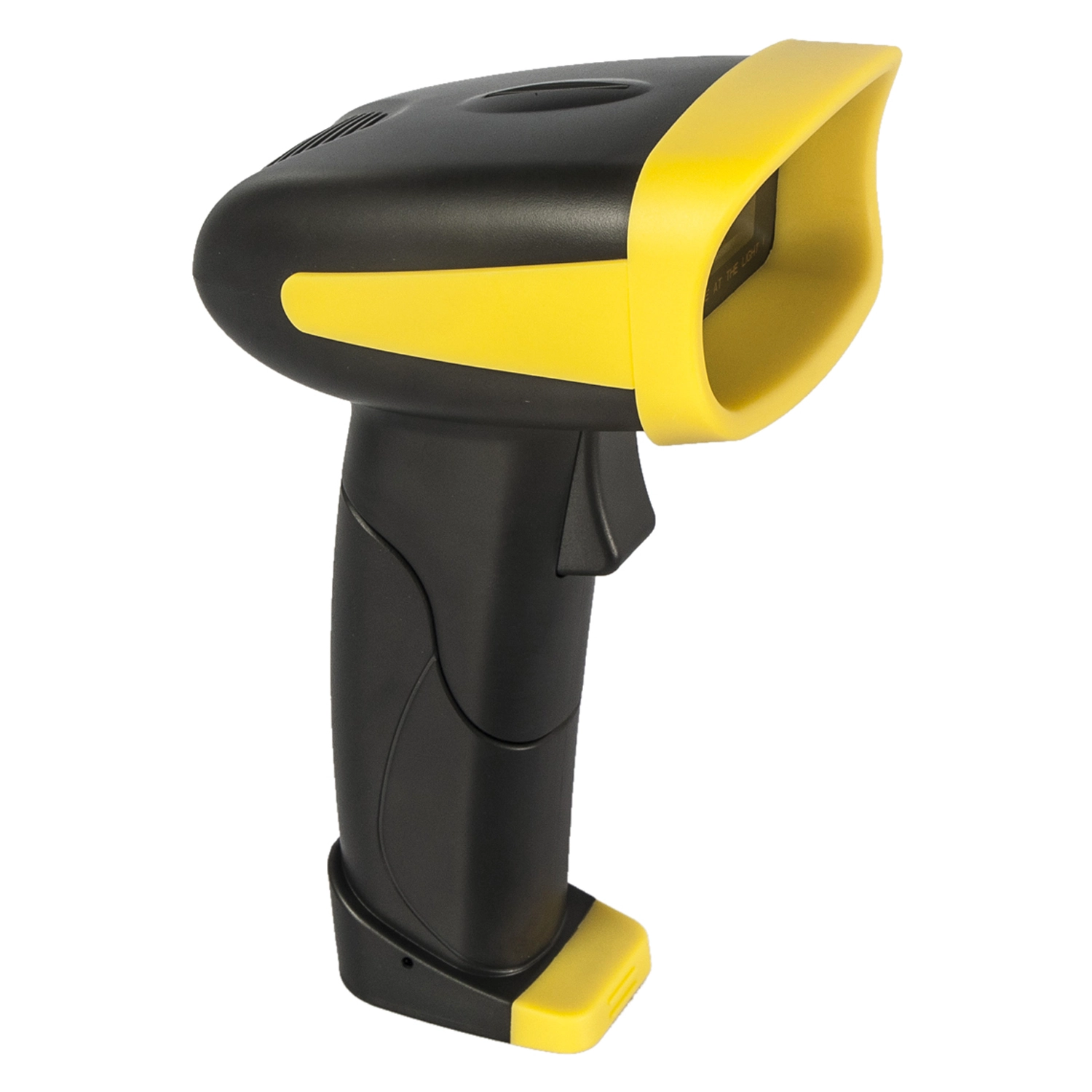

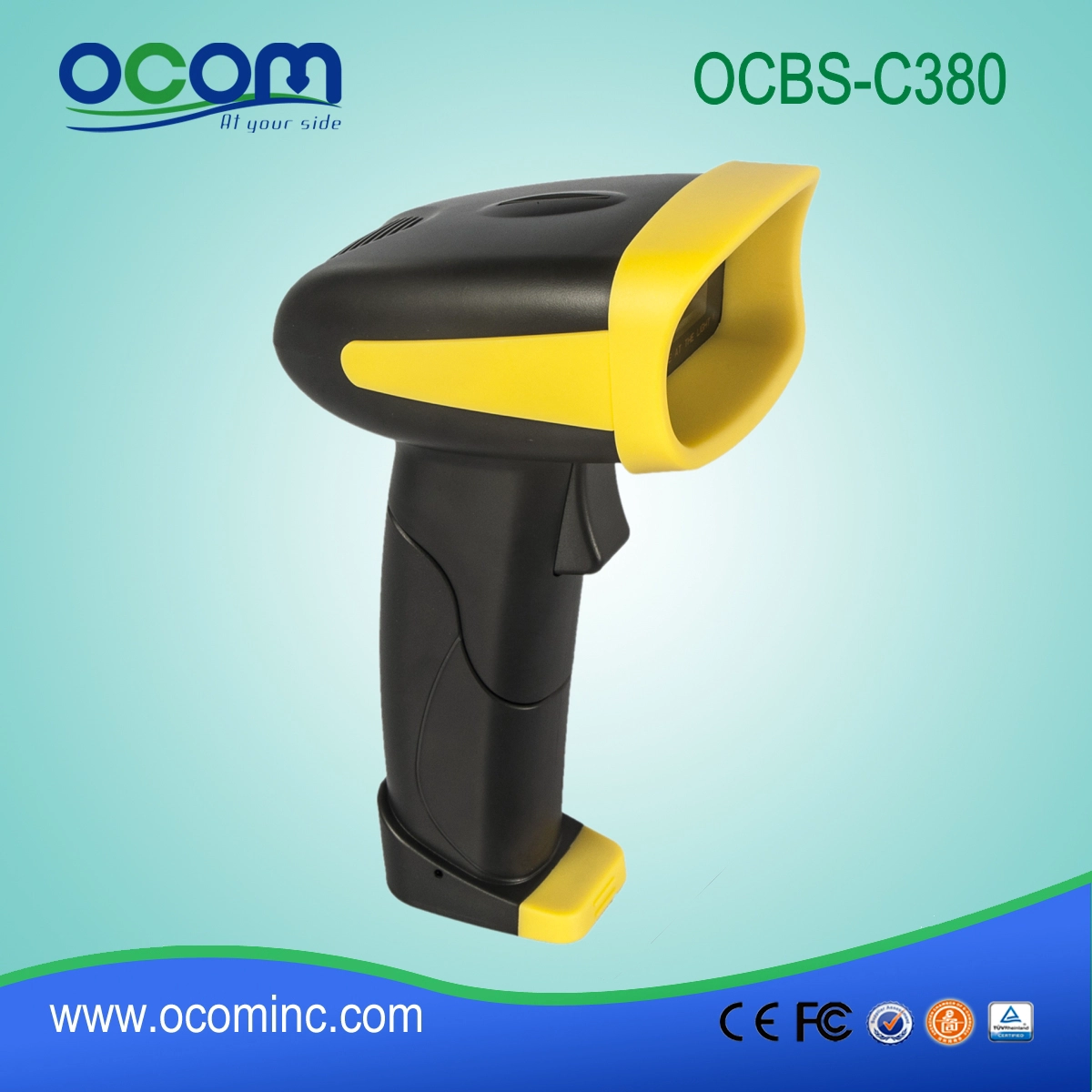

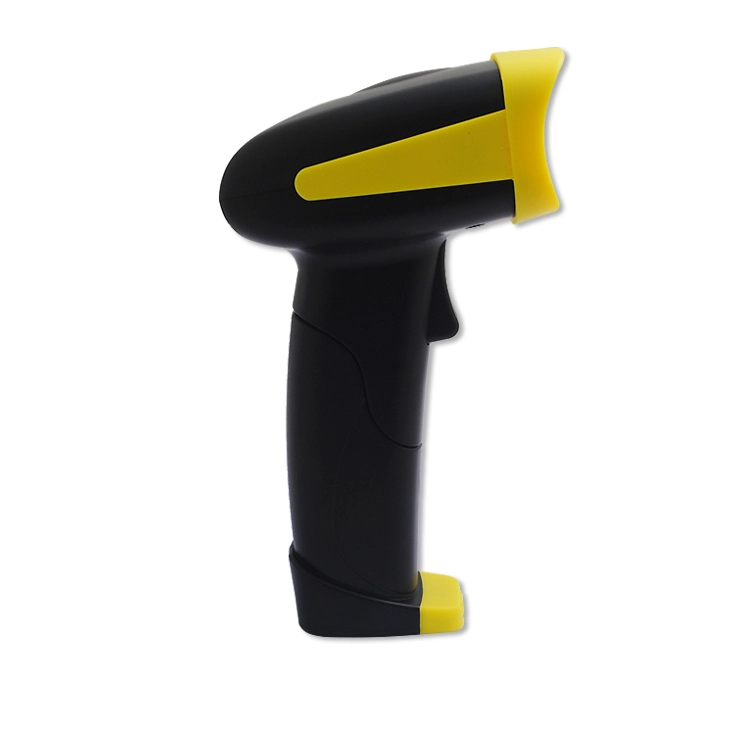

OCBS-C380 Long Distance CCD Barcode Scanner

  • FEATURE:
  • 300scans/sec
  • Long distance CCD sensor
  • Can read Screen Barcode
  • Industrial design, Impact-proof
  • Drop resistance design


Feature:

300scans/sec

Long distance CCD sensor

Can read Screen Barcode

Industrial design, Impact-proof

Drop resistance design



Technical Parameter

Electrical Characteristics

Voltage requirement

3.3V

Current consumption

Max170mA

Standby40mA

Optical Characteristics

Photo sensor

CCD linear sensor

Light source

622-628nm red LED

Lumination

265LUX(130mm)

Scan method

bi-directional

Scan Rate

300 scans/second

Min resolution

5mil

Tilt angle

±60°

Skew angle

±30°

 Pitch angle

±65°

Depth of Field

40mm-430mm

Min.PCS value

≥30%

Decode

Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar,Code 93

Physical Characteristics

Dimensions

65*155*95mm

Weight

132g

Material

ABS+PC

Interface

USB (default), RS232(customize)

Environmental Characteristics

Temp

-20°- 60°C(operation)     -40°- 85°C(storage)

Humidity

5 - 95% (operation)5 - 95% (storage)

Ambient Light

fluorescent light 4000 lx max,direct sun light 80,000 lx ma,

white light 4000 lx max

Shock drop test

1.2m drop onto concrete surface

Regulatory

EMI/RFI

CE EMC Class B

Package Infomation

20.2*12.2*7.2cm Weight297gwith USB cable
