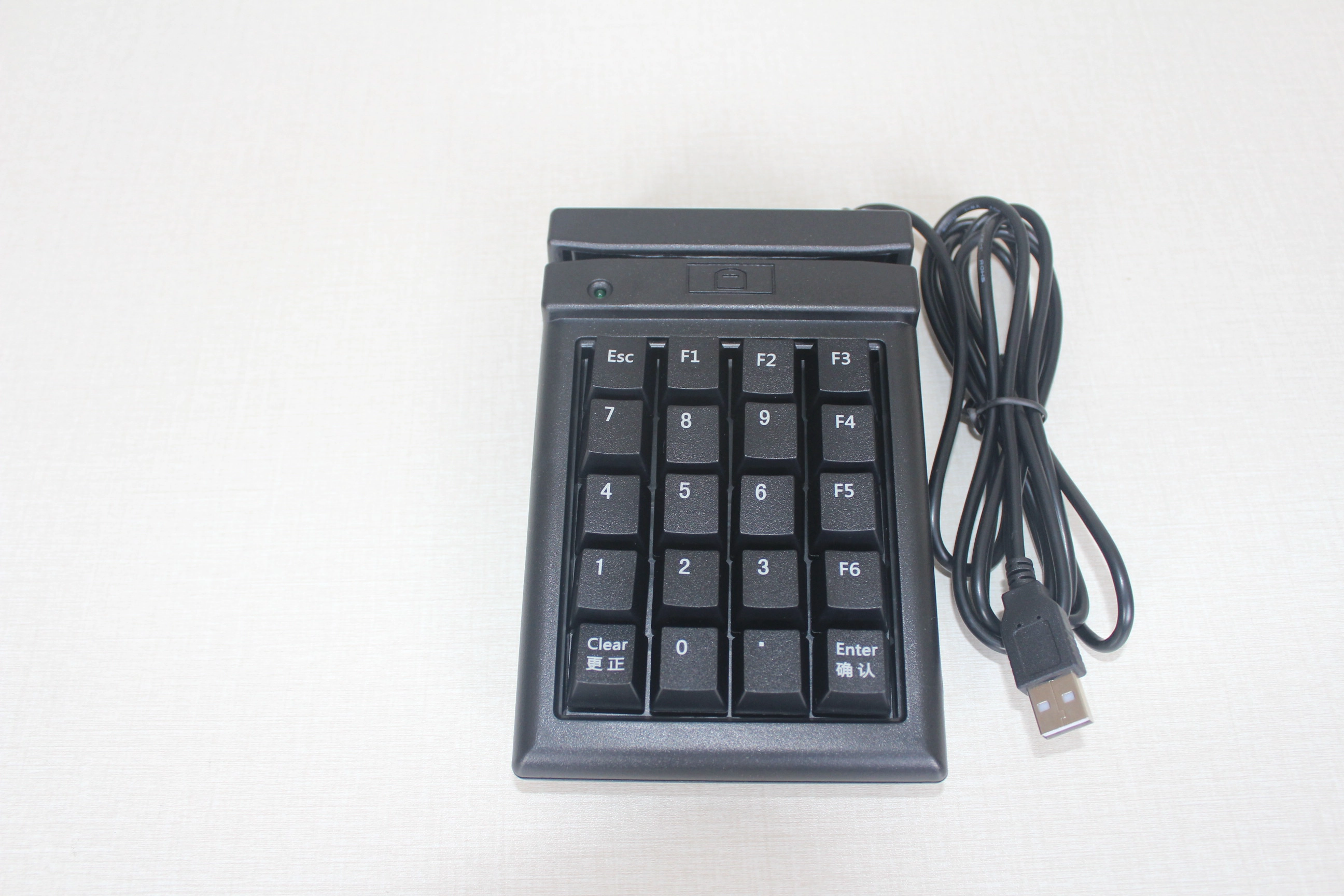

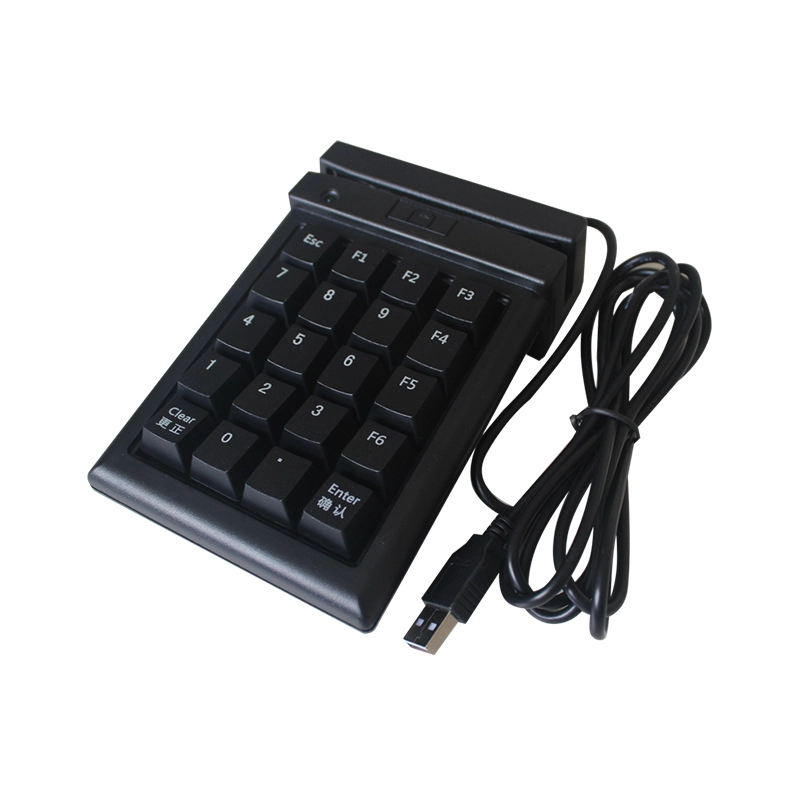

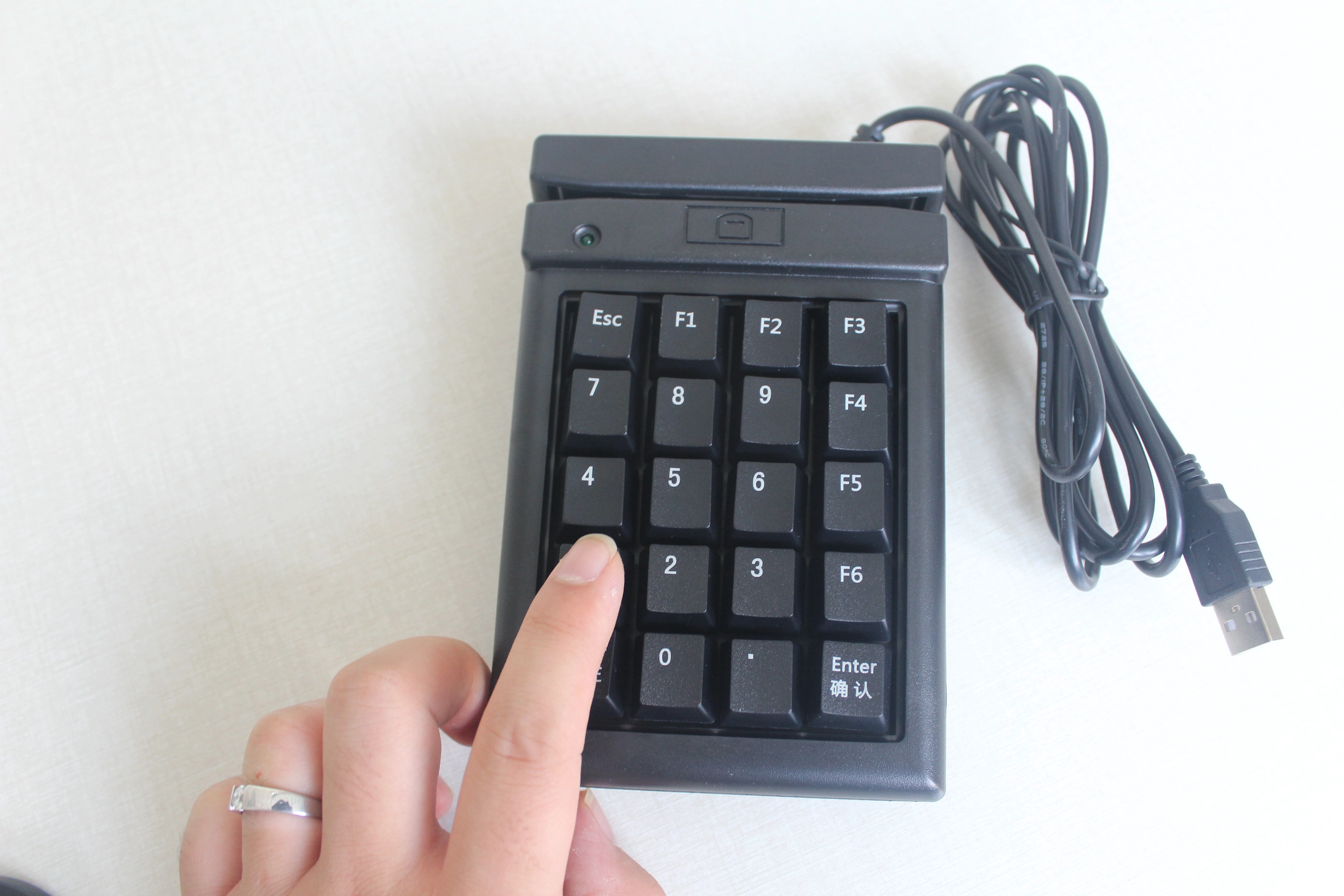

Mini Numeric Keypad With MSR Card reader(KB20R)Mini Numeric Keypad With MSR Card reader(KB20R)Mini Numeric Keypad With MSR Card reader(KB20R)

Mini Numeric Keypad With MSR Card reader(KB20R)

  • 1. Triple tracks.
  • 2. Built-in decoder
  • 3.20 keys pinpad
  • 4. Bi-directional operation
  • 5. Dual color LED to indicate a Good/Bad reading
  • 6. Stainless steel card guide
  • 7. ABS plastic cast case
  • 8. USB Interface cables include.
              Mini Numeric Keypad With Magnetic Stripe Reader
                                                     (M/N:KB20R)

SPECIFICATIONS



Mechanical:

Weight 450G

Dimensions 150mmL x 101mmW x 38mmH

Case    ABS plastic

Environmental:

Operating Temperature 0 to +50 deg C

Storage Temperature -20 to +70 deg C

Relative Humidity 90%, non-condensing

Vibration 40 G’s

Shock 40 G’s

Reading Performance:

Card feed speed 10 to 120 mm/second

Card feed force 0.6oz, typical

Magnetic head life 1,000,000 passes min.

Read error rate < 1 in 1000 passes

Electrical:

Voltage 5VDC +/- 10%

Current 30 ma

LED indicator Green - Good read or ready to read

Red - Bad read

Electrical Connections:

Connect the long cable to the computer USB port.

Interface:

   The KB20R (which Simulation of keypad working) communicate with system through the usb interface.



FUNCTIONAL TEST

KB20R

1. Test msr

To functionally test the KB20R will require the use of a standard credit

card. Place the credit card at one end of the Magnetic Stripe Reader.

Face the magnetic strip of the credit card toward the arrow of the MSR.

Move (swipe) the card through the reader. The KB20R is a bi-directional

device, therefore, it does not matter which direction the credit card is swiped.

The credit card information will appear on the monitor. The information

shown on the screen will vary according to the card used. The information

should look similar to the following:

Track 1                      %ABCD84045453?

Track 2                      ;9437577710640473475?

Track 3                       +43623562346655423465?



2. Test pinpad

The information entered from pinpad will be shown on the screen.

KB20R

1. Test MSR

To functionally test the KB20R will require the use of a standard

credit card and a communications utility program.

magnetic strip of the credit card toward the arrow of the MSR. Move

(swipe) the card through the reader. The KB20R is a bi-directional

device, therefore, it does not matter which direction the credit card is

swiped. The credit card information will appear on the monitor. The

information shown on the screen will vary according to the card used.

The information should look similar to the following:

Track 1                        ;9437577710640473475?

Track 2                        ;9437577710640473475?

Track 3                        +43623562346655423465?

2 .test pinpad

The information entered from pinpad will be shown on the screen
