(R10) RFID Card Reader(R10) RFID Card Reader(R10) RFID Card Reader(R10) RFID Card Reader(R10) RFID Card Reader(R10) RFID Card Reader

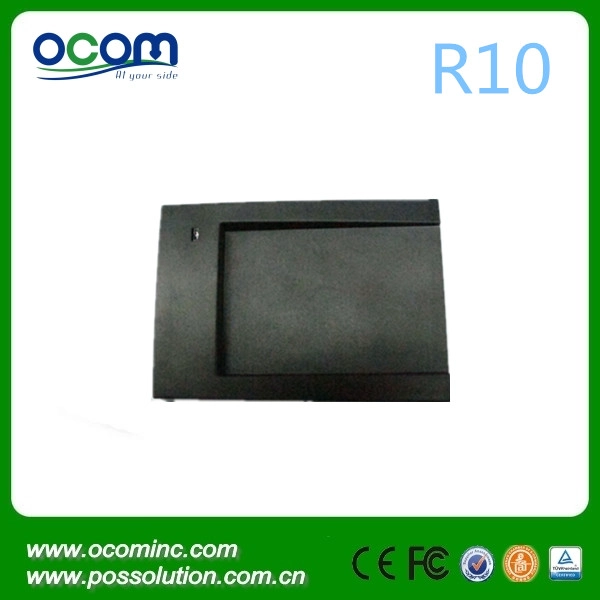

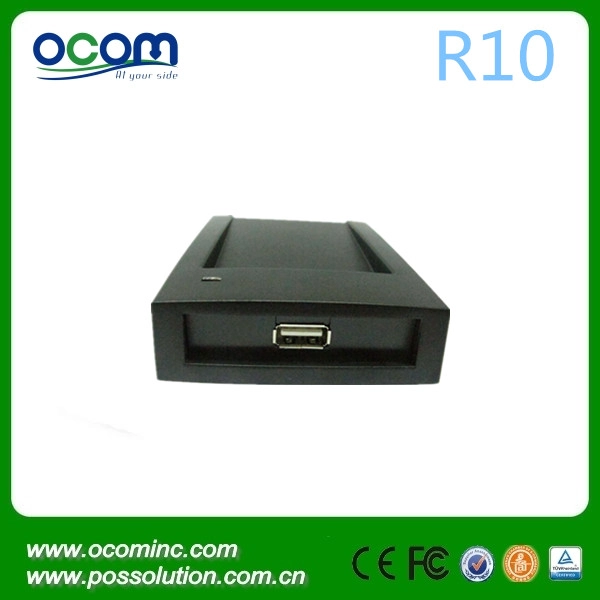

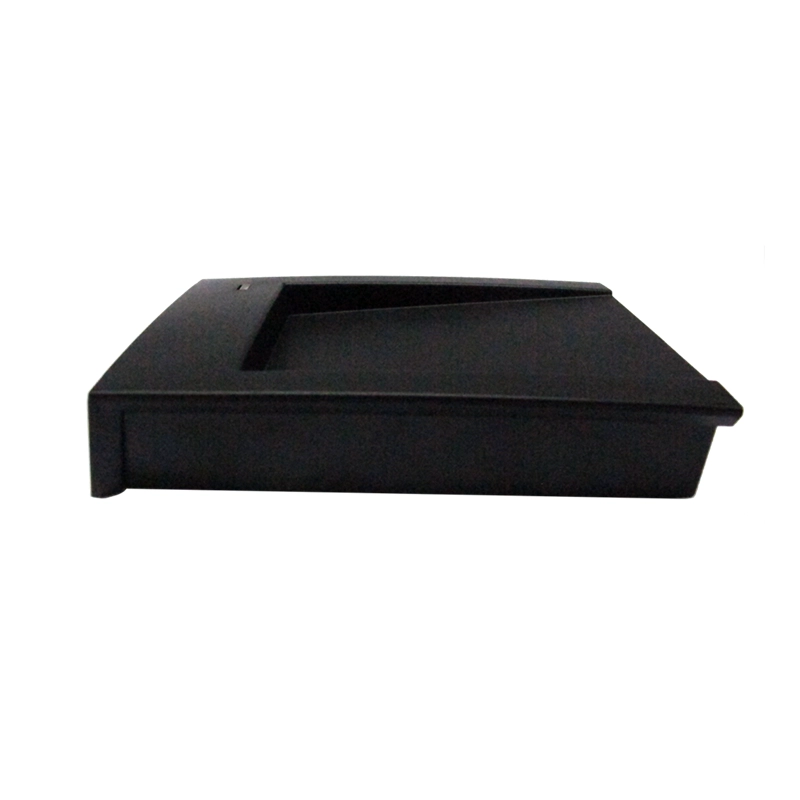

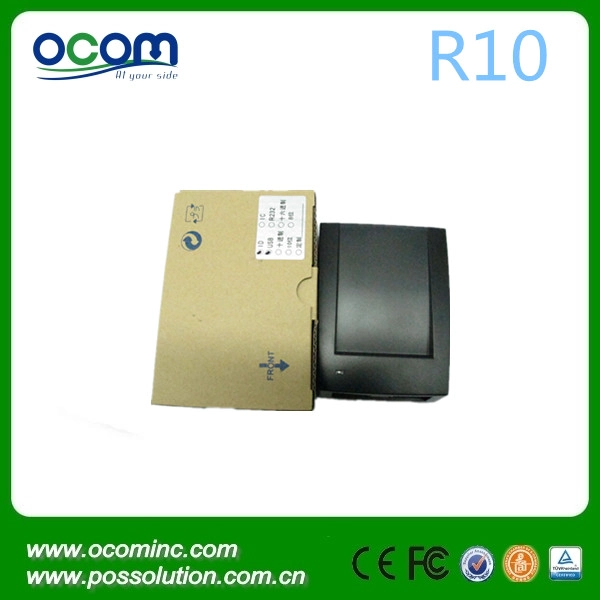

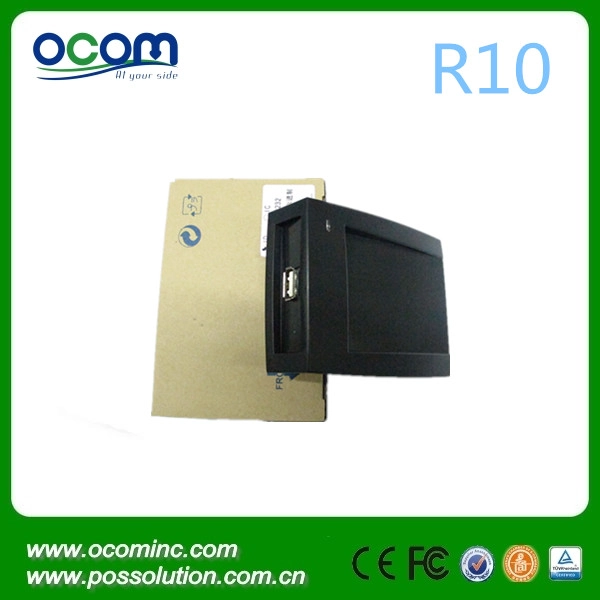

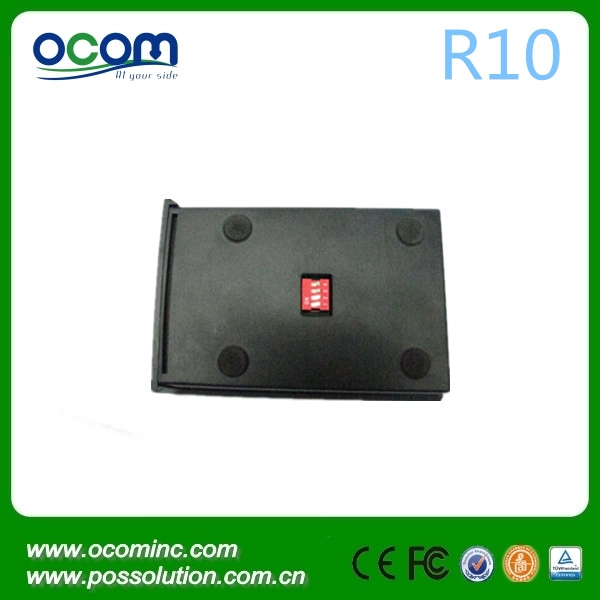

(R10) RFID Card Reader

  • USB plug and play (PS2, Serial port for option);
  • IC\ID\2nd generation identify card can be directly show in text file, word file etc (reader);
  • 125k, 13.56MHZ,  ISO14443 TYPEA/B ISO15693 protocol.

RFID Card Reader

(Model:R10)

Description:

This POS RFID Card Reader supports USB and RS232 communication. Reading distance less than 60mm. R10 is a portable mini POS RFID Car Reader.


Specification:

Model No R10
Frequency 125K or 13.56MHz
Protocol ISO 14443 TYPE A ISO 14443 TYPE B ISO15693
 Tag type ID IC (ISO 14443AB, ISO15693) 2nd Generation Identify Cards
Data format (1) Decimal 3 byte, (2) Decimal 4 byte, (3) Hex 4 byte, (4) Hex 3 byte, (5) last 8 bit, (6) Customizable Data Formatting
Reading time <100ms
Reading distance >60mm
Power supply 5V
Communication Interface USB or RS232
Operating temperature -10 degree~ 70 degree
Storage temperature -20 degree ~ +80 degree
Relative humidity Up to 90%
Dimension 10.8cm×7.8cm×2.8cm
Weight 120g (including cable)
