OCBP-004A-L Thermal Transfer Bar Code Label Printer Lan InterfaceOCBP-004A-L Thermal Transfer Bar Code Label Printer Lan InterfaceOCBP-004A-L Thermal Transfer Bar Code Label Printer Lan InterfaceOCBP-004A-L Thermal Transfer Bar Code Label Printer Lan InterfaceOCBP-004A-L Thermal Transfer Bar Code Label Printer Lan InterfaceOCBP-004A-L Thermal Transfer Bar Code Label Printer Lan Interface

OCBP-004A-L Thermal Transfer Bar Code Label Printer Lan Interface

  • 200 Mhz 32-Bit RISC Processor With 8 MB SDRAM,
  • 4 MB Flash Memory
  • Dual-Motor Gear Driven Design
  • 127 Mm (5”) Inches Per Second Print Speed
  • 300 Meter (984’) Ribbon Supply On a 25.4 Mm (1”) Core
  • Print Mechanism For Kiosk Application
  • TSPL-EZ™ Firmware Emulates TPLE And TPLZ Languages Support

OCBP-004A-L Thermal Transfer Bar Code Label Printer Lan Interface

(M/N:OCBP-004A-L)


1.Features:


200 Mhz 32-Bit RISC Processor With 8 MB SDRAM,

4 MB Flash Memory

Dual-Motor Gear Driven Design

127 Mm (5”) Inches Per Second Print Speed

300 Meter (984’) Ribbon Supply On a 25.4 Mm (1”) Core

Print Mechanism For Kiosk Application

TSPL-EZ™ Firmware Emulates TPLE And TPLZ Languages Support


2.Parameters:


PRINTER MODEL

OCBP-004A

OCBP-004B

Resolution

8 dots/mm(203 DPI)

12 dots/mm(300 DPI)

Printing method

Thermal Transfer & Direct Thermal

Max. print speed

127 mm (5”) / s

101.6 mm (4”) / s

Max. print width

108 mm (4.25”)

104 mm (4.09”)

Max. print length

2794 mm (110”)

1016 mm (40”)

Media type

Continuous, die-cut, black mark, fan-fold, notched (outside wound)

Media width

20-112mm (0.78”-4.4”)

Media thickness

0.06 ~ 0.254 mm (2.36 ~ 10 mil)

Label length

10 ~ 2,794 mm (0.39” ~ 110“)

10 ~ 1,016 mm (0.39” ~ 40“)

Label roll capacity

127 mm (5“) OD (outside wound)

Ribbon&Ribbon width

300 m long, max. OD 67 mm, 1“ core (ink coated outside) ,40 mm ~ 110 mm (1.6” ~ 4.3”)

Enclosure

Double-walled plastic

Physical dimension

234 mmWx194.8 mmH×302.5 mm D

Weight

3.1 kg6.83 lbs

Processor

32-bit RISC CPU

Memory



4MB Flash Menmory

8MB SDRAM

SD card reader for Flash memory expansion, up to 4 GB

Interface

• USB2.0• RS-232 (factory option)• Centronics (factory option)• Internal Ethernet, 10/100 Mbps (factory option)

• Bluethooth (factory option)• External 802.11 b/g/n wireless (factory option)

Power



External universal switching power supply

Input: AC 100-240V, 1A, 50-60Hz

Output: DC 24V, 2.5A, 60W

Operation switch,button,LED

1 power switch, 1 feed button & 1 LED (3 colors: red, purple & bule)

Sensors

Black mark reflective sensor (position adjustable)

Head open sensor

Transmissive gap sensor

Ribbon end sensor

Real Time Clock

Standard

Internal fonts

8 alpha-numeric bitmap fonts

Support TTF Font.

Bar code

1D barcodeCode 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits  add-on, MSI, PLESSEY, POSTNET, China POST

2D bar codePDF-417, Maxicode, DataMatrix, QR code

Graphic

BIMAP,BMP,PCX(Max. 256 colors)

Font and barcode rotation

90°180°270°

Printer language

TSPL (EPLZPLDPL)

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing

Storage: -40 ~ 60°C, 10 ~ 90% non-condensing

Safety regulation

FCCCE、 CCCCB

Environmental concern

Comply with RoHS

Accessories

Windows labeling software CD diskQuick start guideUSB cablePower cordExternal universal switching power supplyLabel spindle, fixing tab x 2, 1.5“ core adapter x 2Ribbon spindle x 2Ribbon paper coreMedia

Factory options

Internal Ethernet, 10/100 Mbps, RS-232  ,Centronics parallel interface

Dealer options

Peel-off module, Guillotine cutter (full cut or partial cut) Media thickness 0.06 ~ 0.19mm,500000 cuts;0.20 ~ 0.25mm,200000 cuts

User options

External roll mount, media OD. 214 mm (8.4”) with 25.4 mm (1”) core , External roll mount board,  Bluetooth module (serial interface), 802.11 b/g/n wireless module (serial interface), RFIDmodule.

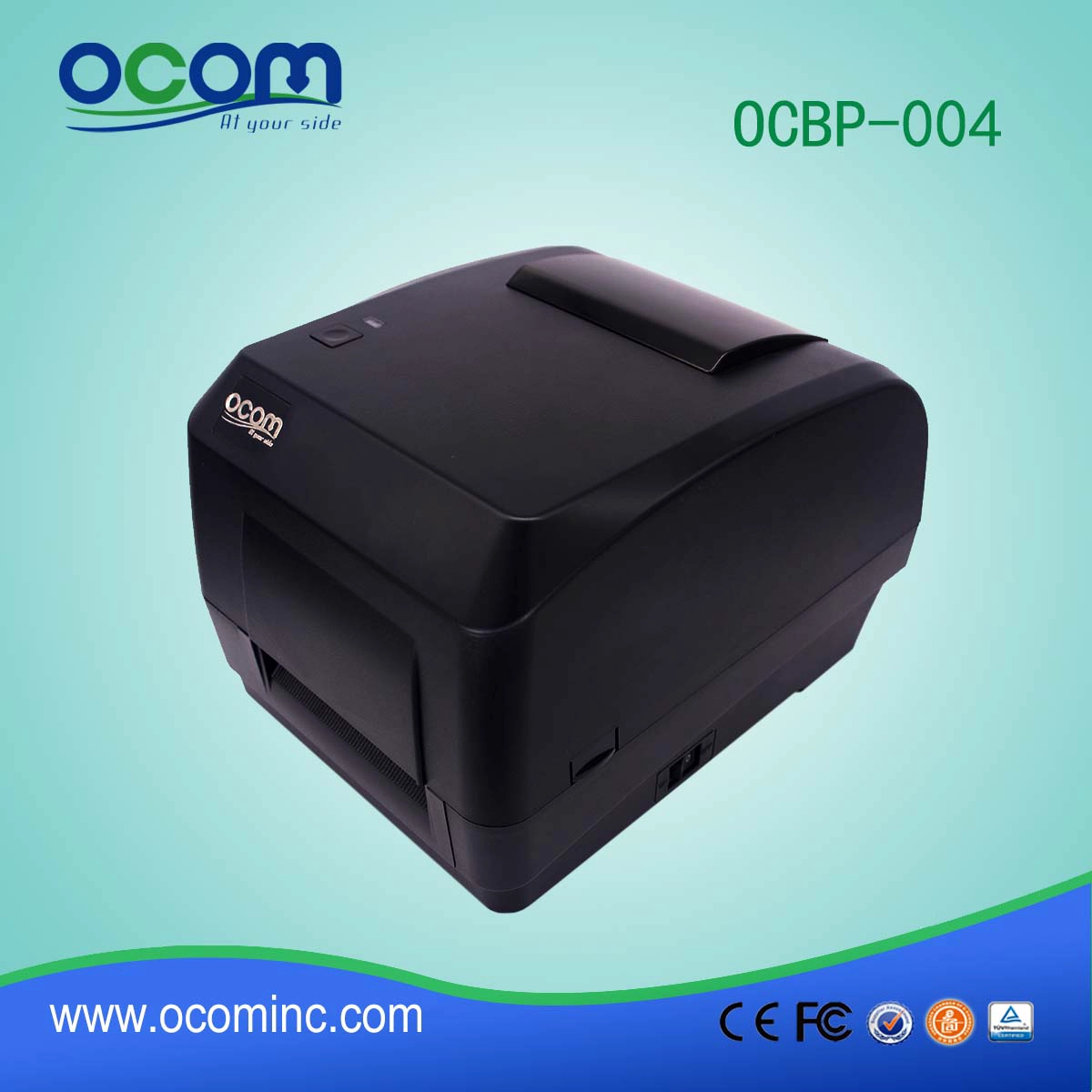

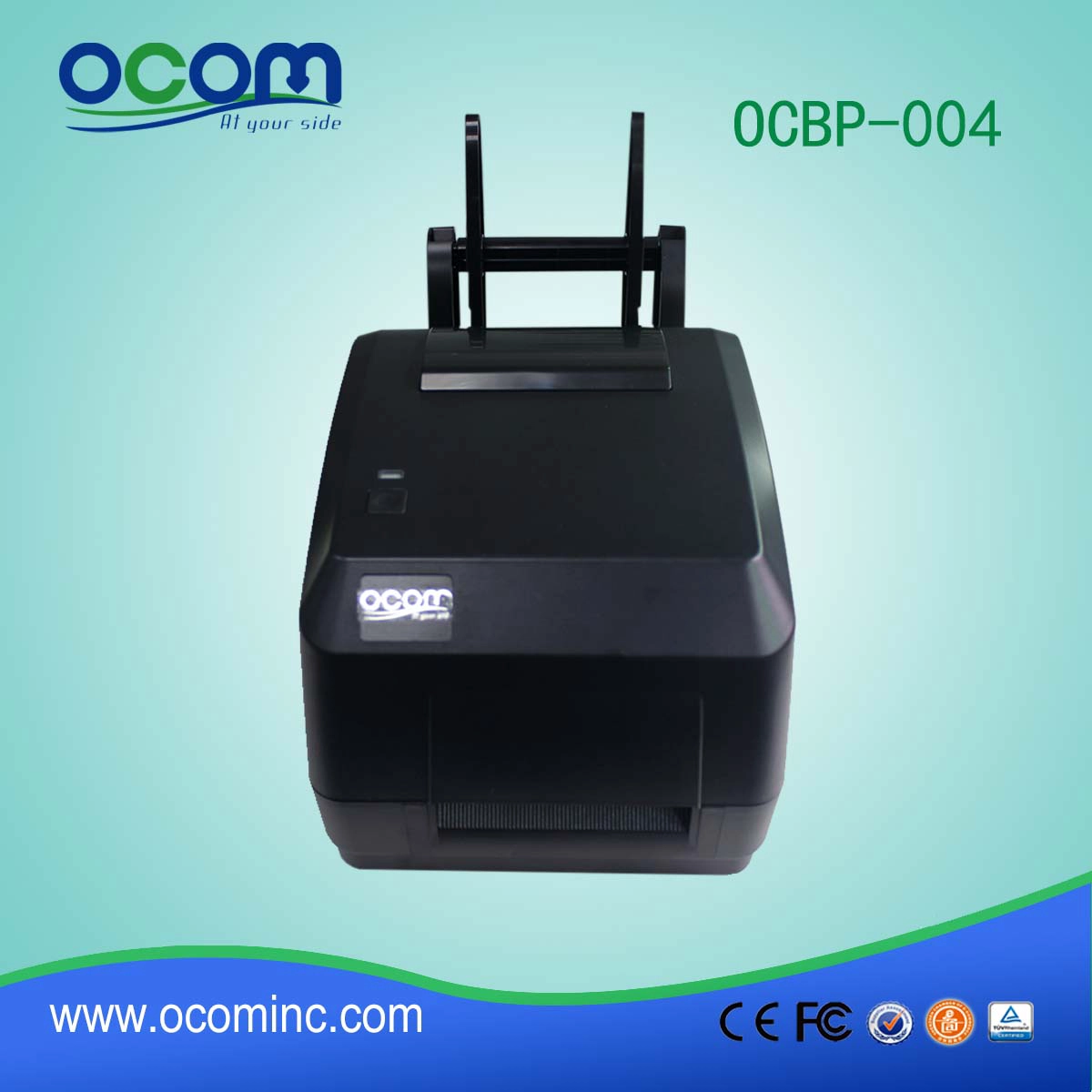

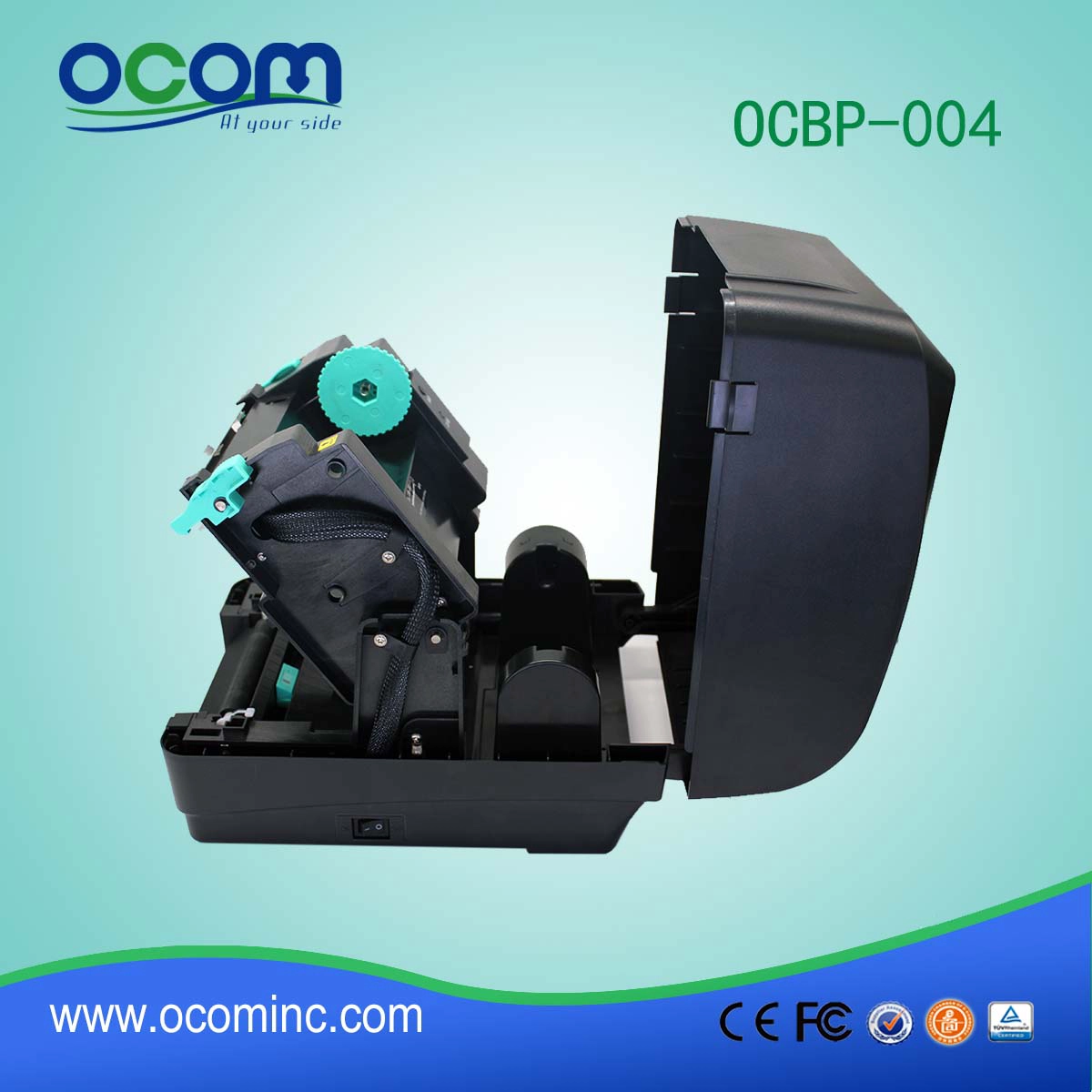

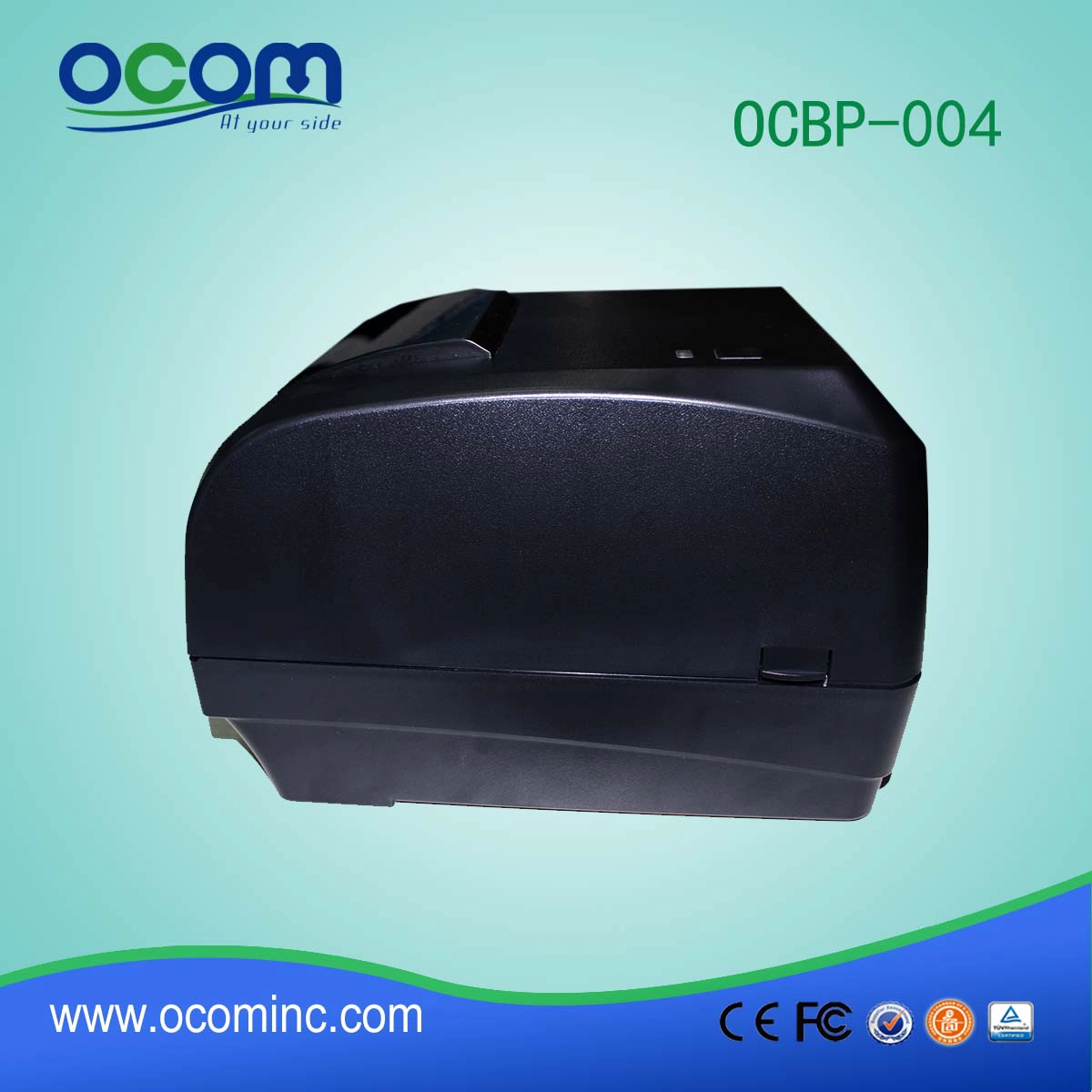

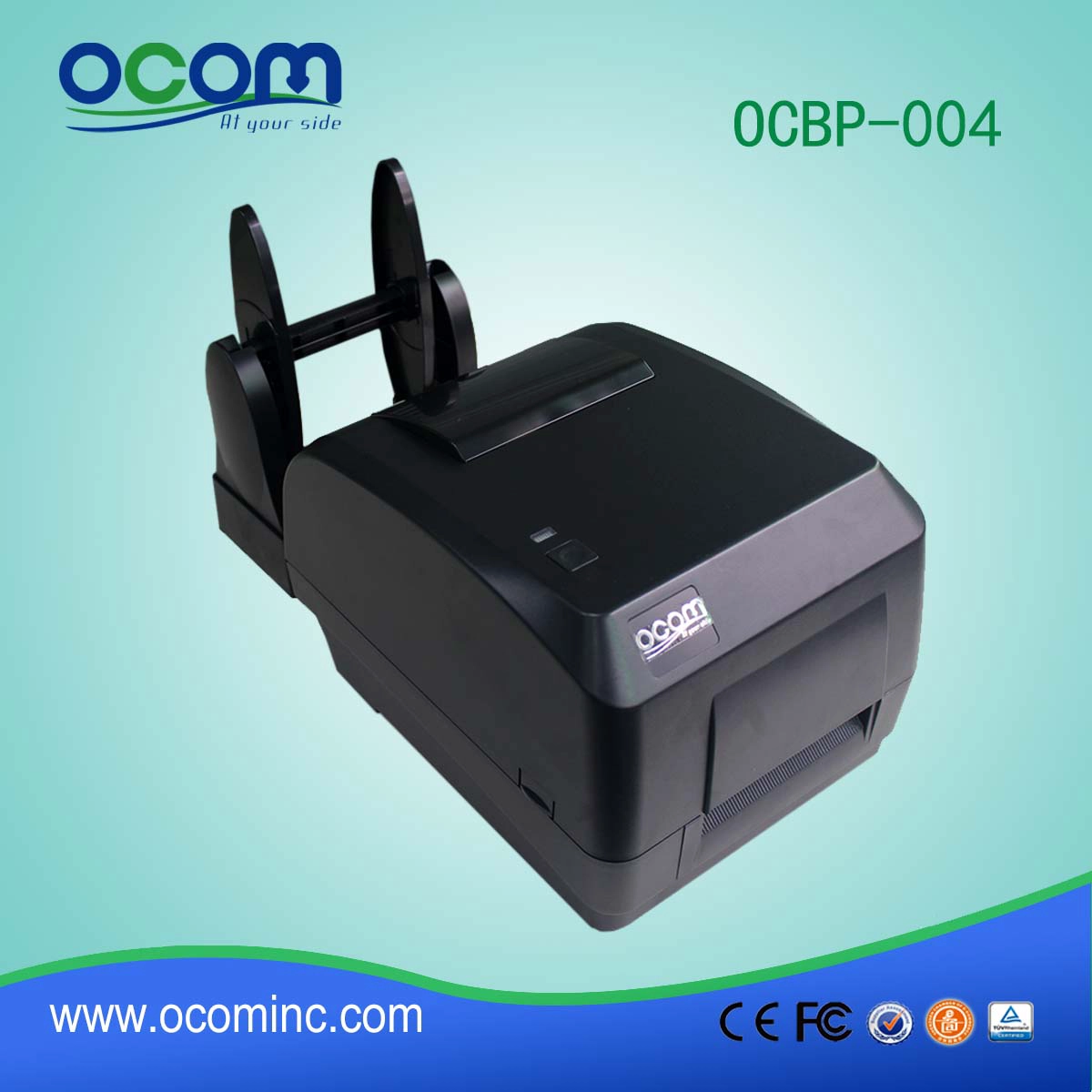

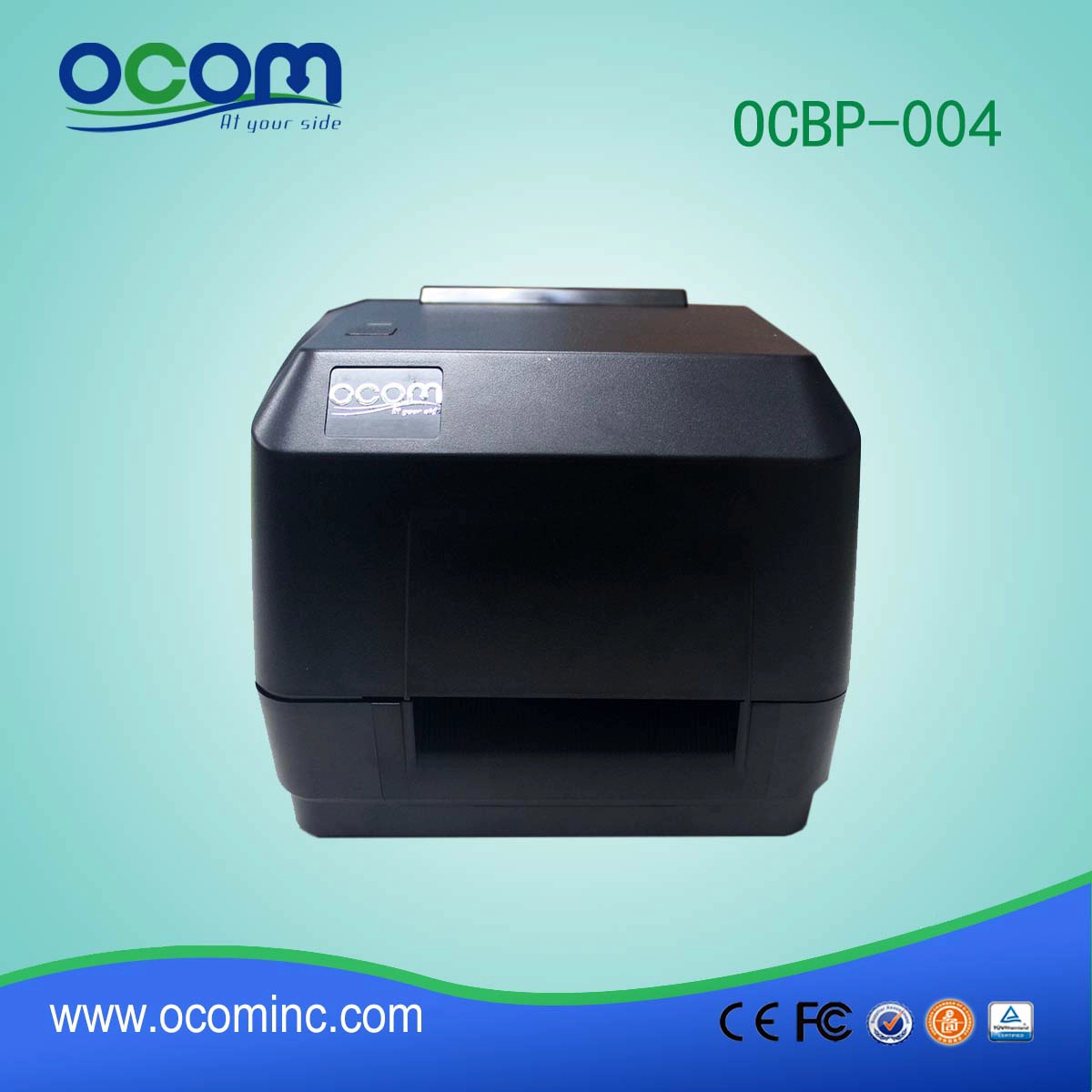

3.Product show:



4.FAQ:

1). MOQ policy

No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.

For customized production, you can discuss the MOQ with our sales representative directly.

2). Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.

All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.

You can buy the samples from us directly using t/t, western uion, or paypal. And you can also buy it on our online store at aliexpress:http://www.aliexpress.com/store/403448?tracelog=minisite_CI.

3). Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;

We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.

Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;

Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.

For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.

4). Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.
