OCPP-58E-U 58mm thermal receipt printer with built-in power adaptorOCPP-58E-U 58mm thermal receipt printer with built-in power adaptorOCPP-58E-U 58mm thermal receipt printer with built-in power adaptorOCPP-58E-U 58mm thermal receipt printer with built-in power adaptorOCPP-58E-U 58mm thermal receipt printer with built-in power adaptor

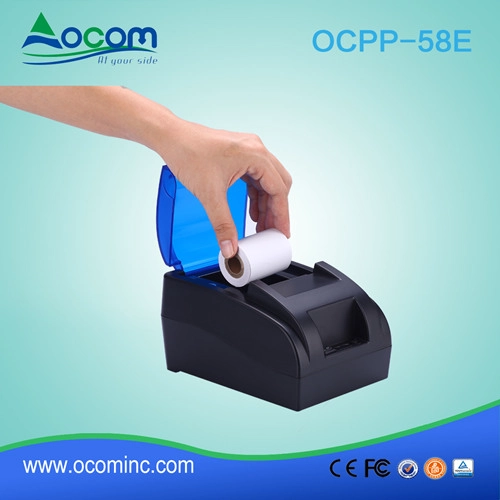

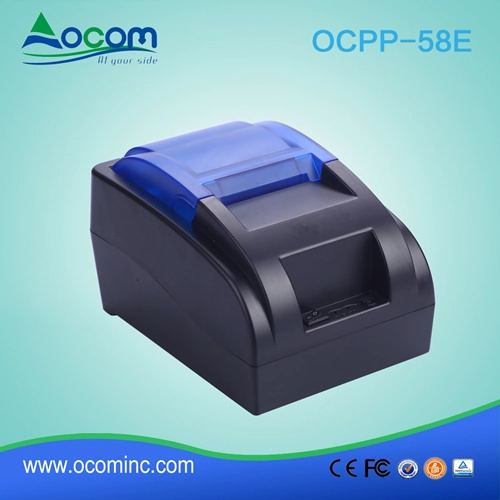

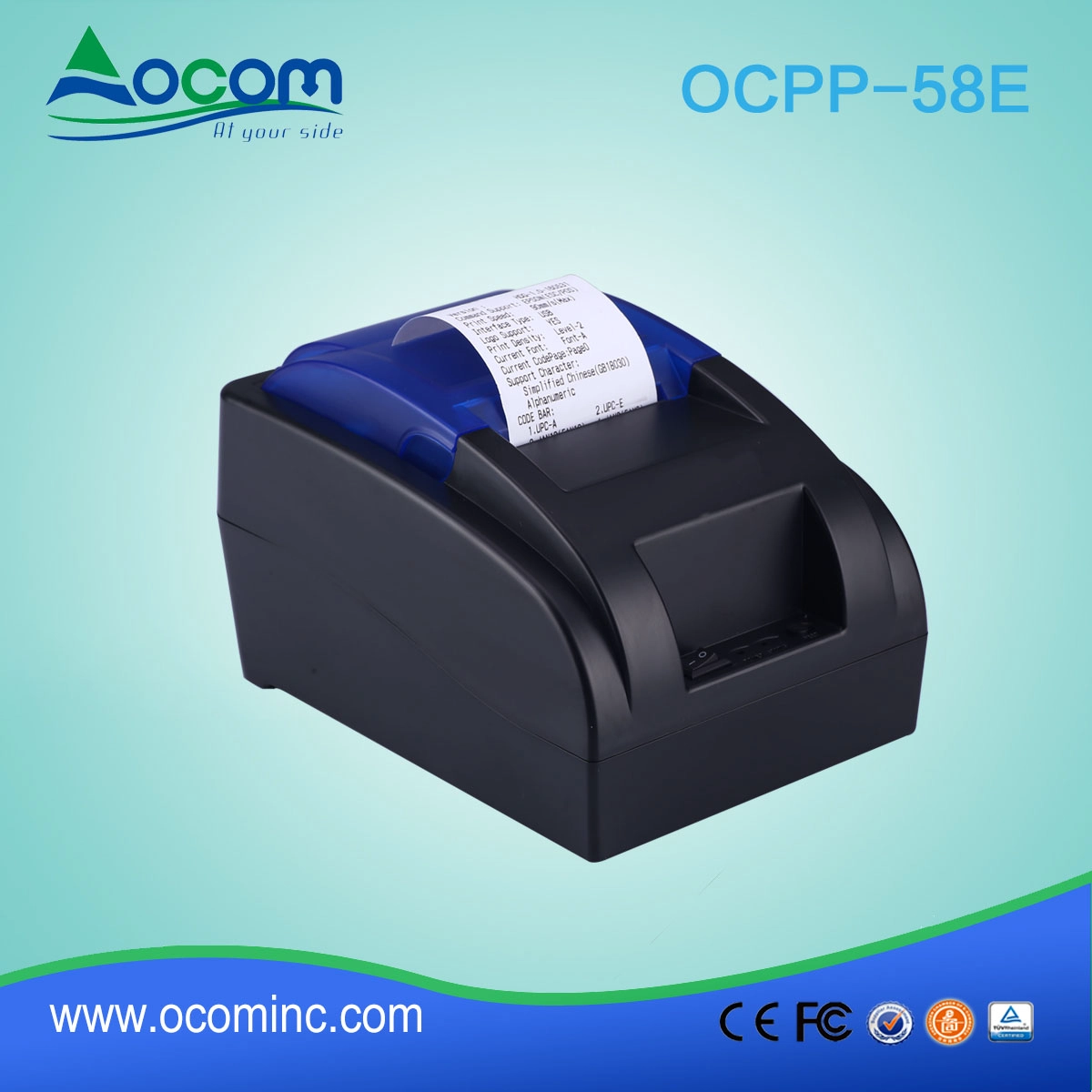

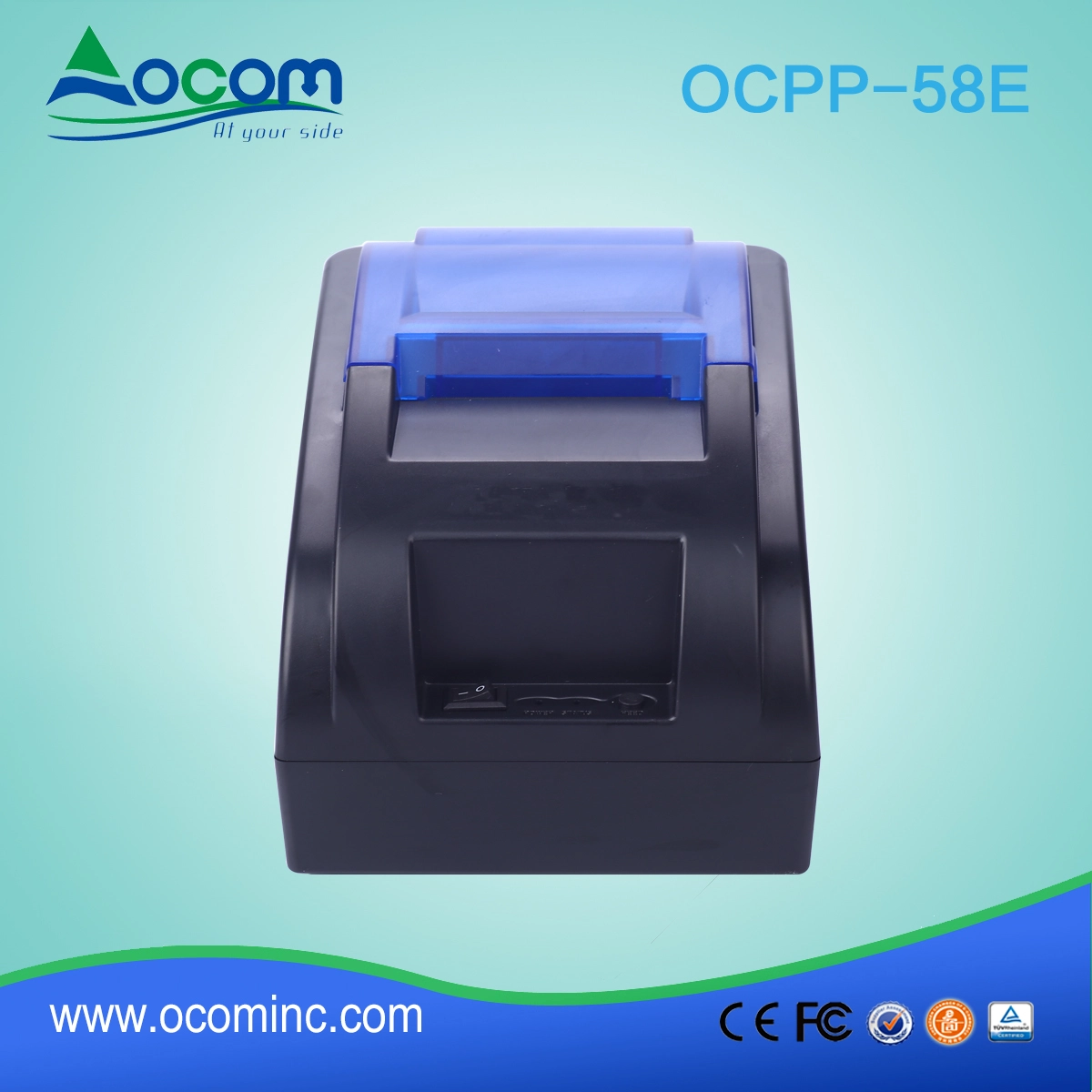

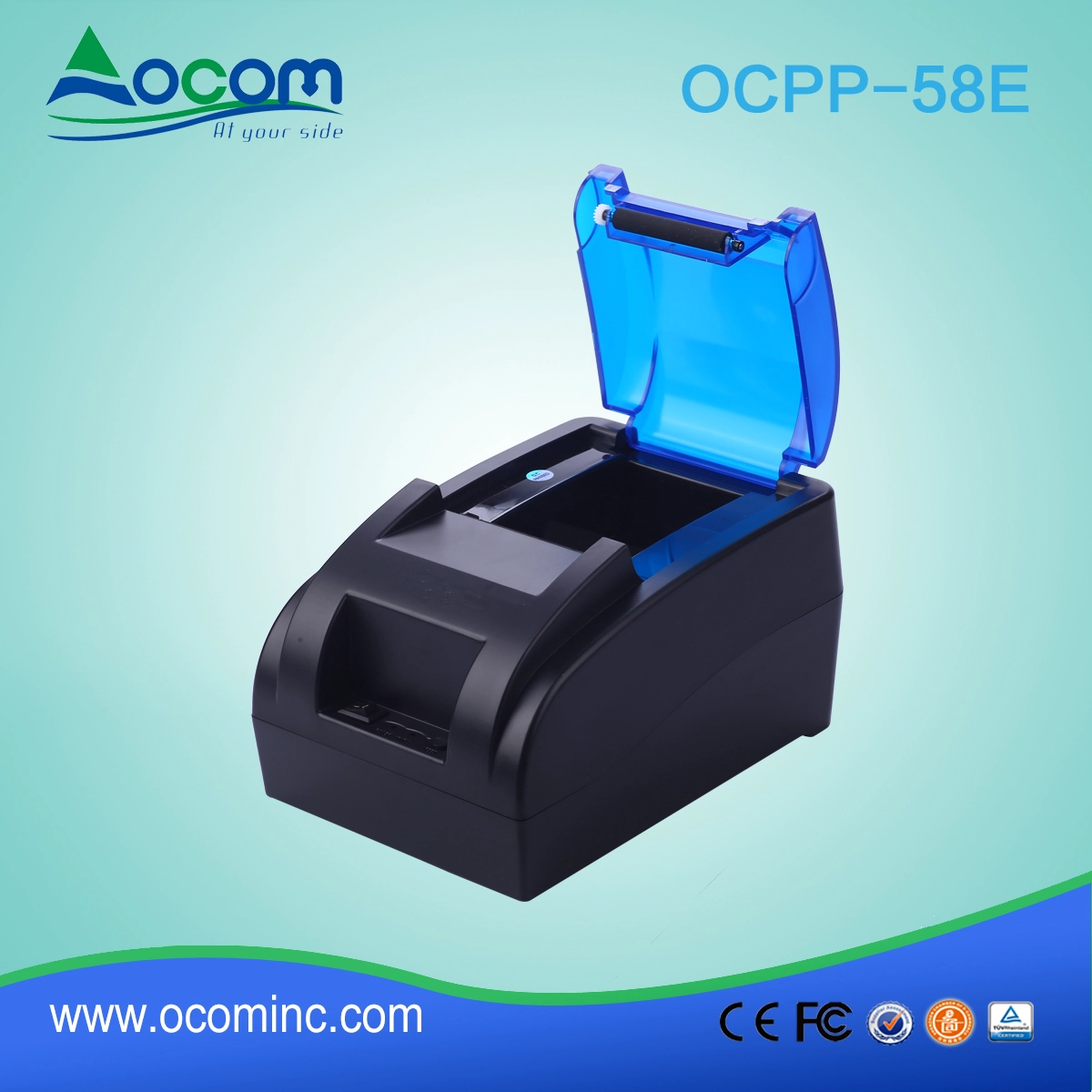

OCPP-58E-U 58mm thermal receipt printer with built-in power adaptor

  • Simple and fashion,With solid material,exquisite workmanship.
  • Easy paper install structure,simple and convenient to operate
  • Built-in power supply design, to save space and more convenient to configure;
  • Transparent cover design, the user can know the paper roll’s using status anytime;
  • Support GB18030 big font, easy to print uncommon characters
  • Support multi language print, suitable for users all over the world;
  • Support download and print LOGO&graphics.

58mm thermal receipt printer OCPP-58E-U Bluetooth Communication

(OCPP-58E-U)

Product Introduction:

OCPP-58E is a

well-designed economic printer for common thermal bill printing ,this mold is with solid material,

Exquisite workmanship.Transparent cover design, simple and fashion, easy for users to know

the paper rolls’ Using status,OCPP-58E adopt built-in power supply,not only can save space,

but also easy for users to configure and use the printers.It’s a very good choice for economical

printing.

Product Features

Simple and fashion,With solid material,exquisite workmanship.

Easy paper install structure,simple and convenient to operate

内置电源设计,节省空间,配置更方便;

Built-in power supply design, to save space and more convenient to configure

透明翻盖设计,用户能随时掌握纸卷使用情况;

Transparent cover design, the user can know the paper roll’s using status anytime

支持GB18030大字库,轻松打印生僻字

Support GB18030 big font, easy to print uncommon characters

支持多国语言打印,适合世界各地使用;

Support multi language print, suitable for users all over the world;

支持LOGO和图形下载和打印功能;

Support download and print LOGO&graphics ;

支持WindowsLinuxAndroidIOS系统打印;

Support Windows, Linux, Android and IOS system printing

Application Area

Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal

Parameters

Items

Parameters











Print parameters

Printing Method

Thermal Line

Printing Width

48MM

Resolution

384dots/Line8dots/mm203dpi

Printing Speed

90mm/Second

Interface Type

USBUSB+Bluetooth

Line Spacing

3.75 mmCan adjust line spacing by command

Line No.

Font A:32 character /Line

Font B:42 character/Line

Simple,traditional Chinese-16 lines

Character

Standard GB18030 simplified / traditional Chinese Fonts

Character Size

ANKcharacterFont A1.5×3.0mm12×24dots
Font B1.1×2.1mm9×17dots Simplified/Traditional Chinese3.0×3.0mm(24×24 dots

Bar code Character

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

Bar code

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128

Graphics printing

Graphics printing

Supports bitmap download and print



Paper

Type

Thermal Roll

Width

57.5±0.5mm

Diameter

60mm

Feed Method

Easy feed(Clameshell feed)

Print commands

Commands

ESC/POS

Power

Power Adaptor

InputAC 100V-240V,50-60Hz

OutputDC 12V/2A

Casher Drawer output

DC 12V/1A

Buffer

Input Buffer

4K

NV Flash

40K

physical characteristics

Weight

590g

Dimension

185*130*112(MM)

Environment

Working

Temp5 ~ 45℃, Humidity10 ~ 80%



Storage

Temp-10 ~ 50℃ Humidity10 ~ 90%No dew

Reliability parameter

Print Head Life

50KMprint density≤12.5
