POS-C12-W Windows based 12 inch all in one touch POS cash register terminalPOS-C12-W Windows based 12 inch all in one touch POS cash register terminalPOS-C12-W Windows based 12 inch all in one touch POS cash register terminal

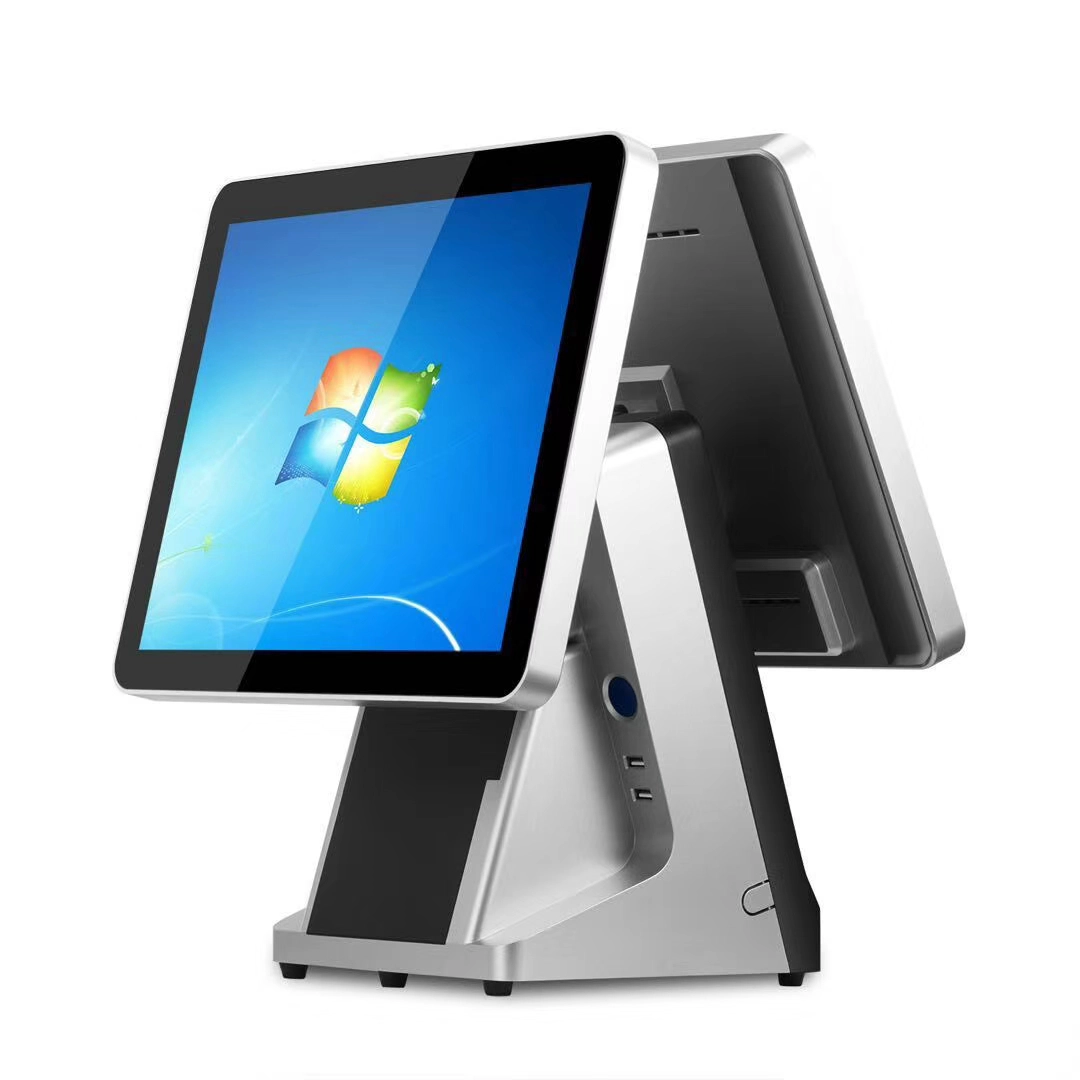

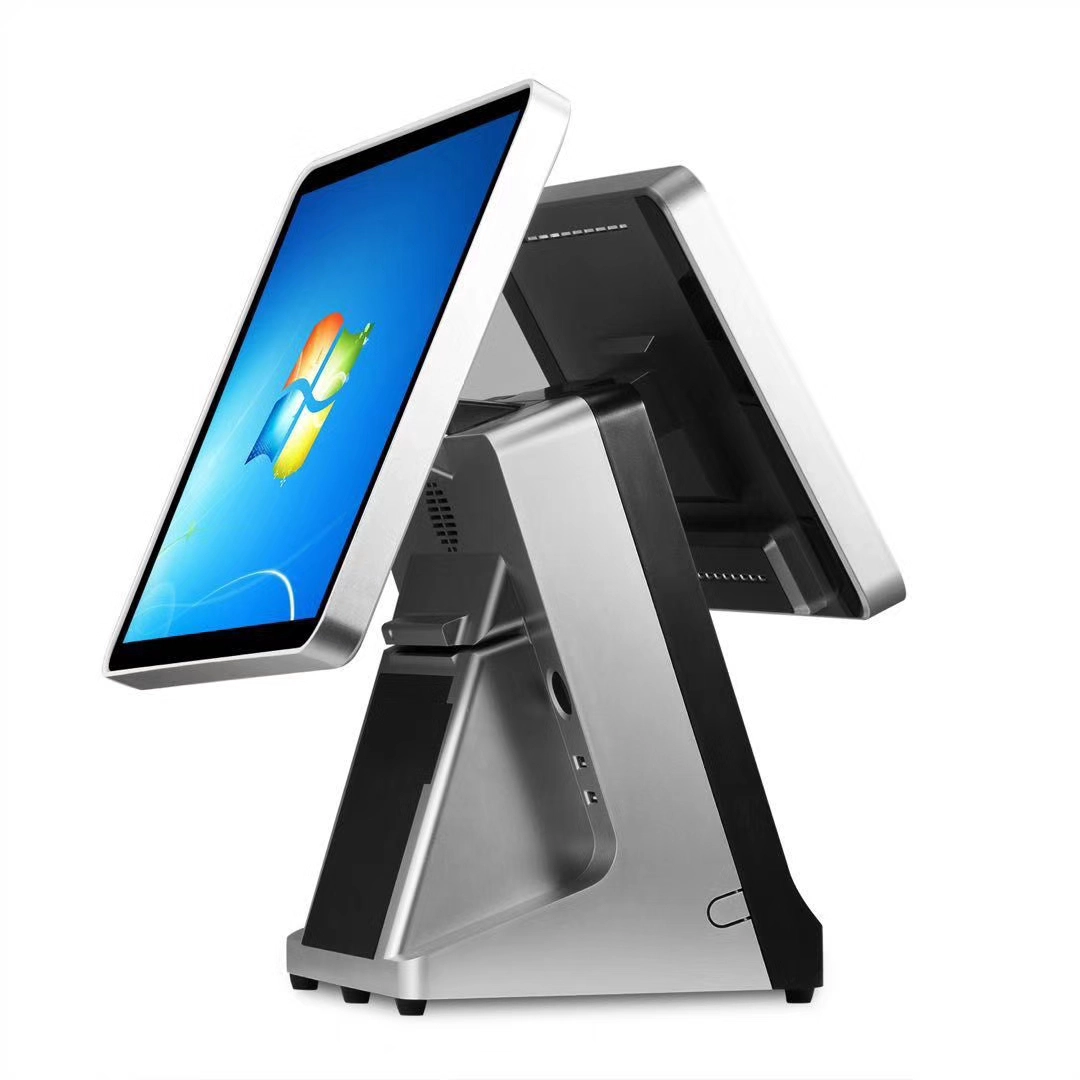

POS-C12-W Windows based 12 inch all in one touch POS cash register terminal

  • Intel Celeron Processor J1900 Quad core 2.0GHz High Configuration CPU for Windows system
  • 2.0GHz A83T ARM 8-Core Cortex-A7 Processor for Android system
  • 2GB RAM+8GB ROM standard (Android)
  • 2GB RAM+32GB SSD standard (Windows)
  • 5 wire resistive touch screen(default),Capacitive screen for optional
  • 58/80mm embedded thermal printer for optional
  • Magnetic member card reader for optional
  • VFD customer display or vice screen
POS-C12-W Windows based 12 inch all in one touch POS cash register terminal

Features:

 Intel Celeron Processor J1900 Quad core 2.0GHz High Configuration CPU for Windows system
 2.0GHz A83T ARM 8-Core Cortex-A7 Processor for Android system
 2GB RAM+8GB ROM standard (Android)
 2GB RAM+32GB SSD standard (Windows)
 5 wire resistive touch screen(default),Capacitive screen for optional
 58/80mm embedded thermal printer for optional
 Magnetic member card reader for optional
 VFD customer display or vice screen

Specification:

Model
POS-C15/C12
Color
Silver-gray, white or Black
CPU
Intel Celeron J1900 Quad core 2.0 GHZ
CPU
2.0GHz A83T ARM 8-Core Cortex-A7 Processor
Memory
DDRIII 1066/1333*1 2GB (default) (Windows)
Memory
2GB RAM  8GB ROM (Android)
OS
Windows7(Beta)
OS
Android 5.1
Hard Driver
SSD 32GB (default) (Windows)
LCD panel Size
15 inch TFT LCD
Brightness
350cd/m2
Resolution
1024*768(max)
Touch Screen
Capacitive touch screen

Printer Parameter
Print Density
203dpi

Printing Command
ESC/POS

Paper Roll  Diameter
60mm

Paper Width
58mm or 80mm

Printing Speed
60mm/s or 150mm/s

MCBF(life)
50km
Other optional function
MSR/ VFD220 customer display/ vice screen
View Angle
Horizon: 150; Vertical :140
I/O port(J1900)
1* power button 12V DC in jack*1

HDMI*1

VGA(15Pin D-sub)*1

LAN:RJ-45*1

USB(2.0)*4

RS232*2

MIC IN*1 Audio out*1
I/O port(A83T)
RJ11*1 (Optional)

TF slot *1

RJ45*1

HDMI for vice screen

DB9 RS232 port*1,USB*2

Audio*1
Operating temperature
0℃ to 40℃
Storage temperature
-20℃to 60℃
Operating System
Windows XP above,  Embedded,WEPOS,Linux
Power adapter
110-240V/50-60HZ AC power,  Input DC12/5A out put
