Price Display Screen Customer Display For StorePrice Display Screen Customer Display For StorePrice Display Screen Customer Display For StorePrice Display Screen Customer Display For StorePrice Display Screen Customer Display For StorePrice Display Screen Customer Display For Store

Price Display Screen Customer Display For Store

  • High brightness LCD Display for excellent visibility over a wide viewing angle;
  • Available in 12mm high characters;
  • 60 characters in 30 columns by 2 lines format;
  • Thirteen sets of international characters, plus one set of user defined characters allows total flexibility in display fonts;
  • Easy programming using Escape sequence commands;
  • Emulation of,Epson and CD5220 command sets;
  • Display can swivel and tilt to a wide range of angles;
  • Adjustable display height;
  • Power may be sourced from system, with the bracket and cable kit supplied in typical configuration;
  • AC adaptors in various configurations for all AC voltages;

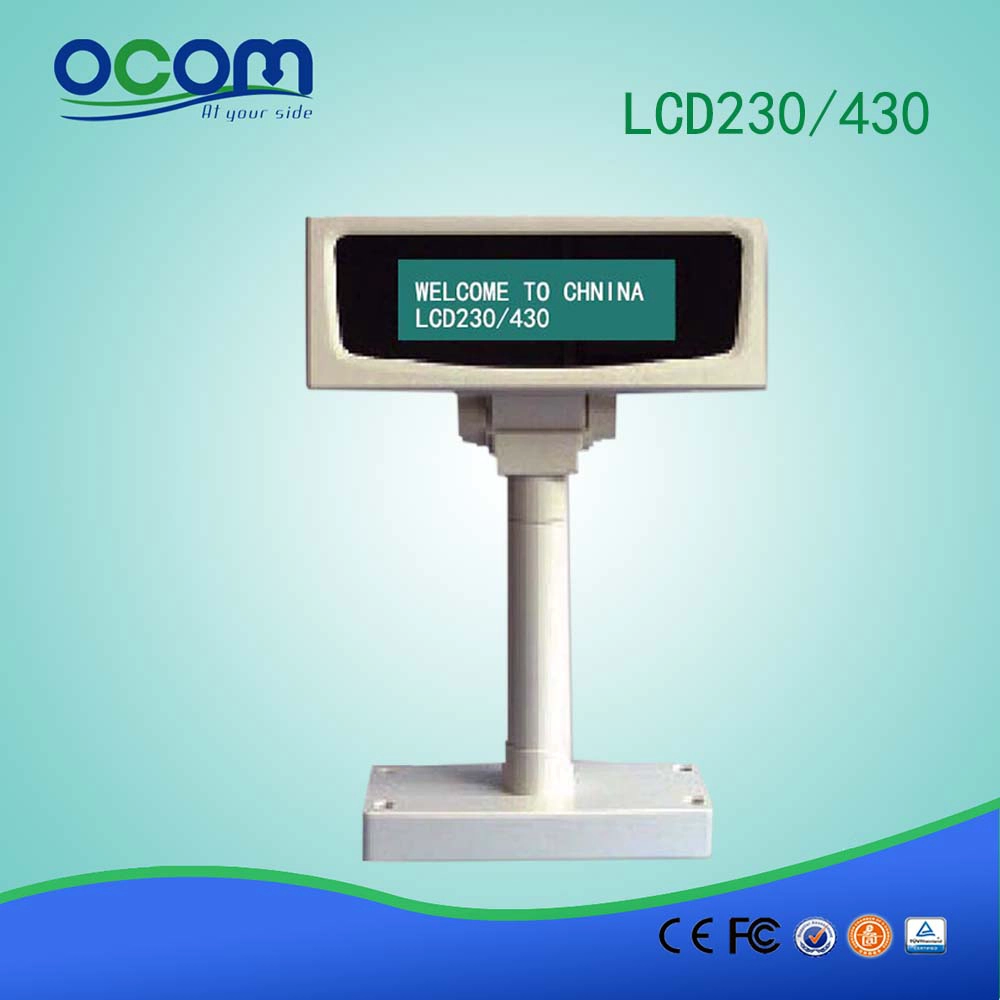

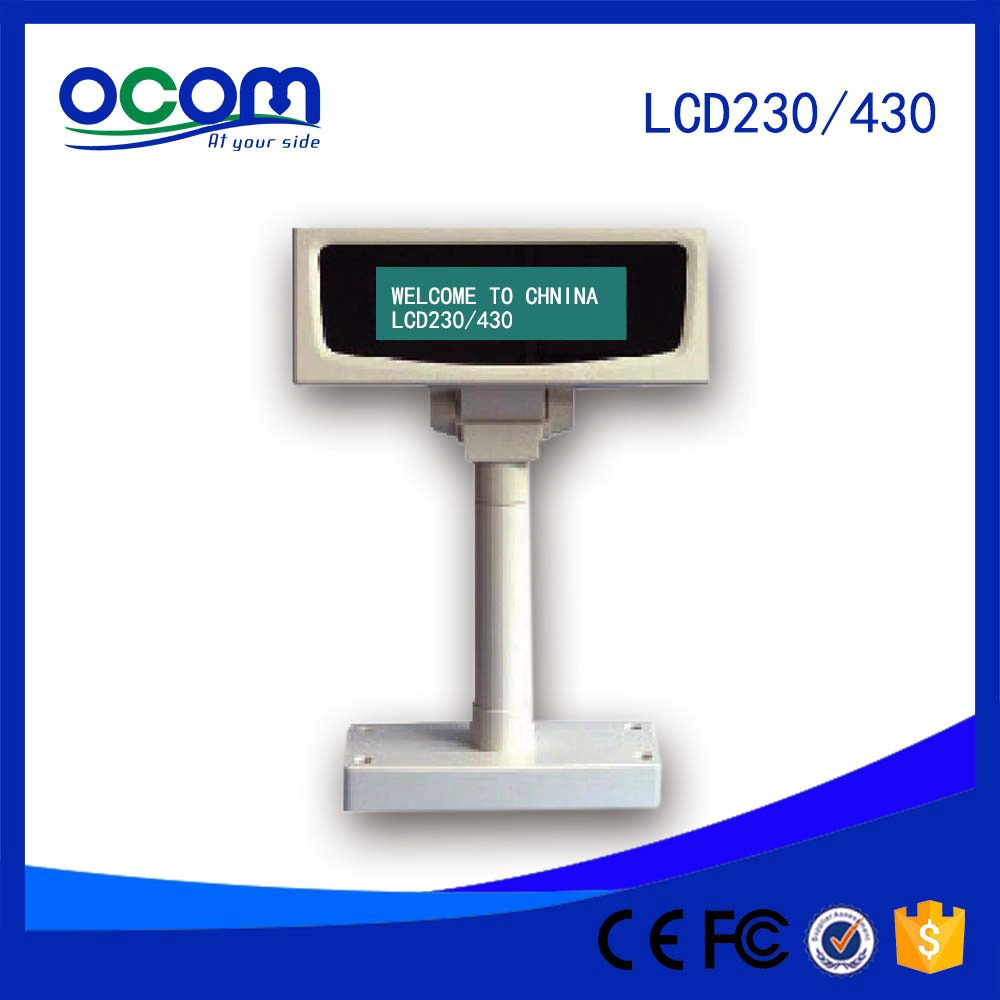

Price Display Screen Customer Display For Store

                                       (ModelNo.: LCD230)

Communication:

Parameter

Description

Model

LCD230

Display mode

STN quid crystal display(LCD)

Display Characters Per Frame

30 Characters/line*2lines

Pixel

240*64 dots

Display Color

The blue color underpainting of white text

Brightness

160 cd/㎡

Font Size

6.36mm *12.72mm

Power Supply

DC12V/1A or USB 5V optional

Power dissipation

2.5W

Useful life

20000 H

Communication Interface

RS232C

Band rate

2400/9600BPS

Display surface size

190(W)X60(H)mm

Degree rotation angle

270

Weight

1.5KG

Working temperature

0—50 celsius

Operating humidity

30%—80%

Storage Temperature

0—60 celsius

Storage humidity

10%--90%

Operating system support

Windows 95、 Windows 98、Windows 2000 、Windows XP 、Windows 2003 、Windows2008、 Windows Vista、Windows 7

Display commands

  ESC/POS     CD5220



Price Display Screen Customer Display For Store
Price Display Screen Customer Display For Store
