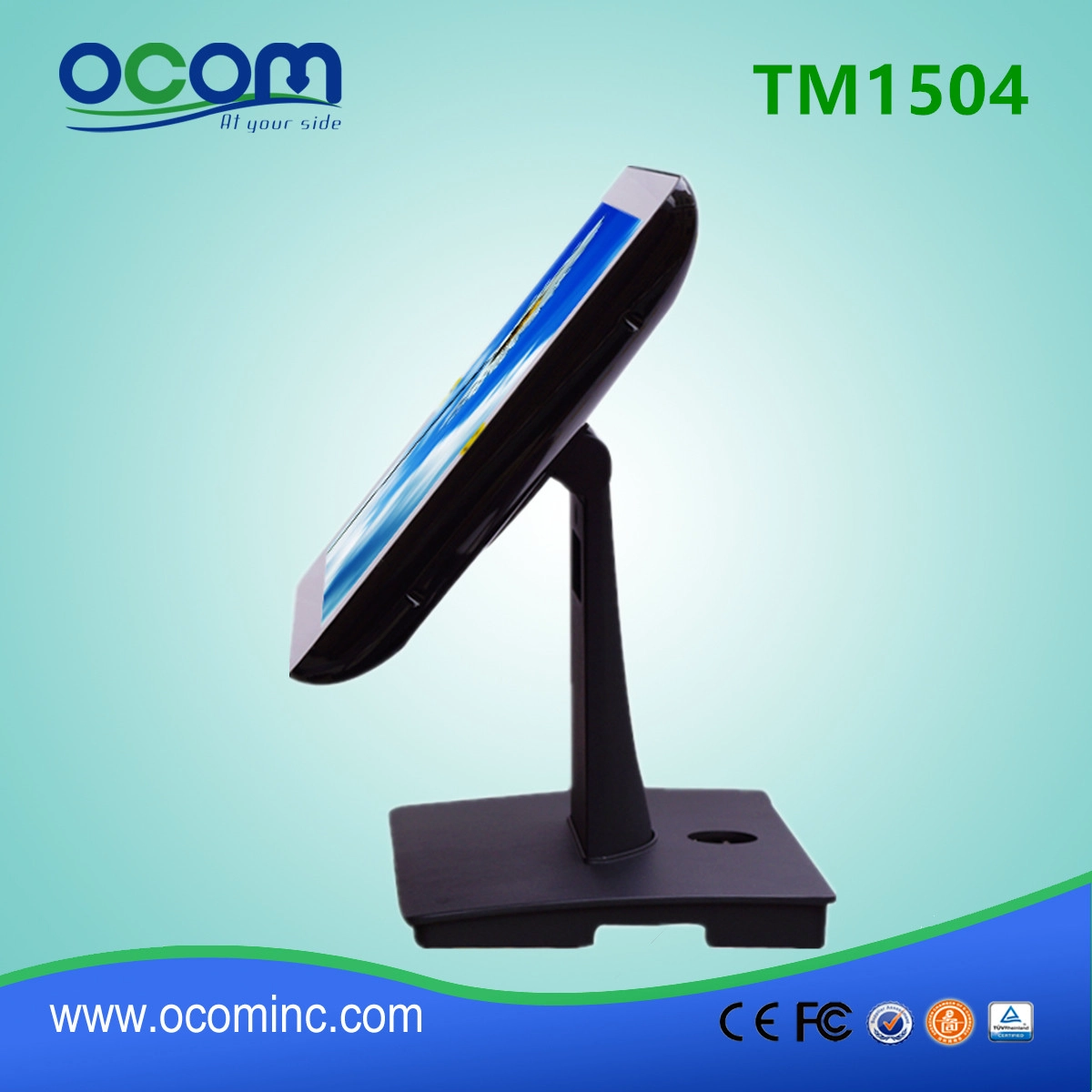

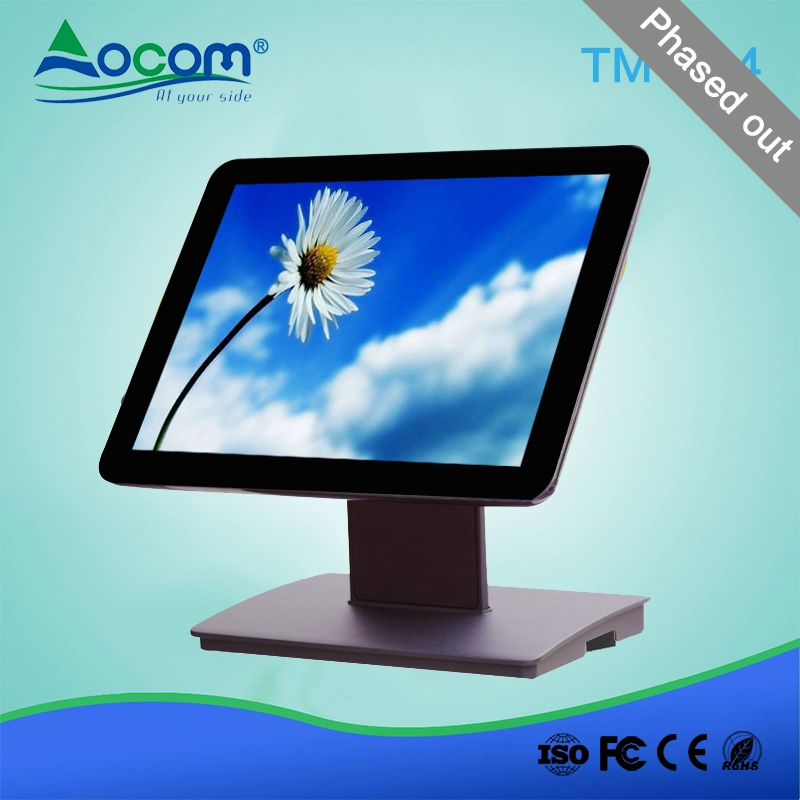

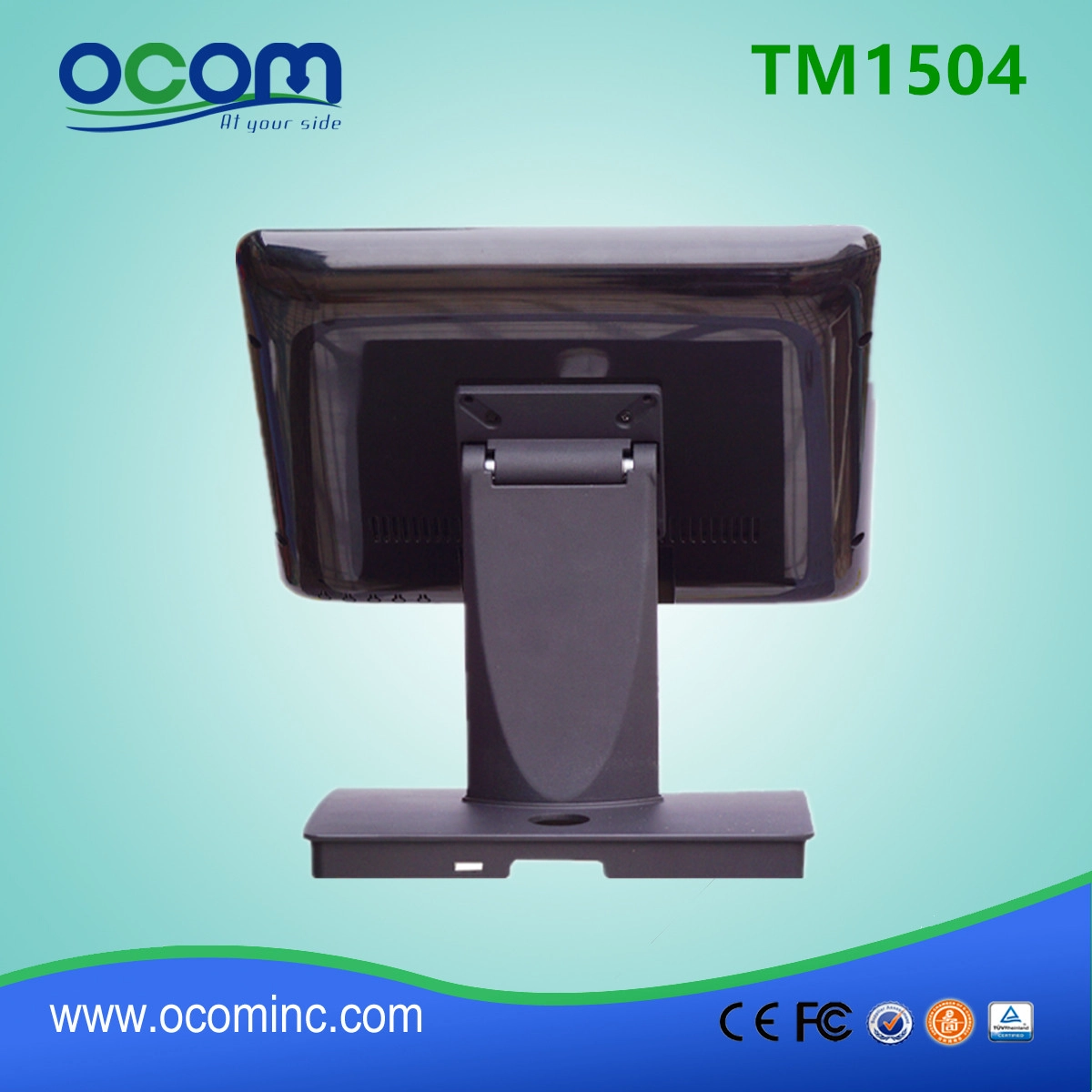

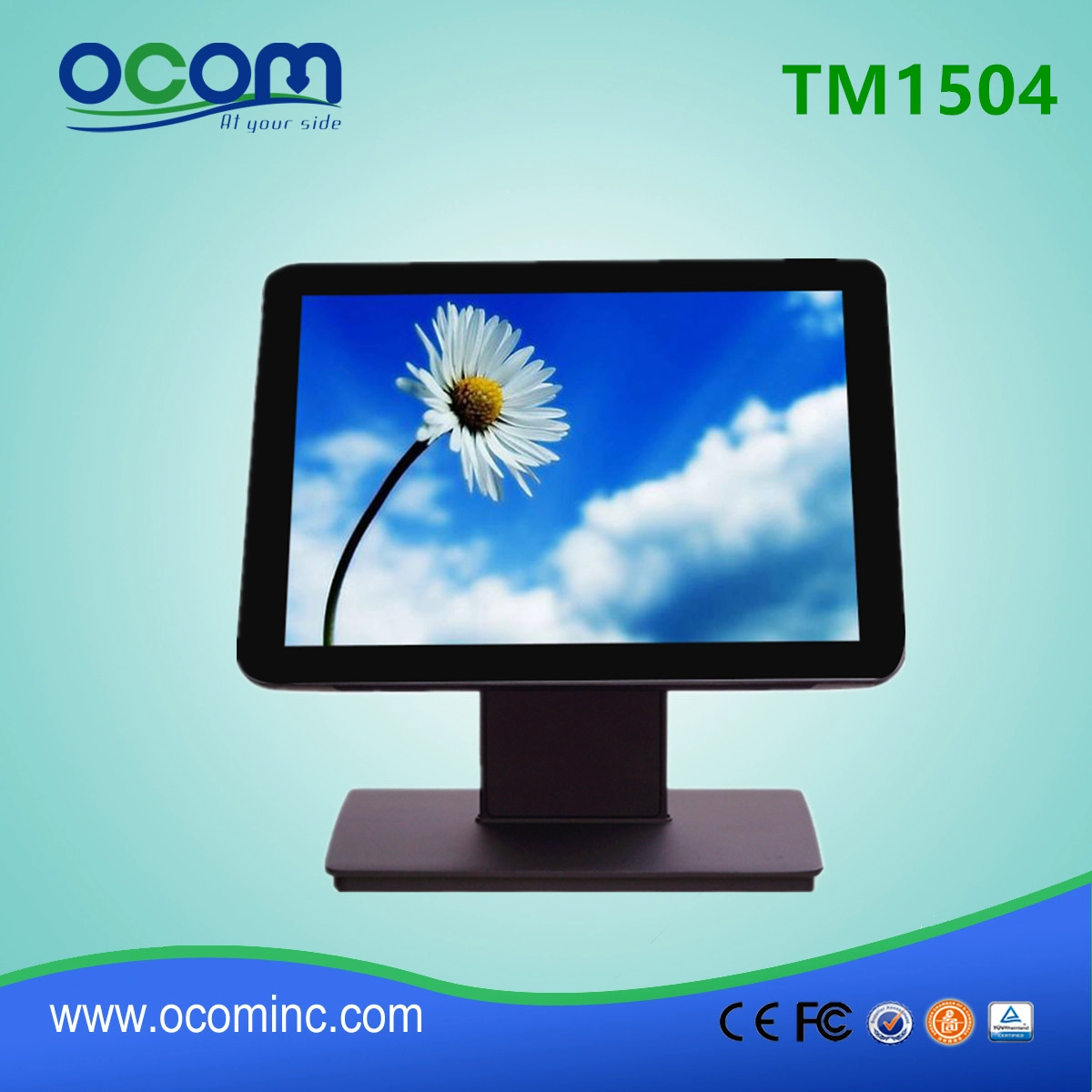

(TM1504) 15" POS monitor with optional capacitive touch screen

  • High resolution: Support 1024*768
  • Rugged vertical base
  • Grade A LCD panel
  • 5-wire resistance touch
  • Can optional capacitive touch screen
  • Lifetime: 50 million touch
  • Stylish flat-edged border

                         15-inch Touch Screen LCD Display
                                     (Model No: TM1504)



FEATURES:

High resolution: Support 1024*768
Rugged vertical base
Grade A LCD panel
5-wire resistance touch
Can optional capacitive touch screen
Lifetime: 50 million touch
Stylish flat-edged border


SPECIFICATION:

 LCD Screen Size   15"
 Aspect Ratio  4:3
 Resolution  1024×768
 Pixel Pitch(mm)  0.297
 Active Area(mm)  304.1×228.1
 Number of colors  16.2M
 Contrast Ratio  700/1
 Brightness  500 cd/m²
 Viewing Angle  150/135
 Response Time  8ms
 Outside Dimension  247mm×322mm
 Viewing area  235mm×310mm
 Active area  228mm×304mm
 Optical Clarity  80%
 Operating Temperature  -10C ~60C
 Endurance Test strikes  Over 10millions
 Operating Voltage  DC 12V 3A
 Resistance  200Ω~900Ω
 Linearity  1.50%
 Faceplate Surface  Anti-glare coating,glare coating
 Film Thickness  0.175mm, 0.188mm
 Glass Thickness  0.7mm, 1.1mm,1.8mm
 Operation Pressure  20~150g
 Storage Temperature  -30℃ ~80 ℃
 Operating Current  5mA~25mA
 Humidity  <95%
 Isolation Resistance  20MΩ @ DC25V
