mini barcode label printer machine, handheld label printermini barcode label printer machine, handheld label printermini barcode label printer machine, handheld label printermini barcode label printer machine, handheld label printer

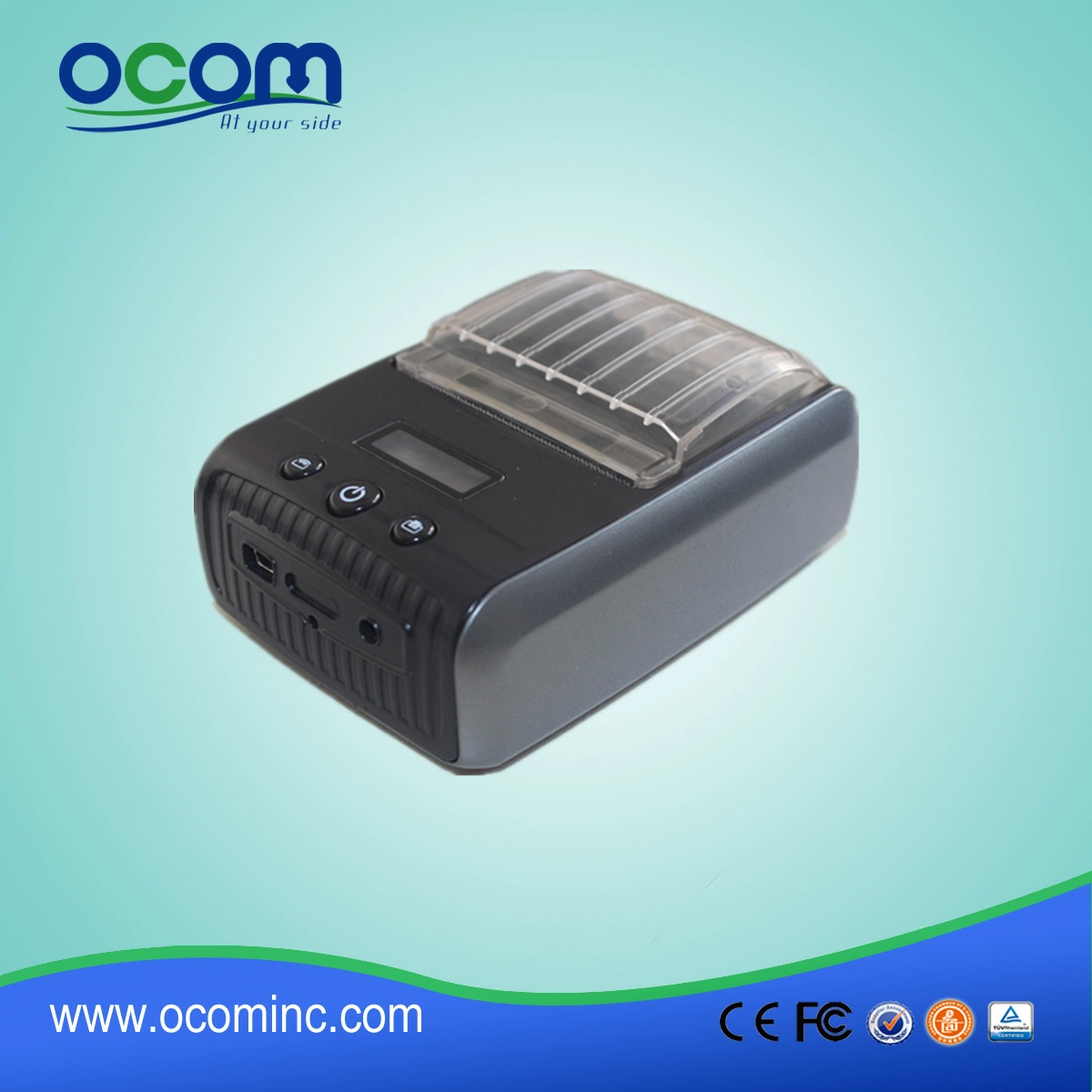

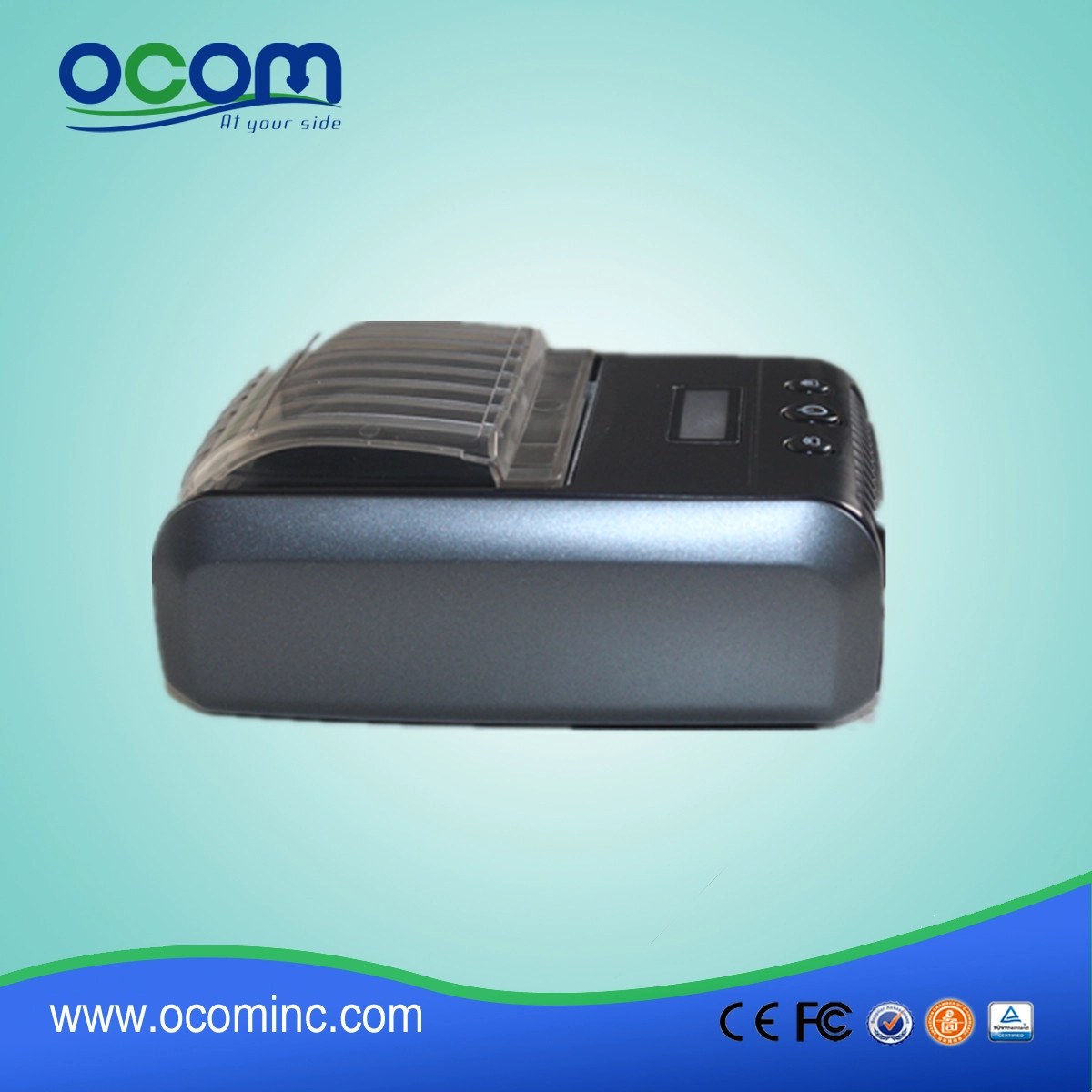

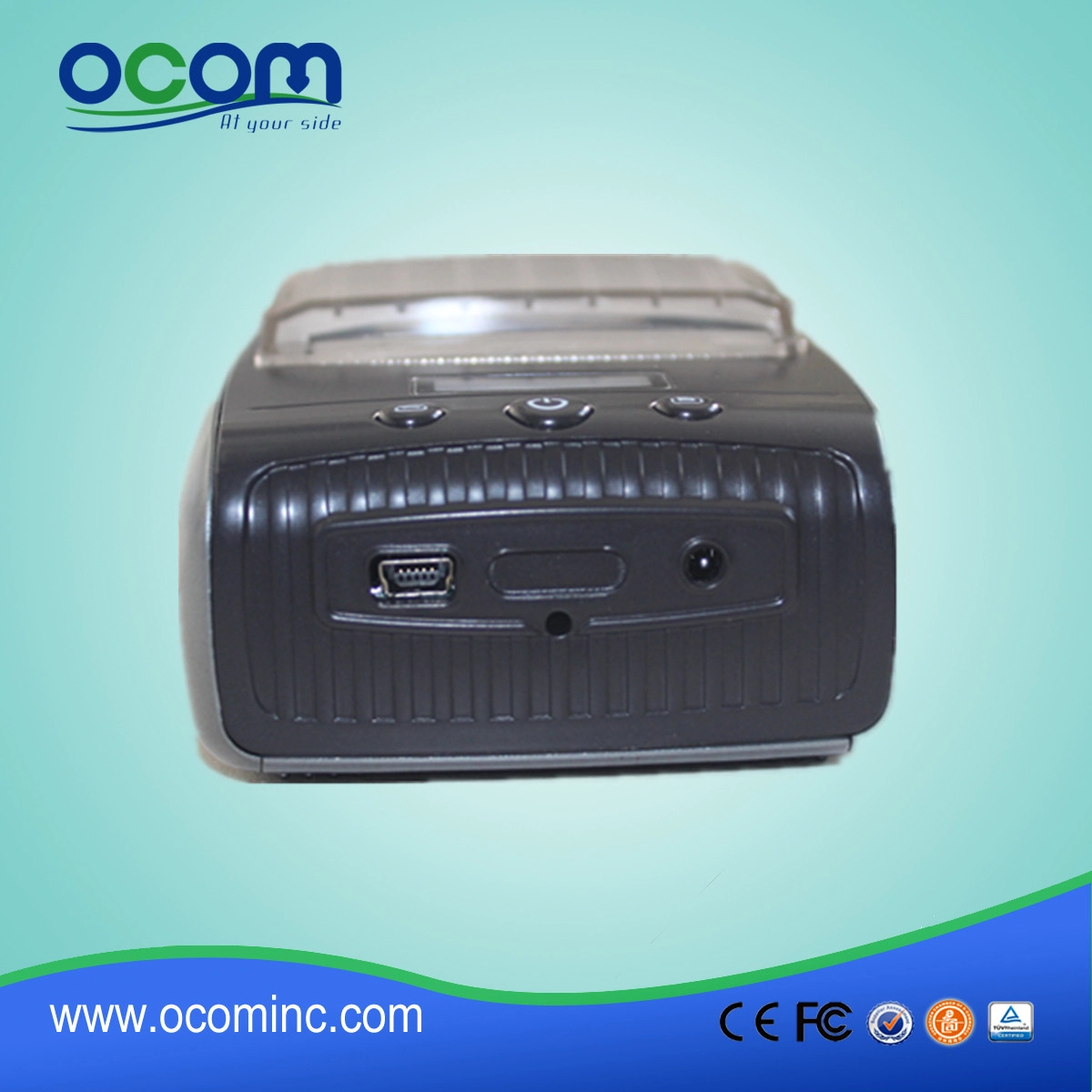

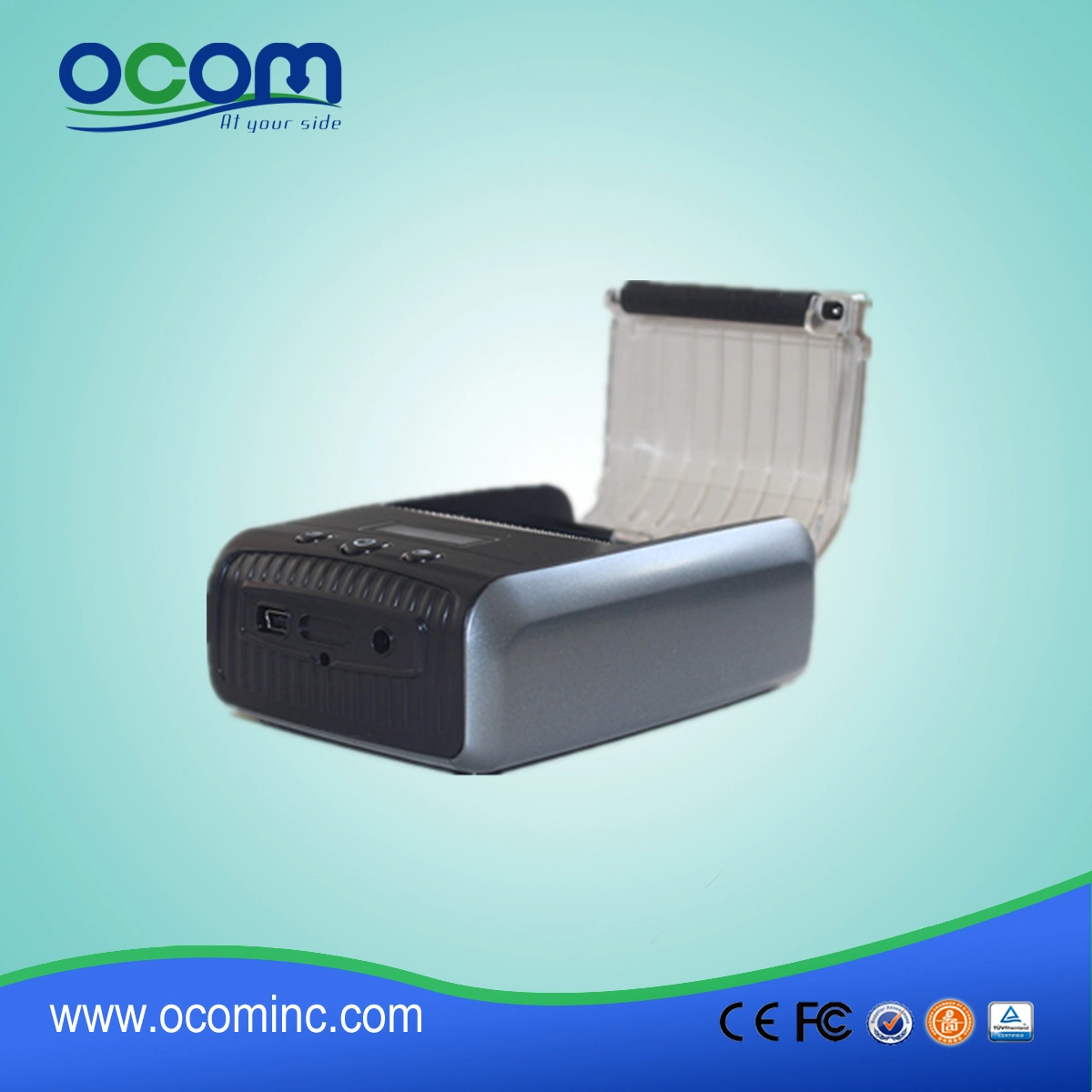

mini barcode label printer machine, handheld label printer

  • Support Windows, Java, Android OR iPhone OS.
  • Bluetooth, USB communication for option.
  • Higher print speed 90mm/sec.
  • 100km TPH Life.
  • Low power consumption and large capacity Lithium battery.

mini barcode label printer machine, handheld label printer

(Model--OCBP-M58)


Specification:



Overall Dimension (W×D×H)

113×82×48mm ( Package size: 585*410*285mm(40pcs) )

Weight

246g  (Package weight: 20kg(40pcs) )

Color

Black

Effective print width

48mm

Print method

Thermal line printing

Print commands

ESC/POS compatible command set

Print speed

Up to 90mm/sec

Resolution

8 dots/mm(203dpi)

Print font

12x24/ 24x24

Column capacity

32 columns/ 16columns

Character size

1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

Paper dimensions

58.0±0.1mm x diameter 40.0mm

Paper thickness

0.06 to 0.08mm

Character set

Alphanumeric/ Chinese Kanji

Interface

USB, Bluetooth (optional)

Data buffer

Up to 5K bytes

Power Adapter

9V DC/1A

Battery Power

1300mAh/7.4V.

30m printing for one charging,  longer stand-by time up to 30 days

Other features

Paper detection, power detection, Manual shut down

Working conditions

Temperature: -10 to 50 degree centigrade, Humidity:10%~90%

Storage conditions

Temperature: -20 to 70 degree centigrade, Humidity:5%~95%

Device name

Can be customized, letter and digital for option, at max 30 ASCII characters.

Password

Enter default pairing code “1234”, it can be customized. At max 6 digitals.

Power plug dimension

3.5*1.1mm



Shipment

Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on) EXPRESS: around 3-7 working days to arrive INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port By sea: depend on which destination port



Payment

1.       T/T in advance

2.       Western Union

3.       Escrow

4.       L/C







Services

Warranty:

12 months of shipment normally. Some designated models can have as long as 24 months warranty.



RMA Procedure:

If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of the OCOM product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.




Dead-on-Arrival (DOA):

Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.
