    (OCPP-80E) 80mm thermal pos printer with Auto Cutter(OCPP-80E) 80mm thermal pos printer with Auto Cutter(OCPP-80E) 80mm thermal pos printer with Auto Cutter(OCPP-80E) 80mm thermal pos printer with Auto Cutter

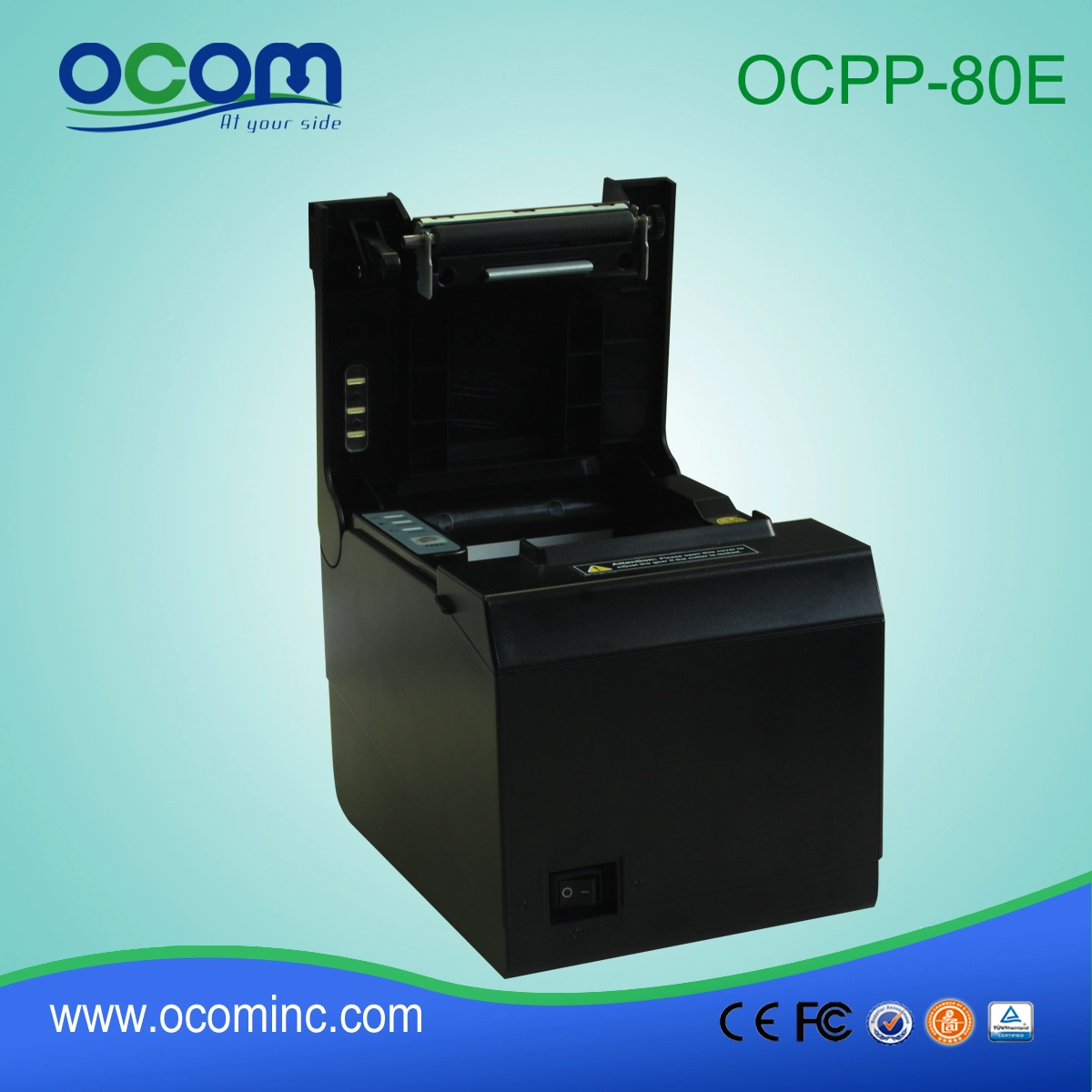

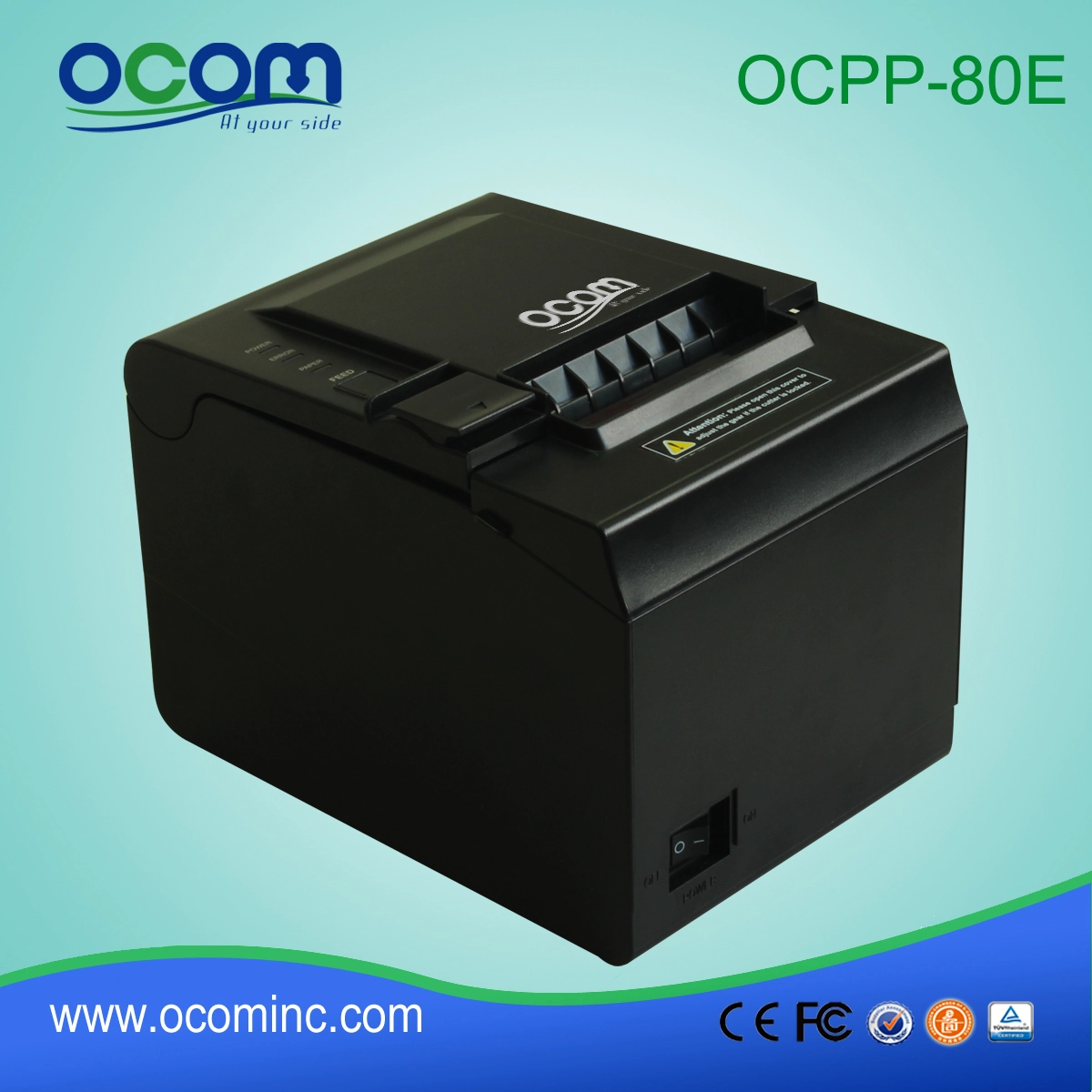

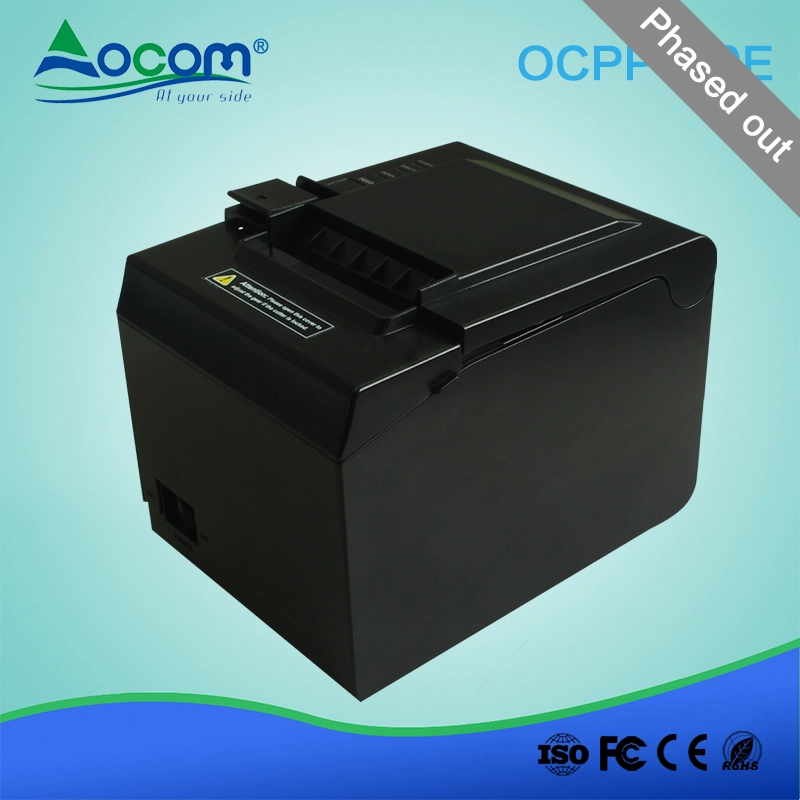

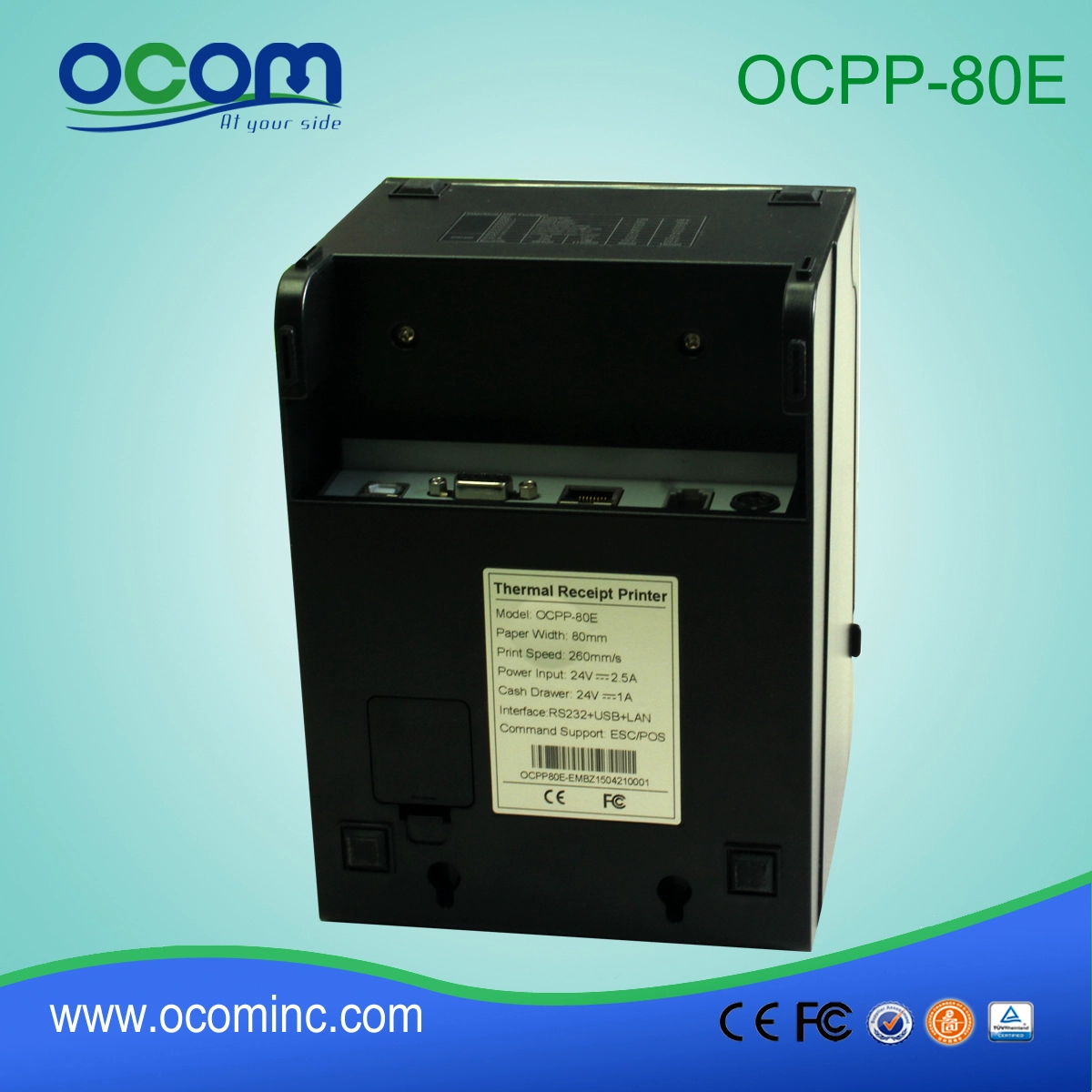

    (OCPP-80E) 80mm thermal pos printer with Auto Cutter

    • Desktop or wall-mounted type for option.
    • Supports multi 1D barcodes and 2D codes printing.
    • 100M Ethernet port, ultra high speed data transmission.
    • Supports 256KB NV Logo storage and 2M big buffer memory.
    • Supports order reminding function,(black mark detection for3 interface)
    • Compatible with OPOS driver.
    • Supports printing status monitor and anti-losing order function.

    80mm thermal pos printer with Auto Cutter



     Printing method:

        Direct thermal

     Printing speed:

        200mm/s(260mm/s for 3 interface)

     Roll width:

        79.5±0.5mm

     Print diameter:

        Φ80mm

     Paper thickness:

        0.06-0.08mm

     Column capacity:

        576dots/line,512 Dots/line

     Line’s pacing :

        3.75mm(Adjustable by commands)

     Print command:

        Compatible with the ESC/POS command

     Interface type:

        Serial+USB+Lan/36P parallel port/25P serial +USB/LAN

     Cutters life:

        1million cuts

     Print head life:

        100 km

     Input buffer :

        2048Kbytes

     NV Flash:

        256Kbytes

     Power adaptor:

        AC110V/240V、50~60Hz

     Power supply:

        DC 24V/2.5A

     Cash drawer supply:

        DC 24V/1A

    Work environment:

    Temperature(0~45) humidity(10~80%)(Non- condense)

     Work environment:

    Temperature(0-45) degree centigrade, humidity(10-80%) Non- condense

     Storage environment:

    Temperature(-10~60℃); Humidity(10~90%)

     Character size:

    ANK,FontA:1.5*3.0mm/ FontB:1.1*2.1mm

     Barcode:

    UPC-A/UPC-E/JA(EAN13)/JAN8(EAN8/CODE39/ITF

    /CODE93/CODE128 QRCode

     Characters:

    PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、

    PC858、IranII、Latvian、Arabic、PT151(1251)




    Relevant documents:




    *Instruction Manual

    *Driver for all windows system

    *Driver for Linux

    *Printer Parameters Setting Tools

    *CD Files
