(POS-M1106) 11.6 Inch Android/Windows Touch Screen POS System with Printer, Scanner, Display, RFID and MSR(POS-M1106) 11.6 Inch Android/Windows Touch Screen POS System with Printer, Scanner, Display, RFID and MSR(POS-M1106) 11.6 Inch Android/Windows Touch Screen POS System with Printer, Scanner, Display, RFID and MSR(POS-M1106) 11.6 Inch Android/Windows Touch Screen POS System with Printer, Scanner, Display, RFID and MSR(POS-M1106) 11.6 Inch Android/Windows Touch Screen POS System with Printer, Scanner, Display, RFID and MSR

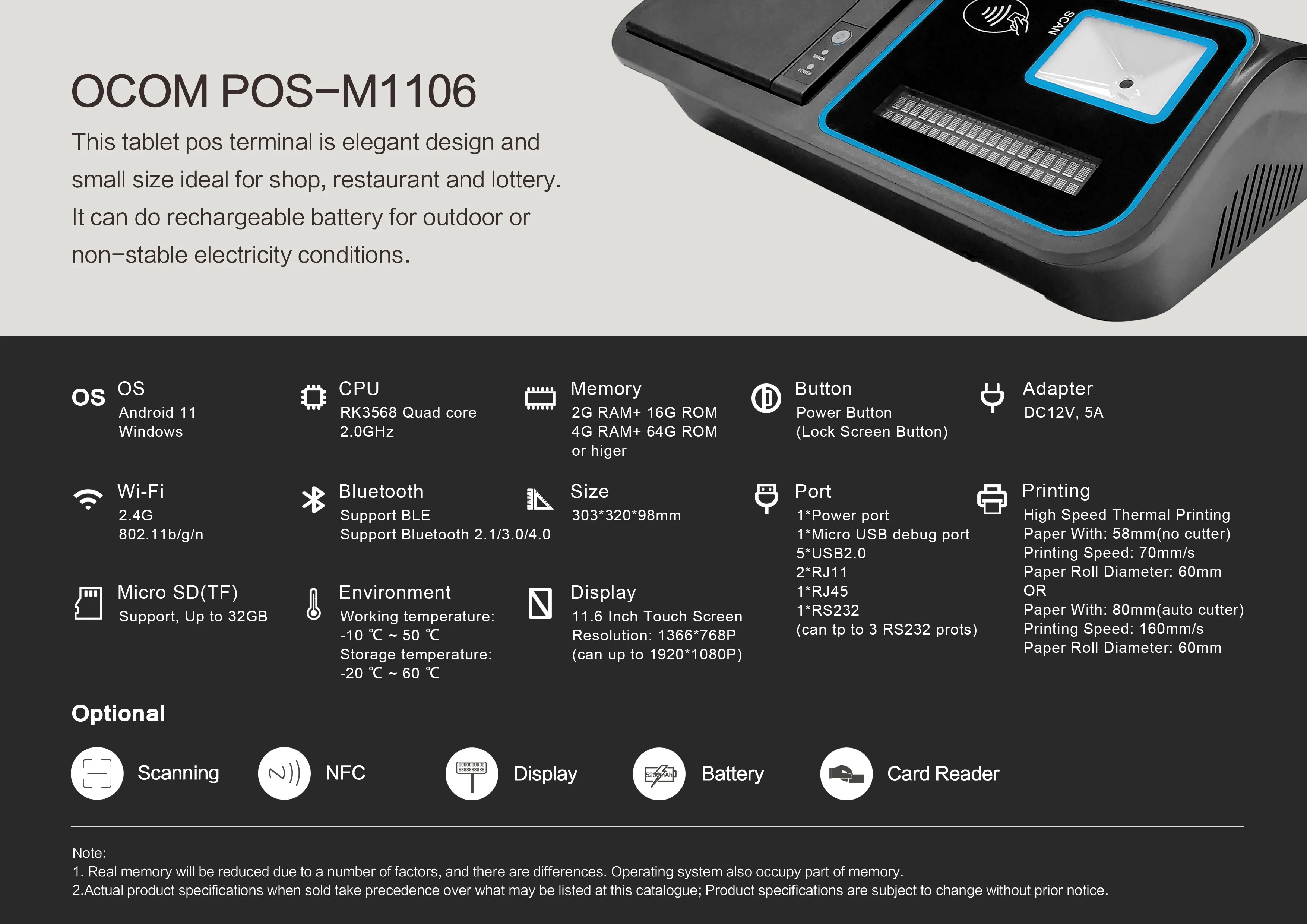

(POS-M1106) 11.6 Inch Android/Windows Touch Screen POS System with Printer, Scanner, Display, RFID and MSR

  • Intel Celeron series and Rockchip CPU for option;
  • Hard Driver Msata SSD 64GB, SSD 128GB and 256 GB for option;
  • 58mm and 80mm high speed thermal printer built in for option;
  • Multi-point projected capacitive touch panel;
  • Optional side MSR and VFD220 customer display or 5.0-inch 800* 600 resolution non-touch display mounted to back cover;
  • NFC card reader, bar-code scanner as option;
  • Ture flat and water-proof scratch-resistant surface display.



11.6 Inch Android/Windows Touch Screen POS System

(M/N: POS-M1106)





Features:



Intel Celeron series and Rockchip CPU for option;


Hard Driver Msata SSD 64GB, SSD 128GB and 256 GB for option;


58mm and 80mm high speed thermal printer built in for option;


Multi-point projected capacitive touch panel;


Optional side MSR and VFD220 customer display mounted to back cover;


NFC card reader, bar-code scanner as option;


Ture flat and water-proof scratch-resistant surface display.





Specification



Model

POS-M1106-W

POS-M1106-A

Name

11.6inch all in one Windows touch screen pos terminal

11.6 inch all in one Android touch screen pos terminal

Housing

Plastic with metal combined

Color

Whole gray color

Display



Main screen size

11.6 inch touch screen monitor

11.6 inch touch screen monitor

Resolution

1366*768,1920*1080 for option

1366*768,1920*1080 for option

Brightness

300cd/m2

View angle

Horizon: 160; Vertical :150

Touch screen

Multi-point projected G+G capacitive touch

Customer display

2*20 VFD or  5.0-inch 800* 600 resolution non-touch display mounted to back cover for option

Performance



Motherboard

Intel Celeron J4125, 2.0GHz

RK 3568, Cortex-55, quad core 2.0GHz / RK 3288 quad core 1.8GHz CPU for option

System Memory

1*SO-DIMM DDR4 slot, support2400mHZ, 4GB (default) 8GB for option

On board 2GB DDR4

Storage device

Msata SSD 64GB or higer, up to 256GB

32GB eMMC, support 32GB TF card expanded for option

Audio

On board Real Tek ALC662 audio chip

On board Real Tek audio chip ALC5640

LAN

10/100Mbs,Realtek RTL8111F Lan chip

built in Mini PCI-E slot,support embedded WIFI module

10M/100M RTL8201F,10M/100M/1000M RTL8211E for option

Operating System

Windows10/11

Android 11

Connectivity







External I/O port(J4125/RK3568)

Power button*1

12V DC in jack*1

COM(RS232) * 1, up to 3ports

LAN: RJ-45*1

RJ11 for Cash drawer *1 for option

RJ11 for Cash drawer *2 for option

VGA(15Pin D-sub)*1

TF card slot*1

USB *5

USB *5

MIC in*1 Audio out*1

N/A

Options



80mm thermal printer

Direct thermal printing

170mm/s pringting speed

79.5-/+ 0.5mm paper width and printable width 72mm

With atuo cutter function and thermal head life 100km

58mm thermal printer

Direct thermal printing

70mm/s pringting speed

57.5-/+ 0.5mm paper width and printable width 48mm

Thermal head life 50km

MSR

ISO7811 1/2/3 Tracks, Support Dual-swiping

NFC

ISO14443TypeA

Scanner

1D/2D barcode decoding

Battery

5200mAh large capacity battery

Package



Weight

Net: 2.4kg,  Gross: 3.1kg

Package with foam inside

400*390*190mm

Environment



Operating temperature

0  to 40 degrees centigrade

Storage temperature

-10 to 60 degrees centigrade

Working humidity

10%~80%    No condensation

Storage humidity

10%~90%    No condensation

Accessories



Power adapter

110-240V/50-60HZ AC powerinput ,DC12/5A output adaptor

Power cable

Power cable plug compatible with USA /EU / UK etc and customized available

CD driver

Motherboard driver and touch driver inside

Other



Compliance

FCC Class A/CE Mark/LVD/CCC
