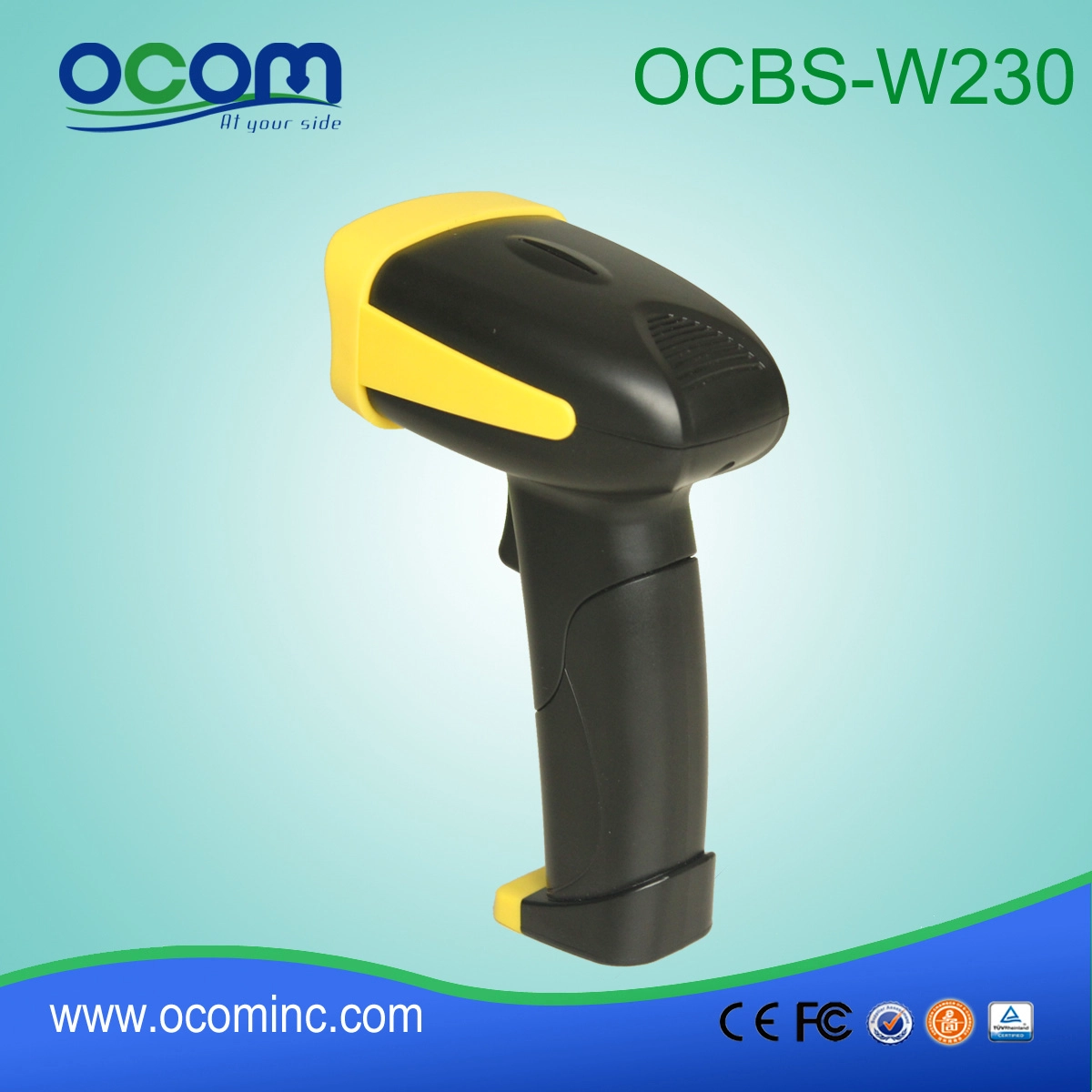

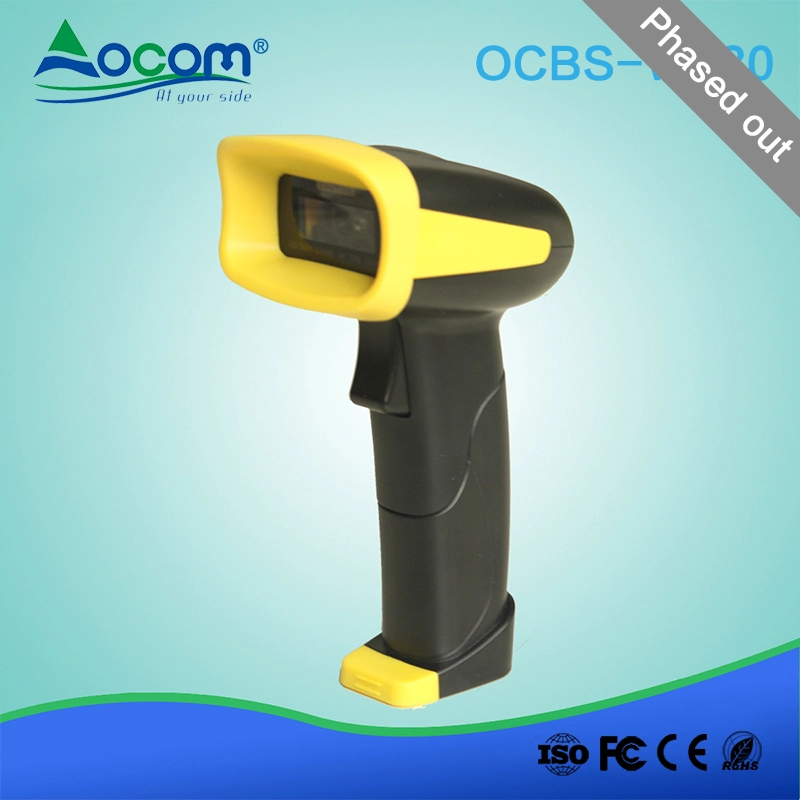

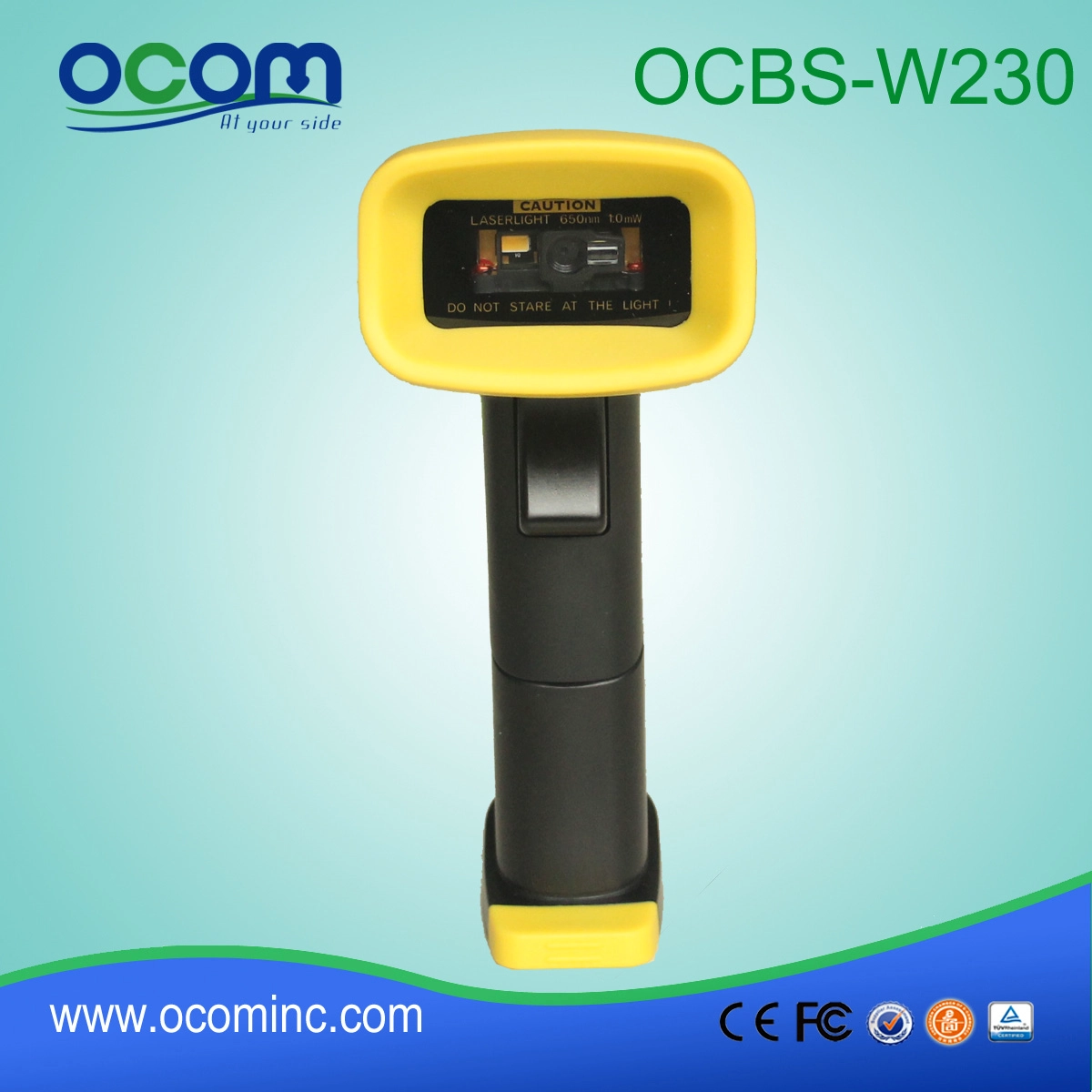

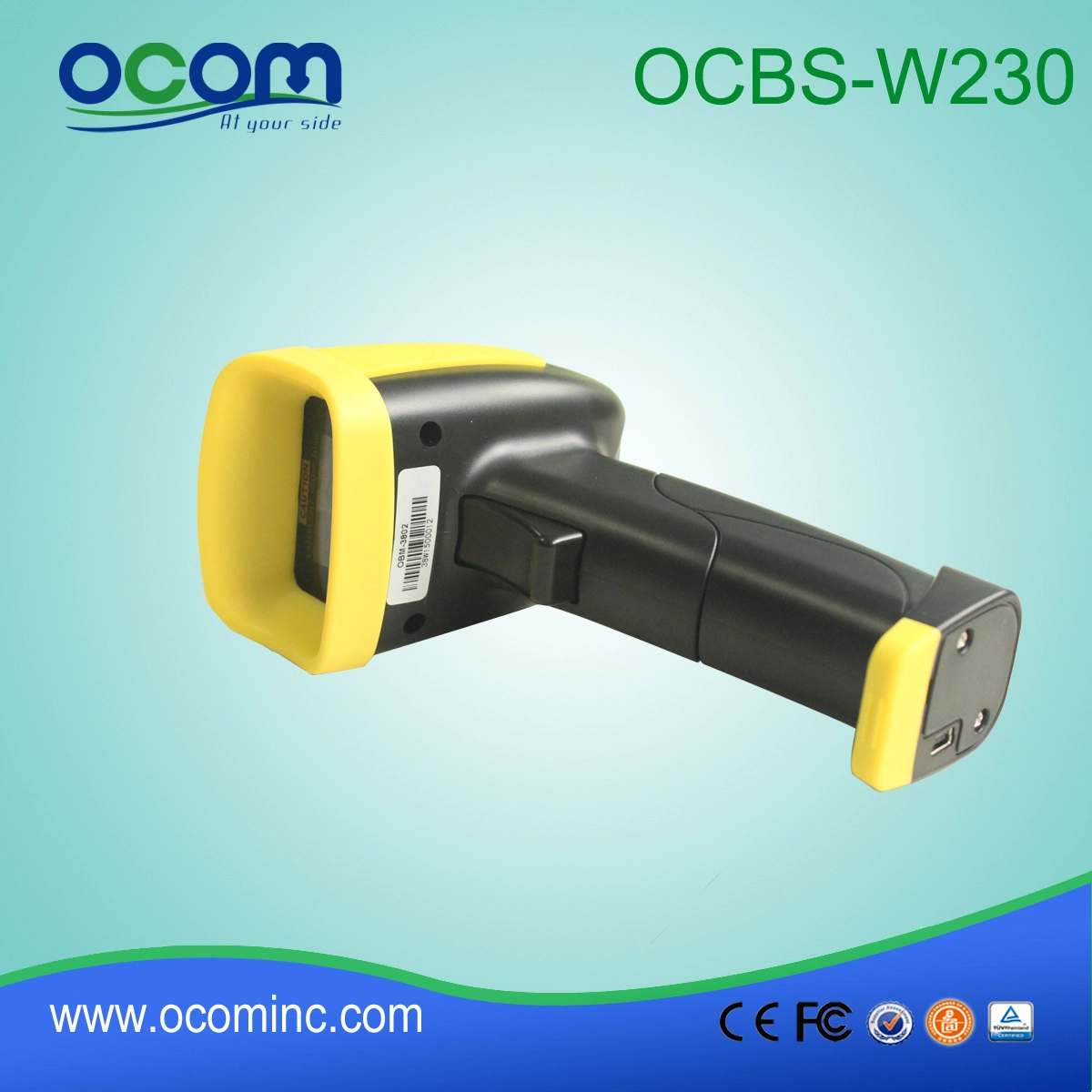

(OCBS-W230) Bluetooth or 433MHZ Wireless 2D Barcode Scanner(OCBS-W230) Bluetooth or 433MHZ Wireless 2D Barcode Scanner(OCBS-W230) Bluetooth or 433MHZ Wireless 2D Barcode Scanner(OCBS-W230) Bluetooth or 433MHZ Wireless 2D Barcode Scanner

(OCBS-W230) Bluetooth or 433MHZ Wireless 2D Barcode Scanner

  • 433Mhz Wireless communication diatance outdoor 300m,indoor 100m;
  • Bluetooth can communicate with iphone,android phone ,tablet
  • Soft plastic cover to protect the lens and outline greatly enhances the anti-drop;
  • Barcode on computers' and mobile phones' screen can be scanned;
  • No drive,plug and play;
  • Can store more than 50,000 pieces of data;
  • Multiple scanners can be connected to one receiver.


Bluetooth or 433MHZ Wireless 2D Barcode Scanner

(OCBS-W230/OCBS-W230B)



Parameters:

Aiming Light Source

617 nm LED

Lighting Light Source

625 nm LED

Scanning Angle

39° (H) x 25° (V)

Rotation Angle

0 - 360°

Elevation Angle

± 65°

Tilt Angle

± 60°

Print Contrast

Higher than 25%

1D

UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2of 5, Codabar, MSI, Chinese 2 of 5, GS1 Data Barvariants, Korean 3 of 5, ISBT Concat

2D

PDF417, MicroPDF417, Composite Codes, TLC-39,Data Matrix, Maxicode, QR Code, MicroQR, Aztec

Interface

USB

Communication distance

Inside: 100m;  Outside: 300m (Max)

Operating Temperature

 -10 deg C - 45 deg C

Storage Temperature

 -20 deg C - 65 deg C

Operating Humidity

5%-85%

Storage Humidity

5%-95%

Durability

Withstands multiple 1.8m drops to concrete

Input Power

DC 5V, 350mA

Lumination

Inside:  3.000 LUX max;  Outside sunlight: 86000LUX max

EMC

EN50081, par1 standard

FCC

EN50082, par1 standard

IP Grade

IP42

DECODE RANGES

Typical Performance*

Typical Working Ranges

HD Focus Range

Bar Code Type

Symbol Density

Near

Far

Code 39

5.0 mil

5mm

90mm

100% UPCA

13.0 mil

8mm

200mm

Code 39

20.0 mil

8mm

250mm

PDF 417

6.8 mil

5mm

95mm

Data Matrix

10.0 mil

5mm

110mm

QR Code

20.0 mil

10mm

150mm

Resolution 1D Code 39

2.8 mil (0.071mm)

Resolution 2D Data Matrix

4.8 mil (0.122mm)

Material

ABS+PC

Dimension

95x65x155mm

Net Weight

160g

Inner box dimension:

18.2X11.7X11.2cm

Inner box weight:

374g








Relevant documents:



* User Manual
