USB With Optional Card Reader Programmable Keyboard(KB78)USB With Optional Card Reader Programmable Keyboard(KB78)USB With Optional Card Reader Programmable Keyboard(KB78)USB With Optional Card Reader Programmable Keyboard(KB78)USB With Optional Card Reader Programmable Keyboard(KB78)USB With Optional Card Reader Programmable Keyboard(KB78)USB With Optional Card Reader Programmable Keyboard(KB78)

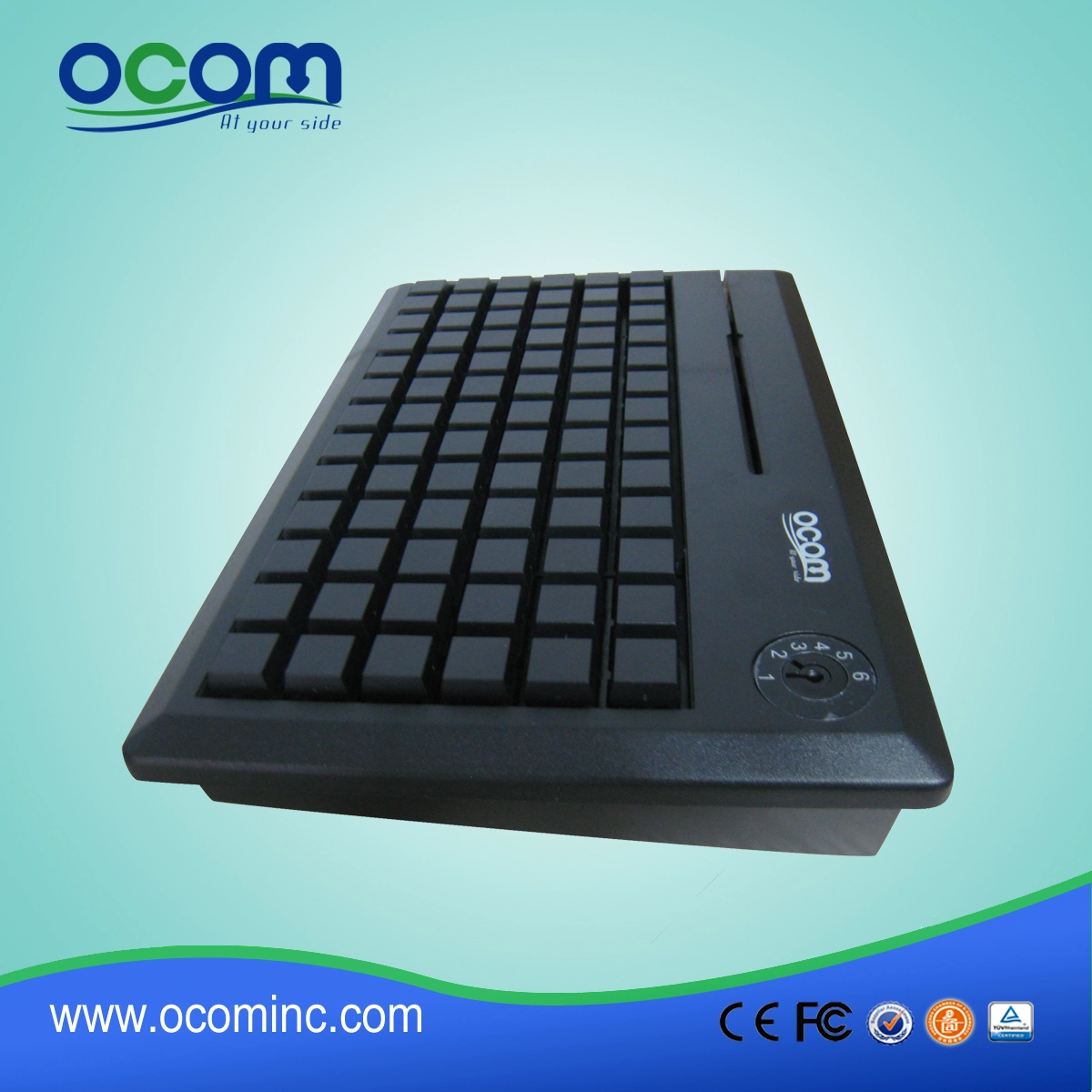

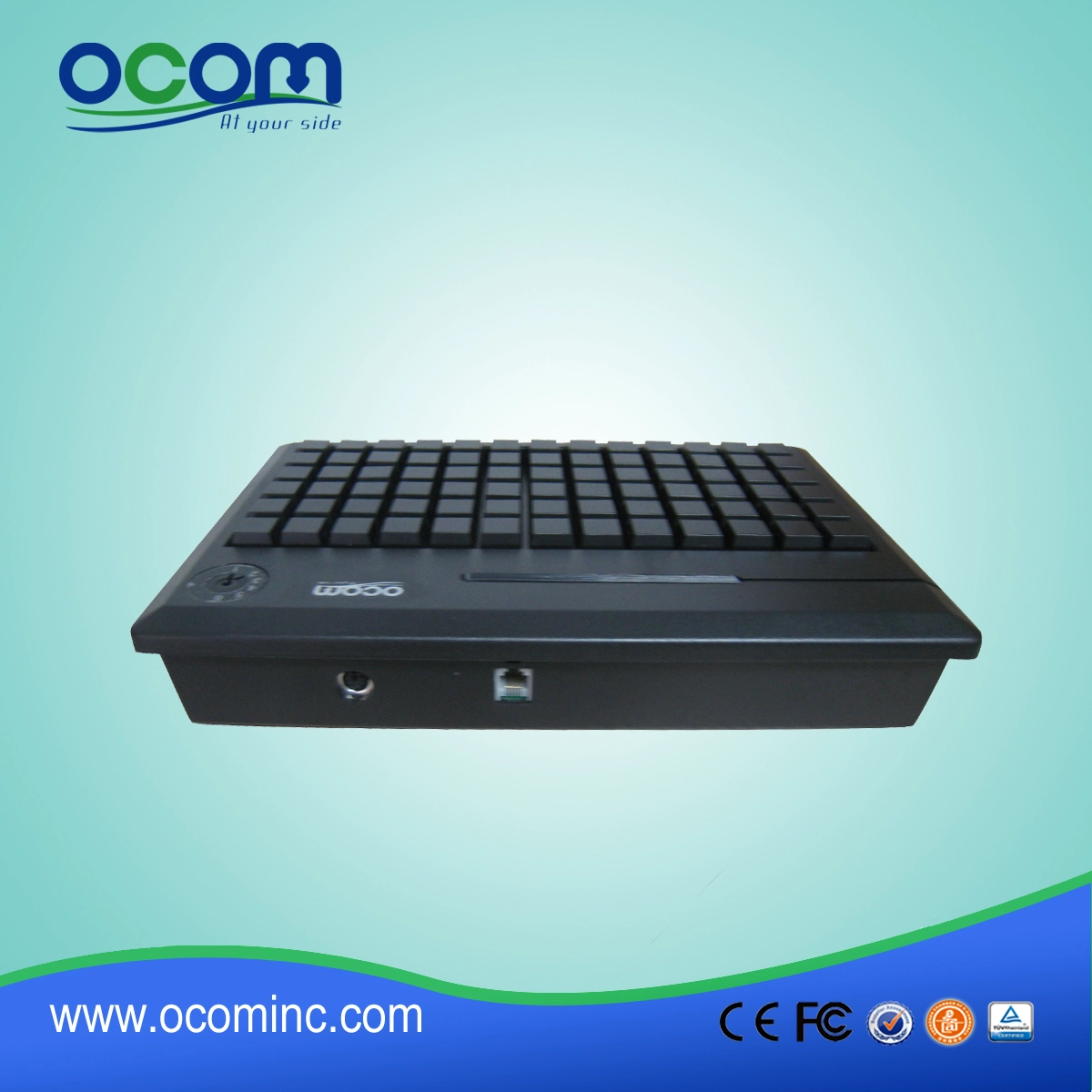

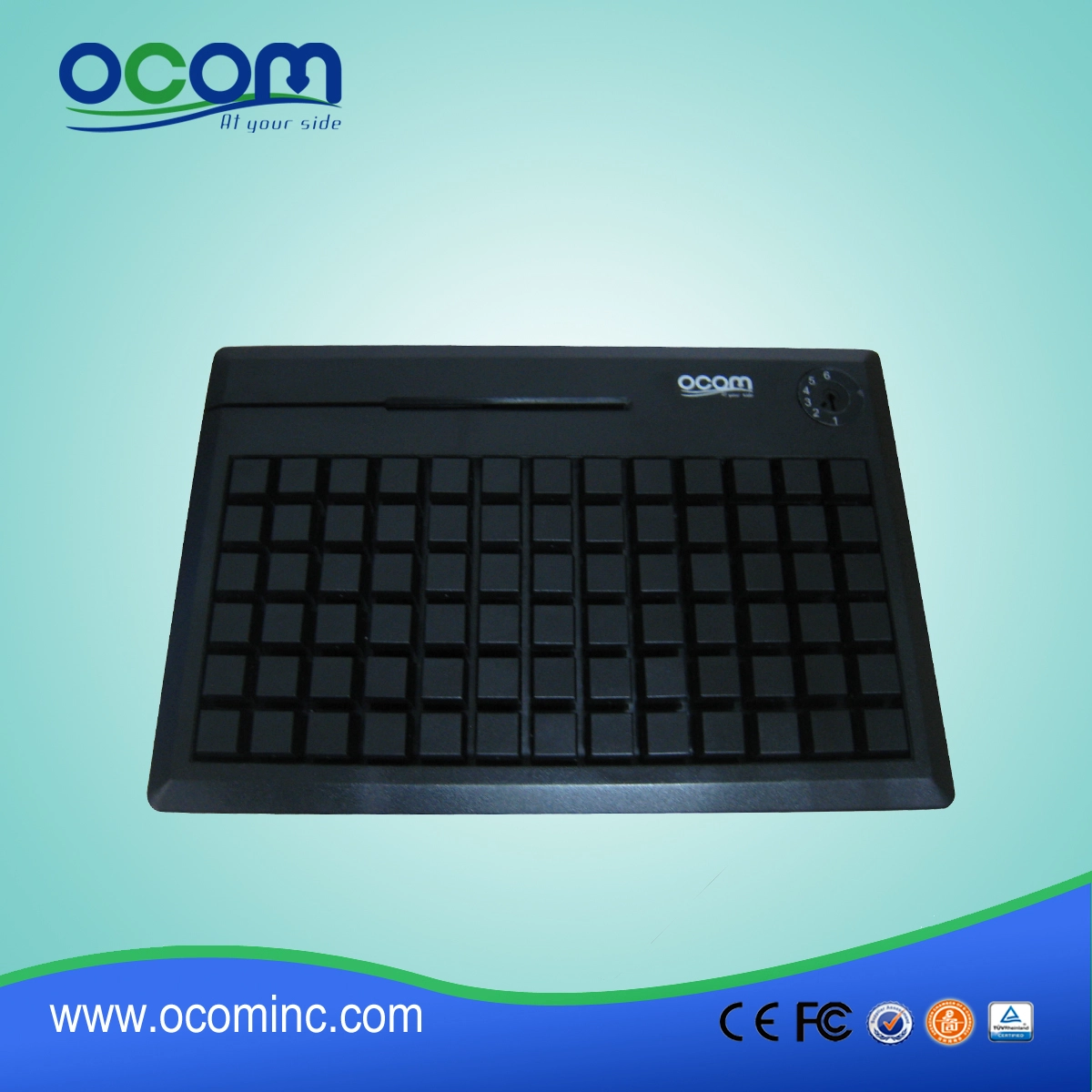

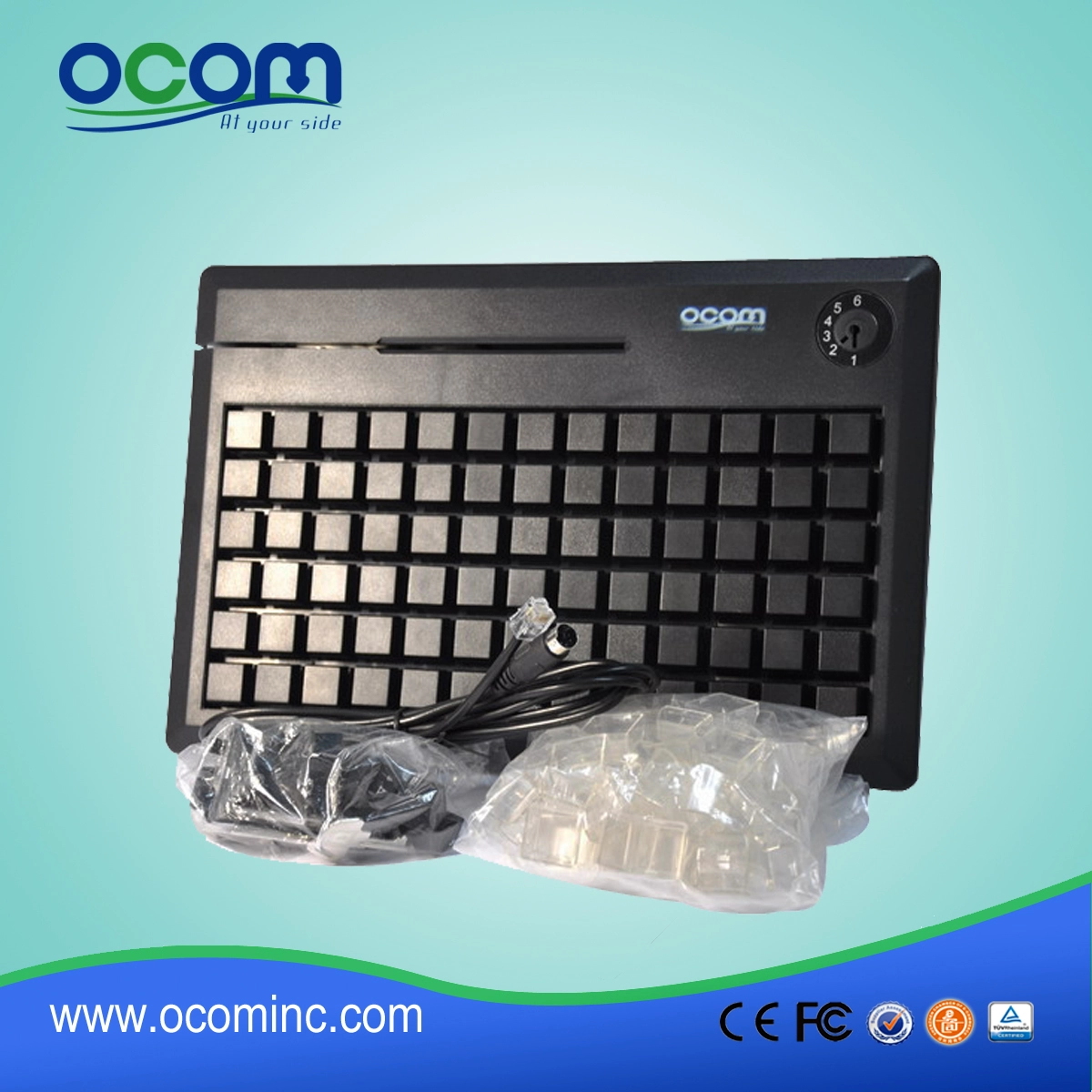

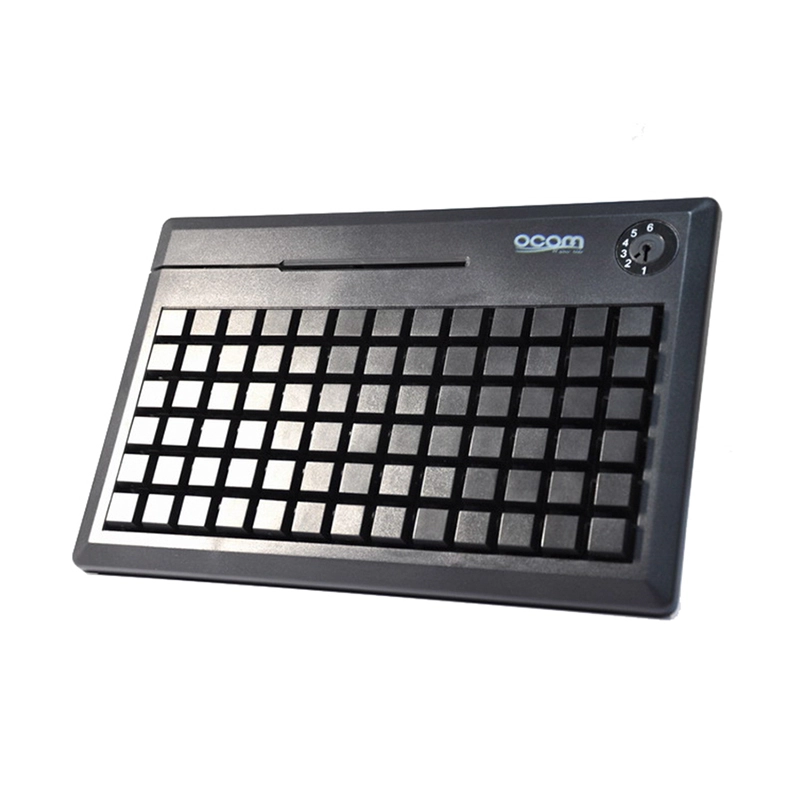

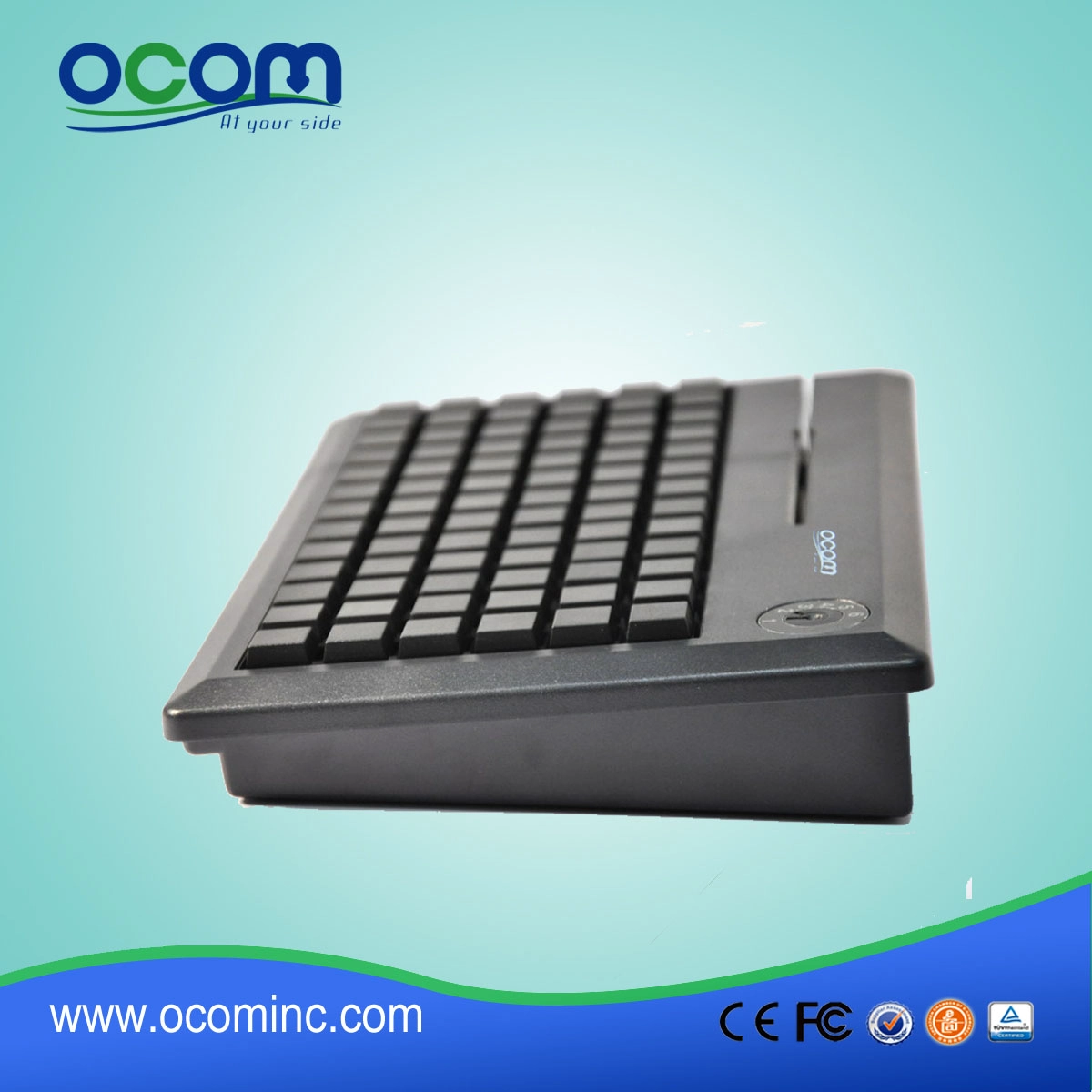

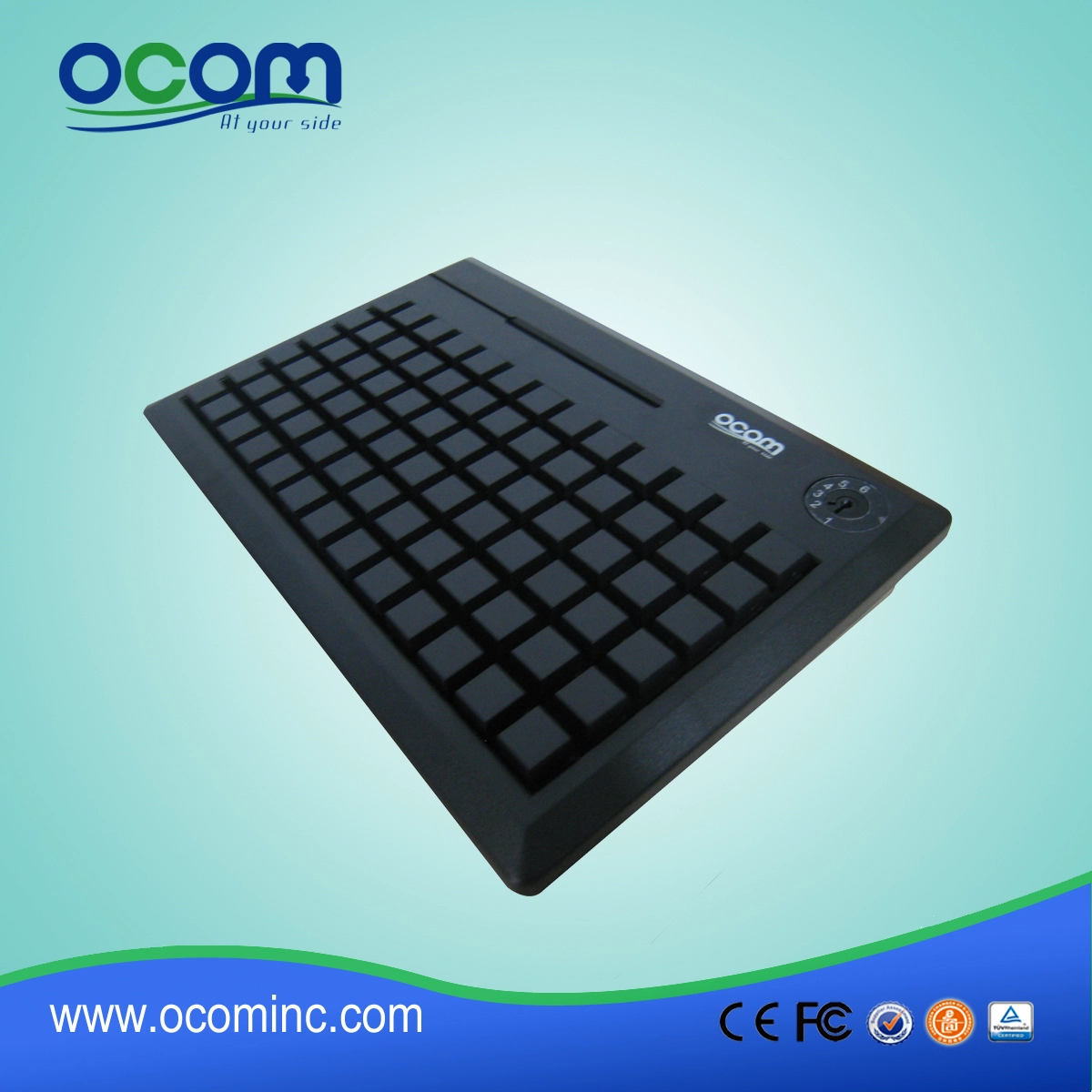

USB With Optional Card Reader Programmable Keyboard(KB78)

  • With 78 Cherry MX keys based on Gold Cross point technology, and have tactile feeling;
  • Laser-engraved keycap symbols or high quality UV silk screen printed keycap symbols;
  • Operating life cycle of individual keys: Soft contact mode 50 million strokes,Key click mode: 20 million strokes;
  • Damaged keys can be easily replaced and hence save the replacement cost;
  • With internal metal plate for key fixation;
  • Waterproof, dust proof and ESD;
  • Different keycaps (1/2/4 fold and Numeric) are available;
USB With Optional Card Reader Programmable Keyboard
(Model: KB78)
Specifications:

Programmable Features

  • All 78 keys can be programmed,each key can program 255 characters
  • All data can be retained for no less than 100 years without additional battery
  • Special E2PROM and ESD design to ensure security of programmed data.
  • Does not require a TSR program and hence avoids application software crashes
  • Provides multi-level programming
  • Provides for a variable time delay of up to 255 seconds in each programmed string
  • Support PS/2 programming in DOS, Windows9X, Me, 2000, XP



Key lock Features

  • 6 steps Key lock
  • Life cycles: >25,000
  • Have tactile feeling



Magcard Reader Features

  • Comply with ISO 7812, IBM, ,AAMVA,JIS-2
  • Support programmable MSR setting for the header, tailor, separator, suffix and prefix,
  • Card swipe speed: 10 to 100 cm/s;
  • 500,000 swipe cycles
  • Track sequence

  1. Track 1: 210BPI with max 76 characters
  2. Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters
  3. Track 3: 210BPI with max 107 characters

  • Track Option:

  1. One Track: Track 1or 2 or 3
  2. Two tracks: Track 1 and 2, or Track 2 and 3
  3. Three Tracks: Track 1, 2 and 3

Dimension: 283X188X50mm
