12 Inch USB Frameless Touch Screen Monitor12 Inch USB Frameless Touch Screen Monitor12 Inch USB Frameless Touch Screen Monitor12 Inch USB Frameless Touch Screen Monitor

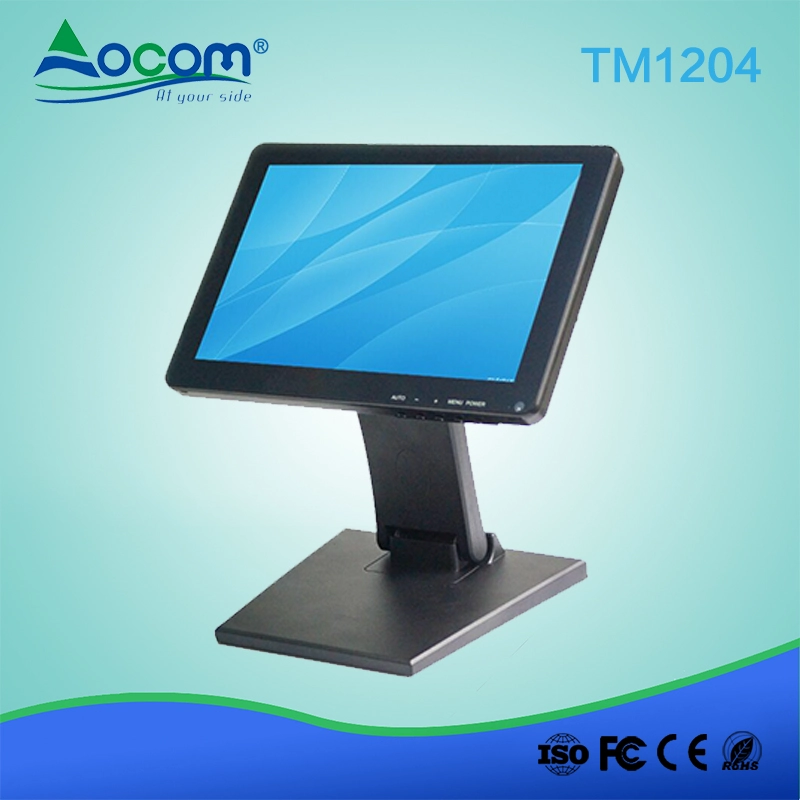

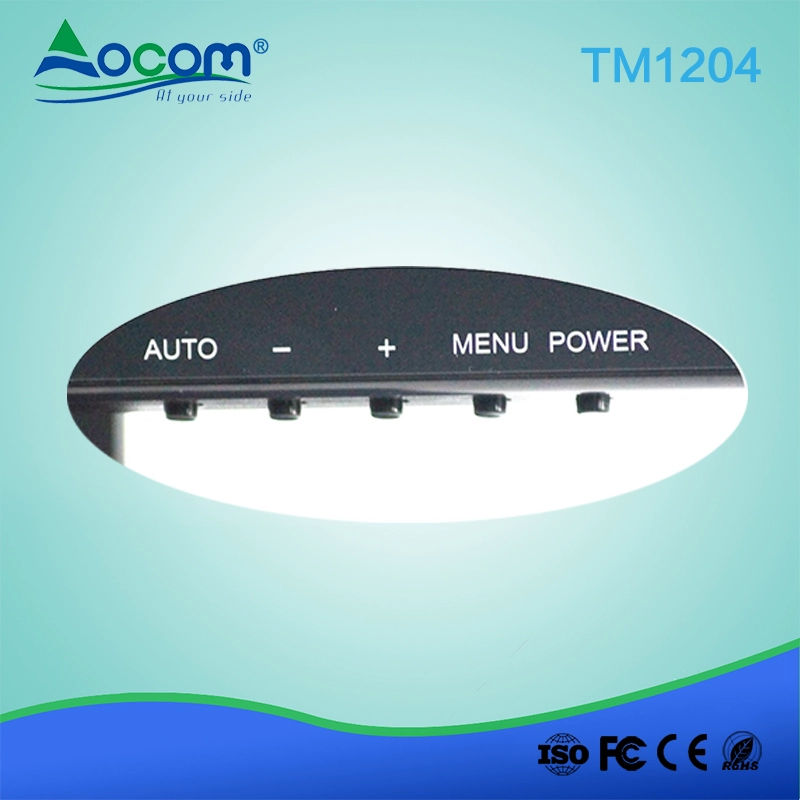

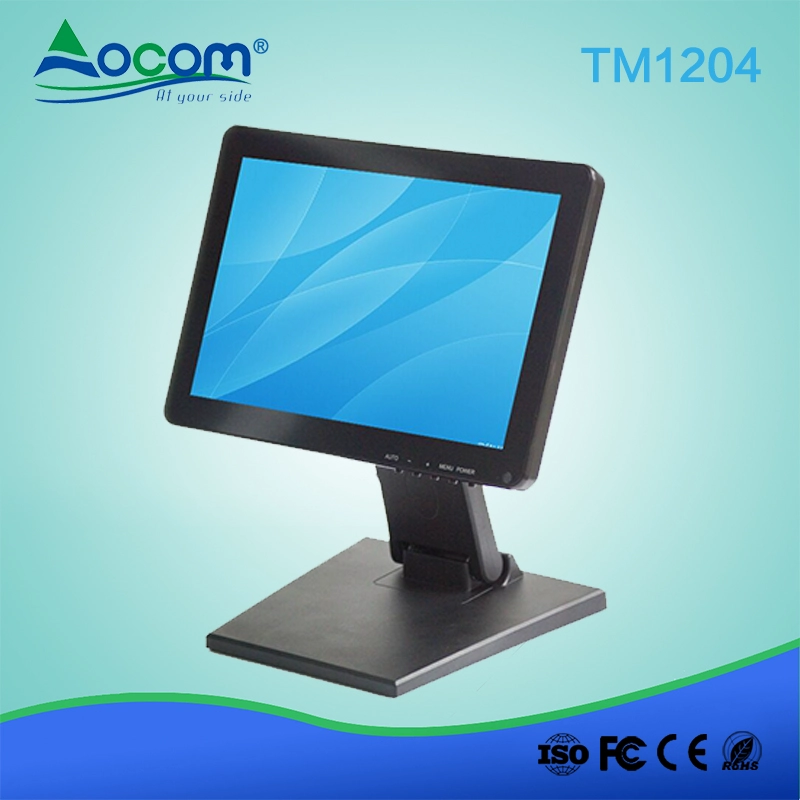

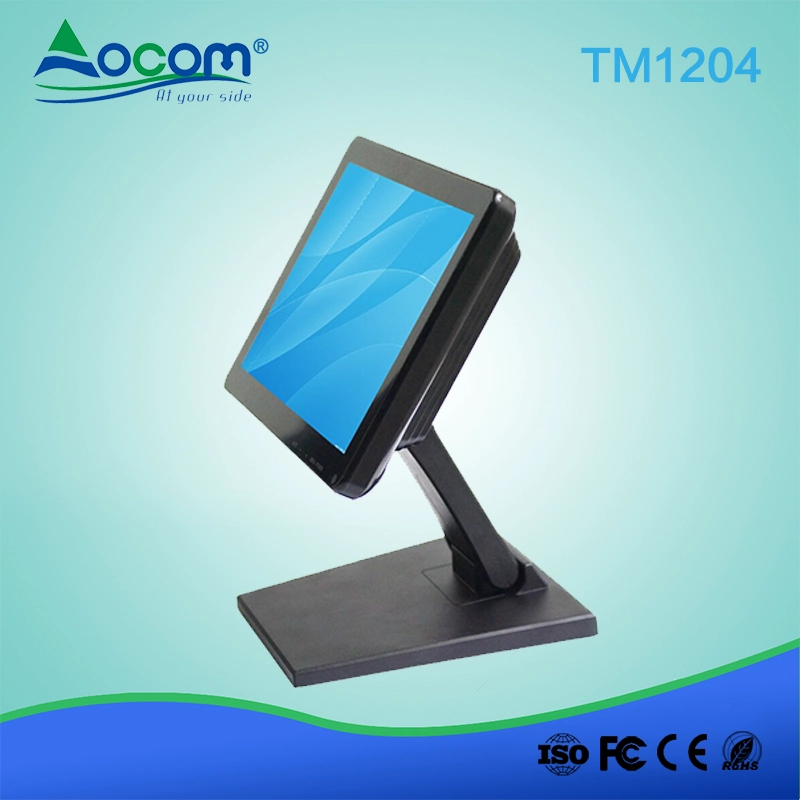

12 Inch USB Frameless Touch Screen Monitor

  • 12.1'' Touch Screen POS monitor
  • 5 wire resistance or capacitive touch;
  • Grade A LCD panel;
  • Lifetime: 5 million touch;
  • Foldable or erected base for options;
  • Can be hanged on the wall;
  • Brightness: 400cd/m²;
  • Resolution: 800 x 600;
  • Response time: 16ms;
  • Interface: VGA, HDMI for option;
  • Power input: AC input, 100~240V, 3A;
  • Power consumption: ≤20W (sleeping mode 5W).

12 Inch USB Frameless Touch Screen Monitor

(Model No: TM1204)


FEATURES:

  1.  1204*768 high resolution
  2.  5-wire resistance touch monitor
  3.  Can optional capacitive touch screen
  4.  Foldable base to adjust the angle
  5.  Stylish flat touch panel
  6.  Brightness, contrast, color saturation, sharpness and other indicators adjusted automatically.


SPECIFICATIONS:

Display size

12.1” diagonal

Brightness

400cd/m2

Resolution

1024*768

Response time

16ms

Color depth

16.7M

Line frequency

30KHz~61KHz

Field frequency

50Hz~75Hz

Display mode

VGA

Pixel pitch

0.1025 (H) * 0.3075 (V) mm

Viewing angle

-65°~+65°(U/D) ; -50°~+60°(L/R)

Active Area

246.0x184.5 mm

Interface

VGA+USB USB for touch panel,can optinal HDMI

Power input

AC input, 100~240V, 50~60Hz  to DC 12V 3A output

Power consumption

≤20W (sleeping mode 5W)

Touch the form

5 wire resistance touch can optional capacitive touch
