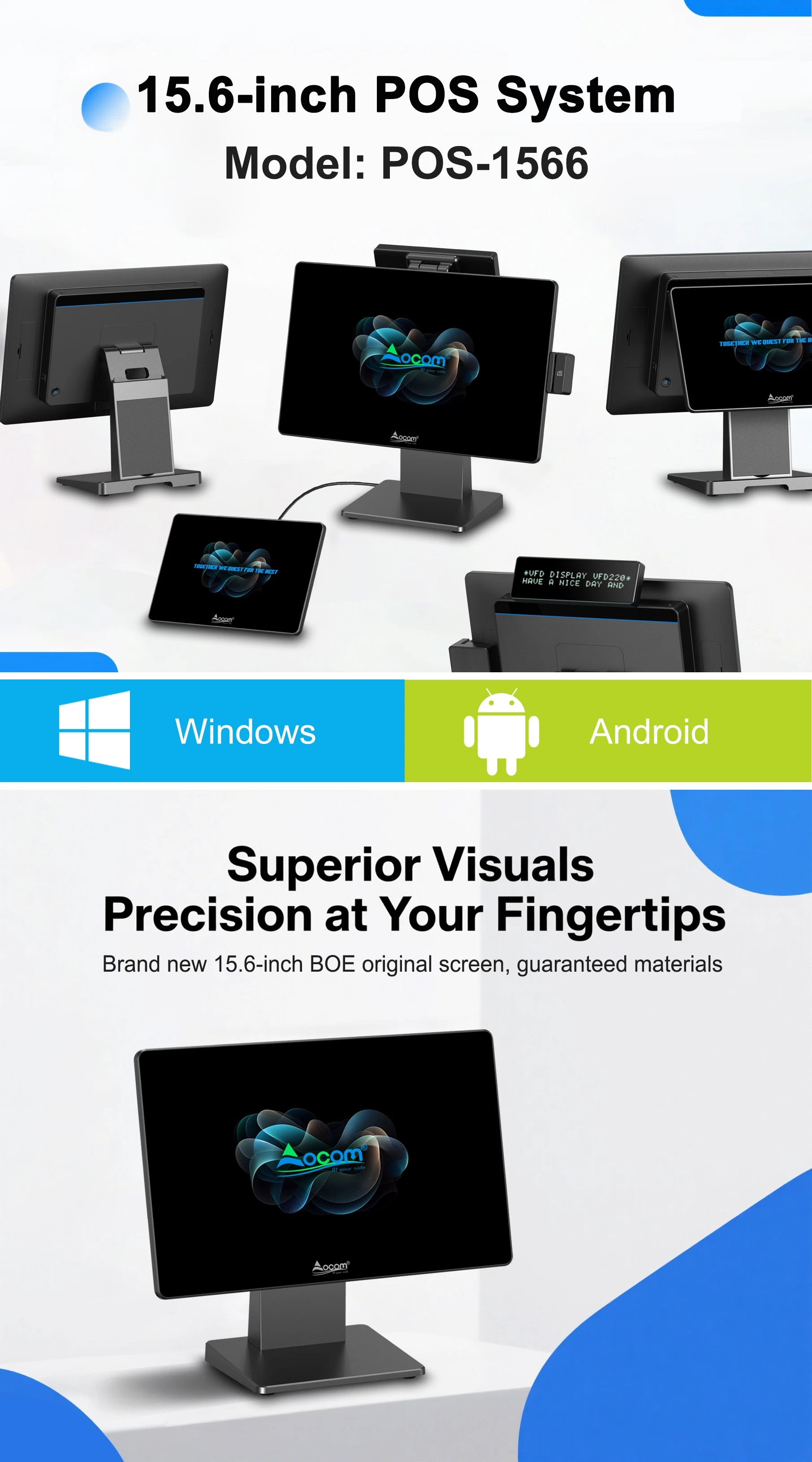

15.6Inch Touch Screen Dual Screen Supermarket Cashier Machine
- Model POS-1566-W
- Name 15.6-inch Windows Touch Screen POS terminal
- Home screen 15.6-inch touch screen monitor
- 1366*768, 1920*1080
- Brightness 250CD/m2
- Viewing angle range: 160; vertical: 150
- Touch screen multi-point projection GG capacitance touch
- Sub-display 11.6-inch display or w/o touch function, resolution 1366*768
- Customer display 2*20 VFD installed to the back cover to get options
Specification
|
Model |
POS-1566-W |
|
Name |
15.6 inch Windows touch screen POS terminal |
|
Main screen |
15.6 inch touch screen monitor |
|
Resolution |
1366*768, 1920*1080 for option |
|
Brightness |
250cd/m2 |
|
View angle |
Horizon: 160; Vertical :150 |
|
Touch screen |
Multi-point projected G+G capacitive touch |
|
Sub-display |
11.6inch display W or W/o touch function, resolution 1366*768 |
|
Customer display |
2*20 VFD mounted to back cover for option |
|
Performance |
|
|
Motherboard |
Intel Core I5 4th CPU,other CPU need to be customized |
|
System Memory |
2*SO-DIMM DDR3L 1333/1600MHz 4GB , up to 16GB |
|
Storage device |
Msata SSD 128GB or higher, up to 512GB |
|
Audio |
On board Real-tech chip |
|
LAN |
10//100/1000Mbs, 1*Realtek RTL8111 LAN chip built in Mini PCI-E slot,support embedded WIFI module |
|
Optional WIFI&BT |
2.4G&5G WIFI ,BT 5.0 supported for option |
|
Speaker |
4ohm/2w*1 |
|
Operating System |
Support win10 /win11 |
|
Connectivity |
|
|
External I/O port (I5 4th) |
power button*1 |
|
12V DC in jack*1 |
|
|
LAN:RJ-45*1 |
|
|
2*USB3.0，4*USB2.0 |
|
|
COM(RS232) * 1 |
|
|
1*HDMI |
|
|
Audio out*1，1*Mic-in |
|
|
Package |
|
|
Weight |
Net 3.5kg(without power adaptor and power cord) |
|
Package with foam inside |
470*180*400mm/4.6kg |
|
2 in1 box |
485*365*405mm/10kg |
|
|
|
|
Operating temperature |
0 to 40 degrees centigrade |
|
Storage temperature |
-10 to 60 degrees centigrade |
|
Working humidity |
10%~80% No condensation |
|
Storage humidity |
10%~90% No condensation |
|
Accessories |
|
|
Power adapter |
100-240V/50-60HZ 1.5Amax AC power input ,DC12V/5A output adaptor |
|
Power cable |
Power cable plug compatible with USA /EU / UK etc and customized available |
