2 inch mini bluetooth barcode printer (OCBP-M58)2 inch mini bluetooth barcode printer (OCBP-M58)2 inch mini bluetooth barcode printer (OCBP-M58)2 inch mini bluetooth barcode printer (OCBP-M58)2 inch mini bluetooth barcode printer (OCBP-M58)

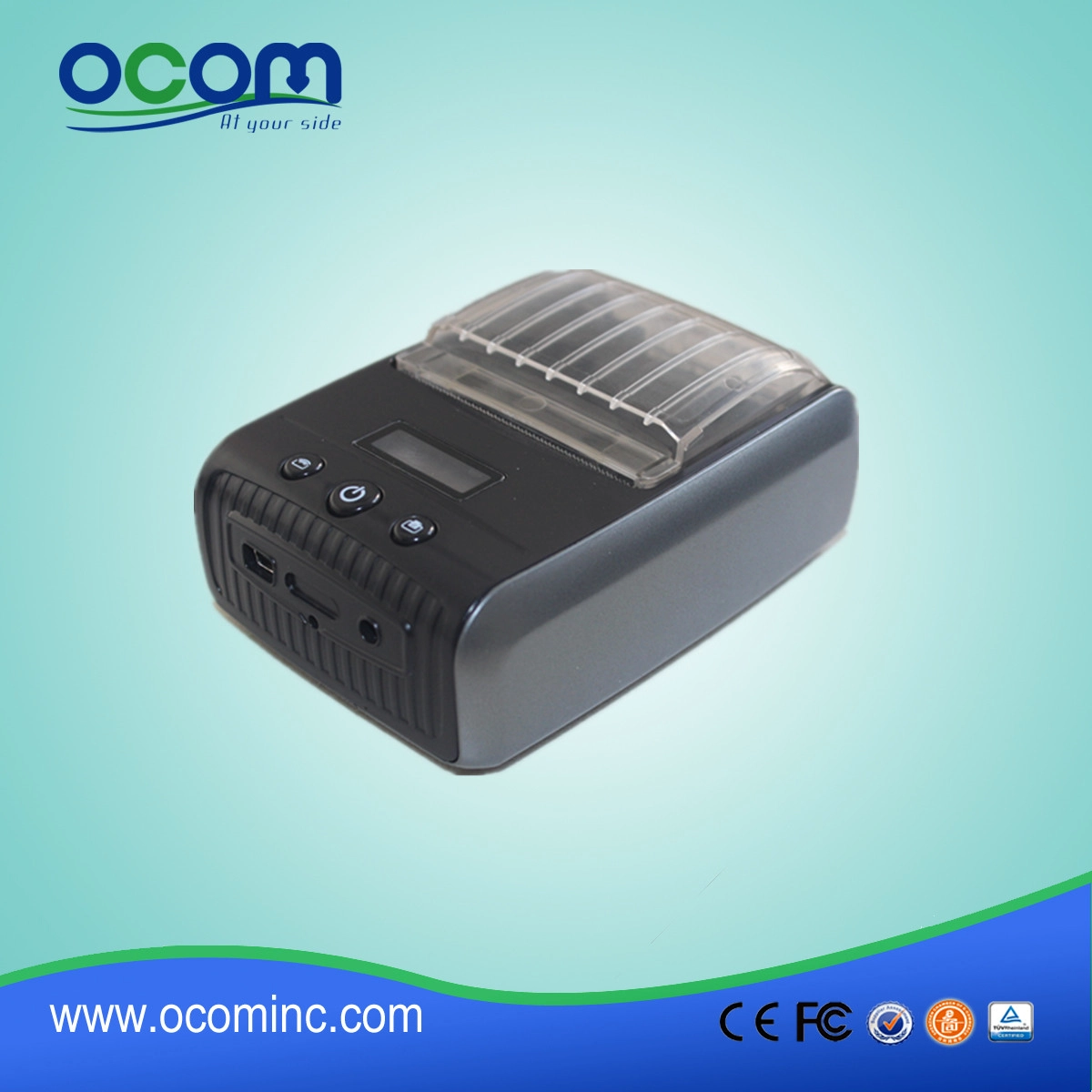

2 inch mini bluetooth barcode printer (OCBP-M58)

  • features:
  • Support Windows, Java, Android OR iPhone OS.
  • Bluetooth, USB communication for option.
  • Higher print speed 90mm/sec.
  • 100km TPH Life.
  • Low power consumption and large capacity Lithium battery.
2 inch mini bluetooth barcode printer
(OCBP-M58)

Keywords:
barcode printer,
mini barcode printer,
bluetooth barcode printer.

Features:
  • Support Windows, Java, Android OR iPhone OS.
  • Bluetooth, USB communication for option.
  • Higher print speed 90mm/sec.
  • 100km TPH Life.
  • Low power consumption and large capacity Lithium battery.

Specification:



Overall Dimension (W×D×H)

113×82×48mm ( Package size: 585*410*285mm(40pcs) )

Weight

246g  (Package weight: 20kg(40pcs) )

Color

Black

Effective print width

48mm

Print method

Thermal line printing

Print commands

ESC/POS compatible command set

Print speed

Up to 90mm/sec

Resolution

8 dots/mm(203dpi)

Print font

12x24/ 24x24

Column capacity

32 columns/ 16columns

Character size

1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

Paper dimensions

58.0±0.1mm x diameter 40.0mm

Paper thickness

0.06 to 0.08mm

Character set

Alphanumeric/ Chinese Kanji

Interface

USB, Bluetooth (optional)

Data buffer

Up to 5K bytes

Power Adapter

9V DC/1A

Battery Power

1300mAh/7.4V.

30m printing for one charging,  longer stand-by time up to 30 days

Other features

Paper detection, power detection, Manual shut down

Working conditions

Temperature: -10 to 50 degree centigrade, Humidity:10%~90%

Storage conditions

Temperature: -20 to 70 degree centigrade, Humidity:5%~95%

Device name

Can be customized, letter and digital for option, at max 30 ASCII characters.

Password

Enter default pairing code “1234”, it can be customized. At max 6 digitals.

Power plug dimension

3.5*1.1mm
