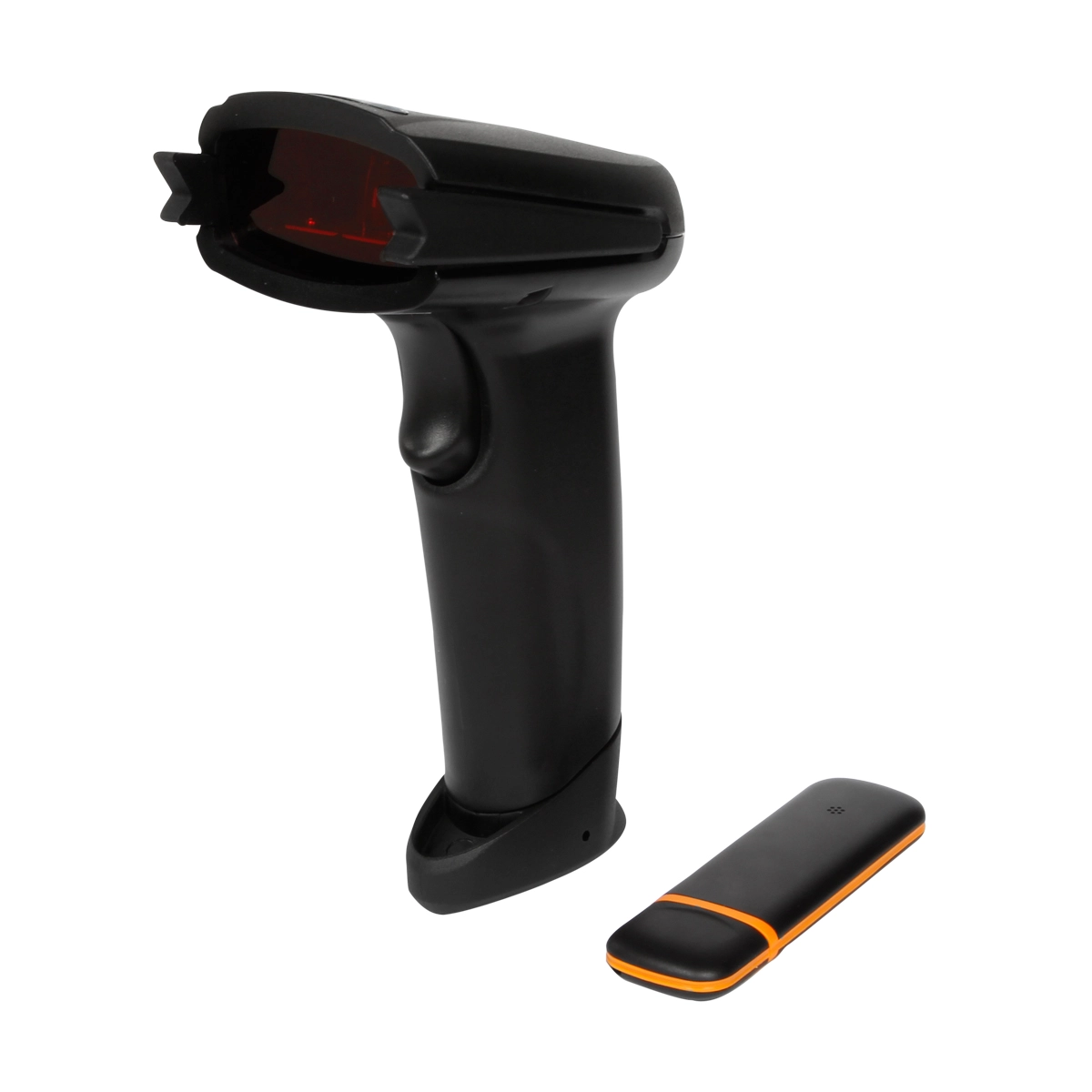

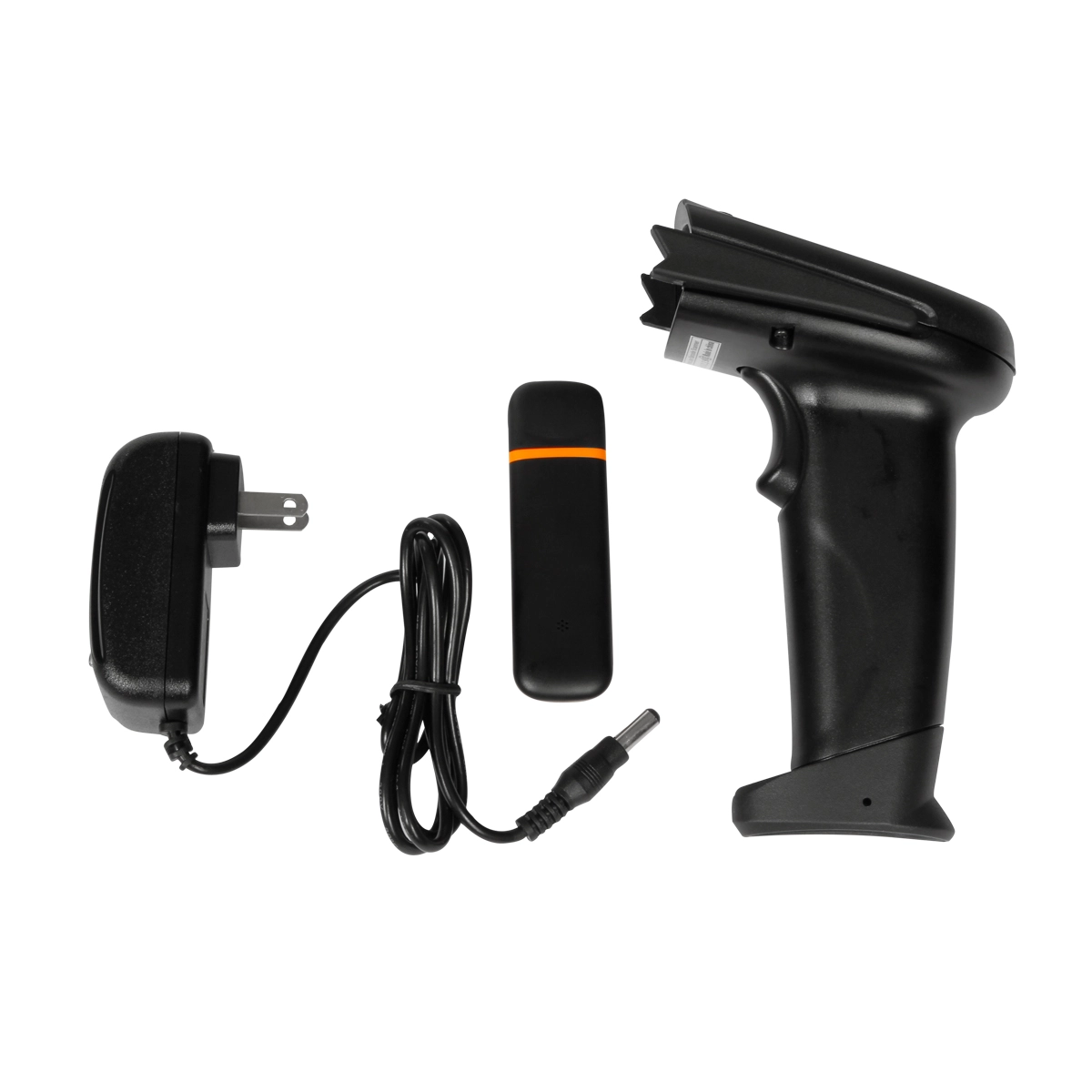

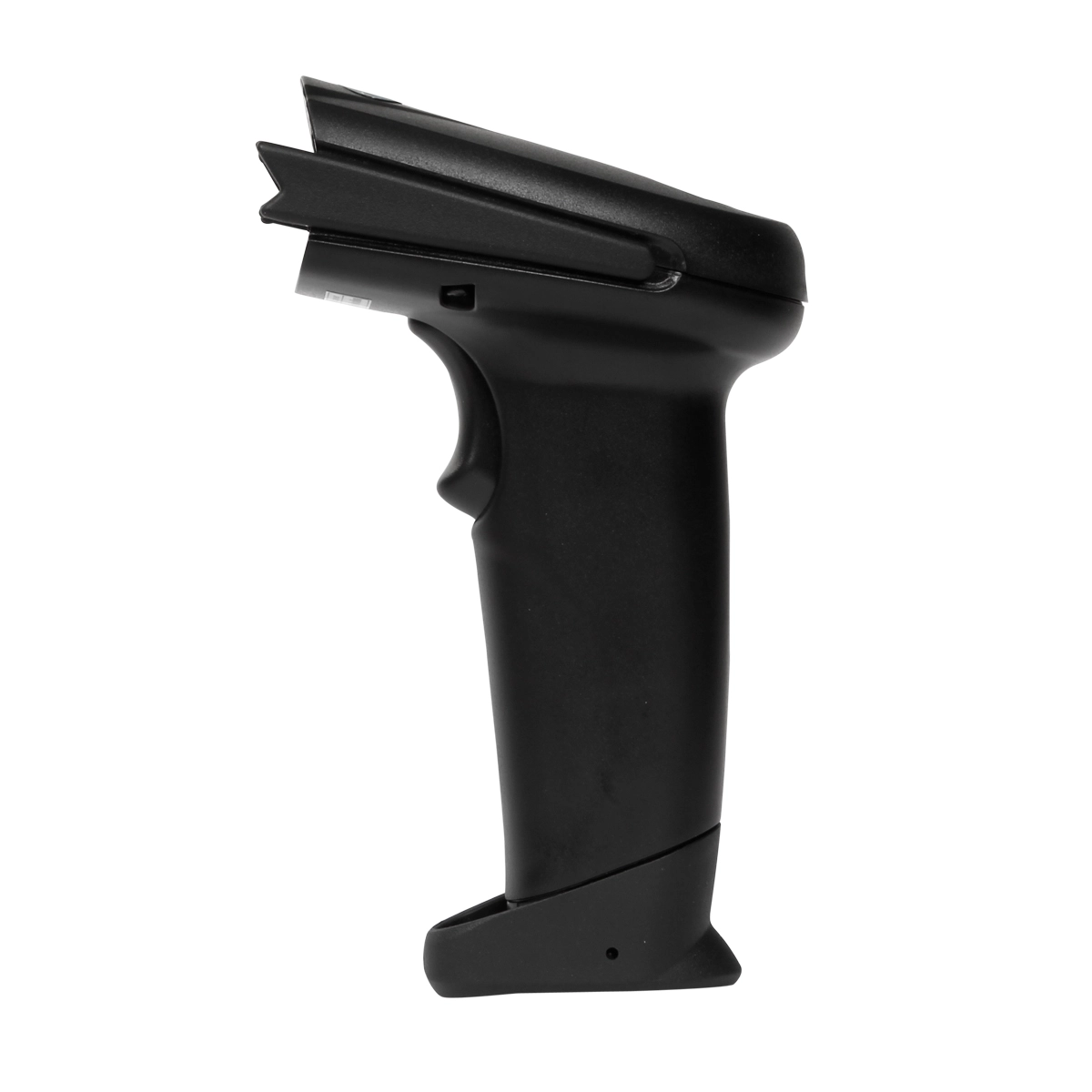

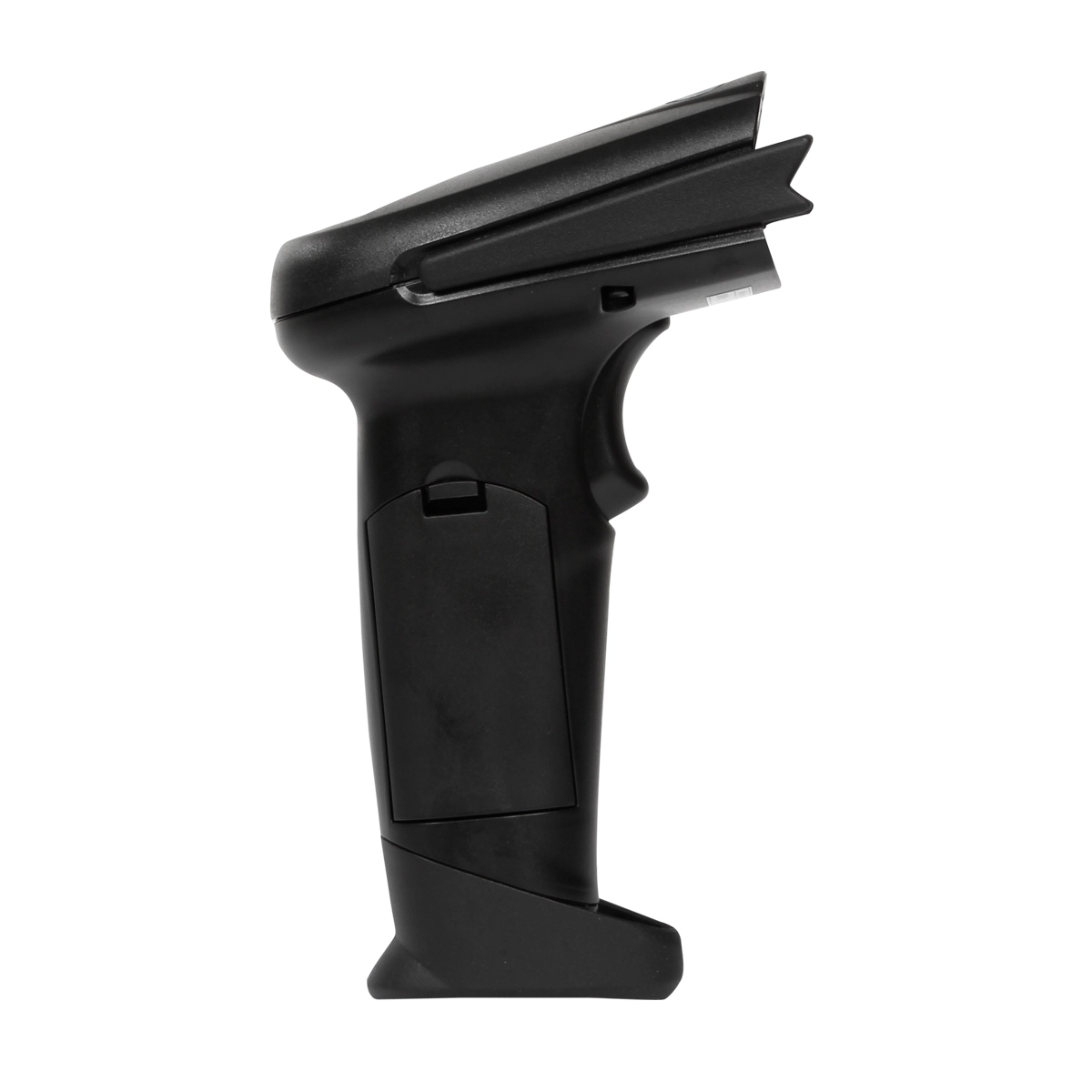

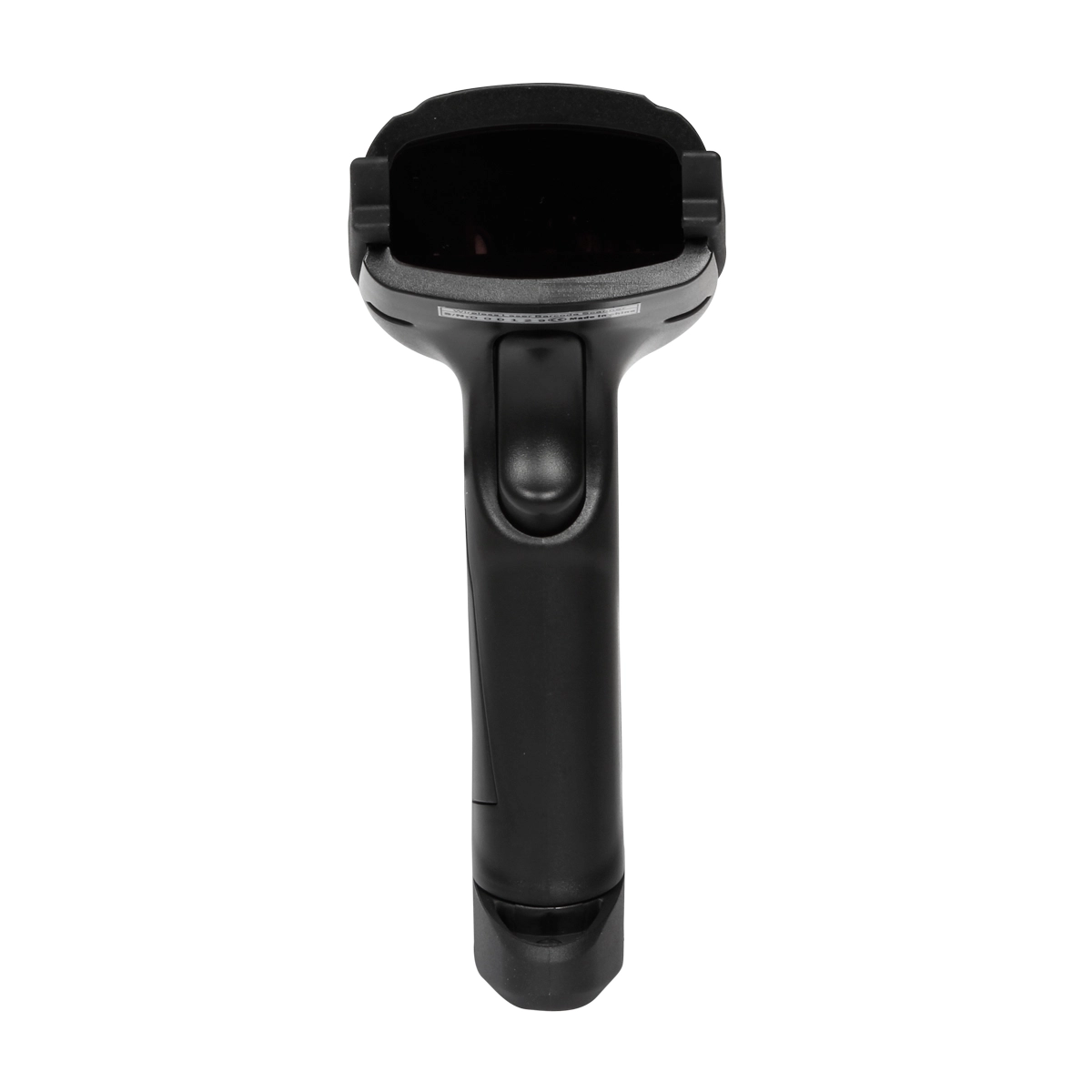

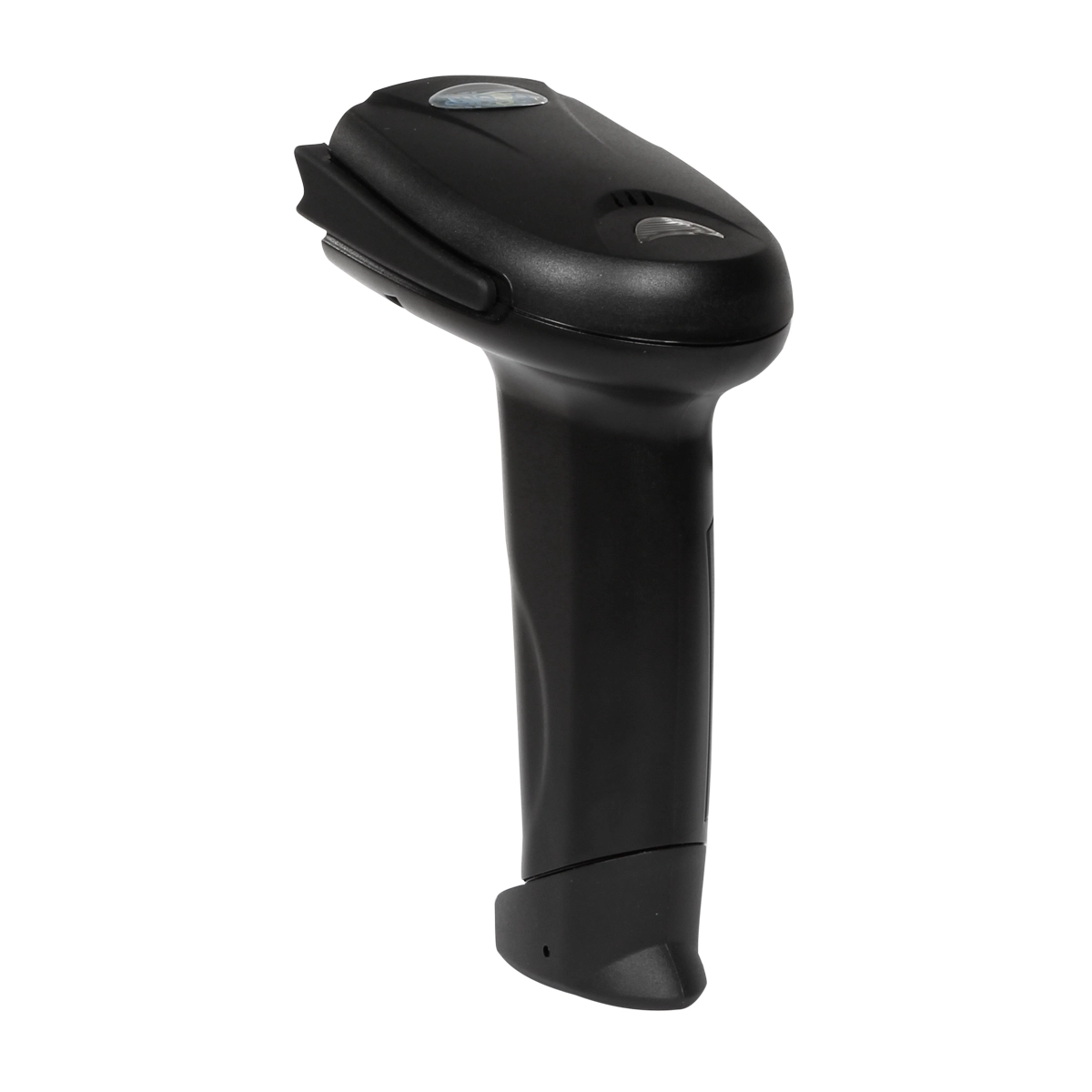

2.4G USB Handheld Laser scan 1D Barcode Scanner
- 2.4 G wireless laser barcode scanner;
- Scan Speed:100scans/sec;
- Data transmission distance reaches 30m in open area;
- Scan Time:30hours;
2.4G USB Handheld Laser scan 1D Barcode Scanner
(M/N:OCBS-W0600)
SPECIFICATION:
|
PHYSICAL CHARACTERSTICS
|
|
|
Light Source:
|
Visible Laser Diode (VLD) @ 650 nm-670nm
|
|
Scanner Dimensions:
|
164mm * 67mm * 95mm(W * H * D)
|
|
Receiver Dimensions:
|
130mm*45mm*129mm(W * H * D)
|
|
Material:
|
ABS+TPR /Aluminium alloy
|
|
Weight:
|
235g
|
|
Scanning Mode:
|
Hand-held; bidirectional Scanning Mode.
|
|
Indicator Light:
|
LED Red and Blue
|
|
Buzzer:
|
Buzzer Volume Adjustable
|
|
PERFORMANCE CHARACTERSTICS
|
|
|
Width of Scan Field:
|
60mm@30mm（From engine face）
98mm@100mm（from engine face）
|
|
Depth of Scan Field:
|
2.5-600mm（Contrast 0.9 Density 0.25）
|
|
Scan Speed:
|
100 scans/sec
|
|
Scan Precision:
|
0.10mm（4mil） PCS0.9
|
|
Bit Error Rate:
|
1/(5million)
|
|
Decode Capability:
|
UPC/EAN, UPC/EAN with Supplementals, UCC/EAN128, Code39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5
|
|
Battery:
|
3.7V/750mAh,Li-ion
|
|
Charge Time:
|
3.0 Hours
|
|
Scan Time:
|
30 Hours
|
|
Current:
|
100mA (working); 40mA(standby)
|
|
Angles:
|
Pitch:60°; Tilt: 45°
|
|
Communication Distance:
|
30m
|
|
Working Frequency:
|
2.4G
|
|
Communication Interface:
|
USB
|
|
USER ENVIRONMENT CHARACTERSTICS
|
|
|
Temperature:
|
0degree C to 50degree C (Operating), -40degree Cto 70 degree C (Storage)
|
|
Relative Humidity:
|
5%-90%(Non-Condensing)
|
|
Drop Specification:
|
Withstands repeated 1.5m drops to concrete surface
|
|
Ambient Illumination:
|
0~100,000 LUX
|
|
Electrostatic Discharge:
|
Conforms to ±12KV air discharge and ±6KV of contact discharge
|
|
Safety Certificate:
|
CE, FCC, Class 2, RoHS
|
Product Details:
FAQ
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal. And you can also buy it on our online store at aliexpress:http://www.aliexpress.com/store/403448?tracelog=minisite_CI.
3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.
4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
6. Customer
Our main customers from Eruopean, Australia, and the fast growing South America, Africa, Russia...,
We have servered more than 1300 customers from 133 countries, including the global fortune 500 company like Unilever, O2.....50 of them are the biggest distributor in the local teritories.
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal. And you can also buy it on our online store at aliexpress:http://www.aliexpress.com/store/403448?tracelog=minisite_CI.
3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.
4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.
5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.
6. Customer
Our main customers from Eruopean, Australia, and the fast growing South America, Africa, Russia...,
We have servered more than 1300 customers from 133 countries, including the global fortune 500 company like Unilever, O2.....50 of them are the biggest distributor in the local teritories.
