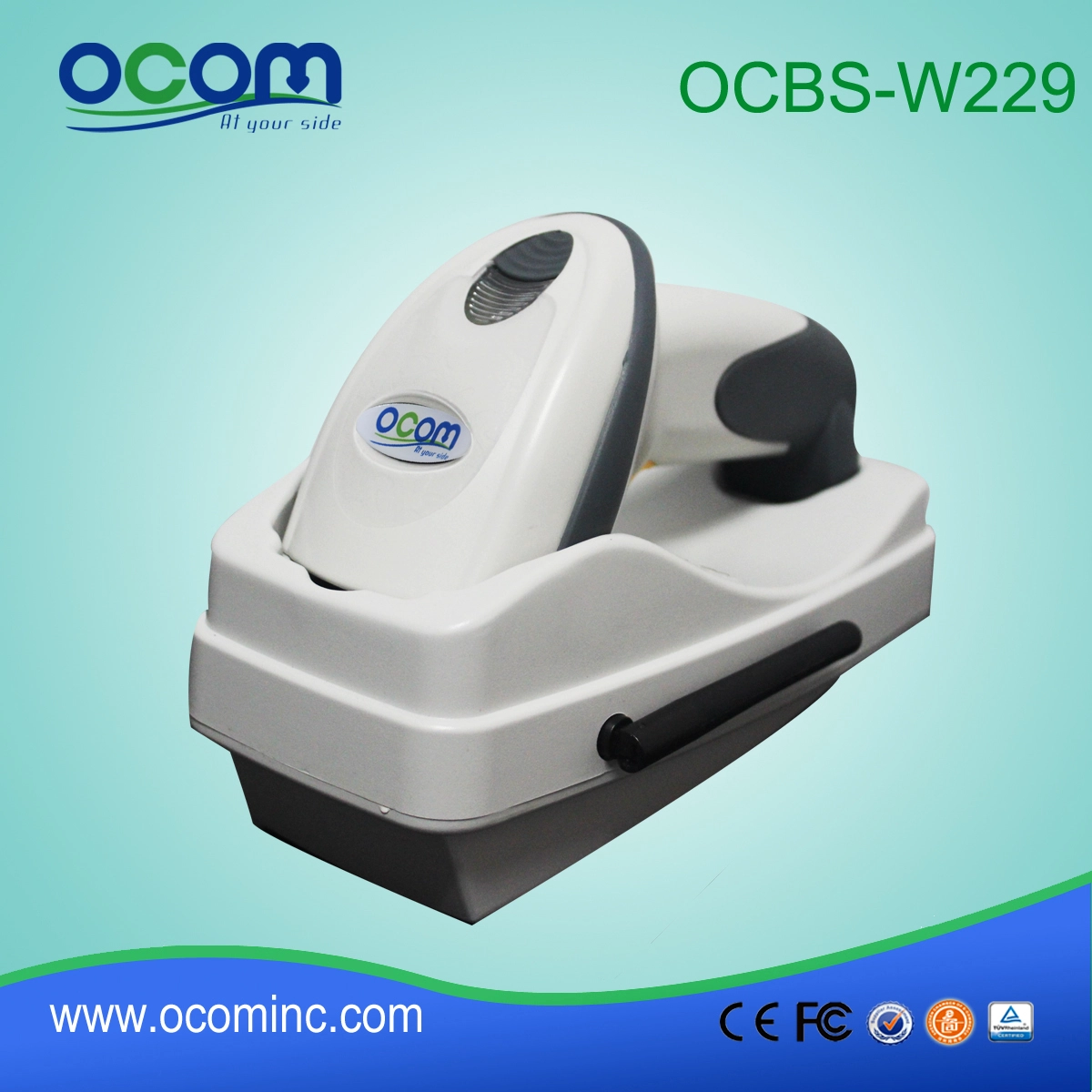

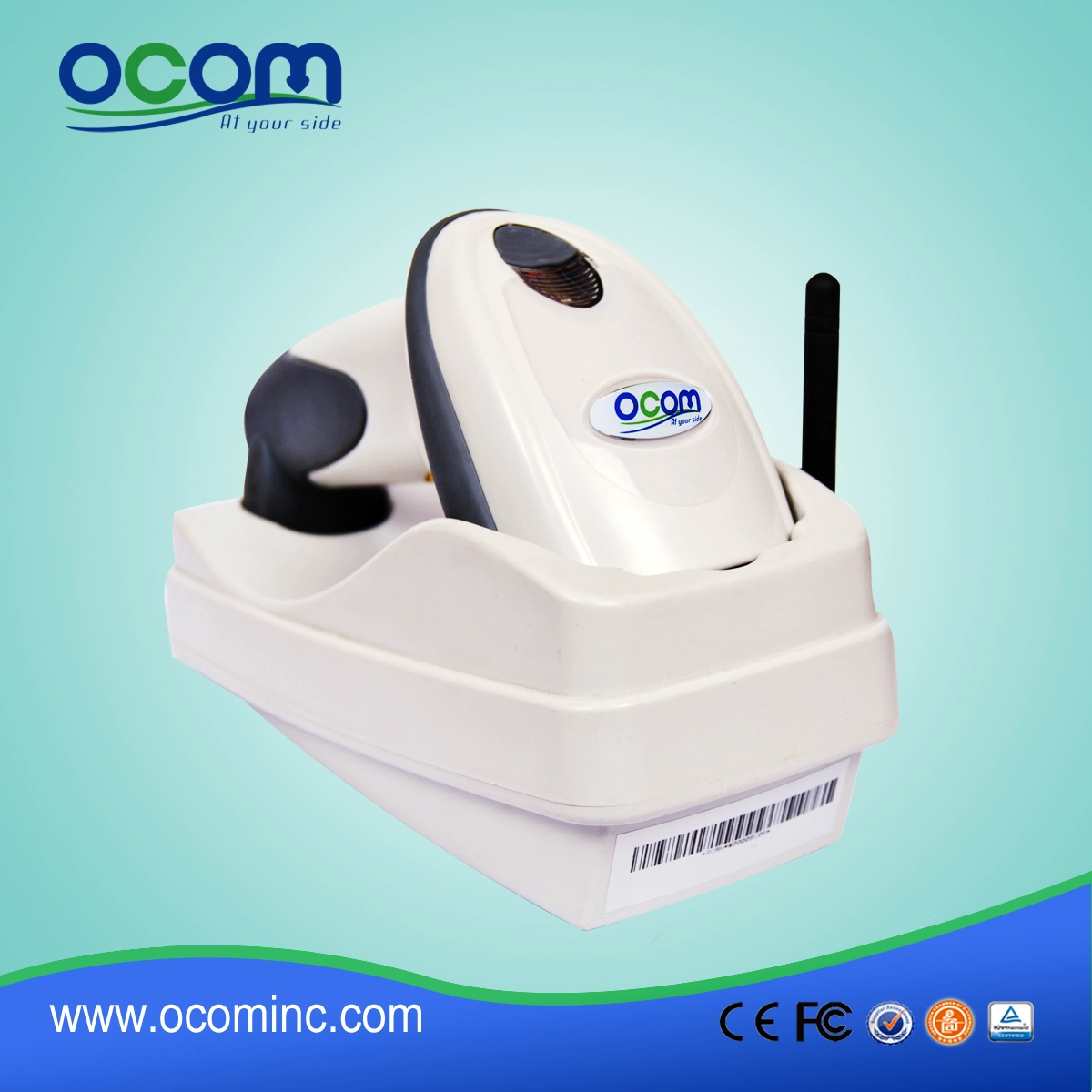

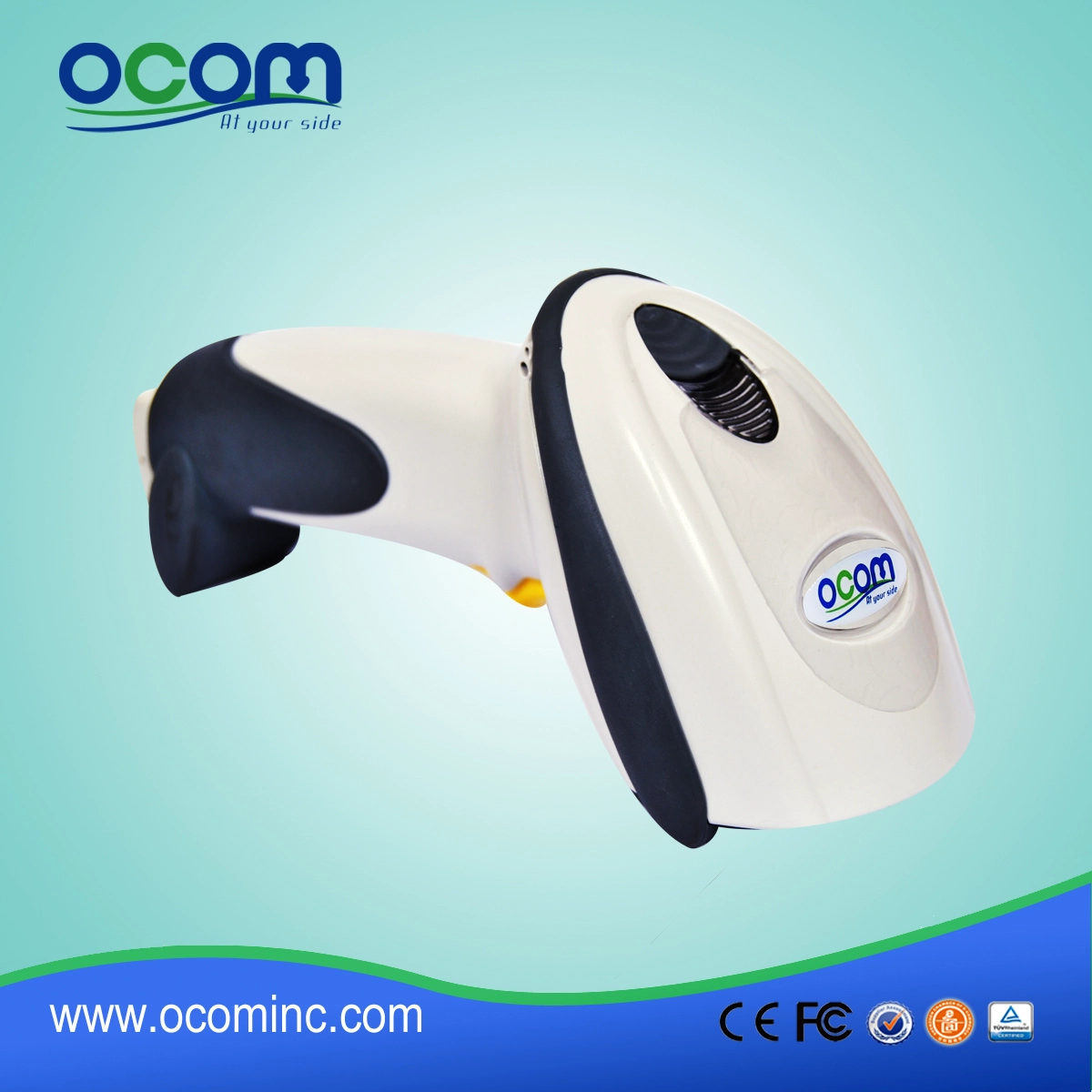

Physical Characteristics

Dimensions:

97.3mmx60.3mmx181mm

Weight:

175g(without cable)

Cable length:

1.8m

Voltage and Current:

5 +/-10%VDC  350 mA

Performance Characteristics

Light Source:

Aiming: 528 nm LED; illumination: 630 nm LED

Field of View:

 34° V x 46° H

Roll / Pitch / Yaw:

 360°, +-65°, +-60°

  Scan

Performance:

Depth of filed(from engine face)

Lable 1D ensity

TD3000

Paper Label

English

Metric

13mil (100% UPC/EAN)

1.2-8.0 in

3.0-20.5cm

20mil (Code 39)

1.2-12.0 in

3.0-30.5cm

PDF417(10mil)

2.0-6.0 in

5.0-15.5cm

Data matrix(10mil)

2.1-6.0 in

5.2-15.5cm

Symbology Decode Capability

1-D:

UPC/EAN and with supplemental, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Coda bar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32

PDF417 (and Variants):

PDF417, microPDF417 and composite codes

Postal:

U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch

2-D:

MaxiCode, DataMatrix (ECC 200), and QR Code

Print Contrast:

25% minimum reflectance

Motion Tolerances:

Horizontal velocity: 2 in. (5 cm) per second

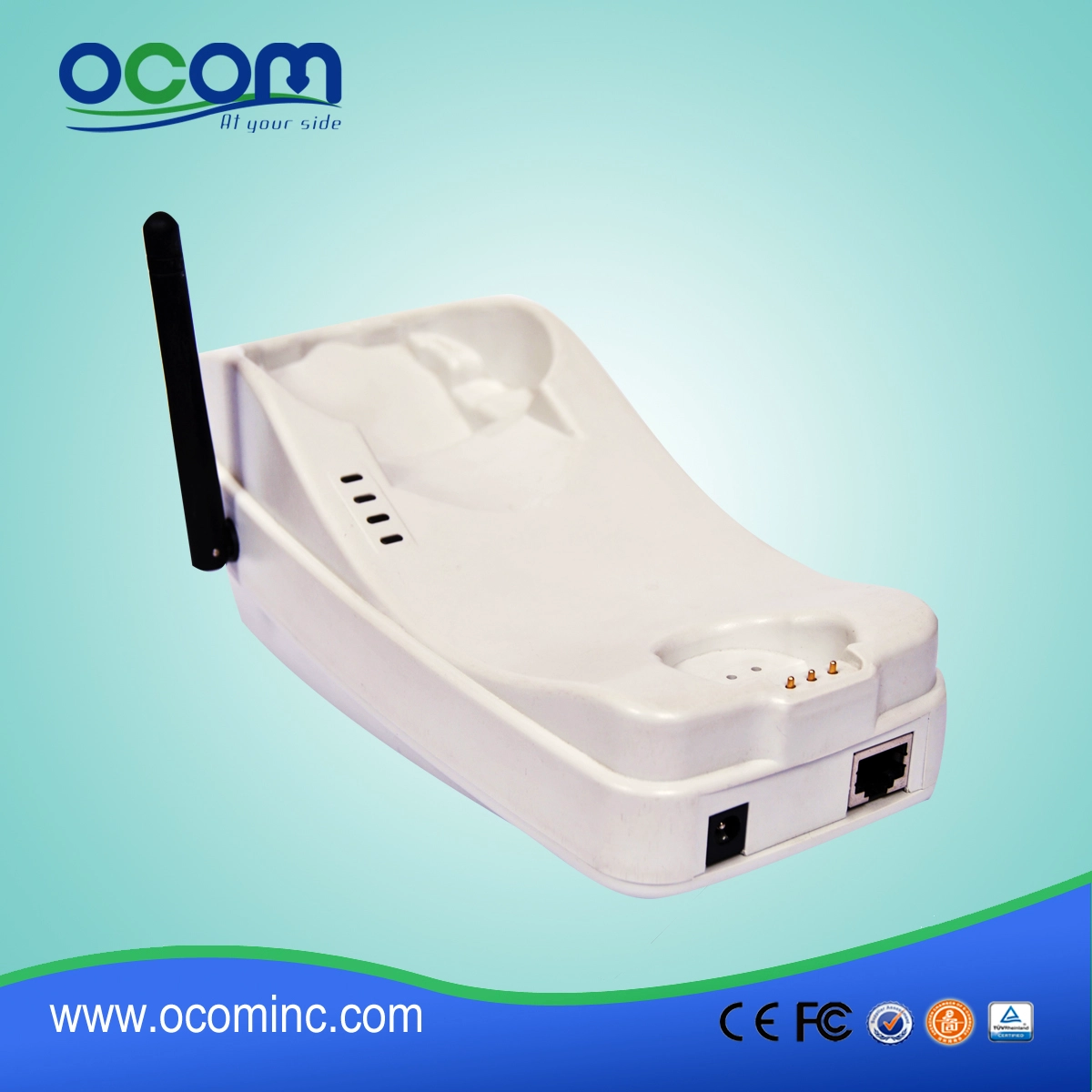

Interfaces Supported:

RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard,  SurePOS, M ac ntosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces.

Imaging Characteristics

Image (Pixels):

0.30 Megapixel 640 pixels H x 480 pixels V

Graphics Format Support:

Images can be exported as Bitmap, Jpeg, and Tiff

Reading Dist:

3 to 35cm(resolution dependent)

Image Transfer Speed:

USB 1.1: Up to 12 Megabits/secondRS232: Up to 115 kb baud rate

Image Transfer Time:

Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb

Wireless Parameter

Frequency

433MHz

Bluetooth

Comm. Dist

800m in the field

10m/100m

Channel

64 channels auto switch

/

comm. protocol

USB-HID, USB-COM

/

Baud Rate

1.2k to 38.4k(default:9.6kbit/s)

/

Offline Storage

8MB memory

Peak Current

435mA

Current consumption

525mA

Idle Current

66mA

Battery

Li-ion 2400mAH

Working Hours

>= 4hrs

Power

Voltage

5VDC+-10%VDC

Peak Current

435mA

Idle Current

67mA

User Environment

Operating Temperature:

 14 to 122 degree F / -10 to 50 degree C

Storage Temperature:

-40 to 158 degree F / -40 to 70 degree C

Humidity:

 5% to 95%, non-condensing

Drop/Shock Specifications:

Withstand 2000g to concrete

Ambient Light Immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.

Ordering Information:

OCBS-W229-R-b

433MHZ Wireless Scanner, Black

OCBS-W229-R-w

433MHZ Wireless Scanner, White

OCBS-W229-B-b

Bluetooth Wireless Scanner, Black

OCBS-W229-B-w

Bluetooth Wireless Scanner, White
