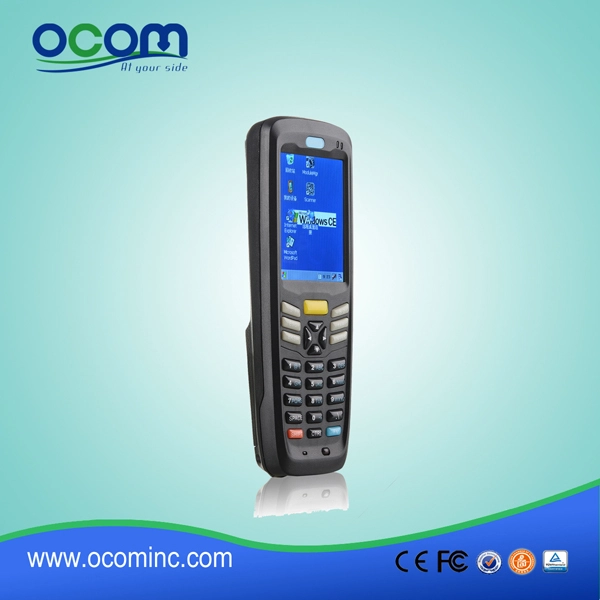

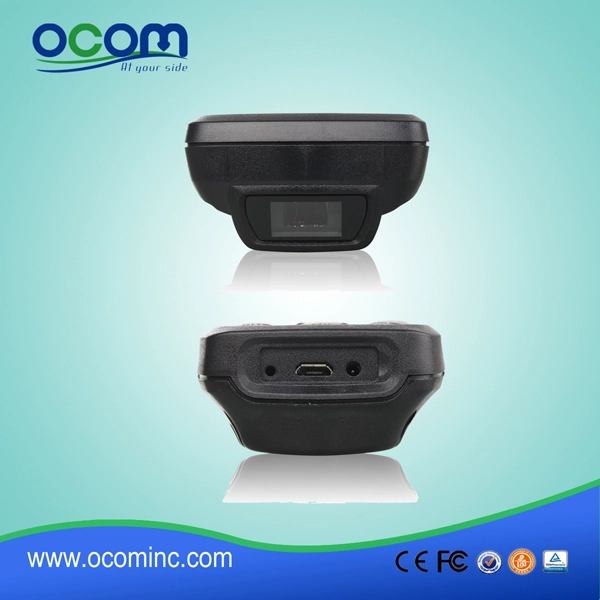

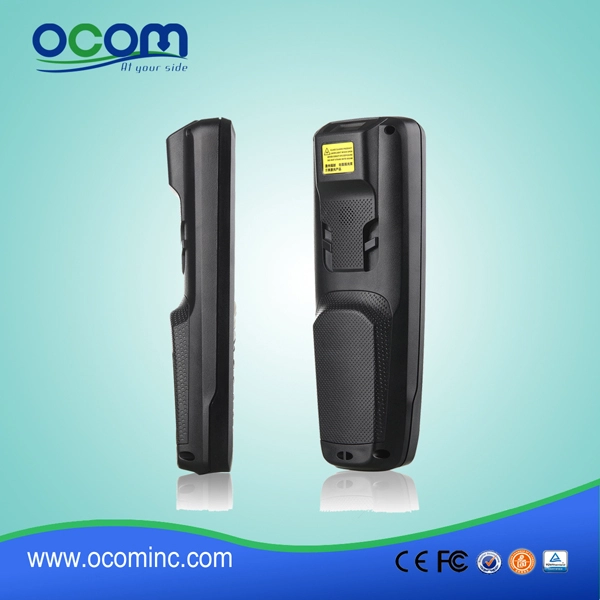

2015 Factory WinCE OS Warehouse Stocker Newest Industrial PDA2015 Factory WinCE OS Warehouse Stocker Newest Industrial PDA2015 Factory WinCE OS Warehouse Stocker Newest Industrial PDA2015 Factory WinCE OS Warehouse Stocker Newest Industrial PDA

2015 Factory WinCE OS Warehouse Stocker Newest Industrial PDA

  • 2015 Factory WinCE OS Warehouse Stocker Newest Industrial PDA
  • Default configuration :Wifi+1D barcode scanner;
  • Bluetooth, GPRS communication for option;
  • 2D scanner, 125K/134.2K/13.56M Hz RFID reader for options;
  • Win. CE 5.0 multi-language operation system;
  • Easy secondary development, compatible with different software;
  • RAM DDR2 128MB, F-ROM 256MB;
  • High capacity 2800mA battery and low consumption;
  • Industrial rugged design, water-proof and protection grade(IP54);

2015 Factory WinCE OS Warehouse Stocker Newest Industrial PDA


Features:

2015 Factory WinCE OS Warehouse Stocker Newest Industrial PDA
Default configuration :Wifi+1D barcode scanner;
Bluetooth, GPRS communication for option;
2D scanner, 125K/134.2K/13.56M Hz RFID reader for options;
Win. CE 5.0 multi-language operation system;
Easy secondary development, compatible with different software;
RAM DDR2 128MB, F-ROM 256MB;
High capacity 2800mA battery and low consumption;
Industrial rugged design, water-proof and protection grade(IP54) ;

Specifications:

Operation system

Windows CE 5.0,SDK for multiple programming languages including C#, VB.net, VC++ to assist system developer

CPU

SAMSUNG S3C2451 533MHZ

Memory

RAM DDR2 128MB, F-ROM 256MB

Display

TFT-LED QVGA 2.8 inch LCD color touch screen, resolution 240*320

Keyboard

27 keys





Communication

Wi-Fi (default)

Built in 802 11b/g wireless communication function, rate: 54MB/Sec, can meet CISCO CCX2,3 security standard

GPRS(Optional)

Support GSM/GPRS 10,GSM27,10



Data collection

(3 options)

1D barcode scanner

Laser Barcode scanner, Scan Rate: 100 scan/sec

Code: UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Book land EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Coda bar; MSI; GS1 Data Bar 14; GS1 Data Bar Limited; GS1 Data Bar Expanded;

2D Barcode Scanner

1D barcode: UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Book land EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Coda bar; MSI; GS1 Data Bar 14; GS1 Data Bar Limited; GS1 Data Bar Expanded;

2D barcode: PDF417、microPDF417 ,Maxi Code, Maxi Code, Data Matrix, Composite Codes & QR  Code,

RFID

13.56MHZ, support ISO15693, ISO14443A/B agreement



Power

Battery

3.7V 2600MAH

Standby time

120 hours

Working time

8 hours

Expand port

Support Micro SD/TF card up to 16GB

Industrial grade

IP65

Dimensions

169(l)×60(W)×31(H) mm

Weight

320g (include battery)





Working environment

Operate temperature

-15~+50 Degree C

Store temperature

-20~+60 Degree C

Operate humidity

5-95%

Store       humidity

5-95%

Height of Anti-seismic

1.2m cement floor

Product Details:
