Re: 2015 newest Bluetooth wireless desktop 80mm printer-OCPP-88A-BUL
- Unique appearance with reliable mould;
- High Printing Speed up to 300mm/second;
- auto Cutter ;
- Cord and cordless communication for options
- Interface: Bluetooth+USB+LAN
- Sound and light alarm supported suitable for kitchen application;
- Support multiple 1D and QR code types printing;
- Support multi international languages;
- SDK for Android available;
- Reliable printer head with 100km life;
- Compatible with EPSON ESC/POS commands.

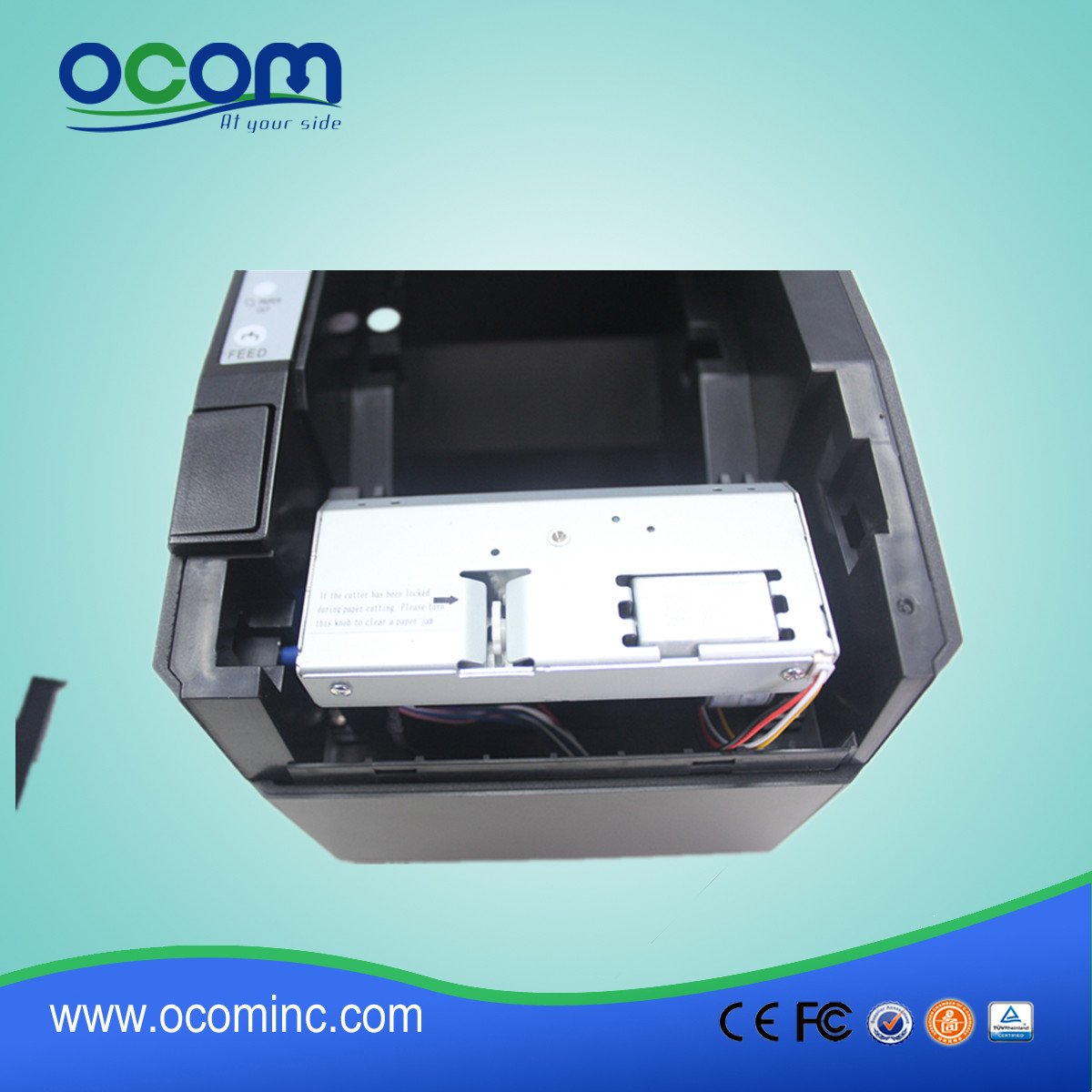

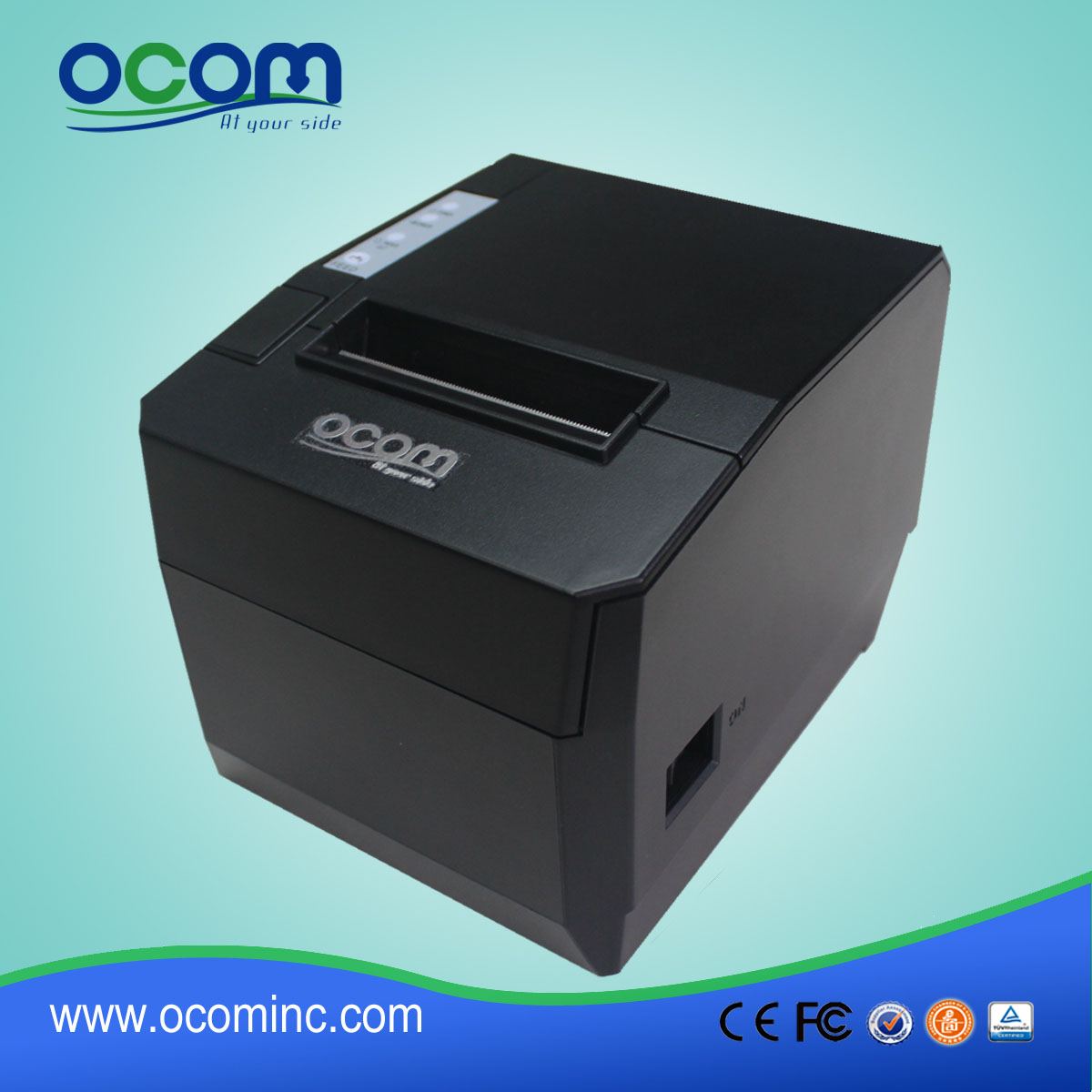

80mm High Speed Bluetooth POS Thermal Printer
(Model No.: OCPP-88A-BUL)
Features:
Unique appearance with reliable mould;
High Printing Speed up to 300mm/second;
auto Cutter ;
Cord and cordless communication for options

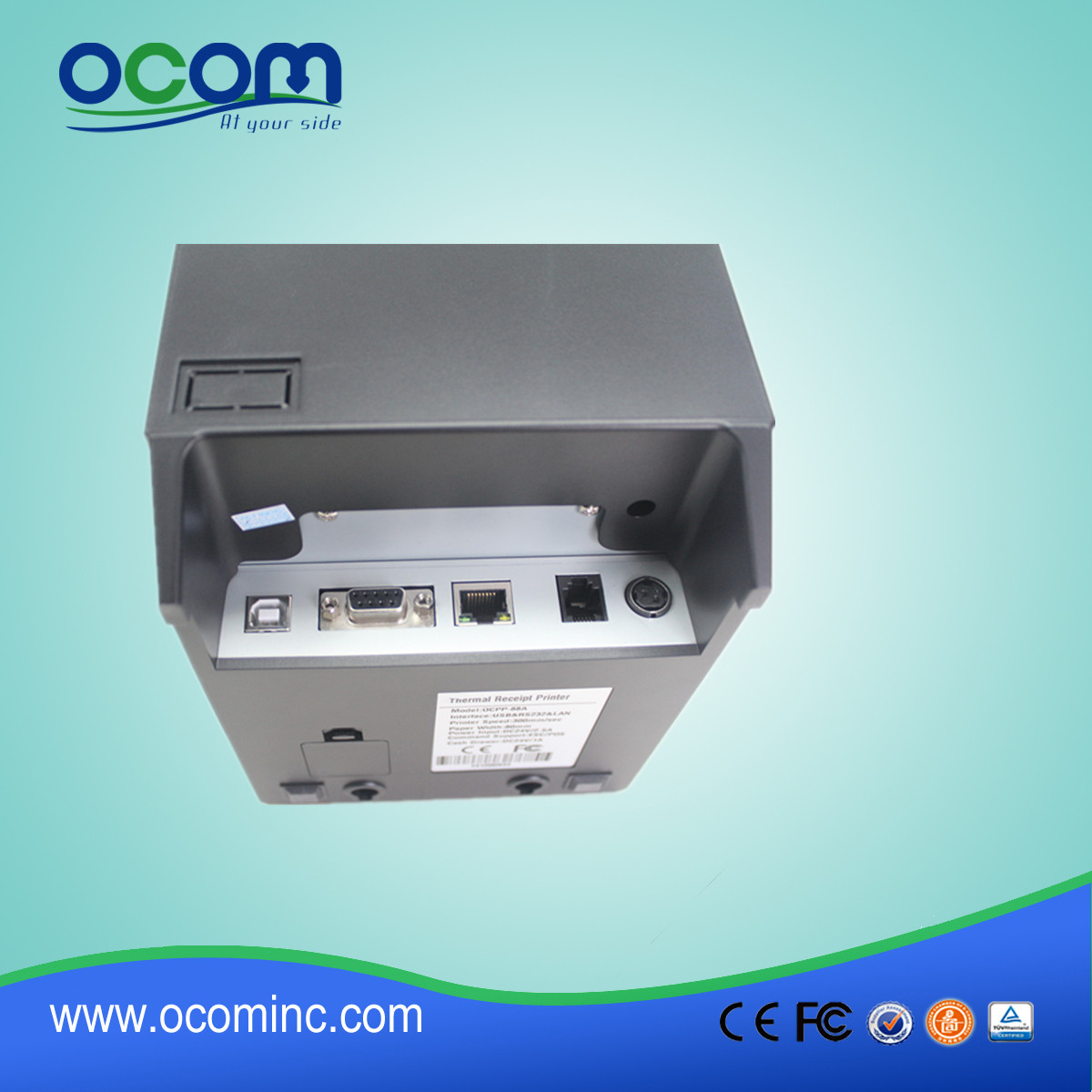

Interface: Bluetooth+USB+LAN
Sound and light alarm supported suitable for kitchen application;
Support multiple 1D and QR code types printing;
Support multi international languages;
SDK for Android available;
Reliable printer head with 100km life;
Compatible with EPSON ESC/POS commands.
Parameters:
Printing Method |
Thermal line printing |
|
Printing Character |
576dots/line (default), 512dots/line; Characters : Simplified Chinese 24x24 point, support 18030 font library, support Taiwan and HK traditional (complex font), ANK characters; |
|
Font |
A: 12*24dots,1.5(W)*3.0(H)mm; B: 9*17dots,1.1(W)*2.1(H)mm Simplified/Traditional : 24*24dots, 3.0(W)*3.0(H)mm |
|
Barcode Type |
JUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODABAR/ITF/CODE39/CODE93/CODE128, QR code |
|
Printing Speed |
250mm/sec for a single interface ,300mm/sec for Double interface and three interfaces |
|
Interface |
USB, USB+Serial, USB+ LAN, USB+ Serial+ LAN, Wifi+USB, Bluetooth+USB+LAN |
|
Printing Command |
Compatible with EPSON ESC/POS commands |
|
Drivers |
Win9X/ Window XP /Win2000/Win2003/Win Vista/ Win 7/ Win 8/win8.1/Linux, compatible with ESPON, SDK for Android available. |
|
Printing Width |
79.5±0.5mm( print width 72mm) |
|
Paper Diameter |
83mm |
|
Paper Thickness |
0.06-0.08mm |
|
Cutter |
Auto cutter (optional) |
|
Printing Reliability |
100km |
|
Power |
DC24V/2.5A |
|
Temperature |
0-45 degree C |
|
Contrast Humidity |
10-80% |
|
External Dimension |
190*145*145(mm) |
|
Weight |
1.60kg |
|
Ordering information |
P/N |
Description |
OCPP-88A-U |
USB port, with auto cutter |
|
OCPP-88A-UR |
USB+Serial port, with auto cutter |
|
OCPP-88A-UL |
USB+Lan port, with auto cutter |
|
OCPP-88A-URL |
USB+Serial+Lan port, with auto cutter |
|
OCPP-88A-W |
Wifi+USB port, with auto cutter |
|
OCPP-88A-BUL |
Bluetooth+USB+LAN, with auto-cutter |
|
OCPP-88A-U0 |
USB port, without auto cutter |
|
OCPP-88A-UR0 |
USB+Serial port, without auto cutter |
|
OCPP-88A-UL0 |
USB+Lan port, without auto cutter |
|
OCPP-88A-URL0 |
USB+Serial+Lan port, without auto cutter |
|
OCPP-88A-W0 |
Wifi+USB port, without auto cutter |
|
OCPP-88A-BUL0 |
Bluetooth+USB+LAN, without auto-cutter |
High-quality 80mm high speed thermal printer POS improved version
(Model: OCPP-88A)
Features:
1. Unique appearance with reliable mold;
2. High-speed printing at speeds up to 300 mm / sec;
3. Optional automatic cutter;
4. Line and options Cordless Telecommunications
5. Provide a variety of interfaces: USB, USB + serial, USB + LAN, USB + serial + LAN; and Wifi + USB, Bluetooth + USB + LAN
6. audible alarm application support is available for the kitchen;
7. Support various types of one-dimensional and two-dimensional bar code printing;
8. Supports a variety of international languages;
9. SDK for Android provides;
10. Reliable print head life and one hundred kilometers;
11. Compatible EP SON ESC / POS command.
Parameters:
Printing Methods | Thermal line printing | |
Printed characters |
576dots / line (default), 512dots / line; Characters: Simplified Chinese point of 24x24, 18030 font support, support for Taiwan and Hong Kong, traditional (complex Font), ANK character; |
|
Font |
A: 12 * 24dots, 1.5 (W) * 3.0 (H) mm; B: 9 * 17dots, 1.1 (width) * 2.1 (H) mm Simplified / Traditional: 24 * 24dots, 3.0 (W) * 3.0 (H) mm |
|
Barcode types |
JUPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODABAR / ITF / CODE39 / CODE93 / CODE128, QR code |
|
Print speed | 250 mm / sec as a single interface, to 300mm / sec Dual interface and triple interface | |
Interface | USB, USB + serial, USB + LAN, USB + Serial + LAN, Wireless + USB, Bluetooth + USB + LAN | |
Print command | Compatible with EPSON ESC / POS command | |
Driver | In Win9X / Window XP / Win VISTA / WIN2000 / Win2003's / Win / Win 7 8 / win8.1 / Linux is,and ESPON, SDK provides compatibility with Android. | |
Print width | 79.5 ± 0.5 mm (printing width 72) | |
Paper diameter | 83 mm | |
Paper Thickness | 0.06-0.08mm | |
Knife | Automatic cutter (optional) | |
Print Reliability | One hundred kilometers | |
Power | DC24V / 2.5A | |
Temperature | 0-45 degrees Celsius | |
In contrast humidity | 10-80% | |
Dimensions | 190 * 145 * 145 (MM) | |
Weight | 1.60 kg | |
Ordering Information |
P / N
|
Description
|
OCPP-88A-U | USB ports support automatic cutter | |
OCPP-88A-UR | USB + serial ports, supporting automatic cutter | |
OCPP-88A-UL | USB + LAN ports support auto-cutter | |
OCPP-88A-URL | USB + serial + LAN ports with automatic cutter | |
OCPP-88A-W | Wireless + USB port, automatic cutter | |
OCPP-88A-BUL | Bluetooth + USB + LAN, support automatic cutter | |
OCPP-88A-U0 | USB port, no automatic cutter | |
OCPP-88A-UR0 | USB + serial, no automatic cutter | |
OCPP-88A-UL0 | USB + LAN port, no automatic cutter | |
OCPP-88A-URL0 | USB + serial + Lan port, without automatic cutter | |
OCPP-88A-W0 | Wireless + USB port, no automatic cutter | |
OCPP-88A-BUL0 | Bluetooth + USB + LAN, no automatic cutter |
