2016 new 80mm bluetooth mini portable wifi thermal printer (OCPP-M083)2016 new 80mm bluetooth mini portable wifi thermal printer (OCPP-M083)2016 new 80mm bluetooth mini portable wifi thermal printer (OCPP-M083)2016 new 80mm bluetooth mini portable wifi thermal printer (OCPP-M083)2016 new 80mm bluetooth mini portable wifi thermal printer (OCPP-M083)

2016 new 80mm bluetooth mini portable wifi thermal printer (OCPP-M083)

  • Support Windows, Java, Android,IOS (optional) system
  • Interface: USB+RS232 + Bluetooth(Options), or USB+RS232+WIFI;
  • USB and DC charging;
  • OLED display the printing status;
  • Support 2D,1D barcode printing
  • One printer can connect to Multi smart devices(upto 7 android devices+1 ios device) (Optional)
  • Printer name and password can be change online
  • Free SDK for Android and Win CE
  • 2000mAh large capacity Lithium battery
  • Special battery indicator to monitor power status
  • Cutter: manual cutter
  • Printing Speed: upto 90mm/sec
  • MCBF(life): 100km

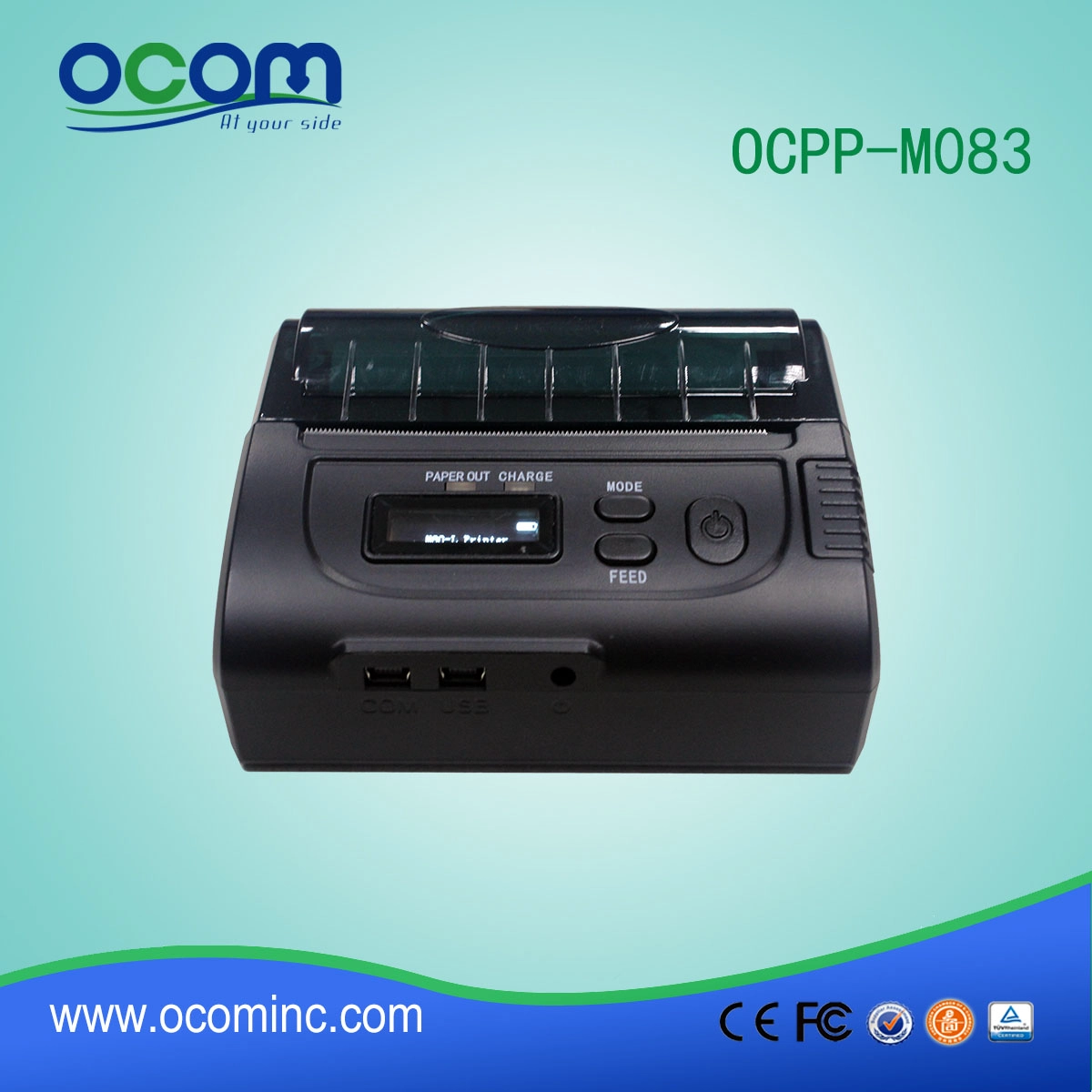

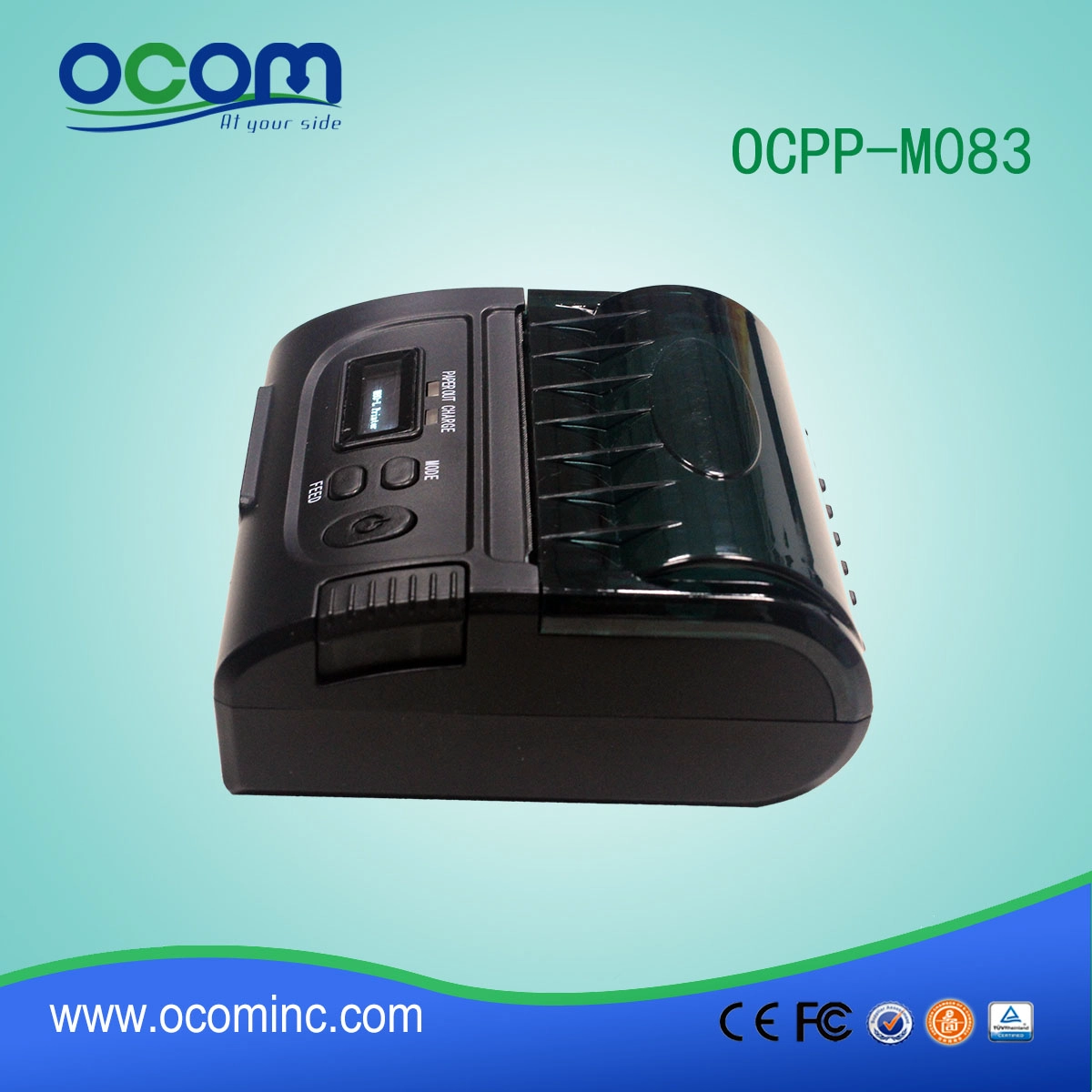

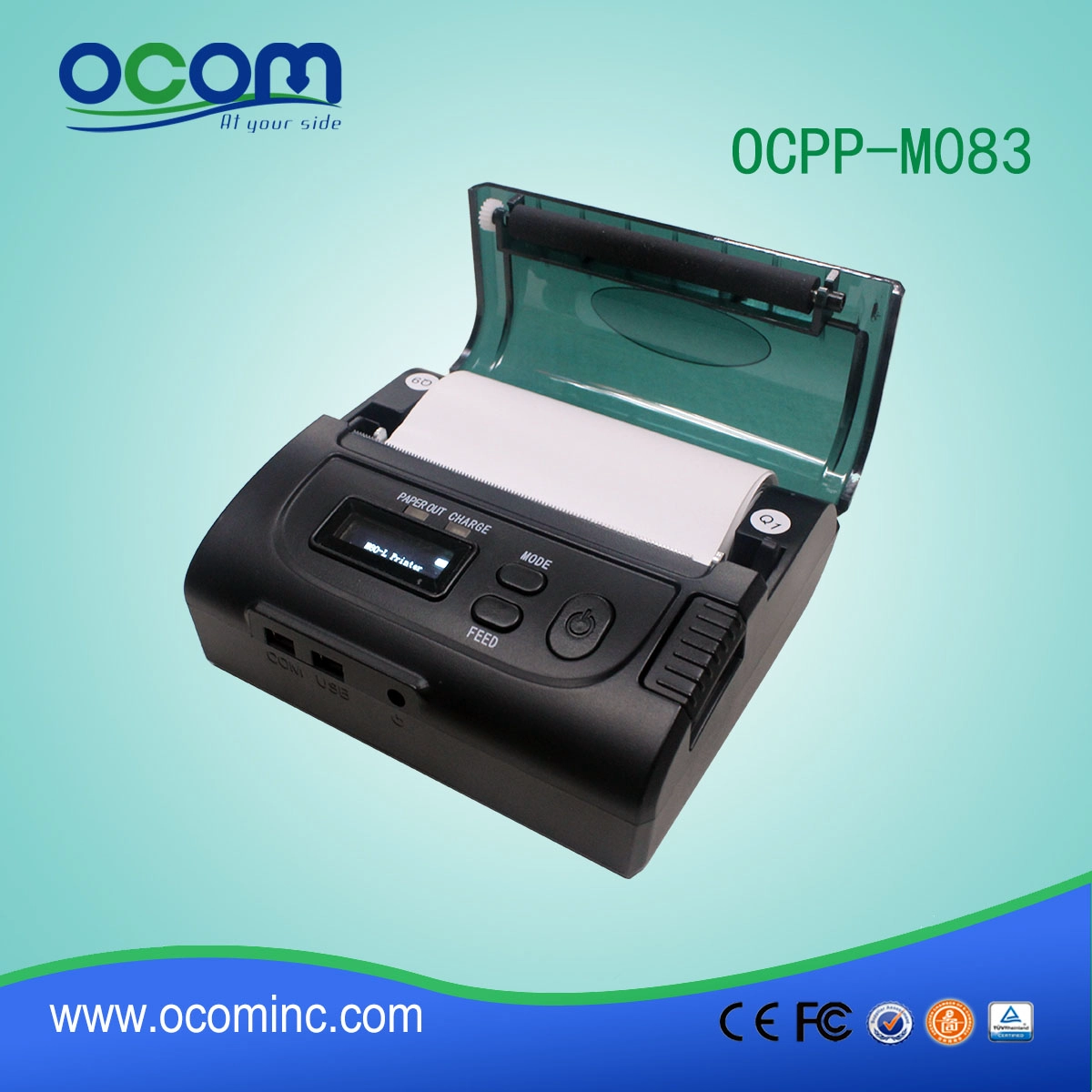

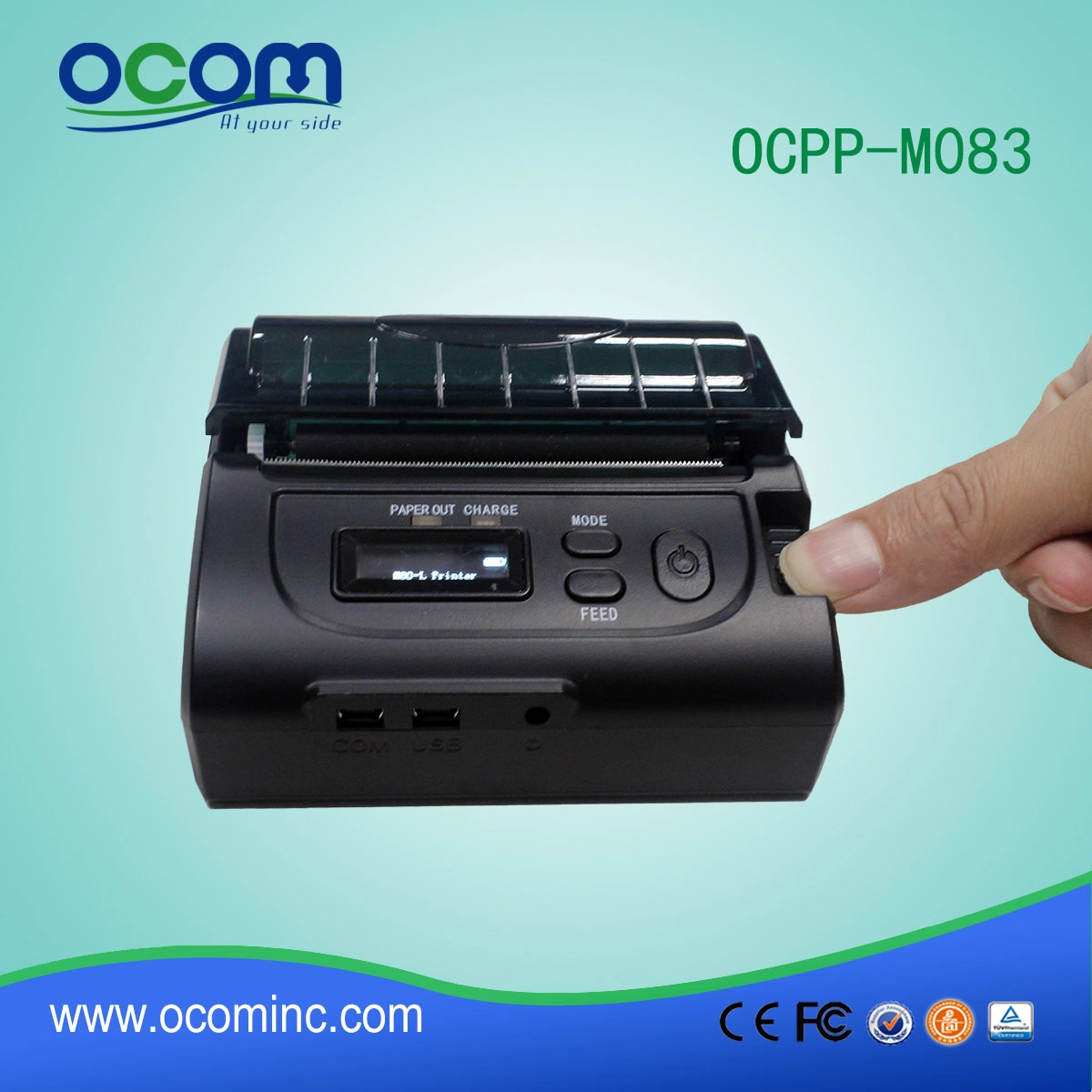

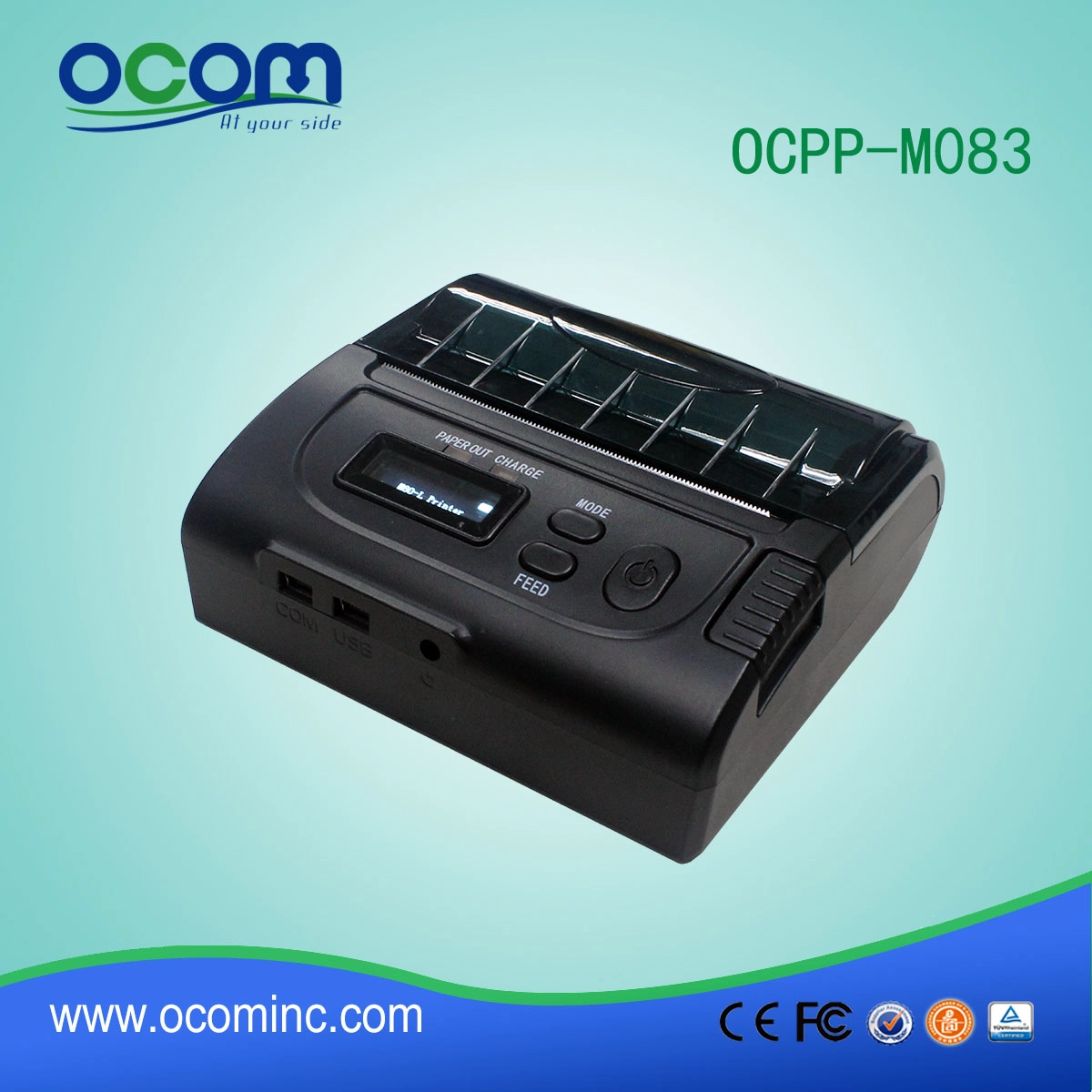

2016 new 80mm bluetooth mini portable wifi thermal printer

(Model No.: OCPP-M083)


Feature


Support Windows, Java, Android,IOS (optional) system
Interface: USB+RS232 + Bluetooth(Options), or USB+RS232+WIFI;
USB and DC charging;
OLED display the printing status;
Support 2D,1D barcode printing
One printer can connect to Multi smart devices(upto 7 android devices+1 ios device) (Optional)
Printer name and password can be change online
Free SDK for Android and Win CE
2000mAh large capacity Lithium battery
Special battery indicator to monitor power status
Cutter: manual cutter
Printing Speed: upto 90mm/sec
MCBF(life): 100km


Specification


Model

OCPP-M083

Weight

280g

Color

Black

Effective print width

72mm

Print method

Thermal line printing

Print commands

ESC/POS compatible command set

Print speed

Up to 90mm/sec

Resolution

8 dots/mm(203dpi)

Print font

12x24/ 24x24

Column capacity

32 columns/ 16columns

Character size

1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH)

Paper dimensions

80.0±0.1mm x diameter 30.0mm

Paper thickness

0.06 to 0.08mm

Character set

Alphanumeric/ Chinese Kanji

Interface

USB, RS-232, Bluetooth,wifi (optional)

Data buffer

Up to 5K bytes

Power Adapter

9V DC/2A

Battery Power

7.4V DC/ 2000mA; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper

Other features

Paper detection, power detection, Manual shut down

Working conditions

Temperature:-10℃~50℃,Humidity:10%~90%

Storage conditions

Temperature:-20℃~70℃,Humidity:5%~95%

Device name

Can be customized, letter and digital for option, at max 30 ASCII characters.

Password

Enter default pairing code “1234”, it can be customized. At max 6 digitals.

Power plug dimension

3.5*1.1mm
