Dimensional bar code scanner PDF417OCBS-2008
- High-performance imaging technologies;
- A full range of easy scanning;
- You can read the bar code and color bar screen;
- 4mil scanning precision;
- It supports a number of special features set
- Support SDK / API;
- Rich interface mode for selection;
- Optional stand.

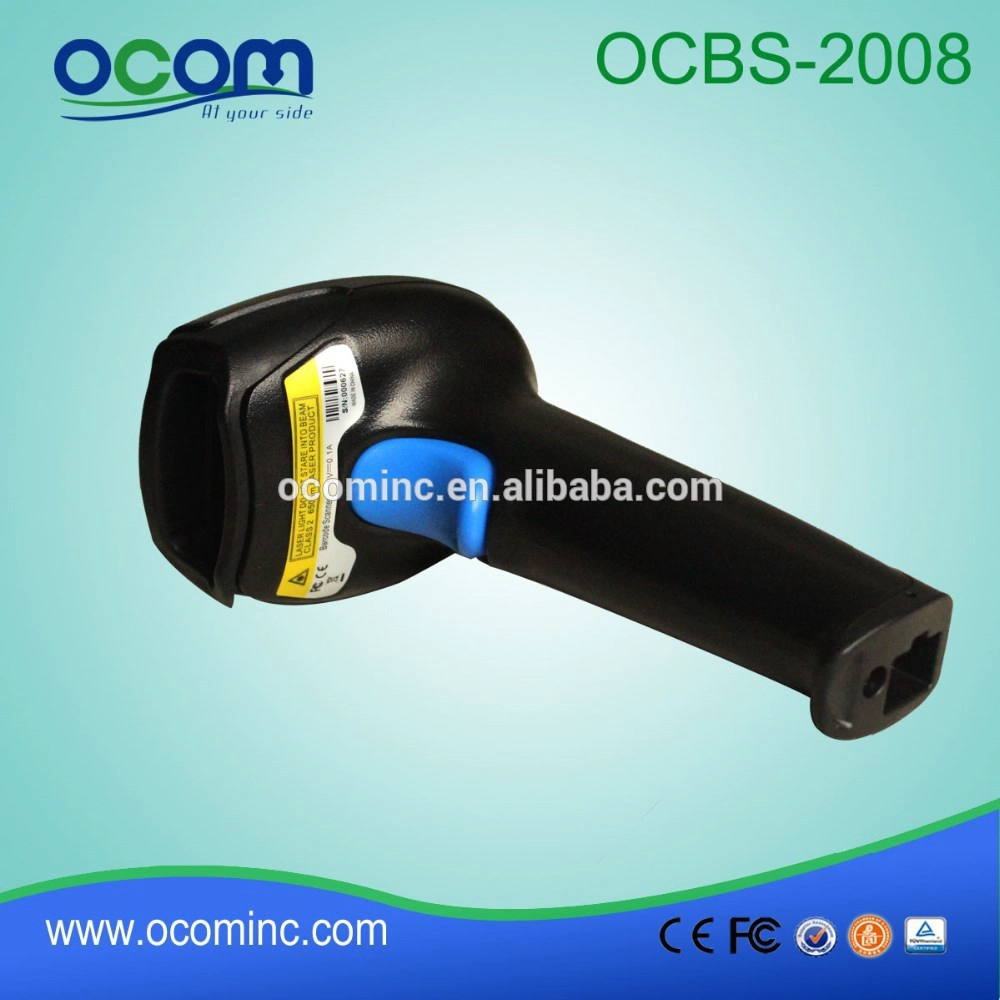

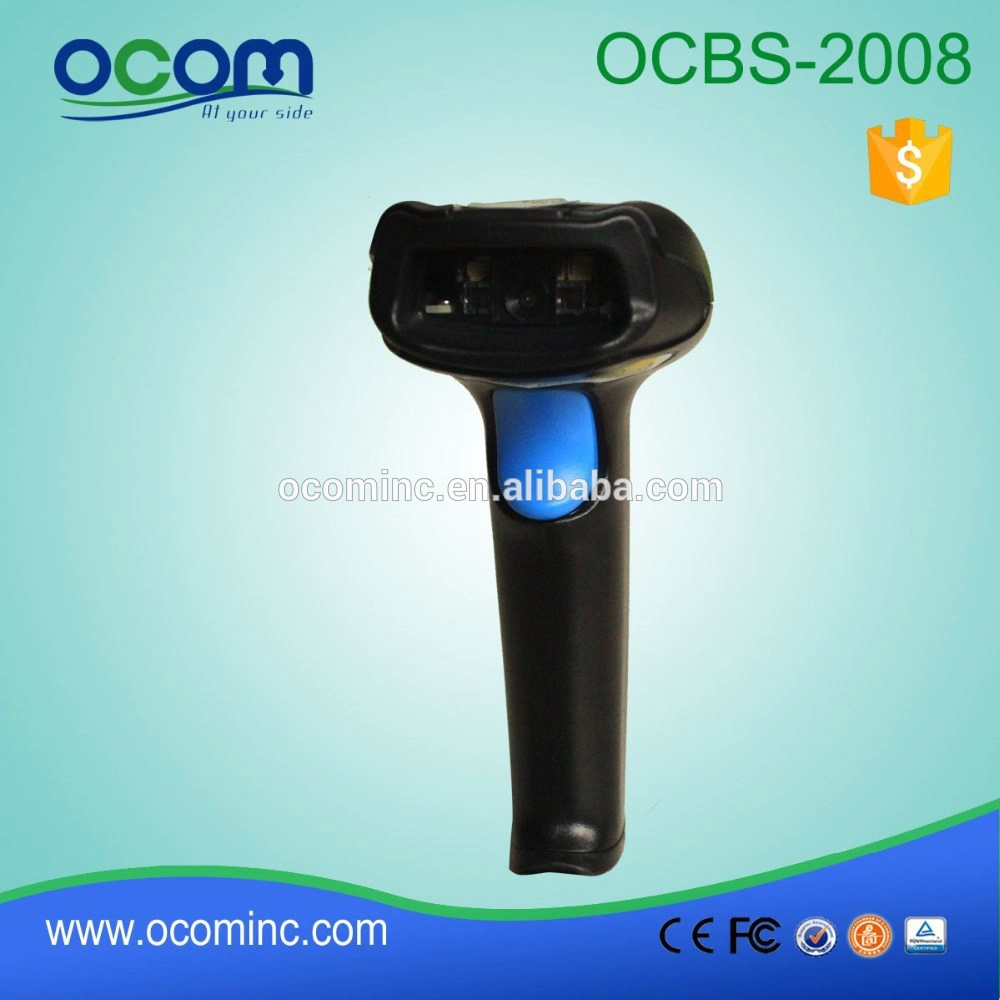

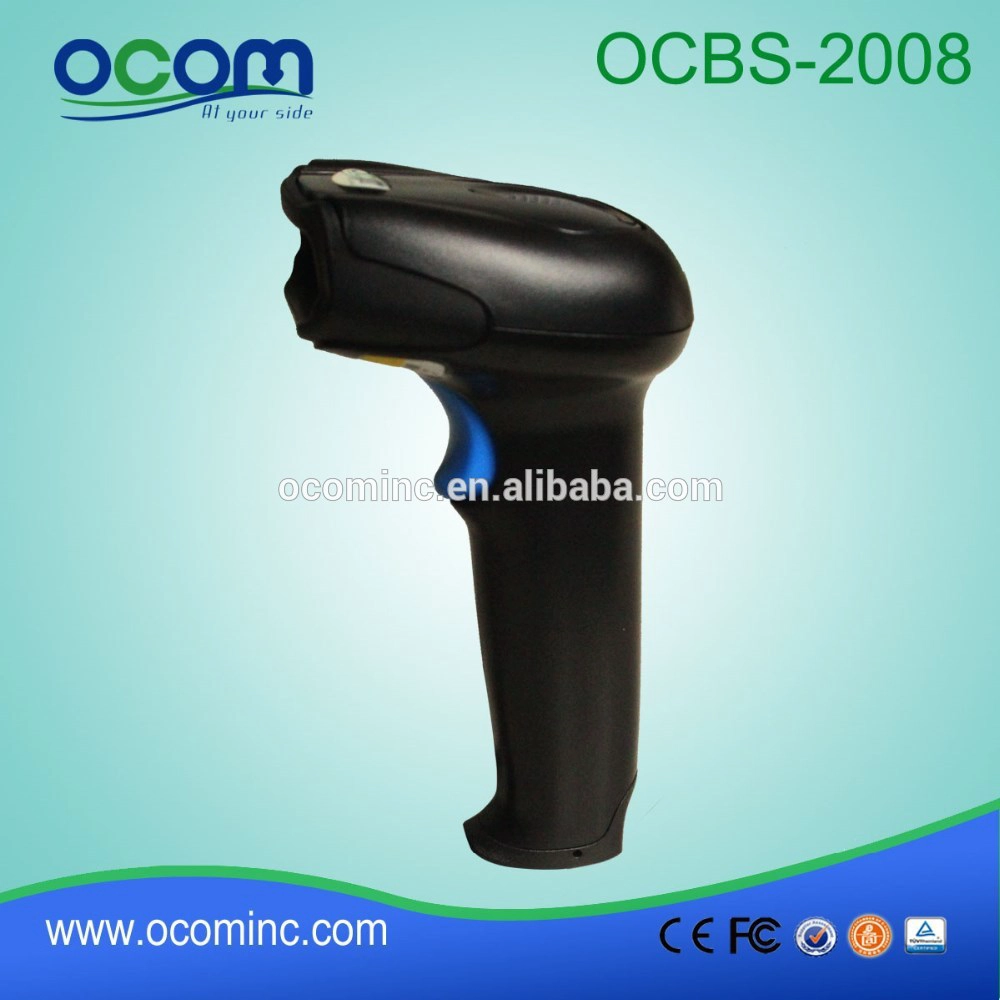

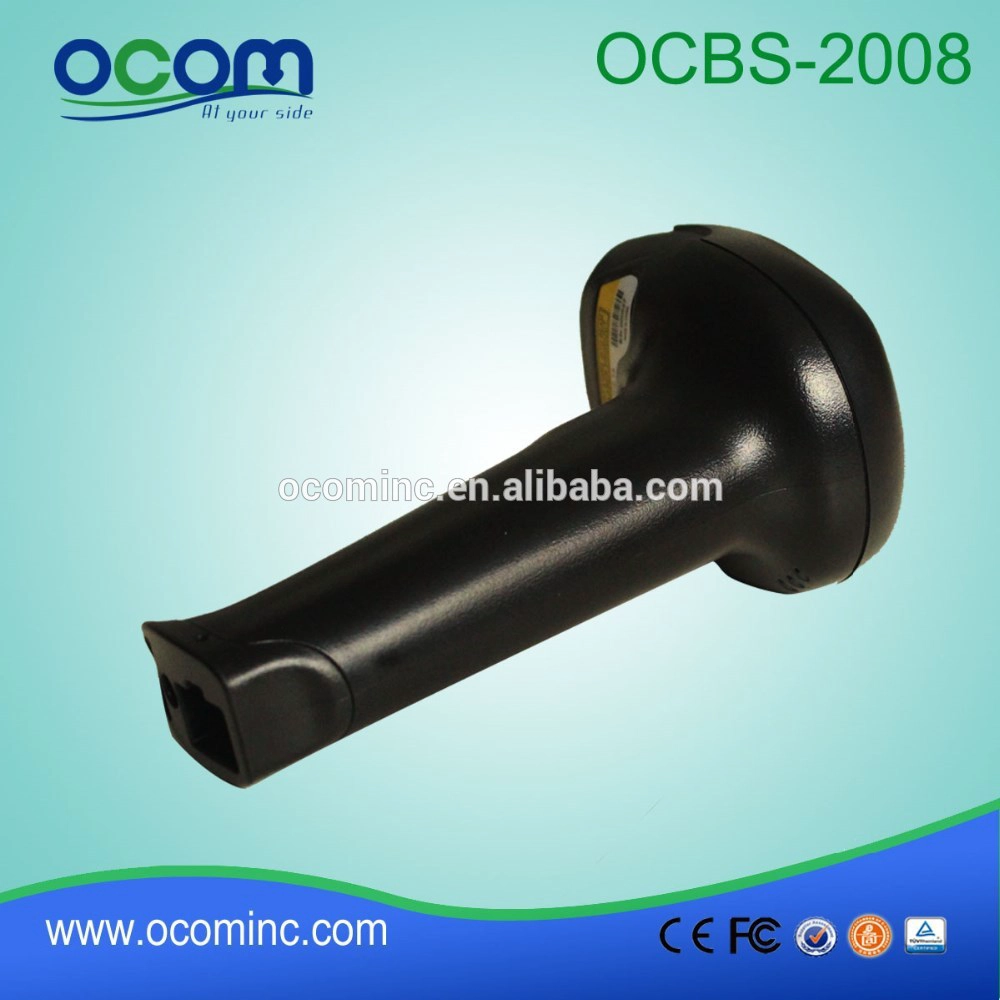

Dimensional bar code scanner PDF417OCBS-2008
(Model: OCBS-2008)
Features:
Specifications:
Scan performance |
||
Data interface |
USB, USB COM (virtual serial port) |
|
Resolution |
640 * 480,256 gray levels. |
|
Maximum decoding speed |
300 times / sec |
|
Symbologies |
Australian Post, Aztec, BPO, Canada Post, Codabar, Codablok, Code 11, Code 39, Code 93, Code 128 / EAN128, DataMatrix, Dutch Post, EAN.UCC Compostite, Interleaved 2 of 5, Japan Post Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF 417, Planet, Plessey Code, Postnet, QR code, GS1 (formerly RSS), Standard 25 Telepen, TLC 39, UPC / EAN |
|
Reading accuracy |
≥4mil |
|
Light source |
Visible red 630nm ± 10nm |
|
Reading depth |
Code 39 (5 mil): 50 mm to 120 mm Code 39 (10 mils): 25 mm to 250 mm UPC / EAN (13 mil): 20 mm to 320 mm Data Matrix (7.5 mil): 63 mm - 150 mm PDF417 (6.6 mil): 62 mm - 145 mm |
|
Barcode sensitivity |
Inclined ± 45 ° @ 0 ° Roll and 0 ° Skew Rotation ± 30 ° @ 0 ° Pitch and 0 ° Skew Deflection ± 45 ° @ 0 ° Roll and 0 ° Skew |
|
Symbol contrast |
≥30% reflectance difference |
|
Mechanical / electrical parameters |
||
Operating Voltage |
DC + 5V + 5% |
|
Current |
Operating current 300 mA Standby current 40 mA Switched current 60 mA Current consumption ± 10% |
|
Dimensions |
156 * 68 * 83 mm |
|
Weight |
195g (without stand) |
|
Package Size |
48 * 36 * 47CM (20pcs with stand 13.5KG) |
|
48 * 39 * 52CM (30pcs without stand 15KG) |
||
Environmental parameters |
||
Working temperature |
-20 ℃ ~ + 60 ℃ (-4 ° F to 144 ° F) |
|
Storage temperature |
-30 ℃ ~ + 70 ℃ (-22 ° F to 158 ° F) |
|
Working humidity |
5% to 95% (non-condensing) |
|
Ambient light |
Normal indoor and outdoor direct sunlight |
Product DetailsInformation:
