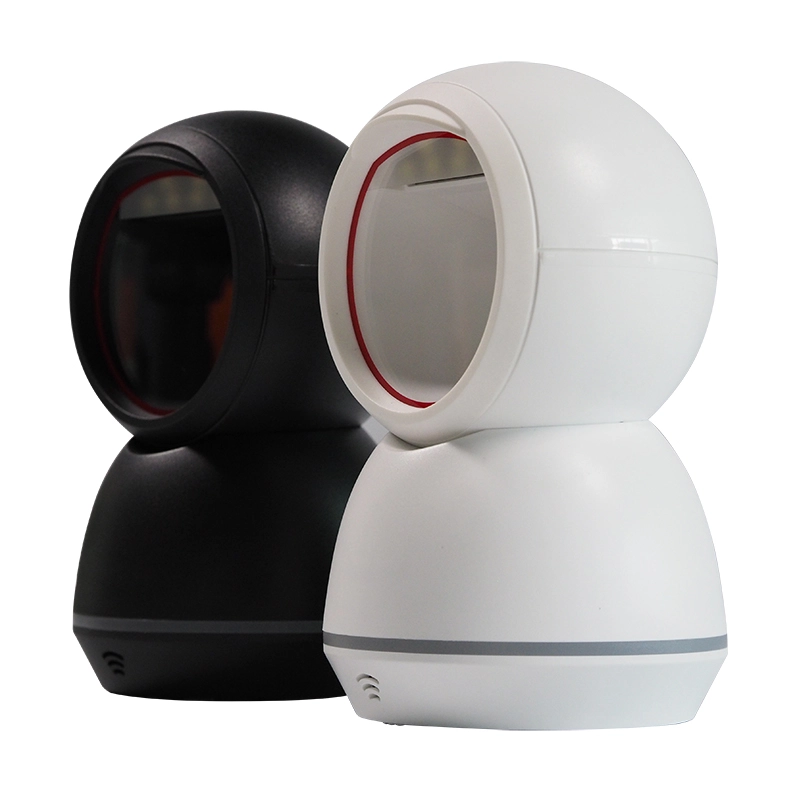

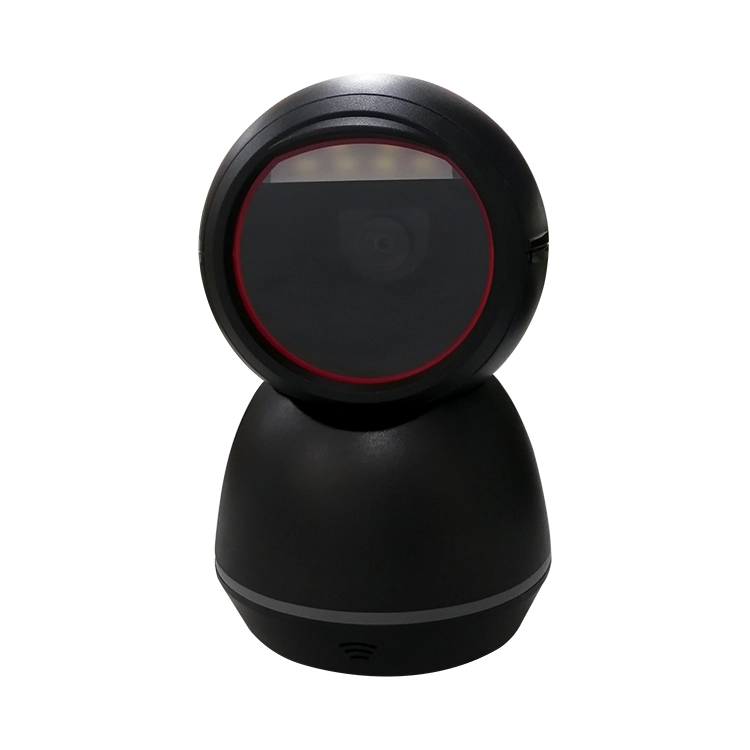

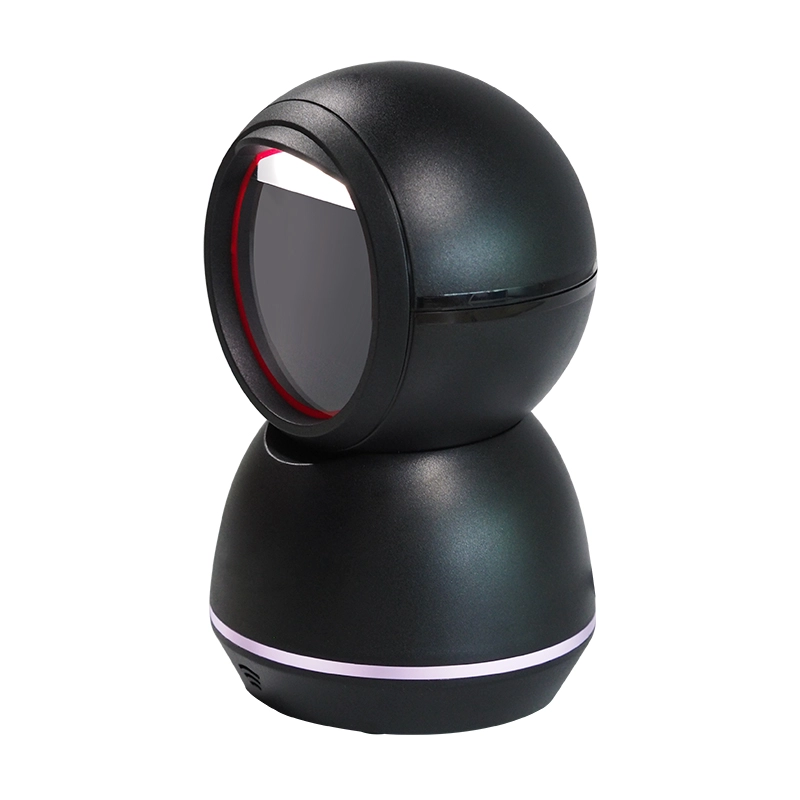

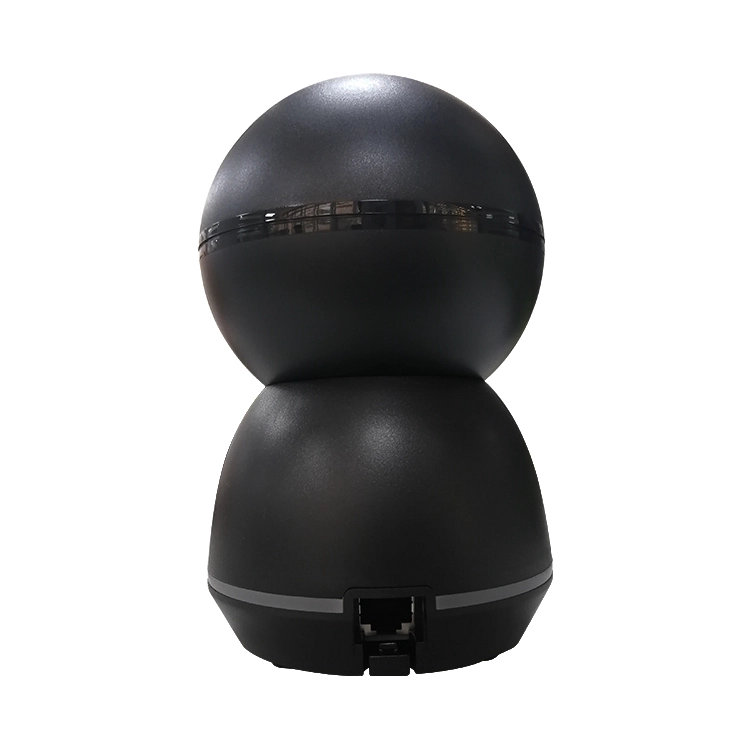

2D Barcode Scanner Tablet PC Barcode Scanner for Supermarket

  • Stylish and compact design
  • 300,000 pixels overall situation exposure
  • Minimum resolution: 4 mils
  • Bright White LED for illuminating scanning surfaces.
  • Read all mainstream 1D&2D bar codes.
  • Strong body with scratch-resistant material.
  • Quickly read various screen bar codes .
  • Compatible with Microsoft Windows/Linux/Android/IOS/MacOS

2D Barcode Scanner Tablet PC Barcode Scanner for Supermarket

(M/N:OCBS-T209)

Features:

Stylish and compact design

300,000 pixels overall situation exposure

Minimum resolution: 4 mils

Bright White LED for illuminating scanning surfaces.

Read all mainstream 1D&2D bar codes.

Strong body with scratch-resistant material.

Quickly read various screen bar codes .

Compatible with Microsoft Windows/Linux/Android/IOS/MacOS.



Performance Parameter

Light Source

LED White LED

Image sensor

640*480 pixels

Resolution(maximum)

0.102mm / 4mils

Print contrast ratio(minimum)

≥15%

Motion tolerance

2M/sec

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded.
2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code
Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked
Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Reading Indicators

LED/Buzzer(adjustable tone)

Typical depth of Filed

Precision    Barcode    Depth of Filed
5mil           CODE128  0mm—70mm
5mil           EAN-13  0mm—70mm
4mil           EAN-13  0mm—240mm
5mil          PDF417  0mm—60mm
10mil         PDF417  0mm—170mm
15mil         PDF417  0mm—270mm
20mil         DM   0mm—80mm
(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Physical characteristics

Color available

White; Black

Dimensions(L*W*H)

96*105.55*157.06mm

Weight

278g

Cable

1.8M

Electrical Parameter

Current

Working current(Standard): < 300 mA  Standby current(Standard): < 210 mA

Input Voltage

5 VDC (+/- 10%)/500mA

Environmental Parameter

ESD protection(Air discharge)

8 kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.

Temperature

Operation: 0 to 40 °C

Storage/Transport: -40 to 70 °C

Humidity(non-condensing)

5 - 95%

Ambient light

0 -100,000 lux

Interfaces

Interfaces

RS-232; USB HID; USB COM;HID POS available as per customer’s needs
