2D Scanner Camera GPS Bluetooth Android OS Handheld PDA
- 5" Handheld Android 7.0 Industrial Data Terminal
- Cortex A53 quad core 1.3GHz cpu;
- 2GB RAM, 16GB ROM;TF card can up to 32GB;
- Gorilla 5.0 inch 720*1280 Gorilla HD Screen;
- Rechargeable li-ion polymer, 3.7V, 4500mAh or 8000mAh Battery;
- Rear Camera 8 MP, auto-focus with LED flash;
- Support 4G/Wifi/GPS/Bluetooth;
- HHW Software Development Kit;
- Rugged IP65/1.5m Drop Tolerance;
- Default: WIFI+BT+4G+GPS+Camera;
- 1D/2D Barcode Scanner for options;
- RFID LF/HF/UHF/NFC for options;
- TCS1SM Capacitive Fingerprint Sensor for option;
- Handle , cradle, PSAM for option.

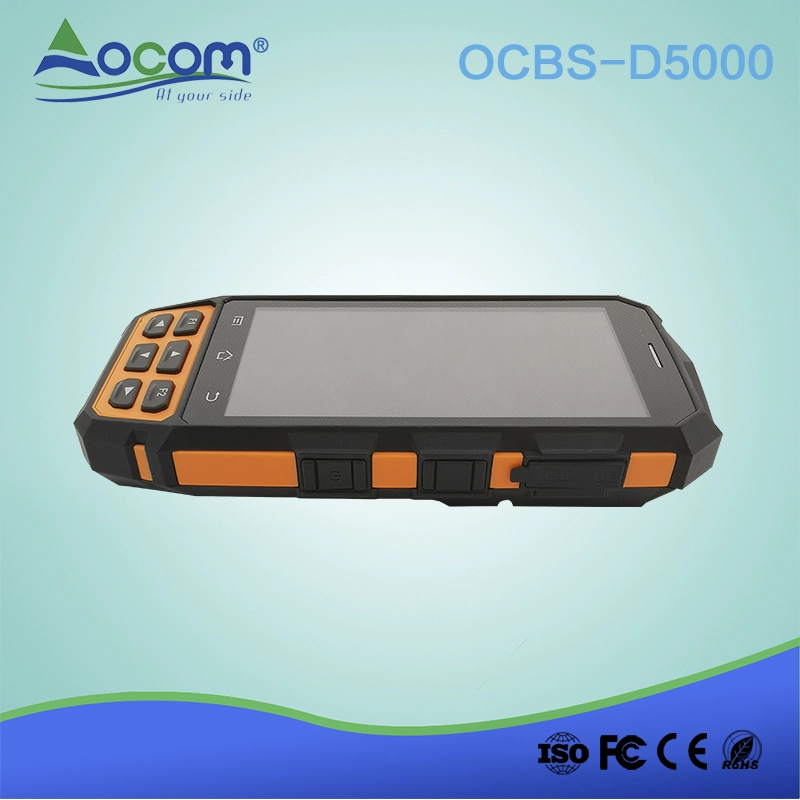

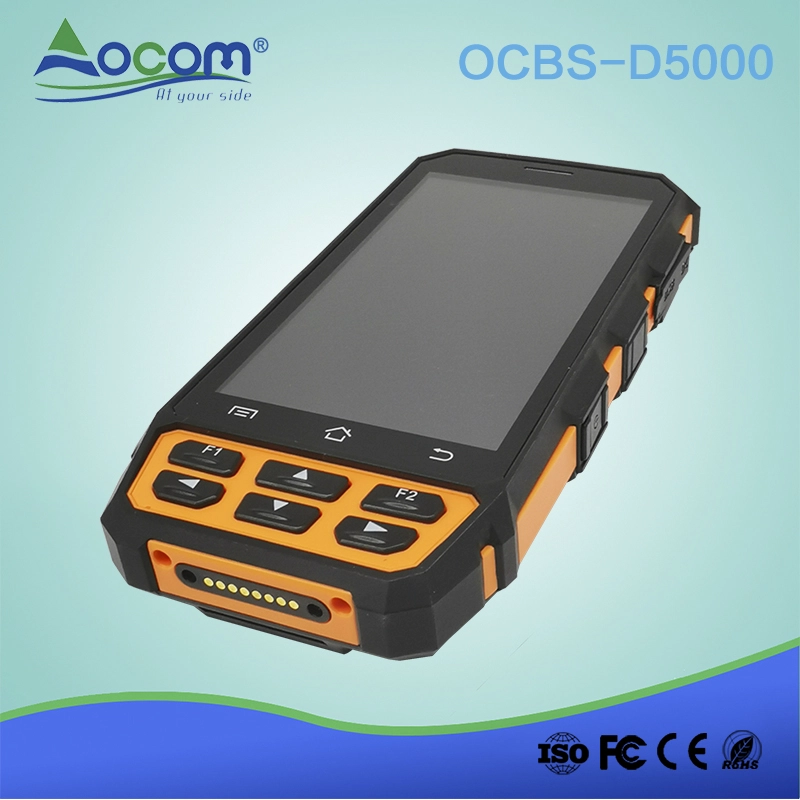

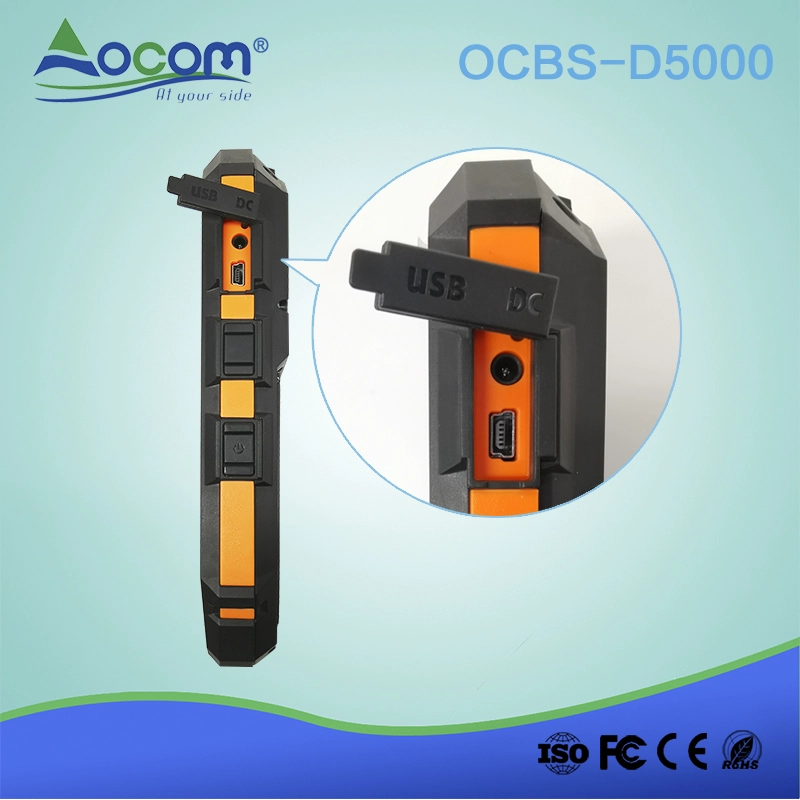

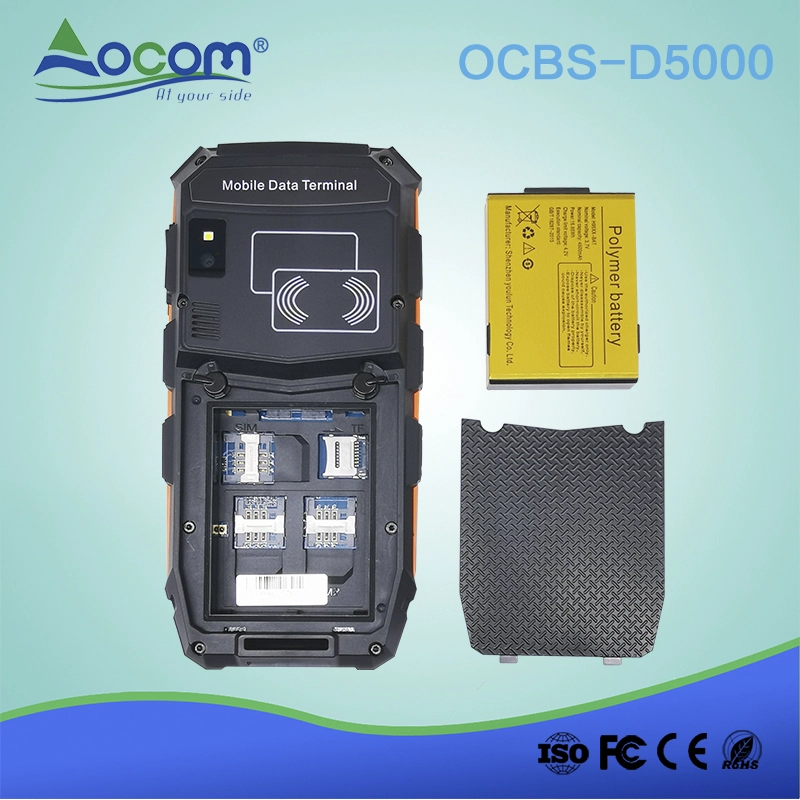

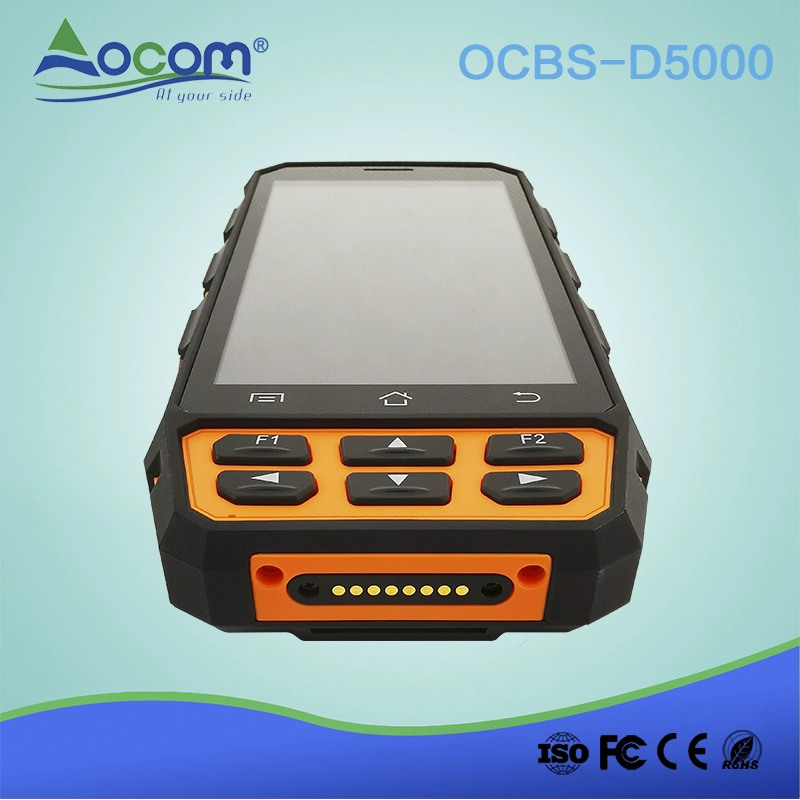

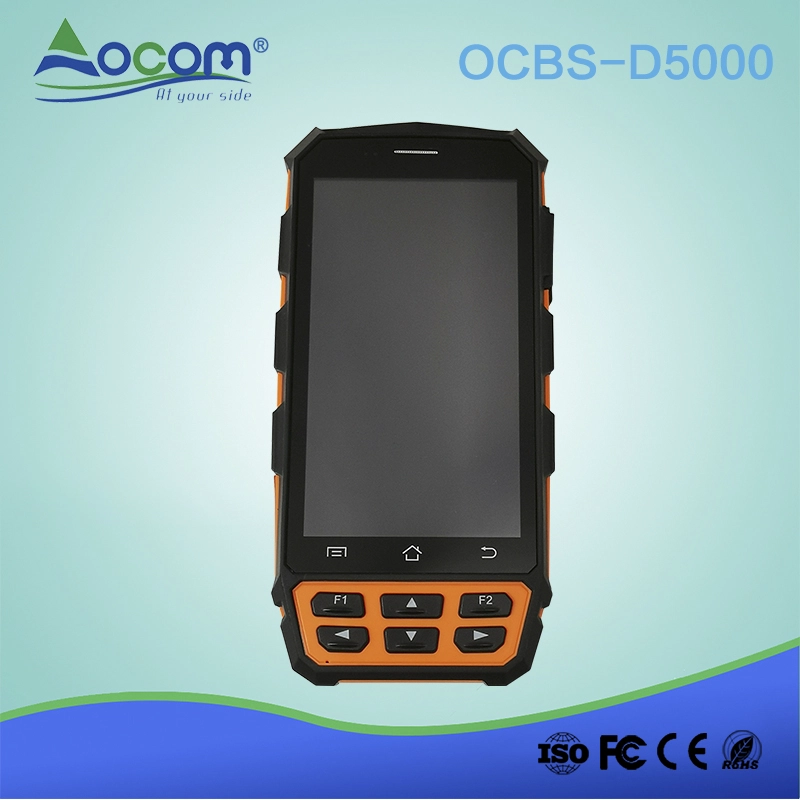

2D Scanner Camera GPS Bluetooth Android OS Handheld PDA
(OCBS-D5000)
Feature:
- Android 7.0
- 1GB RAM, 16GB ROM
- Gorilla 5.0 in. 720*1280 Gorilla HD Screen
- Rugged IP65/1.5m Drop Tolerance
- Rechargeableli-ion polymer, 3.7V, 8000mAh Battery
- Rear Camera 8 MP,auto-focus with LED flash
- Support 4G/Wifi/GPS/Bluetooth
- HHW SoftwareDevelopment Kit
- 1D/2D BarcodeScanner(optional)
- RFIDLF/HF/UHF/NFC (optional)
- TCS1SMCapacitive Fingerprint Sensor(optional)
|
SPECIFICATIONS |
|||
|
PHYSICAL CHARACTERISTICS |
|||
|
Dimension |
170mm(H)x85mm(W)x23mm(D)±2 mm |
||
|
Weight |
Net Weight :380g (including battery&wrist strap) |
||
|
Display |
Gorilla 5.0 in. TFT-LCD(720x1280)touch screen with backlight |
||
|
Backlight |
LED backlight |
||
|
Keypads |
3 TP keys, 6 function keys, 4 side buttons |
||
|
Expansions |
2 PSAM, 1 SIM, 1 TF |
||
|
Battery |
Rechargeable li-ion polymer, 3.7V,4500mAh,If configuration handle and UHF can be configured 8000mAh |
||
|
PERFORMANCE CHARACTERSTICS |
|||
|
CPU |
Quad A53 1.5GHz quad-core |
||
|
Operating System |
Android 7.0 |
||
|
Storage |
2GB RAM, 16GB ROM, MicroSD(max 32GB expansion) |
||
|
USER ENVIRONMENT |
|||
|
Operating Temp. |
-20℃ to 50℃ |
||
|
Storage Temp. |
-20℃ to 70℃ |
||
|
Humidity |
5%RH to 95%RH(non-condensing) |
||
|
Drop Specifications |
5ft./1.5 m drop to concrete across the operating temperature range |
||
|
Sealing |
IP65, IEC compliance |
||
|
ESD |
±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge |
||
|
DEVELOPMENT ENVIRONMENT |
|||
|
SDK |
HHW Software Development Kit |
||
|
Language |
Java |
||
|
Environment |
Android Studio or Eclipse |
||
|
DATA COMMUNICATION |
|||
|
WWAN |
TDD-LTE Band 38, 39, 40, FDD-LTE Band 1,2,3, 4,7; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge 850/900/1800/1900MHz); |
||
|
WLAN |
2.4G/5G Dual Frequency, IEEE 802.11 a/b/g/n/ac |
||
|
WPAN |
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
||
|
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
||
|
DATA CAPTUER |
|||
|
BARCODE READER(OPTIONAL) |
|||
|
1D barcode |
1D laser engine |
Honeywell N431x |
|
|
Symbologies |
All major 1D barcodes |
||
|
2D barcode |
2D CMOS Imager |
Honeywell N6603 |
|
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
||
|
COLOR CAMERA |
|||
|
Resolution |
8.0 megapixel |
||
|
Lens |
Auto-focus with LED flash |
||
|
RFID READER(OPTIONAL) |
|||
|
RFID LF |
Frequency |
125KHz/134.2KHz(FDX-B/HDX) |
|
|
Protocol |
ISO 11784&11785 |
||
|
R/W Range |
2cm to 10 cm |
||
|
RFID HF |
Frequency |
13.56MHz |
|
|
Protocol |
ISO 14443A&15693 |
||
|
R/W Range |
2cm to 8cm |
||
|
RFID UHF |
Frequency |
865~868MHz or 920~925MHz |
|
|
Protocol |
EPC C1 GEN2/ISO 18000-6C |
||
|
Antenna Gain |
Circular antenna(2dBi) |
||
|
R/W Range |
1 m to 1.5 m(tags and environment dependant) |
||
|
Active 2.45GHz |
Read range more than 200 m (customization) |
||
|
433MHz |
Read range more than 200 m (customization) |
||
|
ZigBee READER(OPTIONAL) |
|||
|
Protocol |
IEEE 802.15.4 (customization) |
||
|
Reading Range |
100 m to 200 m(customization) |
||
|
FINGERPRINT READER(OPTIONAL) |
|||
|
Sensor |
TCS1SM |
||
|
Sensor type |
Capacitive, area sensor |
||
|
Resolution |
508 DPI |
||
|
Performance |
FRR<0.008%, FAR<0.005% |
||
|
Capacity |
1000 |
||
|
PSAM SECURITY(OPTIONAL) |
|||
|
Protocol |
ISO 7816 |
||
|
Baudrate |
9600, 19200, 38400,43000, 56000, 57600, 115200 |
||
|
Slot |
2 slots(maximum) |
||
|
ACCESSORIES |
|||
|
Standard |
1xPower Supply 1xLithium Polymer Battery 1xDC charging cable 1xUSB data cable |
||
|
Optional |
Cradle,Handle, UHF gain board |
||
