    (OCPP-M087) 3 Inch Portable Mini Bluetooth Thermal Receipt Printer(OCPP-M087) 3 Inch Portable Mini Bluetooth Thermal Receipt Printer(OCPP-M087) 3 Inch Portable Mini Bluetooth Thermal Receipt Printer(OCPP-M087) 3 Inch Portable Mini Bluetooth Thermal Receipt Printer(OCPP-M087) 3 Inch Portable Mini Bluetooth Thermal Receipt Printer(OCPP-M087) 3 Inch Portable Mini Bluetooth Thermal Receipt Printer

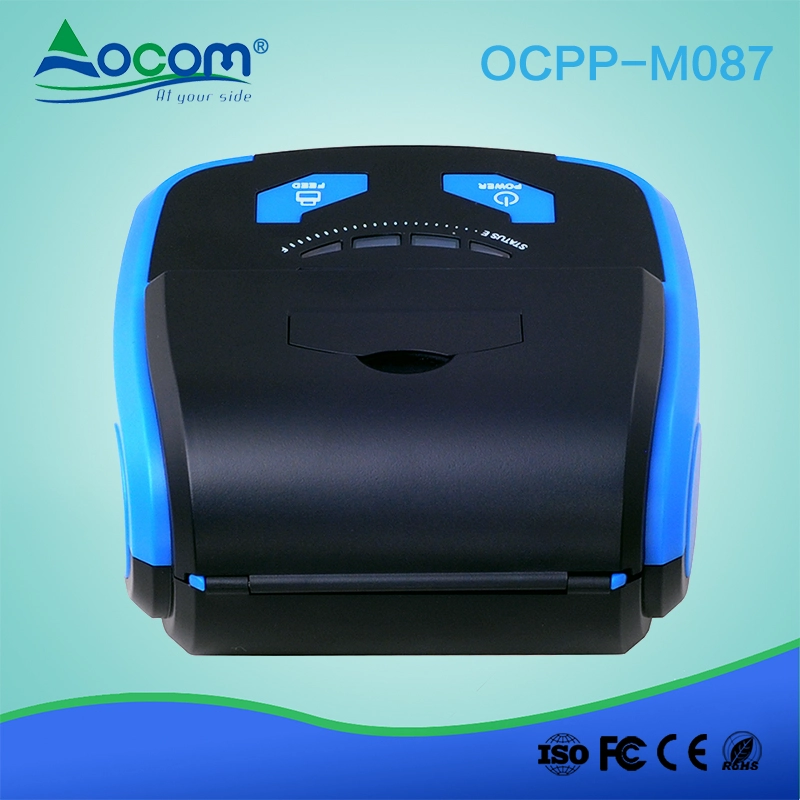

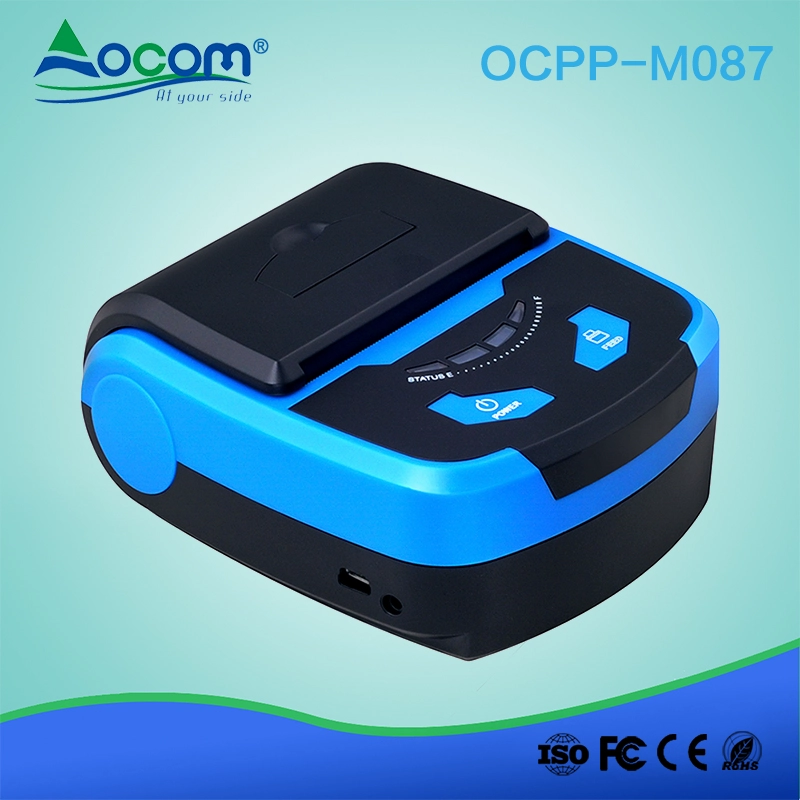

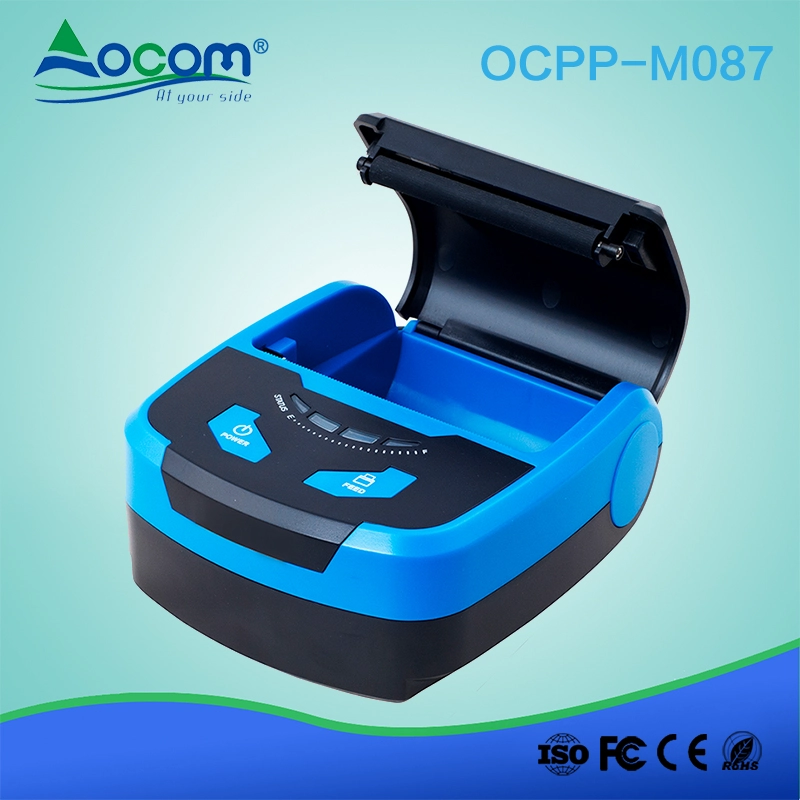

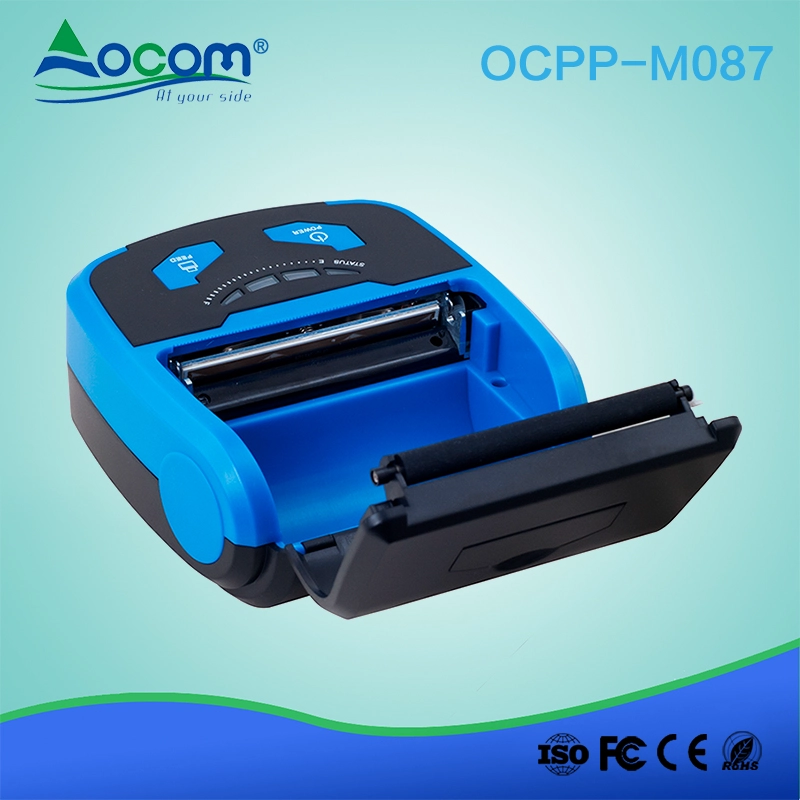

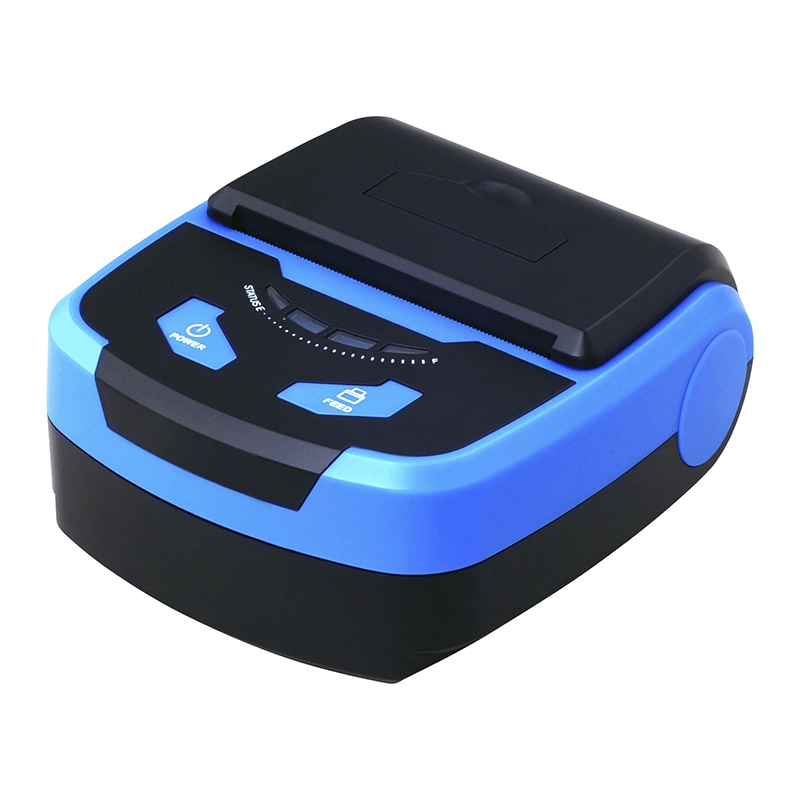

    (OCPP-M087) 3 Inch Portable Mini Bluetooth Thermal Receipt Printer

    • Support Windows, Java, Android or IOS
    • Povide SDK for Andriod and IOS,driver for Windows PC
    • Bluetooth,USB and RS232 communication

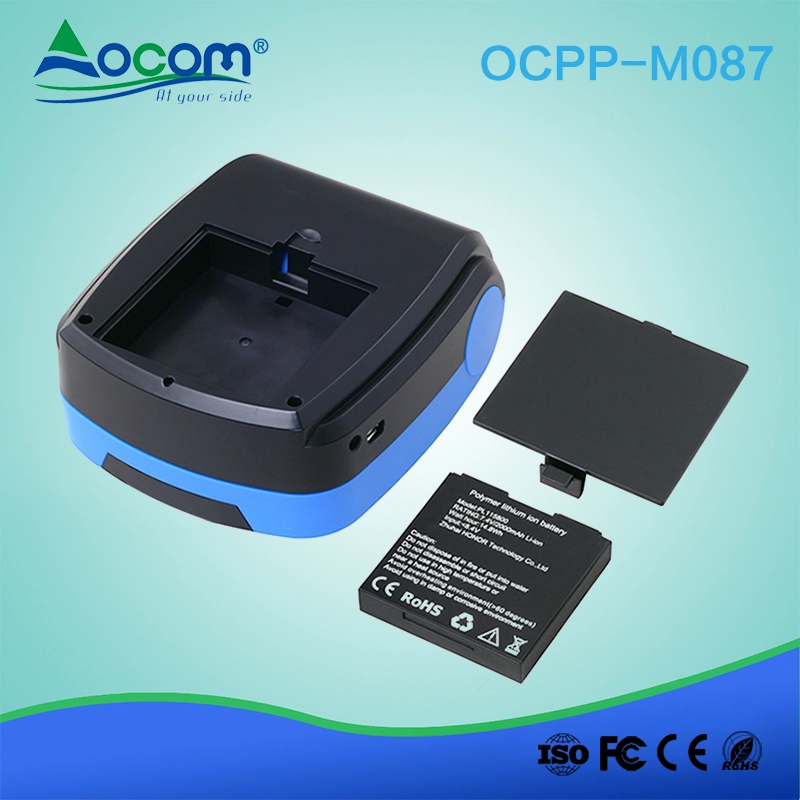

    • 2000mAh high capacity battary
    • Higher print speed 80mm/sec
    • 50km TPH Life
    • A variety of 1D and 2D code supported
    • Built-in buzzer more easily for user get the printer status

     3 Inch Portable Mini Bluetooth Thermal Receipt Printer

    (M/N:OCPP-M087)




    Features:

    • Support Windows, Java, Android or IOS
    • Povide SDK for Andriod and IOS,driver for Windows PC
    • Bluetooth,USB and RS232 communication
    • 2000mAh high capacity battary
    • Higher print speed 80mm/sec
    • 50km TPH Life
    • A variety of 1D and 2D code supported
    • Built-in buzzer more easily for user get the printer status

    Specification:

    Printing

    Printing method

    Direct thermal

    Print width

    72mm

    Column capacity

    8dots/mm, 576dots/line

    Printing speed

    80mm/s

    Interface

    Bluetooth、USB、Serial

    Printing paper

    79.5±0.5mm×φ40mm

    Line spacing

    3.75mm (Adjustable by commands)

    Column number

    58mm paper: Font A - 32 columns/Font B - 42 columns/ Chinese,traditional Chinese - 16 columns

    Character size

    ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)

    Barcode Character

    Extension character sheet

    PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251)

    Barcode types

    UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128/QR/PDF417

    Buffer

    Input buffer

    32k bytes

    NV Flash

    64k bytes

    Power

    Power supply

    Input:AC 110V/240V, 50~60Hz

    Power source

    Output:DC 9V-2A

    Physical characteristics

    Weight

    0.19KG

    Dimensions

    111×88×41mm(D x W x H)

    Environmental Requirements

    Work environment

    Temperature (0~45)  humidity(10~90%)

    Storage

    Temperature(-10~60℃) humidity(10~90%)

    environment

    Reliability

    Printer head life

    50KM











    Relevant documents:

           OCPP-M087 Spec
