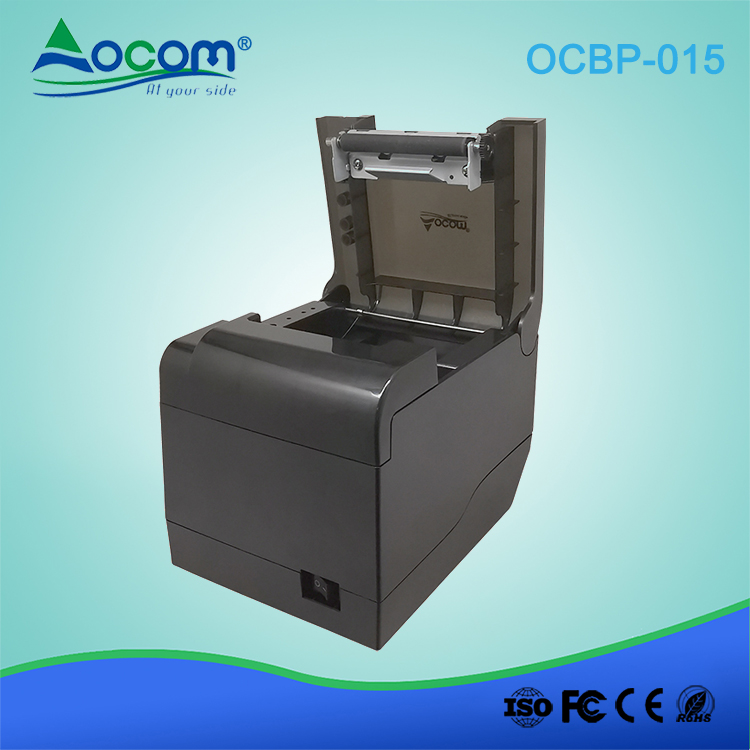

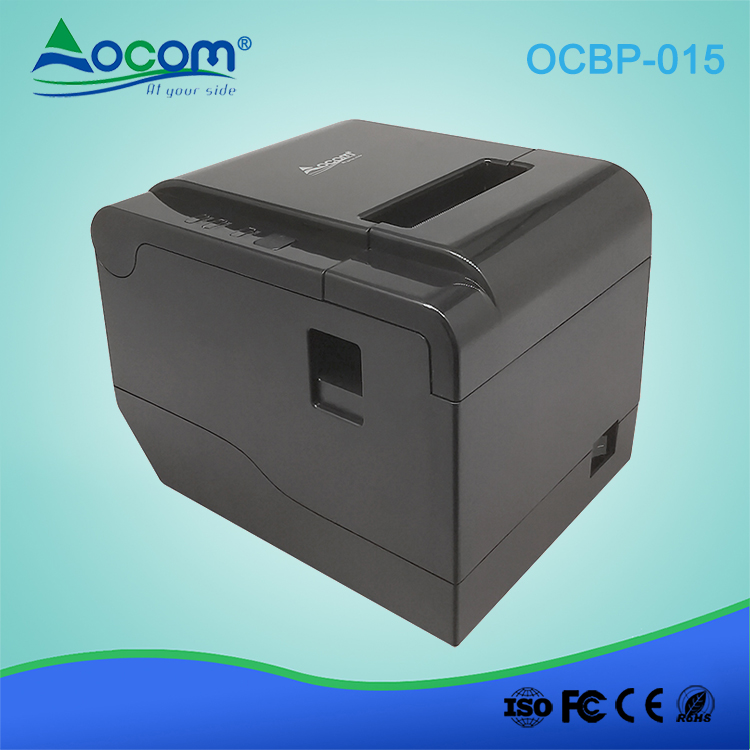

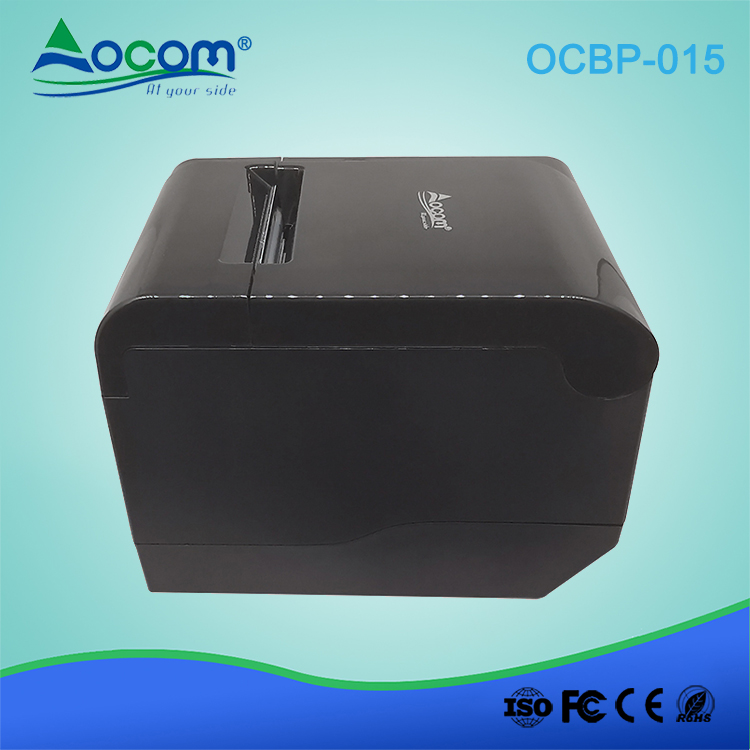

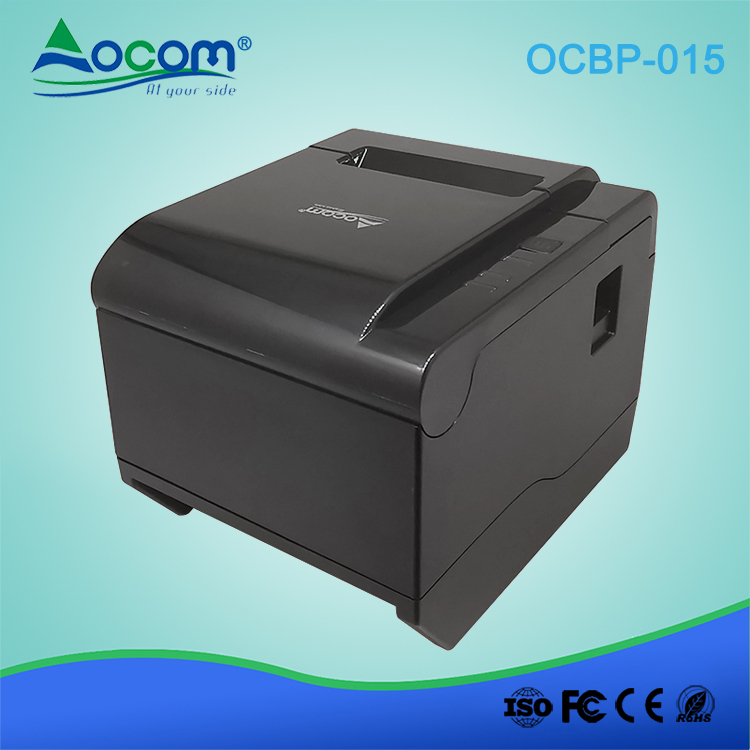

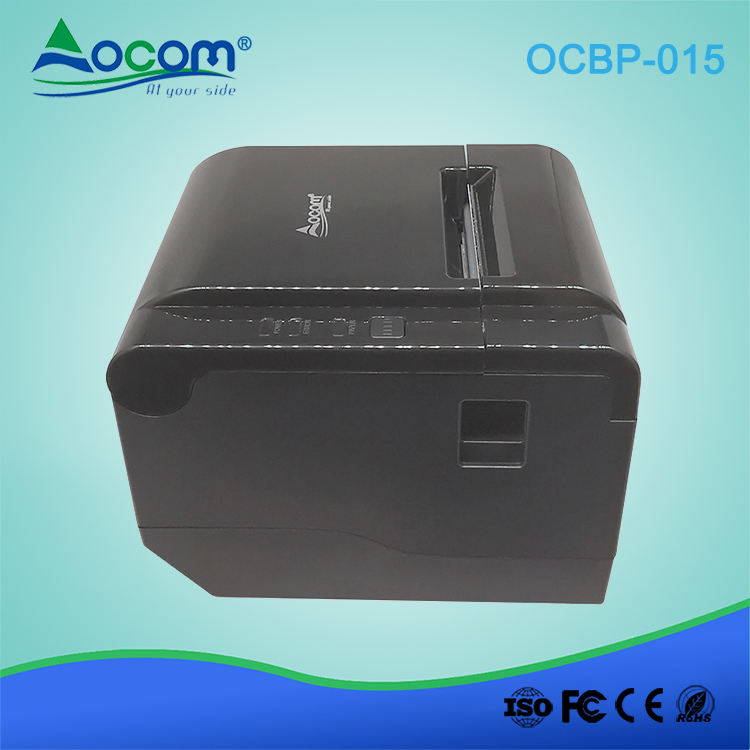

(OCBP-015) 3 inch hand held 203dpi direct thermal jewellery label printer for label and receipt printing
- Support 8 kinds abundant interface combination
- Support TSPL and ECS/POS Command
- Supports multi 1D barcode and 2D code printing.
- Support printer status monitoring function
- 100M Ethernet port, ultra high speed data transmission.
- 2MB big DRAM And 2MB buffer memory.
- Standard 25 to 80mm adjustable Paper separator
- 150KM long life printer head
3 inch hand held 203dpi direct thermal jewellery label printer for label and receipt printing
（Model NO.: OCBP-015）
Features:
Support 8 kinds abundant interface combination
Support TSPL and ECS/POS Command
Supports multi 1D barcode and 2D code printing.
Support printer status monitoring function
100M Ethernet port, ultra high speed data transmission.
2MB big DRAM And 2MB buffer memory.
Standard 25 to 80mm adjustable Paper separator
150KM long life printer head
Technical parameters：
|
Print Method |
Direct Thermal |
|
|
Command |
TSPL and ESC/POS (can change by end user) |
|
|
Resolution |
203dpi ,576dots/line |
|
|
Printing Width |
Max=72mm |
|
|
Paper Type |
Thermal label Paper or continuous receipt Paper |
|
|
Interface |
USB/UR/UL/URL/U+BT/ U+WIFI/URL+BT/URL+WIFI |
|
|
Print Speed |
Max=152mm/s for label, MAX=260mm/s for receipt mode |
|
|
Paper Width |
20mm-80mm |
|
|
Paper Thickness |
0.06~0.19mm |
|
|
Roll Dia |
Max. Ø 83 mm |
|
|
Paper Cut |
Manual tear |
|
|
DRAM |
2MB |
|
|
Flash |
2MB |
|
|
Font Size |
font A:12*24(standard), font B:9*17 |
|
|
Chinese |
GB18030,BIG5 24x24dots |
|
|
Japanese/Korea |
Support |
|
|
User-defined language |
PC347(Standard Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian-French),PC865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2), |
|
|
1D |
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128/MSI/ITF-14/CPOST/PLESSEY,etc. |
|
|
2D |
QR,PDF417, DM |
|
|
Printing head life |
150 KM |
|
|
Paper separator |
Standard |
|
|
Sensors |
Paper out, cover open, cutter jam,paper jam and black mark detection |
|
|
Input |
AC 100V-240V 50/60HZ |
|
|
Output |
DC 24V/2.5A |
|
|
Working Condition |
0°C~45°C, 10%~80%RH |
|
|
Storage Condition |
-10°C-60°C,10%~90%RH |
|
|
Accessories |
Data cable, power adaptor, power code, paper roller, CD, manual, Paper separator (standard) |
|
|
Dimensions |
196(D)x145(W)x135(H)mm |
|
|
Net weight |
1.14kg |
|
|
Gross weight |
1.5kg |
|
|
Individual box |
Dimension 30X19X18cm(LXWXH） |
1unit/carton |
|
Master carton |
Dimension 62X36X52cm(LXWXH） |
12units/carton |
|
Driver |
Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS |
|
|
SDK |
Android, IOS |
|
