3 inch portable mini android 2d label barcode printer3 inch portable mini android 2d label barcode printer3 inch portable mini android 2d label barcode printer3 inch portable mini android 2d label barcode printer3 inch portable mini android 2d label barcode printer3 inch portable mini android 2d label barcode printer

3 inch portable mini android 2d label barcode printer

  • Features:
  • Mini size suitable for portable application;
  • Provide Android App more suitable for end users;
  • Compatible with bartender software
  • Support label interval sensor
  • Can change the printer name, password, baud rate online;
  • 50mm diameter paper warehouse;
  • Loading paper width can be adjusted
  • Support Voice Input /Graphic Recognition/Scanning Recognition and other functions
  • Compatible with Android and IOS
  • 2600mAh,7.4V 14.8Wh high energy battery
  • Can Print 5 hours continuously, 7 days long standby time
  • 90mm/sec print speed;
  • Support ESC/POS,JPL,TSPL,CPCL, 4 kinds of command;
  • 360 overall protection,Shock-resistant designs
  • IP54 Grade, Support Printing in Rainy days and outdoor.

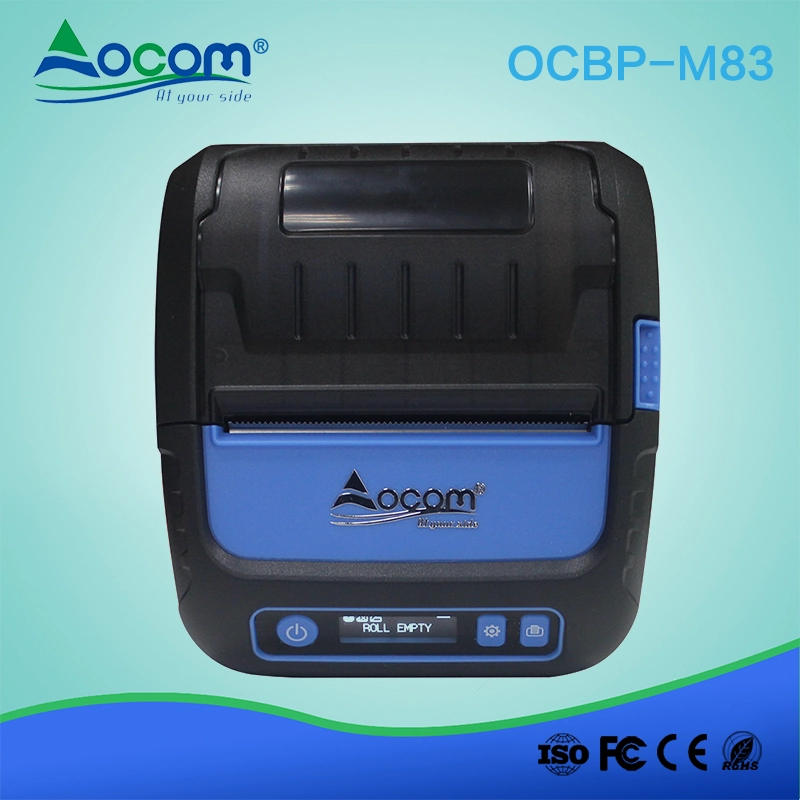

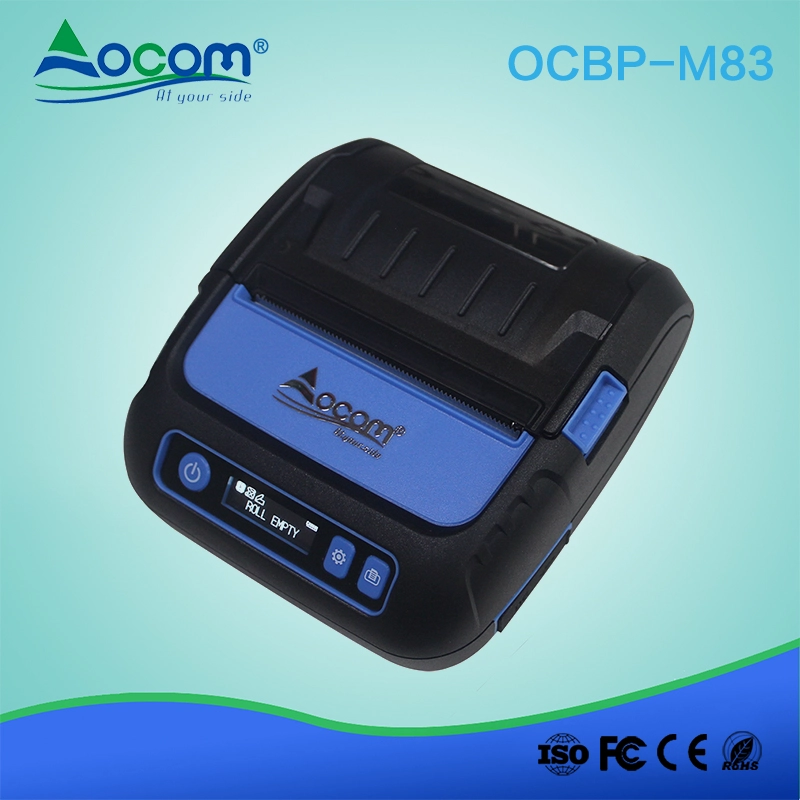

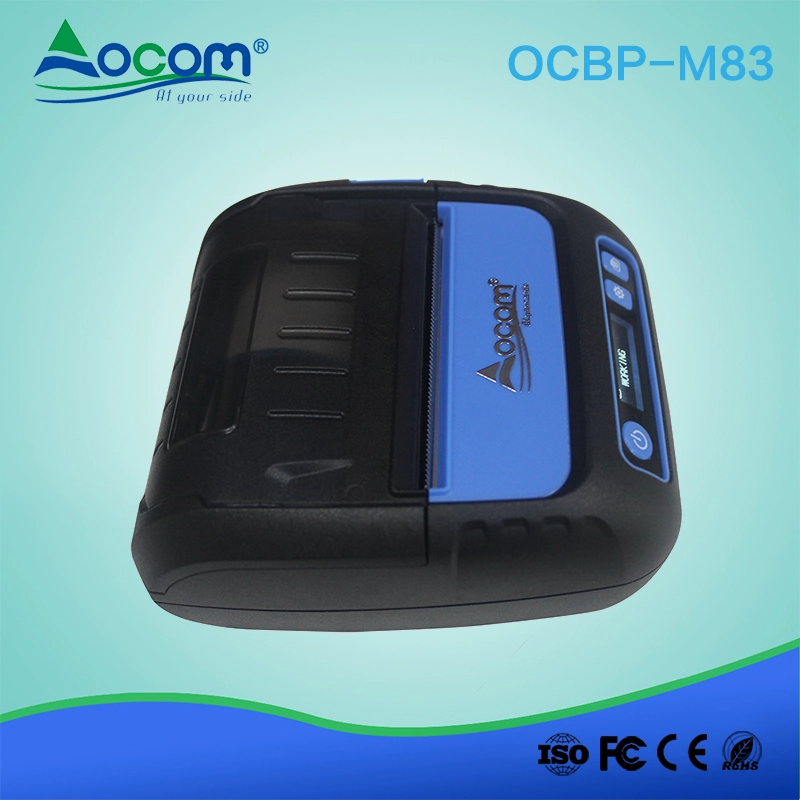

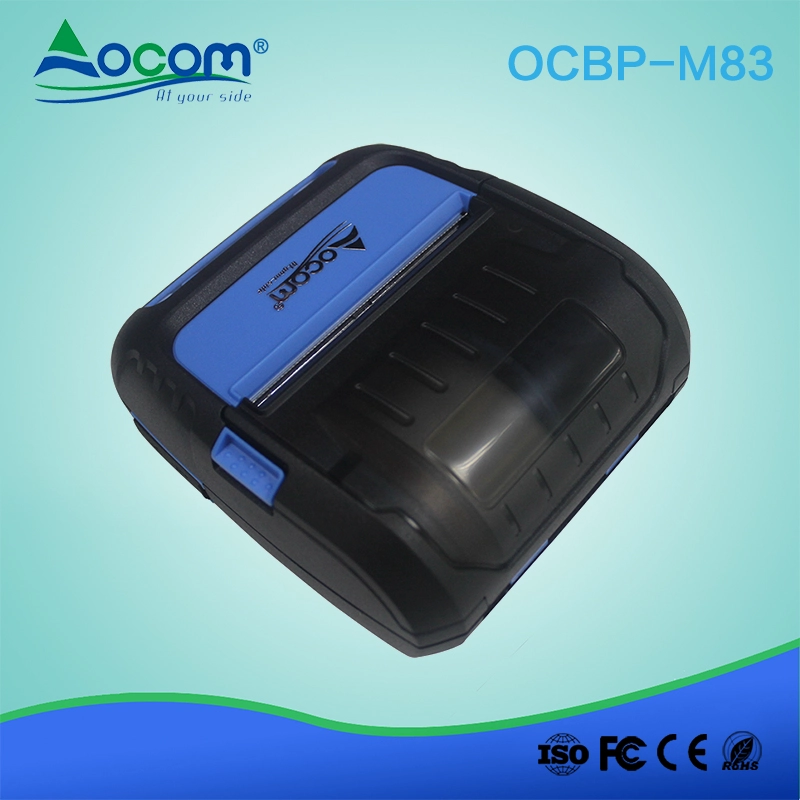

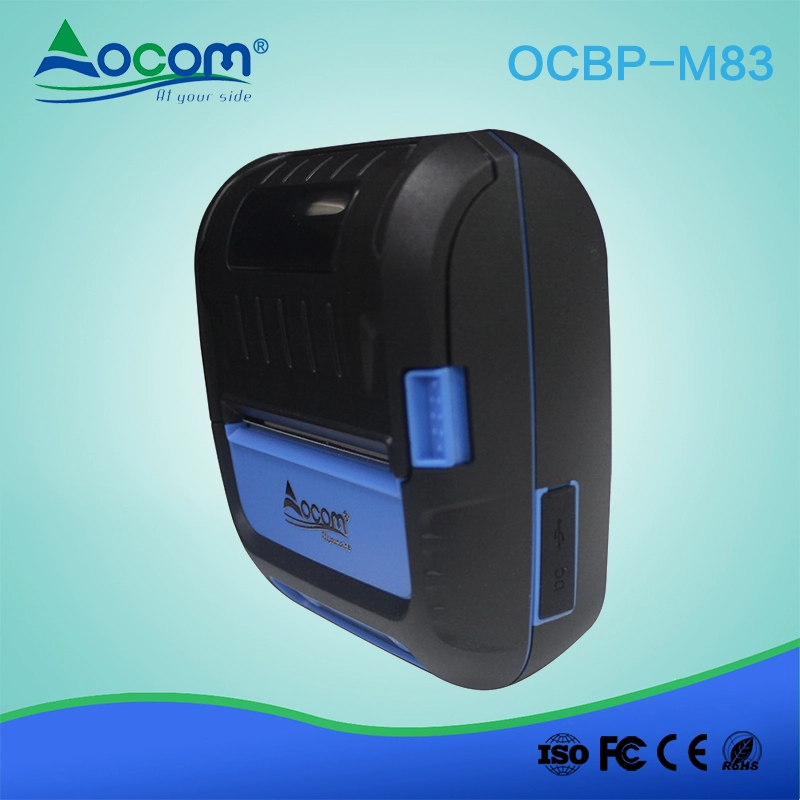

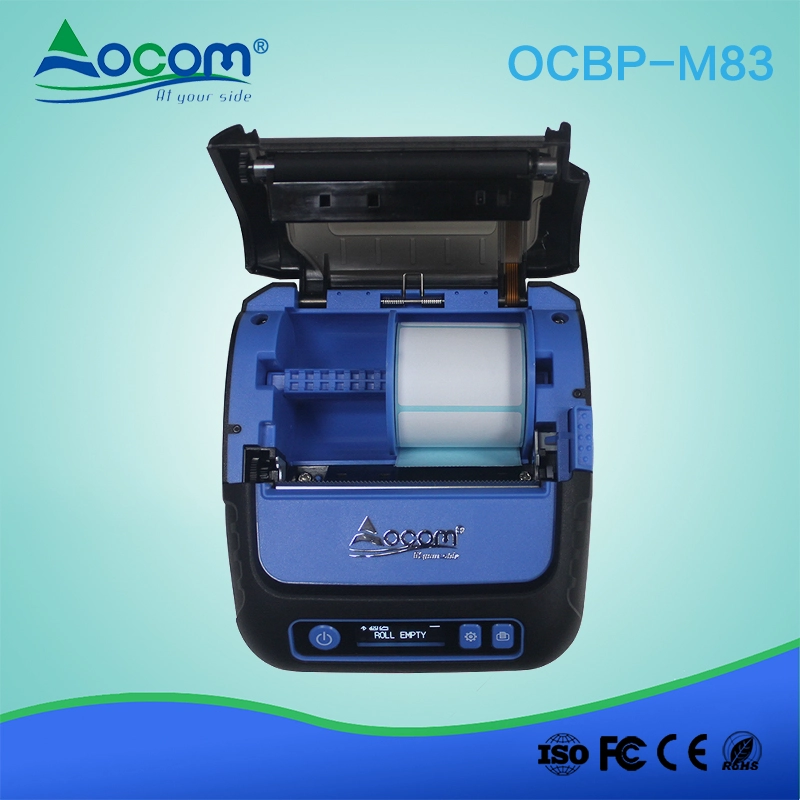

3 inch portable mini android 2d label barcode printer

(Model Number: OCBP- M83)



Features:

  •  Mini size suitable for portable application;
  •  Provide Android App more suitable for end users;
  •  Compatible with bartender software
  •  Support label interval sensor
  •  Can change the printer name, password, baud rate online;
  •  50mm diameter paper warehouse;
  •  Loading paper width can be adjusted
  •  Support Voice Input /Graphic Recognition/Scanning Recognition and other functions
  •  Compatible with Android and IOS
  •  2600mAh,7.4V 14.8Wh high energy battery
  •  Can Print 5 hours continuously, 7 days long standby time
  •  90mm/sec print speed;
  •  Support ESC/POS,JPL,TSPL,CPCL, 4 kinds of command;
  •  360 overall protection,Shock-resistant designs
  •  IP54 Grade, Support Printing in Rainy days and outdoor.



Specification:

Print method

Thermal line printing

Print commands

ESC/POS,TSPL,JPL  command

Effective print width

Max=72mm,576 dots

Print speed

Up to 90mm/sec

Resolution

8 dots/mm(203dpi)

Paper dimensions

79.5.±0.5mm x diameter 50.0mm

Paper thickness

0.06 to 0.12mm

Character set

Alphanumeric/ Chinese

Interface

USB,and Bluetooth

Flash

256KB

Power Adapter

9V DC/1A

Charging time

4-5 hours

Battery Power

2600mAh,7.4V 14.8Wh

Working time

5 hours continuously, 7 days standby time

Printer head life

50KM

Other features

Paper detection, manual shut down

Working conditions

Temperature:-10~50 degC, Humidity:10%~90%

Storage conditions

Temperature:-20~70 degC, Humidity:5%~95%

Device name

Can be customized, letter and digital for option, at max 30 ASCII characters.

Password

Enter default pairing code “1234”, it can be customized or change by customer itself.  At max 6 digitals.

Weight

Net weight:0.56kg/Set, Gross weight:0.7kg/Set

Single box size

13.5*13.5*11cm
