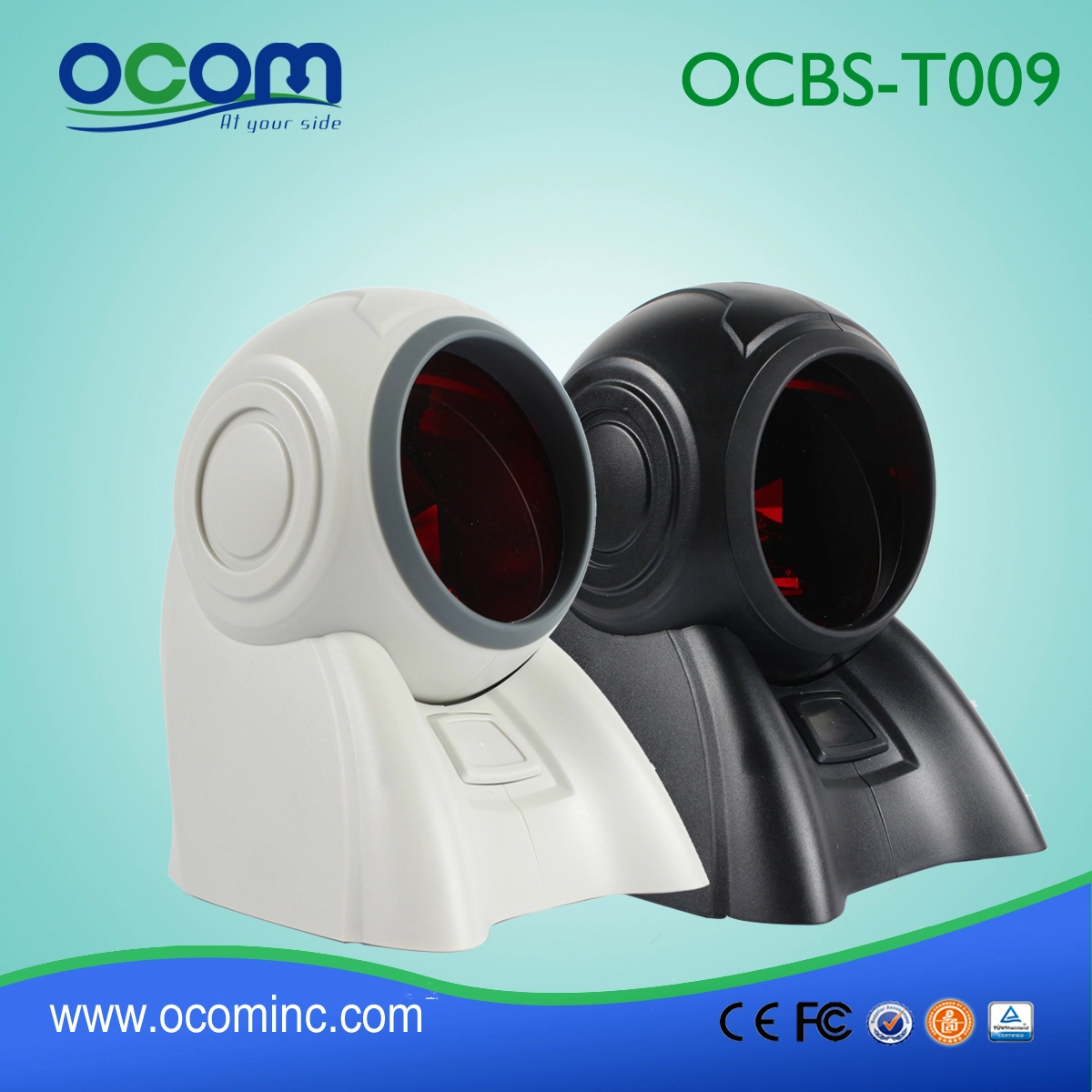

32bit Desktop Omni Barcode Scanner USB

32bit Desktop Omni Barcode Scanner USB

  • Desktop Omni-directional Barcode Scanner
  • 32 bit CPU
  • 20 scanning lines five directions
  • 1800 scans per second
  • Multiple Interface: PS/2, RS232 or USB
  • Depth of Scan Field: 0 - 200 mm
  • Resolution: 5mil at PCS 0.9
  • Two-color LED (blue & red)
  • Programmable tone and volume

32bit Omni-directional Barcode Scanner

Model: OCBS-T009

Performance parameters

Light Source

650nm visible laser diodes (VLD)

Depth of Scan Field

0 - 200 mm (UPC/EAN 100%, PCS=90%)

Scan Pattern

5 directions of scan field

Scan Rate

1800 scans per second (Omni-directional)

Number of Scan Lines


Minimum Bar Width

5mil @ PCS 90%

Print Contrast

30% @ UPC/EAN 100%

Indicators (LED)

Two-color LED (blue & red)

Beeper Operation

Programmable tone and volume

System Interface

Keyboard wedge, RS-232C, HID USB

Physical parameters

Volume(H x D x W)

152mm * 110mm * 115 mm




Standard 2.0M straight


50° forward


Black, Grey

Electrical parameters

Input Voltage

5VDC ± 10%

Operating Current

85mA @ 5V (Normal)


1.35 watts

Laser Class

CDRH Class IIa; IEC 60825-1: Class I


CE EN55022 B  FCC Part 15 Class B VCCI, BSMI

Environmental parameter

Operating Temperature

0°C - 40°C (32°F - 104°F)

Storage Temperature

-20°C - 60°C (-4°C - 140°F)


5% ~ 90% RH (no dewing allowed)

Drop Durability

Designed to withstand 1.0M drops

Light Levels

Up to 4000 Lux (fluorescence)
