4 inch sticker thermal printer machine with manual cutter (OCBP-007)4 inch sticker thermal printer machine with manual cutter (OCBP-007)4 inch sticker thermal printer machine with manual cutter (OCBP-007)4 inch sticker thermal printer machine with manual cutter (OCBP-007)

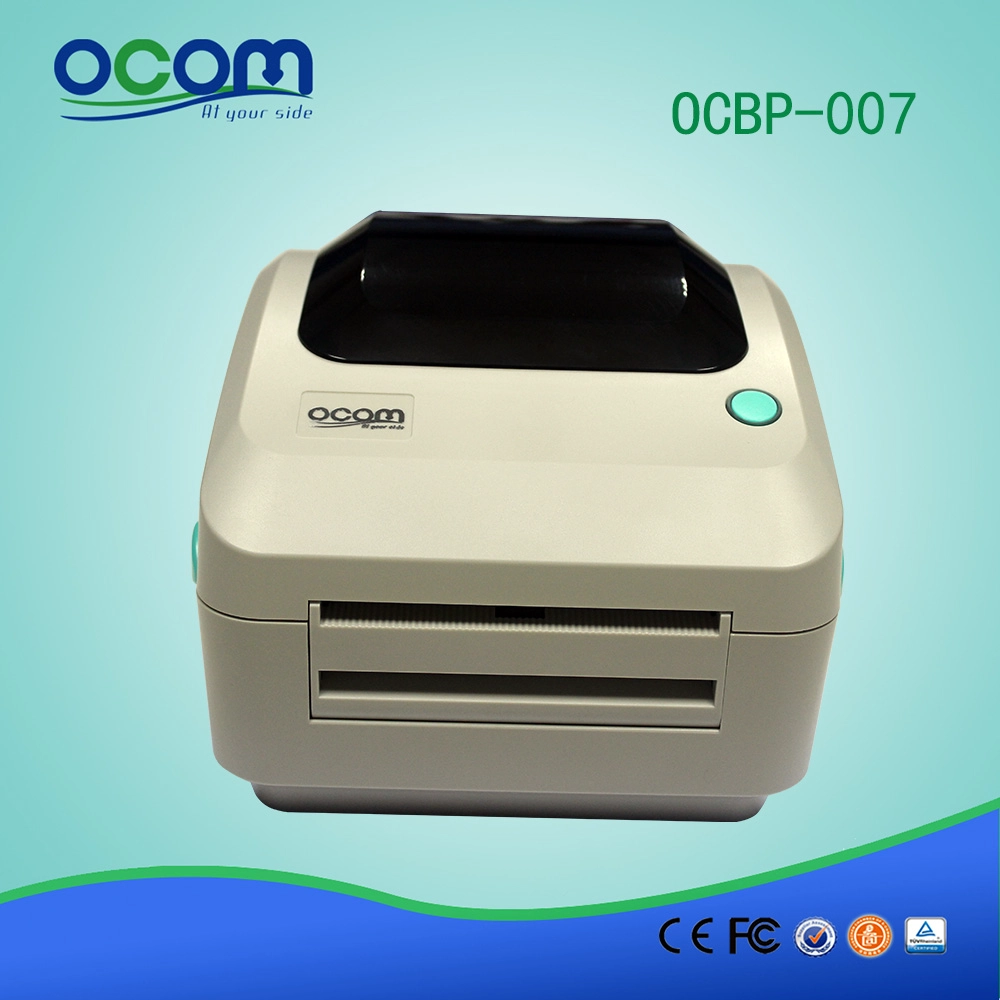

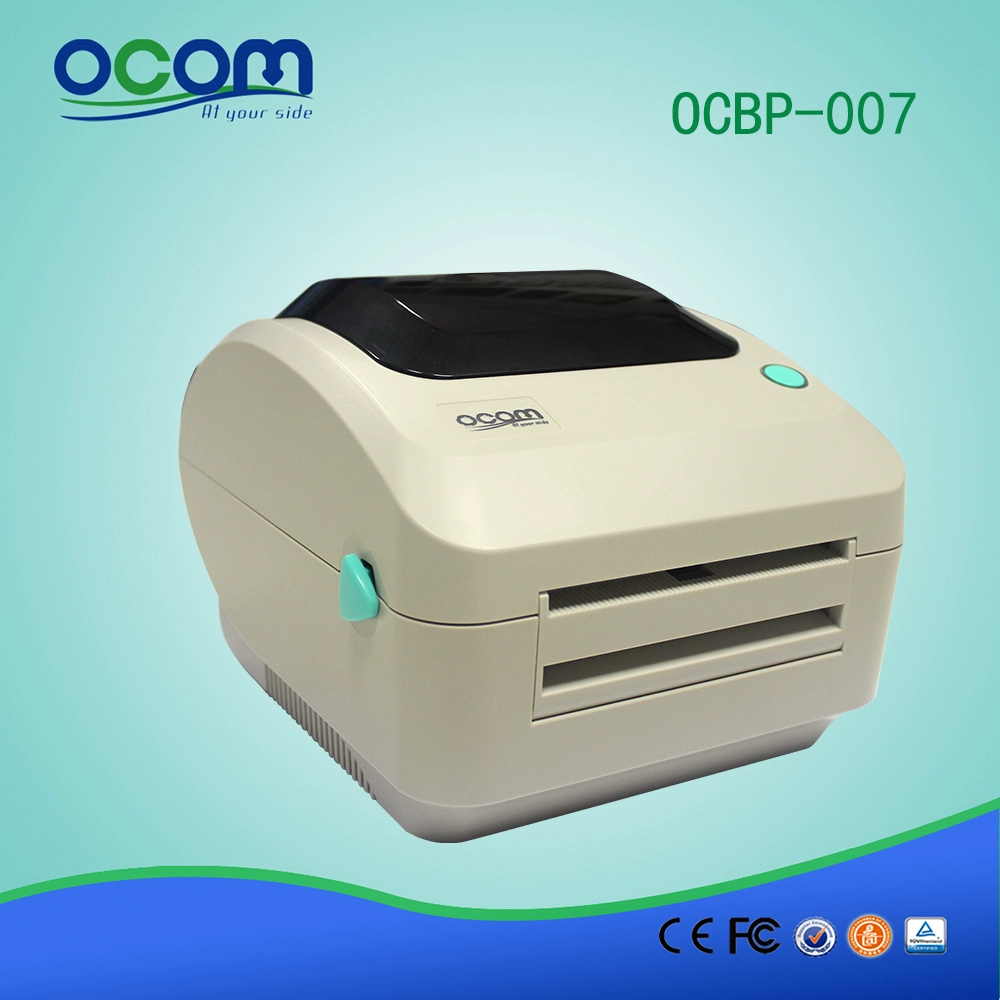

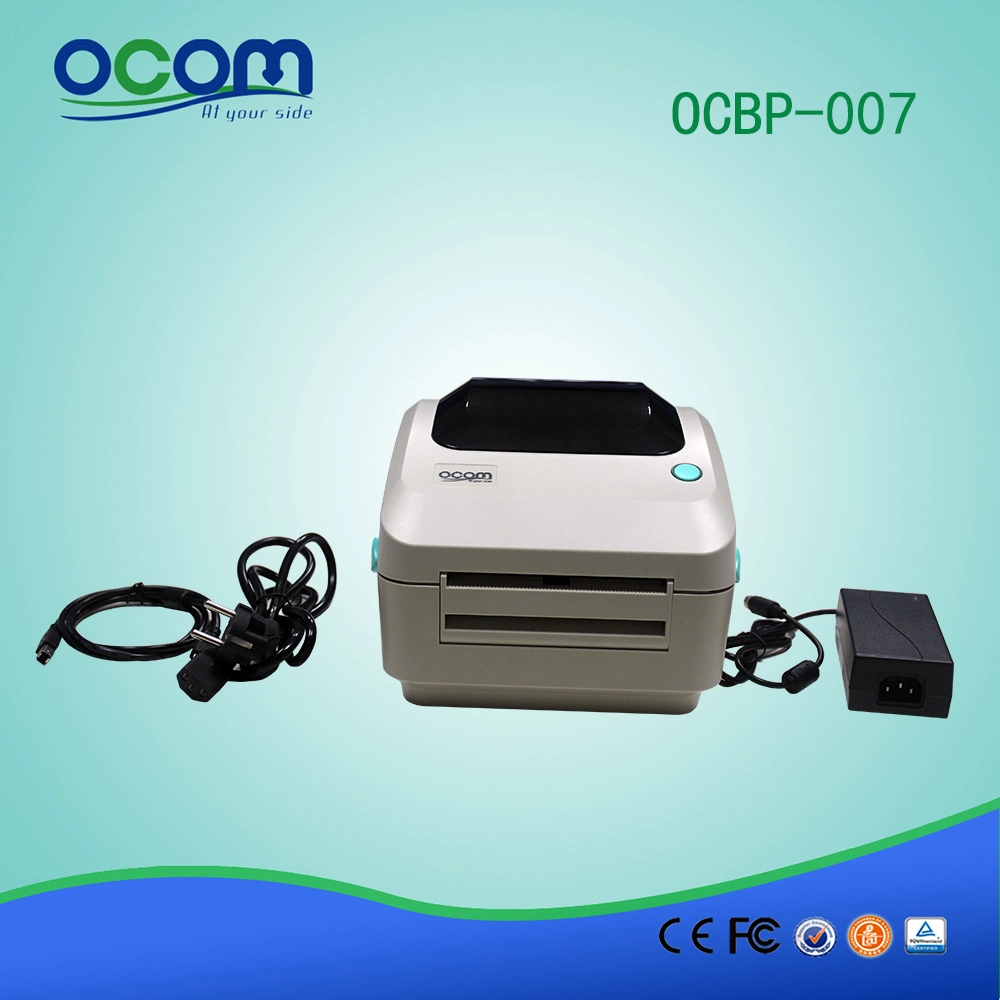

4 inch sticker thermal printer machine with manual cutter (OCBP-007)

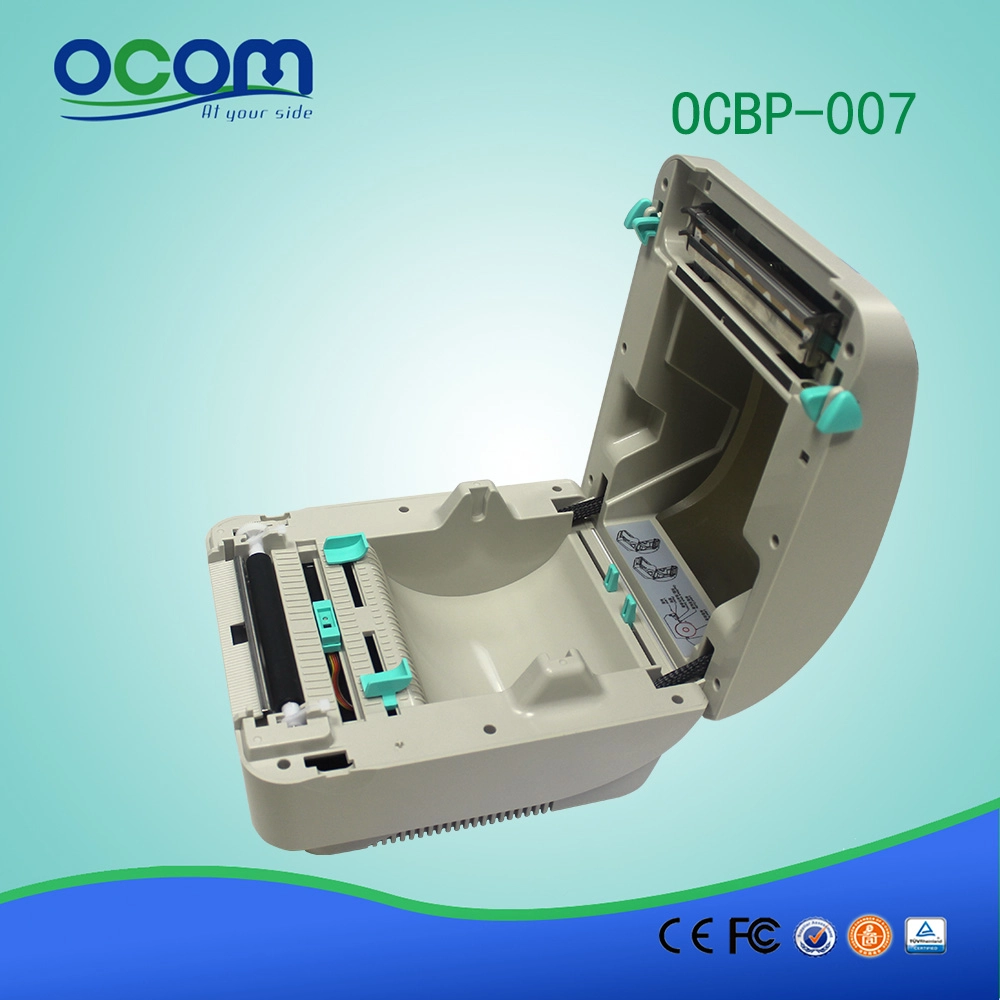

  • High quality double-walled clamshell design
  • 32-bit RISC CPU
  • 8MB SDRAM,4MB Flash
  • Head-up sensor
  • 203 dpi resolution
  • 102mm(4'''')/s high printing speed
  • 108mm printing width
  • 20-112mm (0.78”-4.4”)adjustable media width
4 inch sticker thermal printer machine with manual cutter (OCBP-007)

Key words:

thermal label printer,
sticker printer machine,
sticker printer

Specification:

Parameter

Resolution

8 dots/mm(203DPI)

Printing method

Direct Thermal

Max.print speed

102 mm (4”)/S

Max.print width

108 mm (4.25”)

Max.print length

2286 mm (90”)

Media type

Continuous, gap, black mark, fan-fold and punched hole

Media width

20-112mm (0.78”-4.4”)

Media thickness

0.06~0.16mm((2.36~6.3mil)

Label length

10~2,286mm(0.4''''~90'''')

Label roll capacity

127 mm (5“) OD (outside wound)

Enclosure

Double-walled plastic

Physical dimension

240 mm(W)× 211 mm(H)× 166 mm (D)

Weight

2.15kg

Processor

32-bit RISC CPU

Memory

4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion, up to 4 GB

Interface

USB 2.0

Internal fonts

8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.

Barcode

1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST

2D bar code:PDF-417, Maxicode, DataMatrix, QR code

Font and barcode rotation

0°、90°、180°、270°

Environment condition

Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
