(OCBS-A200) 4000 mAh Battery industrial rugged android 9.0 logistics handheld 2D barcode scanner pda with cradle(OCBS-A200) 4000 mAh Battery industrial rugged android 9.0 logistics handheld 2D barcode scanner pda with cradle(OCBS-A200) 4000 mAh Battery industrial rugged android 9.0 logistics handheld 2D barcode scanner pda with cradle(OCBS-A200) 4000 mAh Battery industrial rugged android 9.0 logistics handheld 2D barcode scanner pda with cradle(OCBS-A200) 4000 mAh Battery industrial rugged android 9.0 logistics handheld 2D barcode scanner pda with cradle(OCBS-A200) 4000 mAh Battery industrial rugged android 9.0 logistics handheld 2D barcode scanner pda with cradle

(OCBS-A200) 4000 mAh Battery industrial rugged android 9.0 logistics handheld 2D barcode scanner pda with cradle

  • Features:
  • MTK8768B 2GHz, QuadCore, 12nm
  • 2G RAM+16G ROM
  • Numeric&Functional Keypads
  • Support 2/3/4G Communication
  • Rechargeable li-ion polymer, 3.7V, 4000Ah Battery
  • Rugged IP65 /1.5 m Drop Tolerance
  • 8 megapixel camera auto-focus with LED flash of optional
  • Standard high-performance 2D scanner Engine
  • POGO PIN charging port support optional cradle
  • Compatible with 4 kinds of global positioning systems

(OCBS-A200) 4000 mAh Battery industrial rugged android 9.0 logistics handheld 2D barcode scanner pda with cradle

(M/N:OCBS-A200)




Features:

 MTK8768B 2GHz, QuadCore, 12nm

2G RAM+16G ROM

Numeric&Functional Keypads

Support 2/3/4G Communication

Rechargeable li-ion polymer, 3.7V, 4000Ah Battery

Rugged IP65 /1.5 m Drop Tolerance

8 megapixel camera auto-focus with LED flash of optional

Standard high-performance 2D scanner Engine

POGO PIN charging port support optional cradle

Compatible with 4 kinds of global positioning systems

Specifications

OS

Android 9

CPU

MTK8768B 2GHz, QuadCore, 12nm

MEMORY

2G RAM+16G ROM

Extend Slot

MicroSD,  support SDHC, up to 64GB;

One micro SIM  connector

PC Communication

USB 2.0 OTG : Type-C;Support TYPE-C Headset

Sensors

Light, Proximity, 3D G sensor, Hall

LED

Charging, Scan and System status

Charging Time

<3.5 hours(Room Temperature)

<4 hours(35 ℃)

Operation Duration

14 hours

Data Collection

Scan Engine

Datalogic E3200-LE

2D

Aztec Code; China Han Xin Code; Data Matrix; MaxiCode;

Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;

GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;

GS1 DataBar Stacked Omnidirectional; MacroPDF;

MicroPDF417; PDF417; UPC A/E Composites

1D

Auto discriminates all standard 1D codes including GS1

DataBar™ linear codes.

Post

Australian Post; British Post; China Post; IMB; Japanese

Post; KIX Post; Korea Post; Planet Code; Postnet; Royal

Mail Code (RM4SCC)

NFC(Optional)

13.56MHz NFC

Wireless Connectivity

WLAN

802.11 ac/a/b/g/n

WWAN

TDD-LTE (B38/B39/B40/B41)

FDD-LTE (B1/B3/B7)

UMTS/HSDPA/HSPA/HSPA+ (900/2100 MHz)

GSM/EDGE/GPRS (900/1800MHz)

VoLTE

LTE CAT6

CA

Downlink 300Mbps, B1/B3/B7/B40/B41

WPAN

BT 4.2/BLE

GPS

GPS/A-GPS, GLONASS, Beidou ,Galileo

Physical Specifications

LCD

4 inch, 800*480, visible under sunshine

Touch

GFF Captive Touch, Dragontrail Glass

Camera

Auto focus 8Mega, with flash LED

Keypad

24 Numeric Keypad

Left/Right Scan Key, Left/Right K1,K2 user-defined Key

Back, HOME, Switch

Receiver

Support

Speaker

Min 90db at 10cm-1KHz Voice

Mic

Noise Reduction Mic

Charging IO

USB type-C,

Charging cradle

Battery

Removable 3800mAh-4000mAh

Dimension

160×71×17mm

Weight

269g

Environmental Specifications

Operation Temperature

-20°C ~ +50°C

Storage Temperature

-30°C ~ +70°C

Humidity

10% ~ 90%

Drop

1.5m, concrete, 12 drops

Tumble

600hits, 0.5m, Steel

IP

IP65

ESD

±8kV Contact, ±15kV Air

Keypad life cycle

300K

Accessories

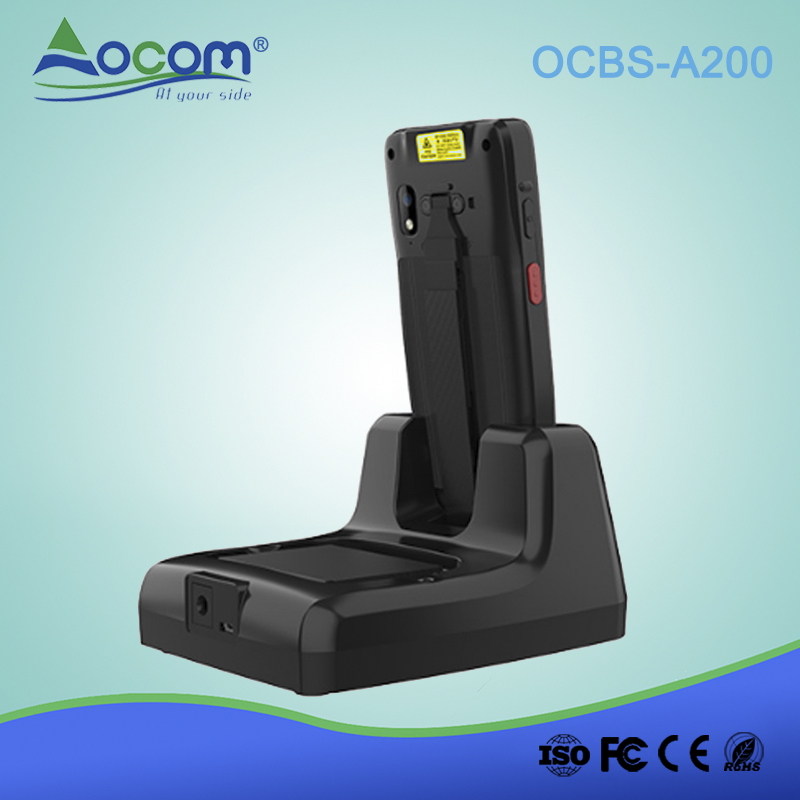

Charging Cradle

Support 1 device and 1 battery

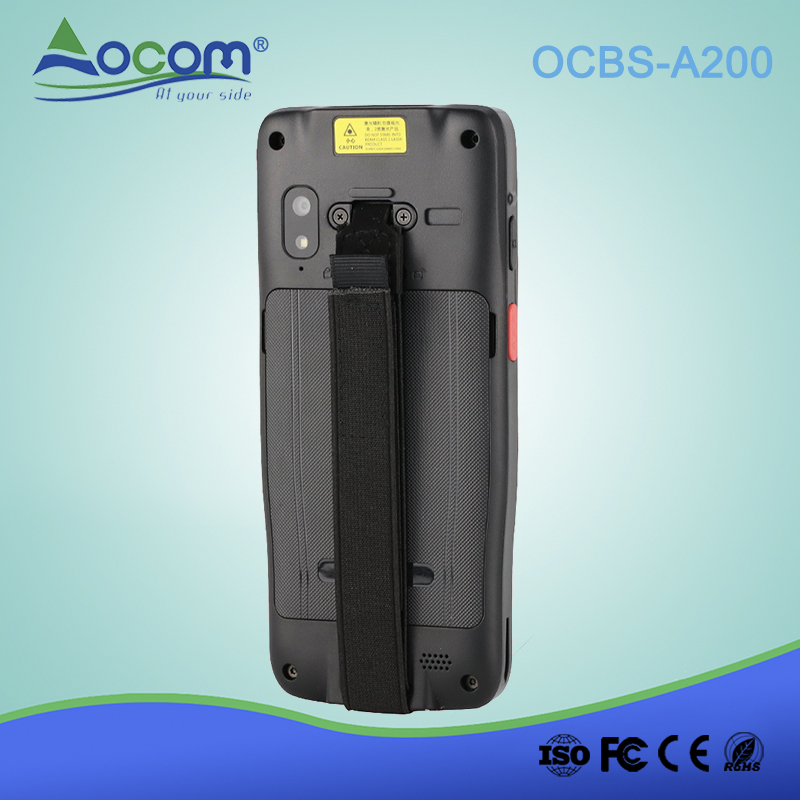

Hand strap

Black, Nylon

Battery

Removable 3800mAh-4000mAh
