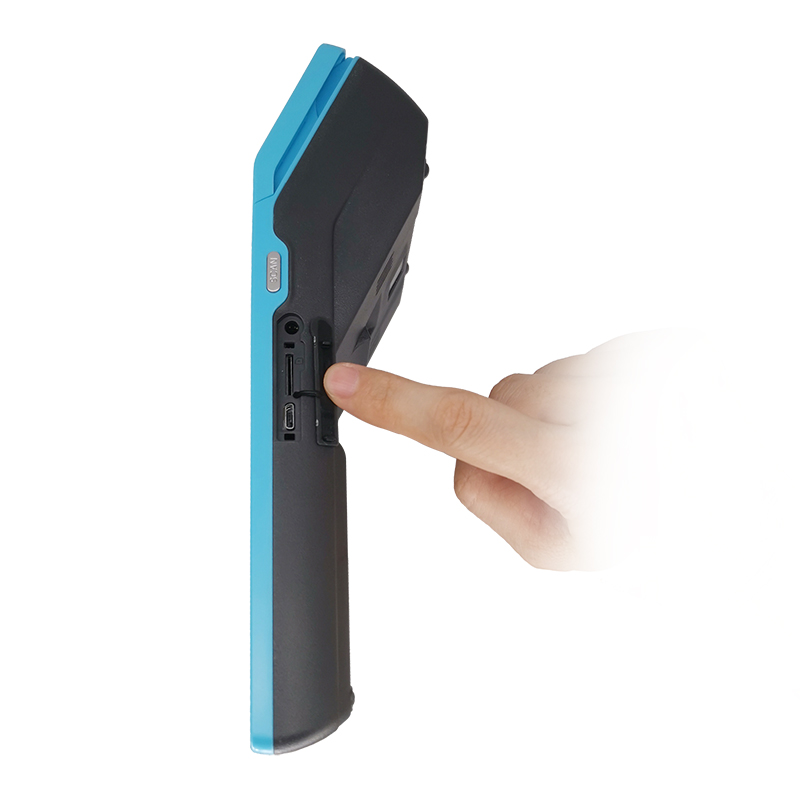

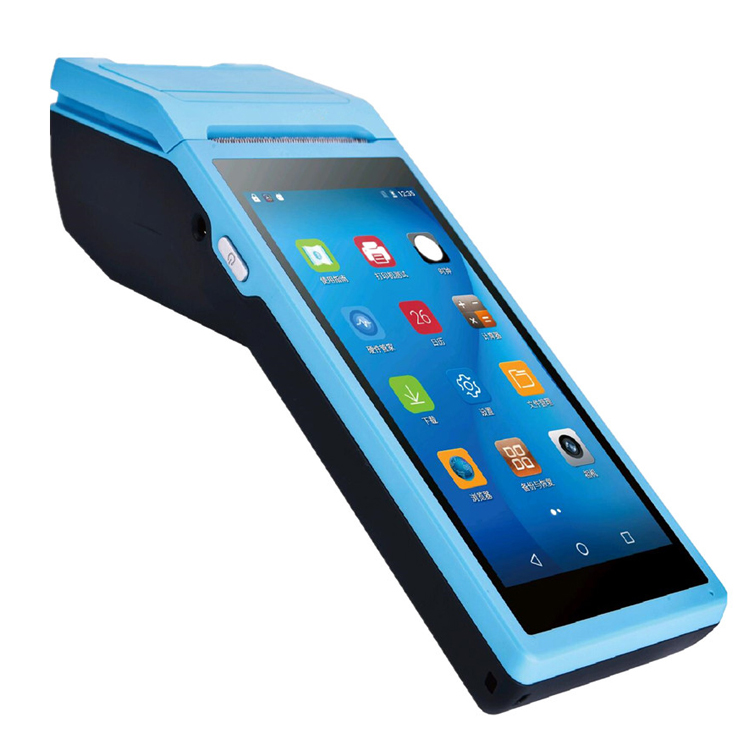

5.5'' Handheld Android 3/4G POS Terminal With 58mm Thermal Printer

  • 5.5" Android 6.0  Handheld Terminal With 58mm Receipt Printer
  • 2G/3G/4G communication for Options
  • POS-Q1 :4G version, Cortex A53 1.25G Hz quad core Processor, 1G RAM+8G Storage;
  • POS-Q2: 3G version,MTK80 1.3GHz quad core Processor ,1G RAM+4G Storage;

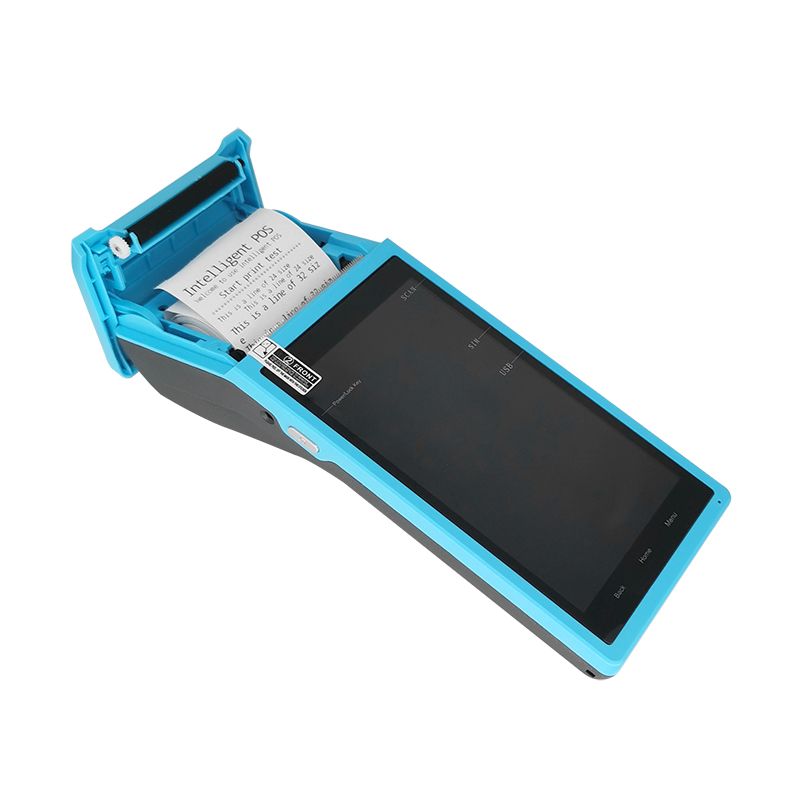

  • Built-in high speed  58mm thermal printer module
  • Built-in 5 megapixels camera(can decode 1/2d barcode by app)
  • Built-in large volume speaker
  • Support 32GB TF card extended memory
  • Support 12V DC interface charging
  • 5000mAh large capacity battery
  • CCD Barcode scanner , and NFC (3g version only) for options

5.5'' Handheld Android 3/4G POS Terminal With 58mm Thermal Printer

(M/N: POS-Q1/Q2)


Features:

Android 6.0 operating system;

2G/3G/4G communication for Optional;

Q1: 4G, Quad core Cortex A53 1.25G Hz Processor;

Q2: 3G, Quad core MTK80 1.3GHz Processor;

1G RAM+8G Storage for Q1;

1G RAM+4G Storage for Q2;

Built-in high speed 58mm thermal printer module;

Built-in 5 megapixels camera;

Built-in large volume speaker;

Support 32GB TF card extended memory;

CCD Barcode scanner for optional;

NFC (HF) function for optional;

Support 12V DC interface charging;

5000mAh large capacity battery.

Technical Spec:

O/S

Android 6.0

CPU

Quad core Cortex A53 1.25G Hz (Q1,4G) /

Quad core MTK80 1.3GHz (Q2,3G)

RAM

1GB DDR3

Flash

4GB Flash for Q2 / 8GB Flash for Q1

Display

5.5" HD Screen, Highest Resolution 1280 x 720

Touch

Capacitive Multi point Touch

Camera

5,000,000 Fixed Focus

Scanner

1D CCD Scanner (Option)

RFID

13.56MHZ 14443A NFC (HF)

Network

GSM900/1800 WCDMA2100 TD-SCDMA:B34 B39/ FDD-LTE:B1 B3 / TDD-LTE:B38 B39 B40 B41

Bluetooth

Bluetooth 4.0

WIFI

WIFI 802.11 b.g.n

Speaker

1W Single Channel

Microphone

MIC Input

Button

Power button, Scan Button

I/O

Charging Socket, USB, SIM Slot

Battery

7.4V / 5000mAh

Printer

58mm Thermal Receipt Printer, Printing Speed 90mm/s,

Work Life 50 Km

Paper Roll

Max Diameter 42mm

Power Adapter

Input:100-240V/1.5A 50/60Hz

Output:12V 1A

Dimension

209.2mm (L) x 87.4mm (W) x 51.7mm (H)
