58mm Mini Mobile bluetooth thermal printer
- Mini size suitable for portable application;
- Windows, Java, Linux, Android ,IOS operation system supported;
- Bluetooth, USB and RS232 communication supported;
- SDK for Android,IOS and WIN CE available;
- 1D, 2D barcode (QR code), and image printing supported;
- Can change the printer name, password, baud rate online;
- 57*50 paper warehouse
- One printer can connected with up to 8 smart devices (7 Android, one Apple device) visa blue tooth;
- Low power consumption and large capacity Lithium battery (1500mAh), 4~5 days standby;
- Powered by rechargeable battery, power adapter, or car charger (specified models)
- Higher print speed 90mm/sec;
- 100km thermal printer head life;
- Multiple languages supported;
- ESC/POS command set compatible;

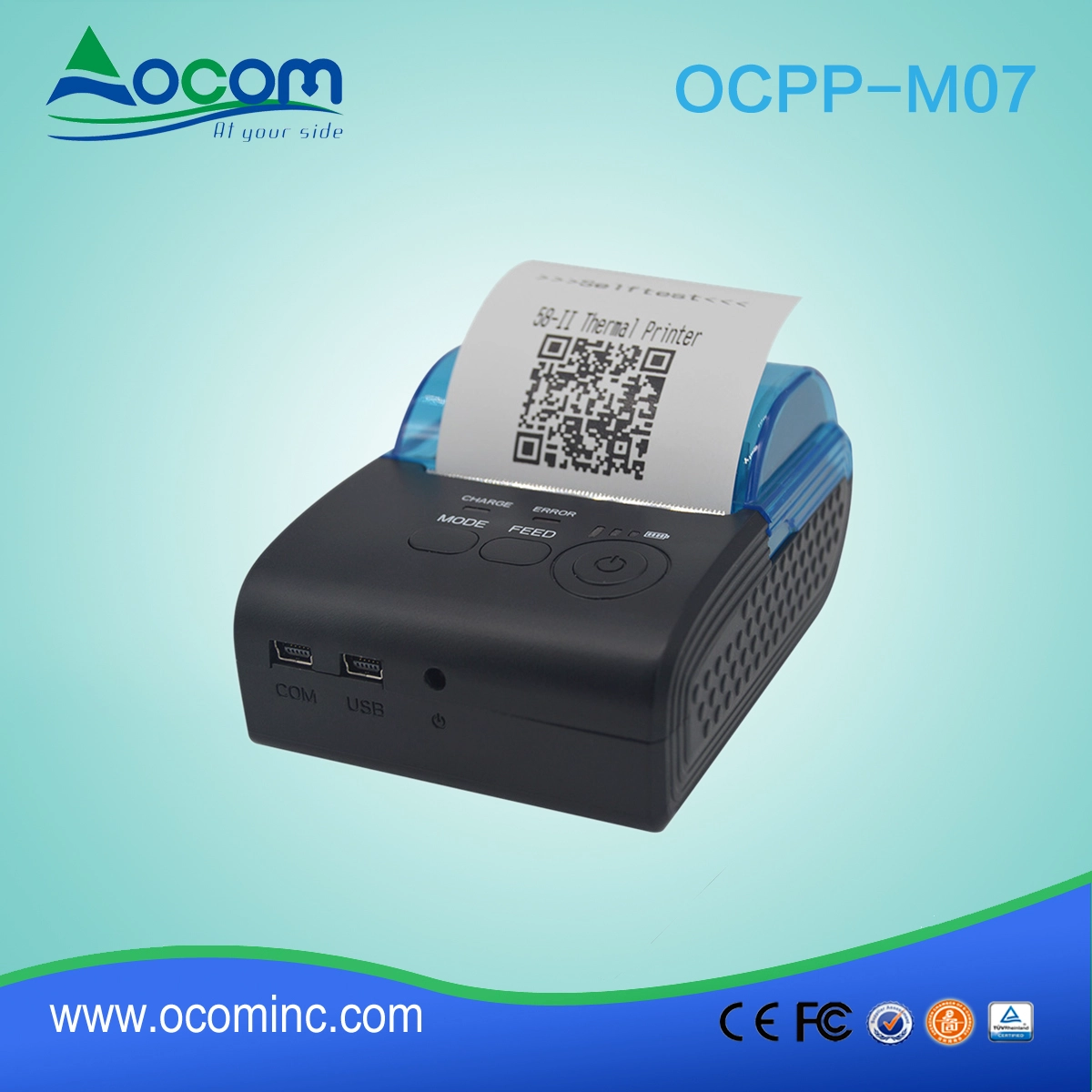

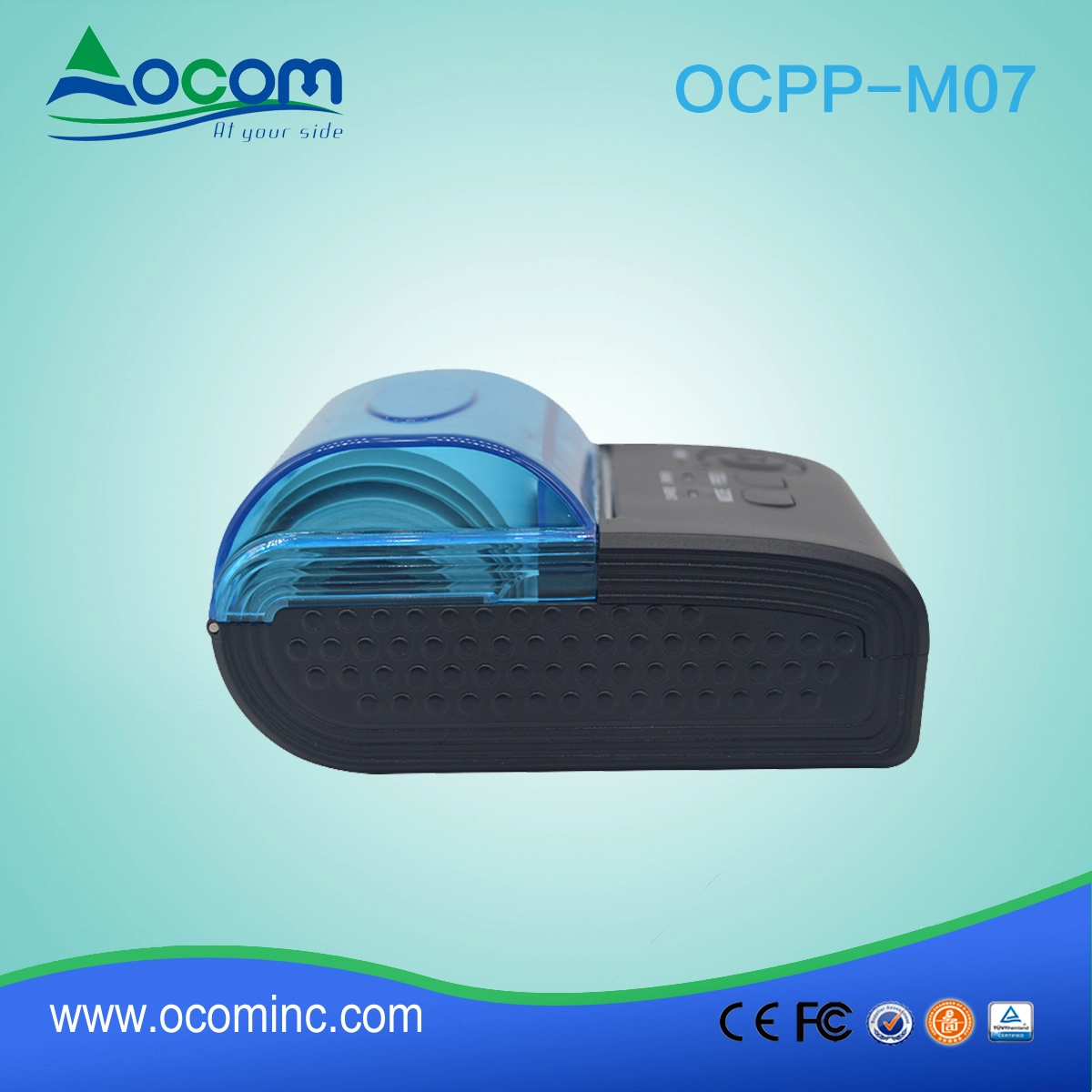

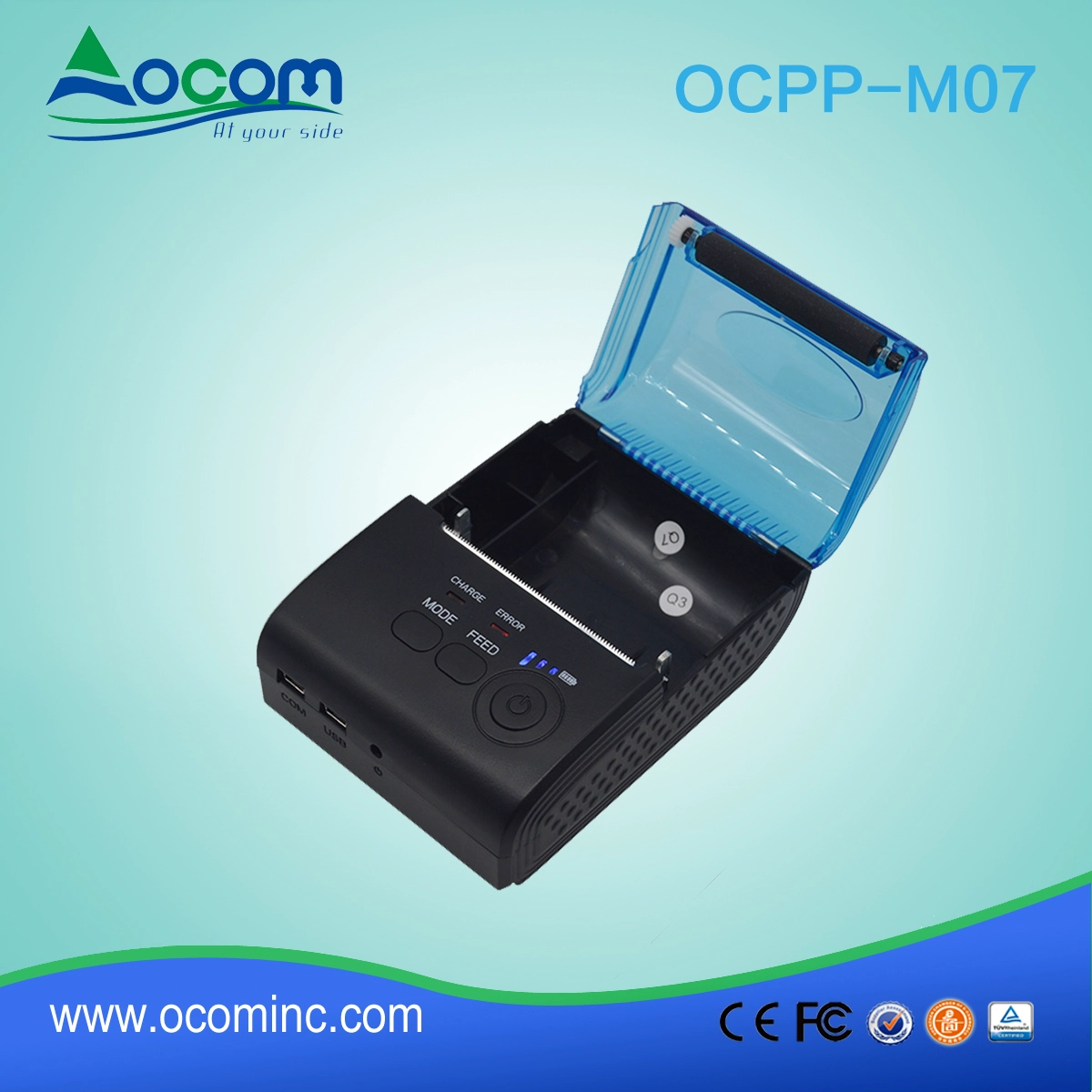

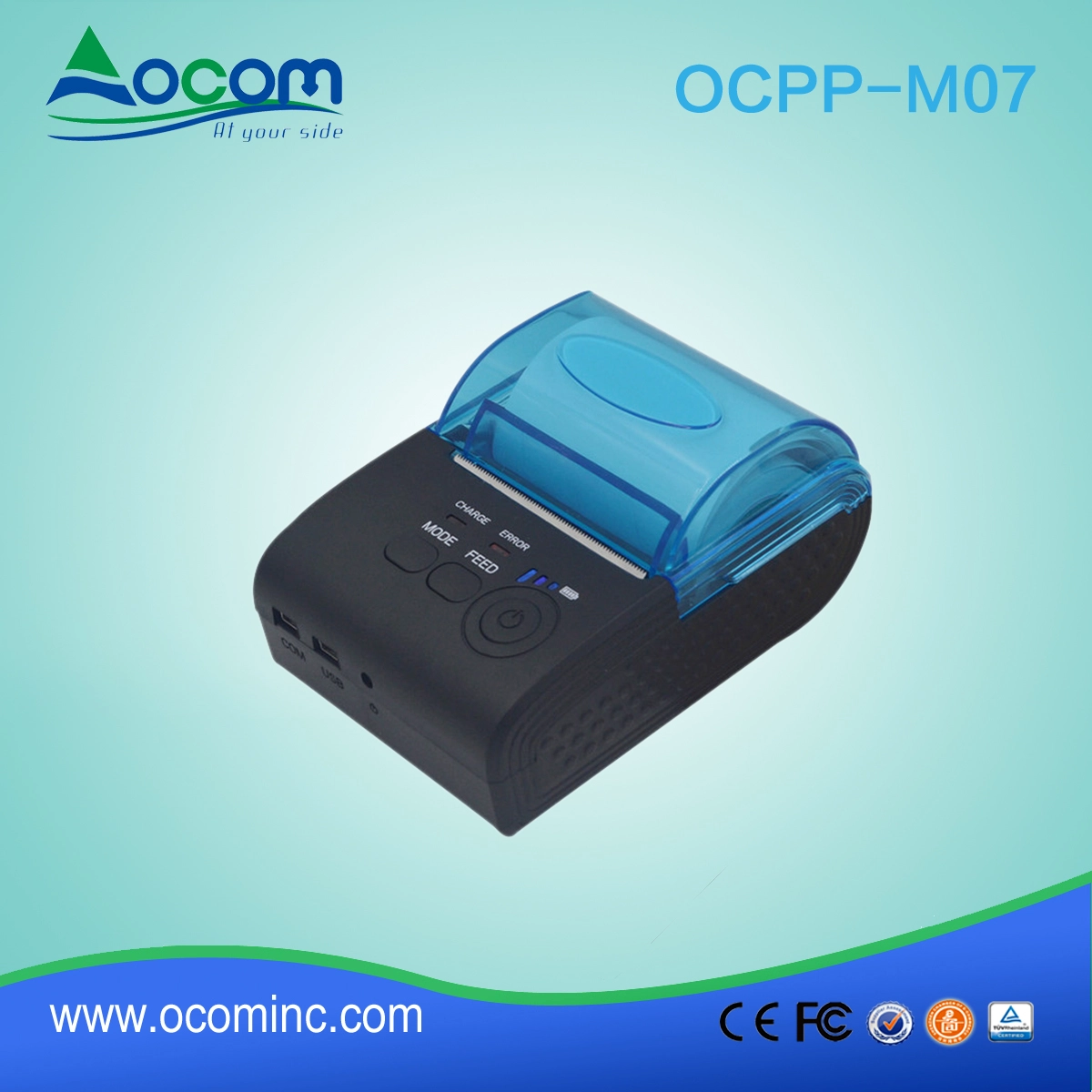

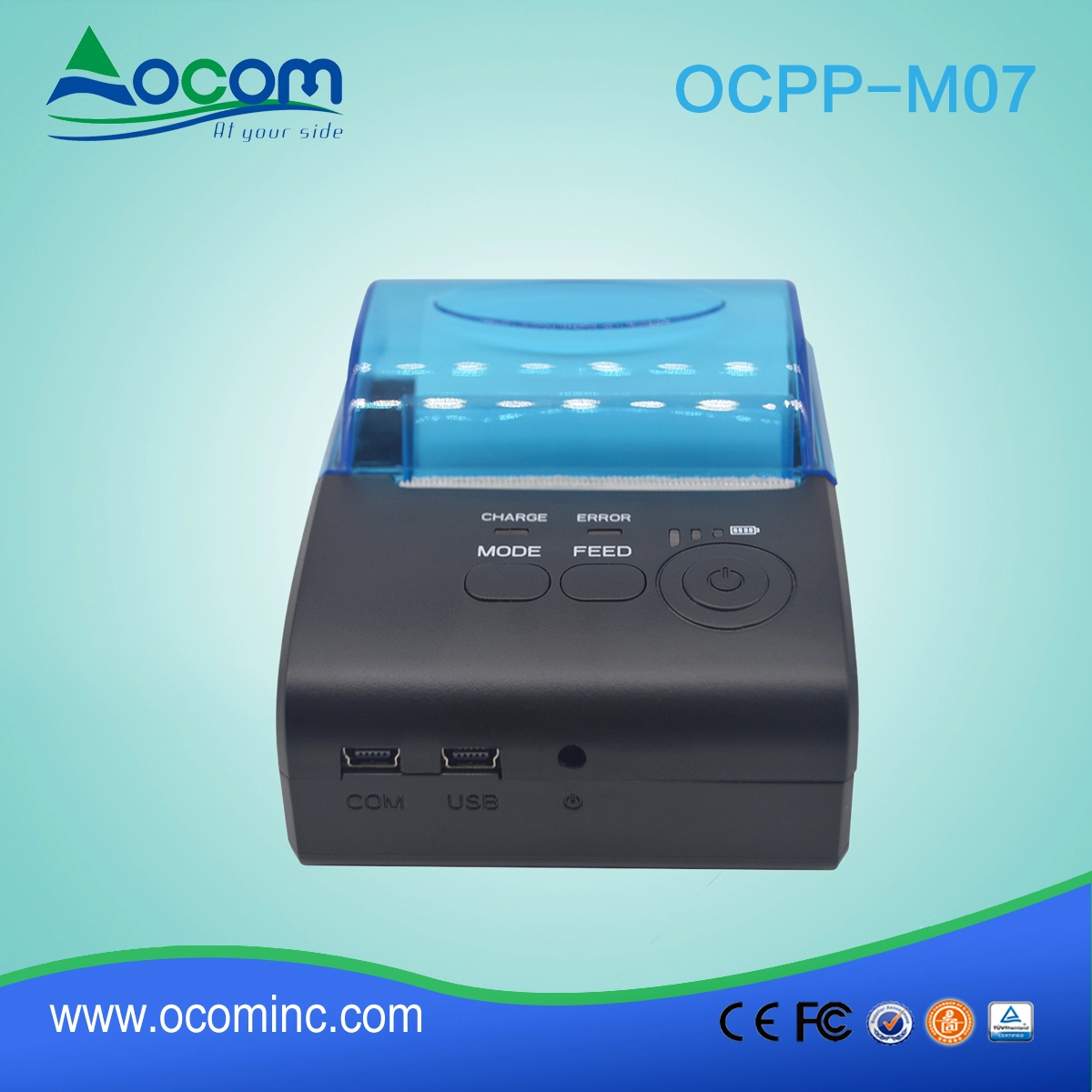

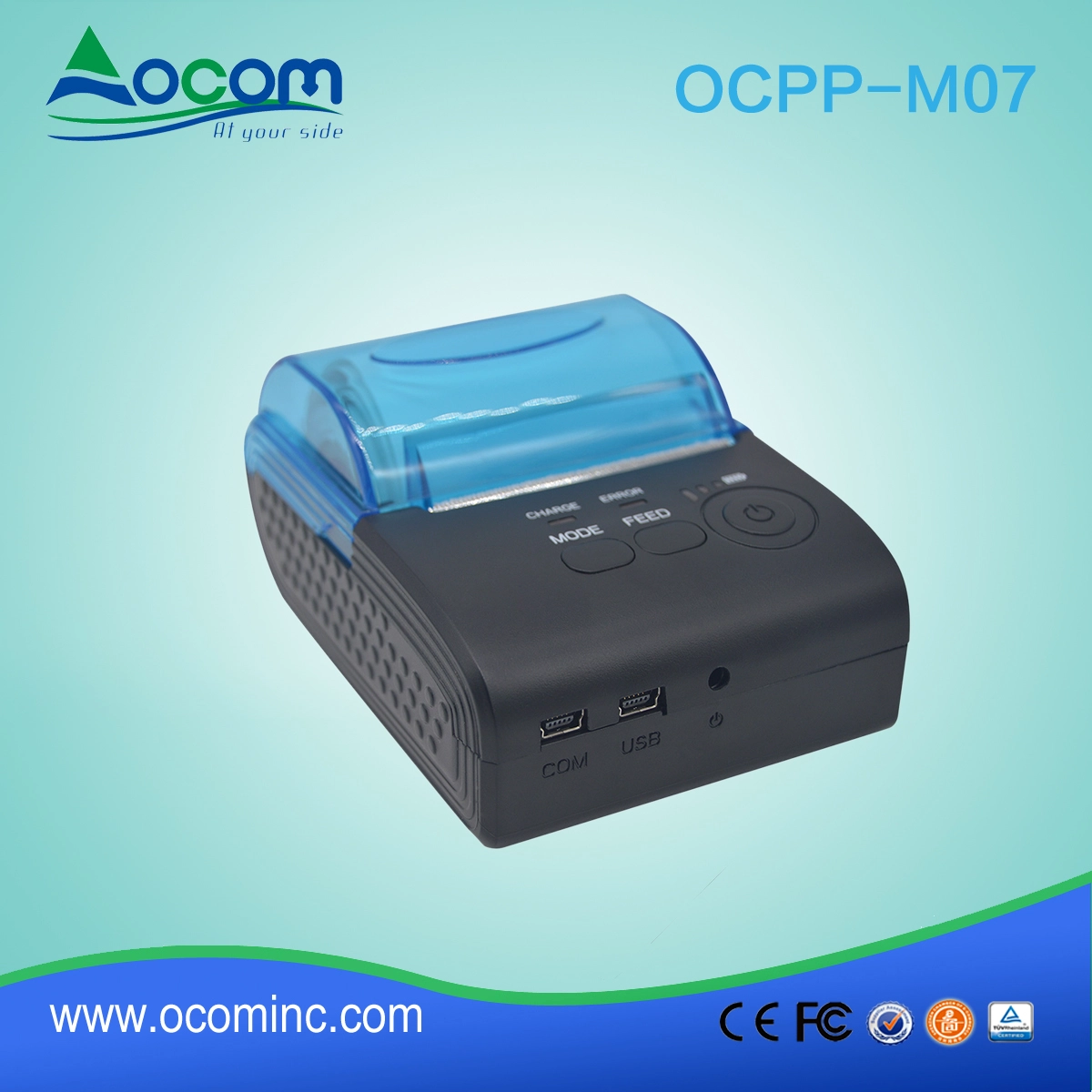

58mm Mini Mobile bluetooth thermal printer
(Model Number: OCPP-M07)
Features:
mobile printer,bluetooth thermal mobile printer,mobile bluetooth thermal printer
n Mini size suitable for portable application;
n Windows, Java, Linux, Android ,IOS operation system supported;
n Bluetooth, USB and RS232 communication supported;
n SDK for Android,IOS and WIN CE available;
n 1D, 2D barcode (QR code), and image printing supported;
n Can change the printer name, password, baud rate online;
n 57*50 paper warehouse
n One printer can connected with up to 8 smart devices (7 Android,one Apple device) visa blue tooth;
n Low powerconsumption and large capacity Lithium battery (1500mAh), 4~5 daysstandby;
n Powered by rechargeablebattery, power adapter, or carcharger (specified models)
n Higher print speed 90mm/sec;
n 100km thermal printer head life;
n Multiple languages supported;
n ESC/POS command set compatible;
Specification:
mobile printer,bluetooth thermal mobile printer,mobile bluetooth thermal printer
|
Overall Dimension (W×D×H) |
105×75×45mm |
|
|
Weight |
134g |
|
|
Color |
Black |
|
|
Print method |
Thermal line printing |
|
|
Print commands |
ESC/POS compatible command set |
|
|
Effective print width |
48mm |
|
|
Print speed |
Up to 90mm/sec |
|
|
Resolution |
8 dots/mm(203dpi) |
|
|
Print font |
12x24/ 24x24 |
|
|
Column capacity |
32 columns/ 16columns |
|
|
Character size |
1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH) |
|
|
Paper dimensions |
58.0±0.1mm x diameter 40.0mm |
|
|
Paper thickness |
0.06 to 0.08mm |
|
|
Character set |
Alphanumeric/ Chinese Kanji |
|
|
Interface |
USB, RS-232，Bluetooth (optional) |
|
|
Flash |
256KB |
|
|
Power Adapter |
9V DC/2A |
|
|
Battery Power |
7.4V DC/ 1500mAh; battery can stay by for 4-5 days, when it is full power, it can print 120-150m paper |
|
|
Other features |
Paper detection, manual shut down |
|
|
Working conditions |
Temperature:-10~50 degC, Humidity:10%～90% |
|
|
Storage conditions |
Temperature:-20~70 degC, Humidity:5%～95% |
|
|
Device name |
Can be customized, letter and digital for option, at max 30 ASCII characters. |
|
|
Password |
Enter default pairing code “1234”, it can be customized or change by customer itself. At max 6 digitals. |
|
|
Power plug dimension |
3.5*1.1mm |
|
|
Ordering information |
OCPP-M07-BB |
Android, USB+COM+Bluetooth, Battery. |
|
OCPP-M07-BB-AI |
Android+IOS, USB+COM+Bluetooth, Battery. |
|
|
OCPP-M07-B |
Android, USB+COM+Bluetooth, without Battery; |
|
|
OCPP-M07-U |
Mini printer, Android, USB+COM, without Battery. |
|
|
OCPP-M07-BB-AA |
Android+IOS, USB+COM+Bluetooth, Battery, 7 android +1 apple devices supported |
|
Power adaptor for option:
mobile printer,bluetooth thermal mobile printer,mobile bluetooth thermal printer
Application Area:
Comparedto the traditional thermal receipt printer, mini printer has smaller body, morereliable capability, more steady printing and portable advantages. The Miniprinter can work on a lot of locations, such as the TAXI bill printing,administrative fees receipt printing, post receipt printing, restaurantordering information printing, online payment information printing, etc. Withthe rapid popularity of smart-mobile, tablet and so on, Mini printer will bemore widely used in the near future.
Key words: thermal printer, bluetooth printer, miniprinter, portable printer, pos printer, mobile printer, receipt printer, wireless printer, ticket printer,bill printer, qr code printer, pocket printer, invoice printer, mini printer,58mm bluetooth printer, 2inch bluetooth printer.
Relevant documents:
*Driver for WIindows
*CD Files
