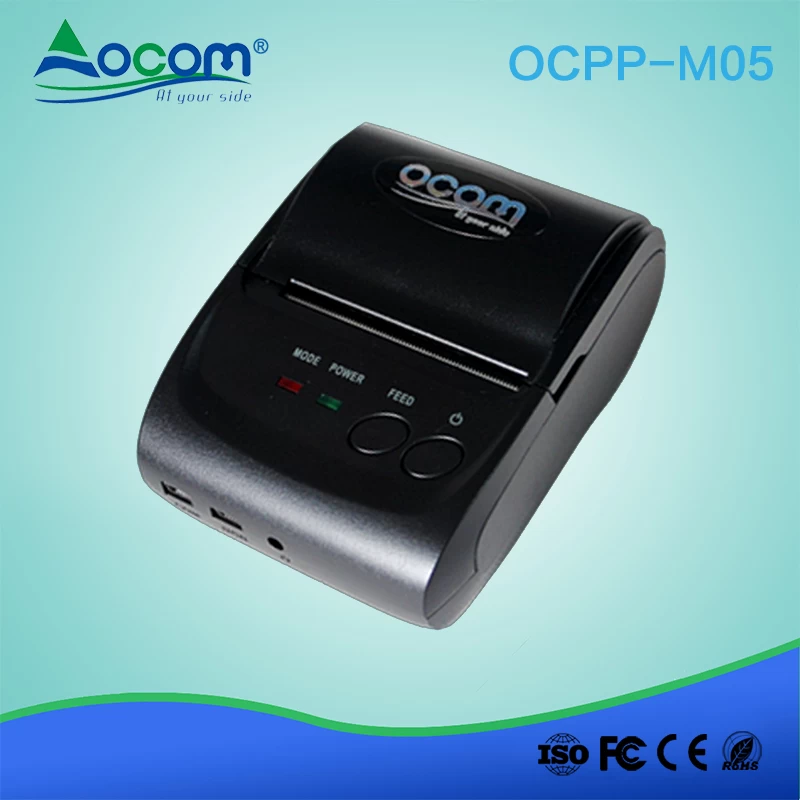

58mm Mini Portable Mobile Bluetooth POS Thermal Printer
- Support for Windows, Android or iOS, or Android + ios OS
- Optional Bluetooth, USB and RS232 communication.
- Higher print speeds of 90 mm/sec.
- 100 km TPH life.
- Low power and large capacity lithium battery.
58mm Mini Portable Mobile Bluetooth POS Thermal Printer
(OCPP -M05)
feature:
nSupport for Windows, Android or iOS, or Android + ios OS
nOptional Bluetooth, USB and RS232 communication.
nHigher print speeds of 90 mm/sec.
n100 km TPH life.
nLow power and large capacity lithium battery.
specification:
|
Dimensions (width × depth × height) |
105 × 75 × 45 mm |
|
|
weight |
134 grams |
|
|
colour |
black |
|
|
Effective print width |
48 mm |
|
|
printing method |
Hot line printing |
|
|
Print order |
ESC / POS compatible command set |
|
|
printing speed |
Up to 90 mm / sec |
|
|
Resolution |
8 points / mm (203dpi) |
|
|
Print font |
12x24 / 24x24 |
|
|
Column capacity |
32 columns / 16 columns |
|
|
Character size |
1.5 x 3.0 mm (width x height) / 3.0 x 3.0 mm (width x height) |
|
|
Paper size |
58.0±0.1mm x diameter 40.0mm |
|
|
Paper thickness |
0.06 to 0.08 mm |
|
|
character set |
Alphanumeric / Chinese characters |
|
|
interface |
USB, RS-232,Bluetooth (optional) |
|
|
flash |
256KB |
|
|
Power Adapter |
9V DC / 2A |
|
|
battery power |
7.4V DC / 1500mA; the battery can last for 4-5 days, when it is full power, it can print 120-150 meters of paper |
|
|
Other features |
Paper detection, power detection, manual shutdown |
|
|
working environment |
Temperature: -10°C~50°C, humidity: 10%~90% |
|
|
Storage conditions |
Temperature: -20°C~70°C, humidity: 5%~95% |
|
|
Device name |
Customizable, alpha and numeric options, up to 30 ASCII characters. |
|
|
password |
Enter the default pairing code "1234"It can be customized. Up to 6 digits. |
|
|
Power plug size |
3.5 *1.1 mm |
|
description:
Mini Bluetooth Printer is a USB compatible portable thermal printer.
The RS-232 serial port is connected to the Bluetooth communication interface, and the printer can be powered by the car charger.
And rechargeable battery (depending on the model selected). These special characters make it successful for a variety of instruments, handheld data printing.
Application areas:
Compared with traditional thermal ticket printers, Mini printers have the advantages of smaller size, more reliable performance, more stable printing and portability. Mini printers can work in many places, such as TAXI ticket printing, administrative fee printing, pos receipt printing, restaurant ordering information printing, online payment information printing, and more. With the rapid spread of smartphones, tablets, etc., Mini printers will be more widely used in the near future.
Packaging details
|
Guarantee: Normal delivery for 12 months. Some models are available for up to 24 months of warranty. RMA program: If you suspect that the product is not functioning properly, please contact us to determine if your product is defective during the warranty period. Once you have determined that you are defective, you will receive an RMA authorization number for repair or replacement. The customer will return the defective product to us. Upon receipt of a defective product, warranty verification will include visual inspection and normal wear and tear, and functional compliance testing of the OCOM product. Defective products will be repaired or replaced by courier within 30 days or as best as possible. Customers do not need to pay a warranty fee. However, if the returned product does not meet the warranty verification, then test, repair and/or transport
Death on arrival (DOA): Any product found to be defective within 30 days of shipment will be considered dead at the time of arrival (DOA). DOA products will be replaced one in advance |
