5inch NFC mobile mini handheld android pos terminal with EMV certificates5inch NFC mobile mini handheld android pos terminal with EMV certificates5inch NFC mobile mini handheld android pos terminal with EMV certificates5inch NFC mobile mini handheld android pos terminal with EMV certificates5inch NFC mobile mini handheld android pos terminal with EMV certificates5inch NFC mobile mini handheld android pos terminal with EMV certificates

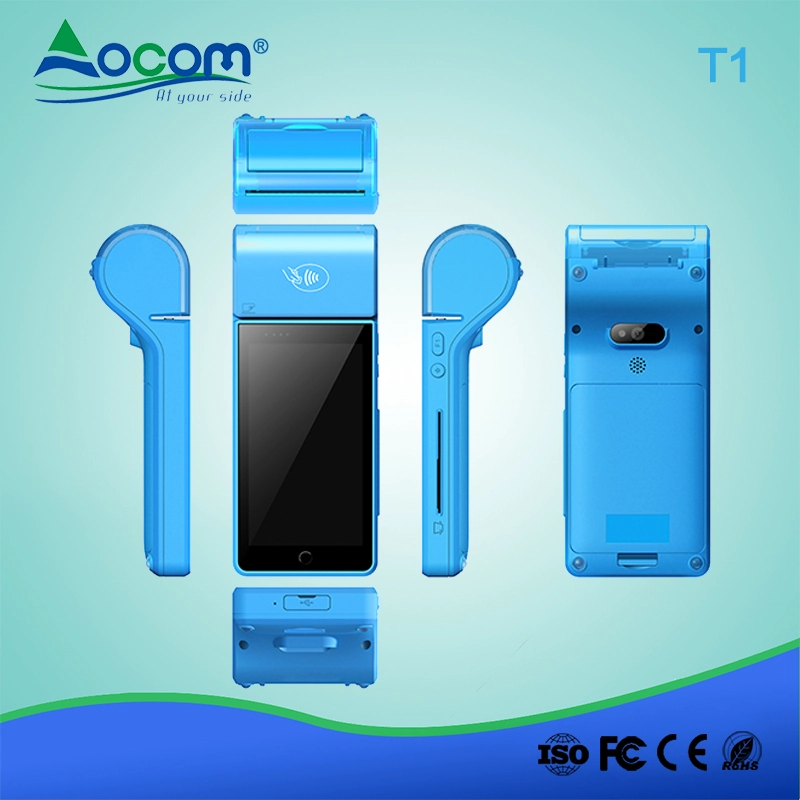

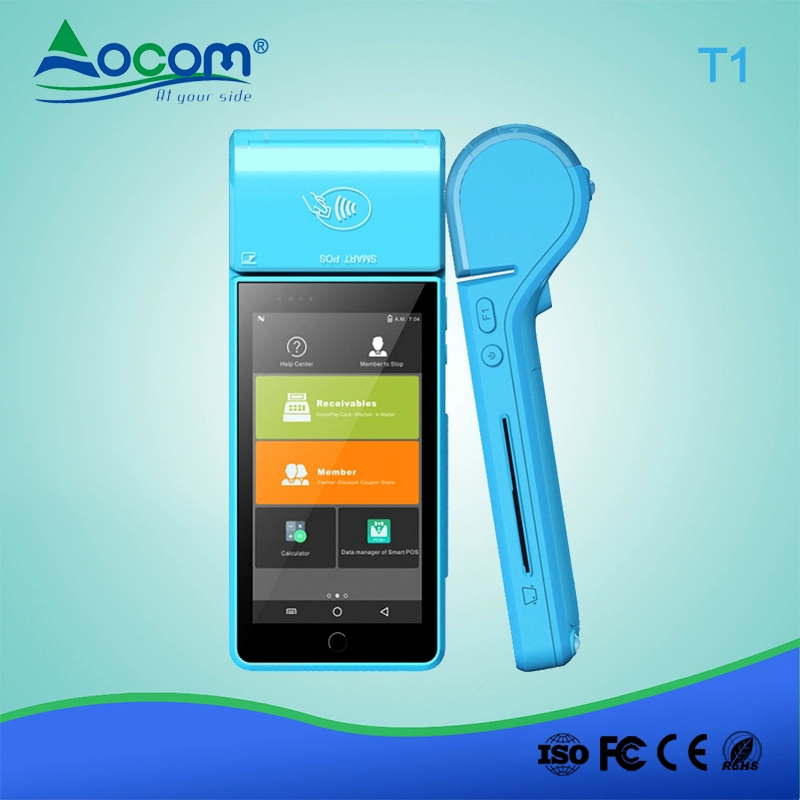

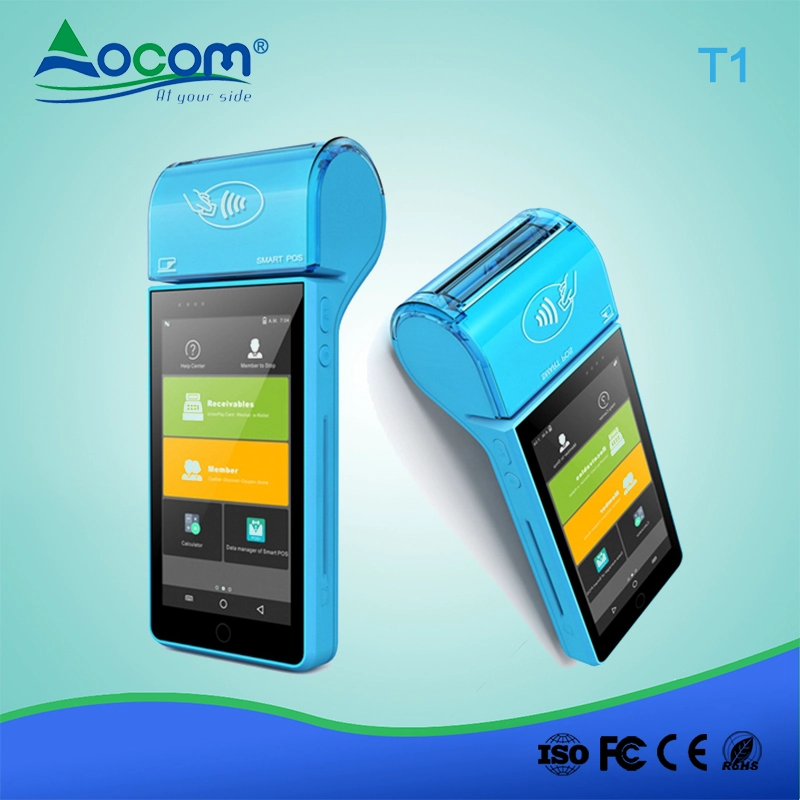

5inch NFC mobile mini handheld android pos terminal with EMV certificates

  • Feature:
  • Android 7.0 operation system.
  • Adopts MT8735V quad-core 64bit ARM Cortex A53  1.3 GHz,
  • 5.0 inch capacitive, multi touch; support e-signature,720*1280, TFT display
  • 1gb Ram & 8gb flash;
  • 4.35V 4000mAh Large Li-polymer battery,support 10 hours working hours normally
  • 2M Camera,support 1d & 2d barcode reading,58mm Printer
  • Wifi 2.4G, bluetooth V4.1+HS compliant,2G/3G/4G,GPS
  • Support magnetic stripe card, IC card, contactless card,
  • Rugged 1.2m Drop Tolerance
  • PCI,EMV L1,EMV L2,EMV CL L1,ROHS,PayPass,PayWave,telecom accessing/CCC,Security certificate,Network accessing ,PBOC L1,PBOC L2,QPBOC L1,QPBOC L2,QUICS,UPTS2.0 small payment

5inch NFC mobile mini handheld android pos terminal with EMV certificates

(M/N:POS-T1)

Feature:

  • Android 7.0 operation system.
  • Adopts MT8735V quad-core 64bit ARM Cortex A53  1.3 GHz,
  • 5.0 inch capacitive, multi touch; support e-signature,720*1280, TFT display
  • 1gb Ram & 8gb flash;
  • 4.35V 4000mAh Large Li-polymer battery,support 10 hours working hours normally
  • 2M Camera,support 1d & 2d barcode reading,58mm Printer
  • Wifi 2.4G, bluetooth V4.1+HS compliant,2G/3G/4G,GPS
  • Support magnetic stripe card, IC card, contactless card,
  • Rugged 1.2m Drop Tolerance
  • PCI,EMV L1,EMV L2,EMV CL L1,ROHS,PayPass,PayWave,telecom accessing/CCC,Security certificate,Network accessing ,PBOC L1,PBOC L2,QPBOC L1,QPBOC L2,QUICS,UPTS2.0 small payment

Application :

Chain supermarkets, restaurants, convenience stores,clothing store, premises, bakery, cashier, pay, enters sells saves the business management function.

Technical Specification:

Basic Information

Operating system

Android 7.0

RAM

RAM:1GB

Extended stored

FLASH:8GB

Display screen

5.0 inch

Touch screen

Capacitive touch screen, support the e-signature

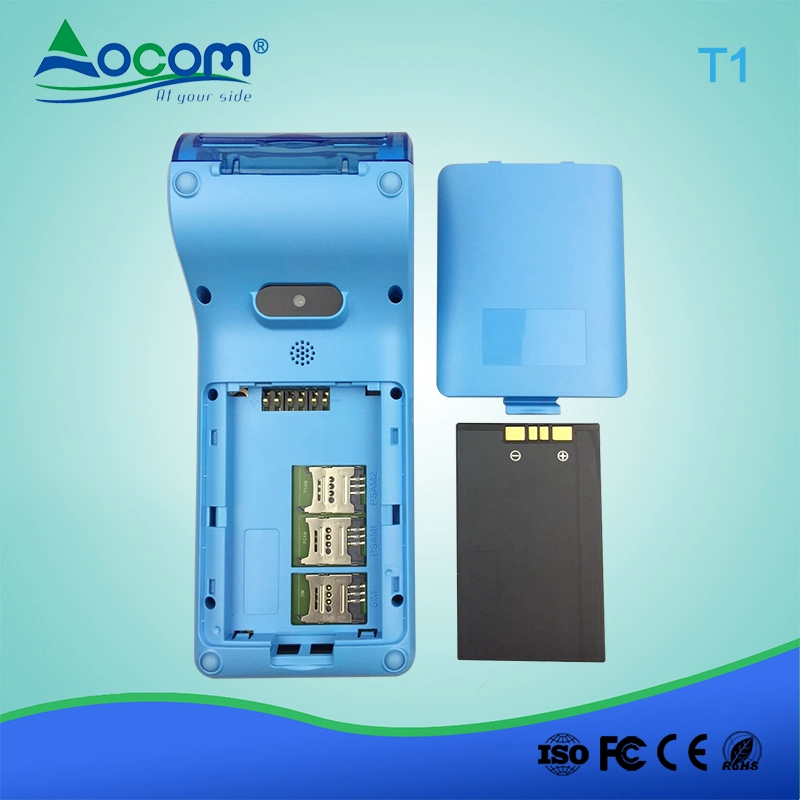

Battery

Lithium battery 4000 mah, 4.35 V

Bluetooth

Bluetooth V4.1+HS compliant

Camera

2.0 mega-pixel camera

Positioning function

GPS

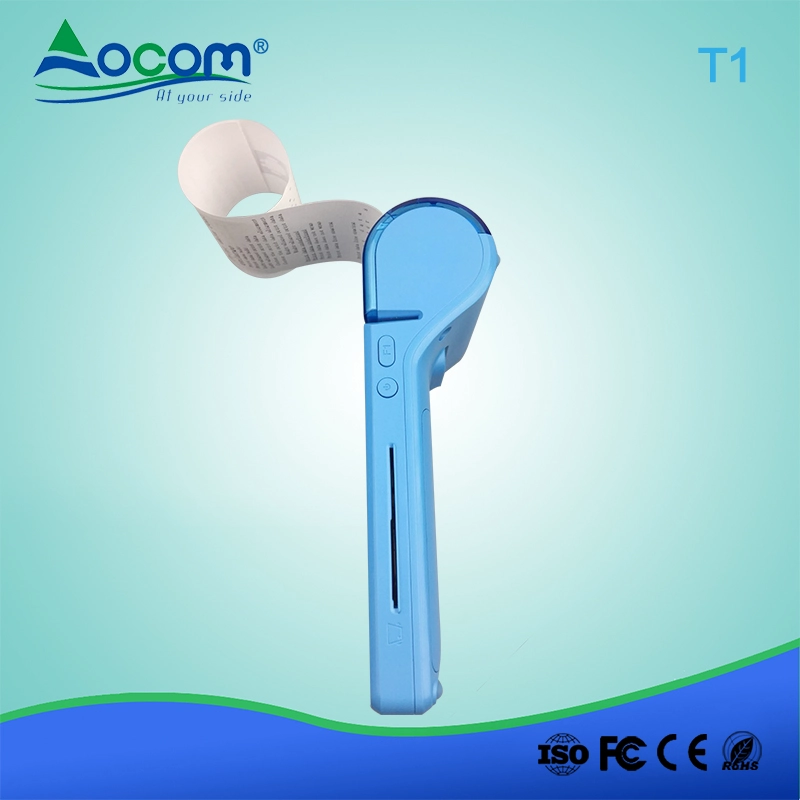

Printer

58mm thermal printer 30mm diameter Paper roll

Interface

Micro USB

Drop

Rugged 1.2m Drop Tolerance

POS Function

Magnetic card reader

Full track magnetic card reader

Support IS07810/7811/7812 protocol

IC card read-write

Support ISO7816 protocol

Non-contact card reader

Support ISO/IEC 14443 Type A&B, Mifare, NFC

in line with the EMV/PBOC PAYPASS

specification

PSAM Card

Bank security payment chip card

Certification

PCI,EMV L1,EMV L2,EMV CL L1,ROHS,PayPass,PayWave,telecom accessing/CCC,Security certificate,Network accessing ,PBOC L1,PBOC L2,QPBOC L1,QPBOC L2,QUICS,UPTS2.0 small payment

Network Parameters

Network Type

FDD-LTE,TDD-LTE,UMTS/HSDPA/HSPA/HSPA+,CDMA EV-DO Rev.A,GSM/EDGE/GPRS

Network Spectrum

FDD-LTE (B3、B8)

TDD-LTE (B38、B39、B40、B41)

UMTS/HSDPA/HSPA/HSPA+ (850,900,1900,2100 MHz)

CDMA EV-DO Rev.A (800MHz)

GSM/EDGE/GPRS (900,1800,1900MHz)

WLAN

IEEEE802.11.b/n/g

Physical Parameters



Size

193mm×80mm×54.5mm

Weight

425g (include battery)

Operating Temp

-10°C ~ 55°C

Storage Temp

-20°C ~ 70°C

Humidity

20%~93%(40° RH non-condensing

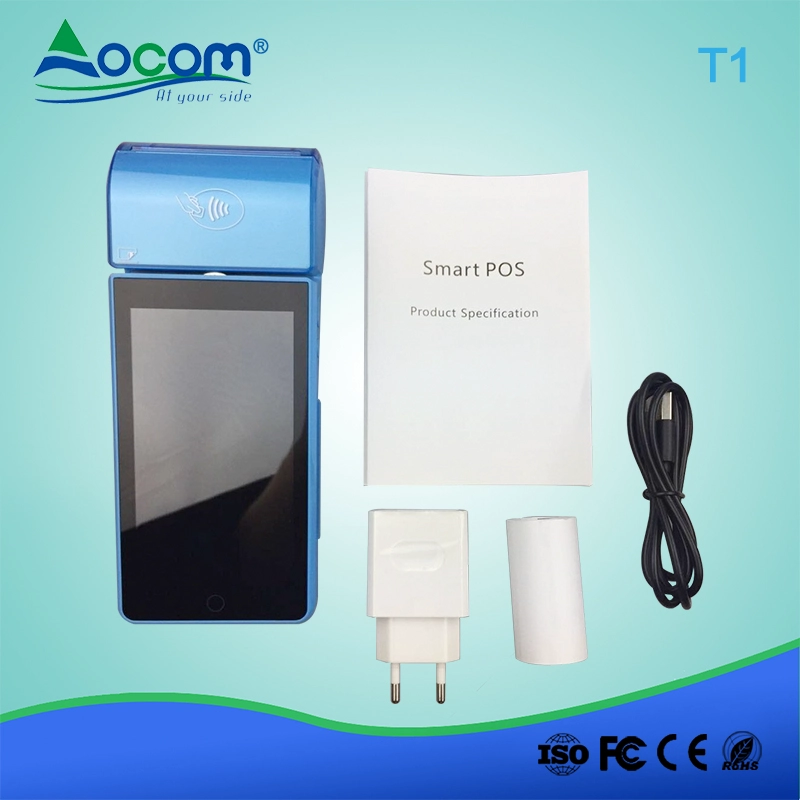

Package

1pc:   20*16.5*6.5cm/0.75kgs

20pcs: 42.5*35*27cm/12.9kgs



Pics
