80mm WIFI Receipt Pos Printer For Pos System Cash Register
- Support 8 kinds abundant interface combination
- Supports multi 1D barcode and QR code printing.
- Support printer status monitoring function
- Support printing queuing ticket function
- 100M Ethernet port, ultra high speed data transmission.
- 256KB NV Logo storage and 256kb big buffer memory.
- 48to80mm adjustable Paper separator for optional
- Compatible with OPOS/JPOS driver.
- 100KM long life printer head

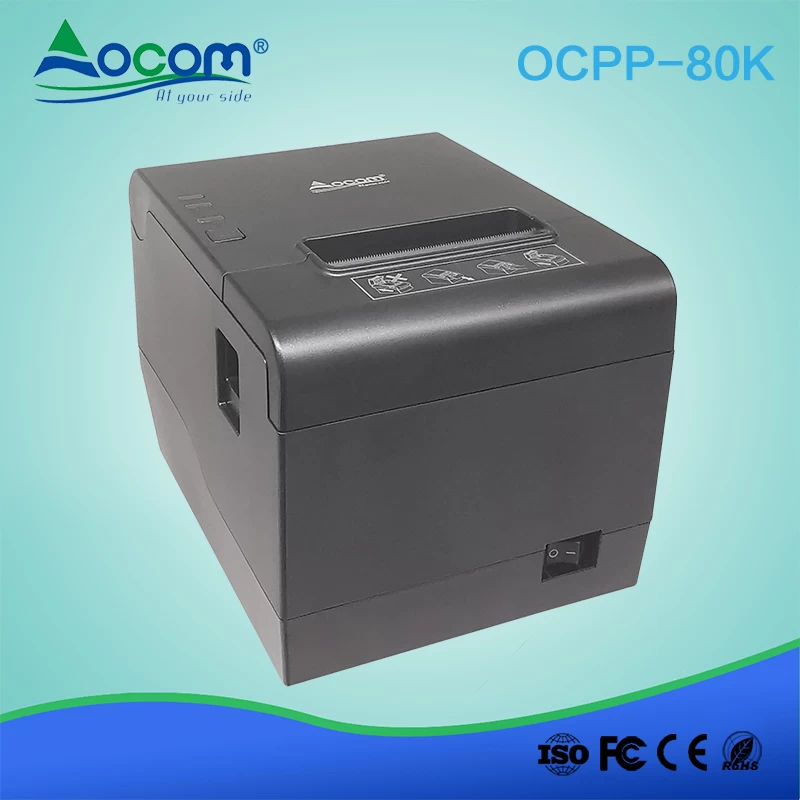

80mm WIFI Receipt Pos Printer For Pos System Cash Register
（Model NO.: OCPP-80K）
Features:
u Support 8 kinds abundant interface combination
u Supports multi 1D barcode and QR code printing.
u Support printer status monitoring function
u Support printing queuing ticket function
u 100M Ethernet port, ultra high speed data transmission.
u 256KB NV Logo storage and 256kb big buffer memory.
u 48to80mm adjustable Paper separator for optional
u Compatible with OPOS/JPOS driver.
u 100KM long life printer head
Technical parameters：
|
Print Method |
Direct Thermal |
|
|
Command |
ESC/POS |
|
|
Resolution |
576dots/line or 512dots/line |
|
|
Printing Width |
Max=72mm |
|
|
Paper Type |
Thermal Receipt Paper |
|
|
Interface |
USB/UR/UL/URL/U+BT/ U+WIFI/URL+BT/URL+WIFI |
|
|
Print Speed |
200mm/s (U/UR ) |
|
|
Paper Width |
48mm/52mm/56mm/64mm/68mm/76mm/80mm |
|
|
Paper Thickness |
0.06~0.08mm |
|
|
Roll Dia |
Max. Ø 83 mm |
|
|
Paper Cut |
Manual tear and Auto-cutter |
|
|
Input buffer |
256kbytes |
|
|
NV Flash |
256kbytes |
|
|
Font Size |
font A:12*24(standard), font B:9*17 |
|
|
Chinese |
GB18030,BIG5 24x24dots |
|
|
Japanese/Korea |
Support |
|
|
User-defined language |
PC347(Standard Europe),Katakana,PC850(Multilingual),PC860(Portuguese),PC863(Canadian-French),PC865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2), |
|
|
1D |
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 |
|
|
2D |
QR code ( Single USB or UR solution no QR code function) |
|
|
Printing head life |
100 KM |
|
|
Cutter life |
1million |
|
|
Paper separator |
Optional |
|
|
Sensors |
Paper out, cover open, cutter jam,paper jam and black mark detection(Optional) |
|
|
Input |
AC 100V-240V 50/60HZ |
|
|
Output |
DC 24V/2.5A |
|
|
Working Condition |
0°C~45°C, 10%~80%RH |
|
|
Storage Condition |
-10°C-60°C,10%~90%RH |
|
|
Accessories |
Data cable,power adaptor,power code,paper roller,CD,manual, (standard) |
|
|
Dimensions |
196(D)x145(W)x135(H)mm |
|
|
Net weight |
1.14kg |
|
|
Gross weight |
1.5kg |
|
|
Individual box |
Dimension 30X19X18cm(LXWXH） |
1unit/carton |
|
Master carton |
Dimension 62X36X52cm(LXWXH） |
12units/carton |
|
Driver |
Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS |
|
|
SDK |
Android, IOS |
|
