    (OCPP-M085) 80mm mini portable thermal receipt printer(OCPP-M085) 80mm mini portable thermal receipt printer(OCPP-M085) 80mm mini portable thermal receipt printer(OCPP-M085) 80mm mini portable thermal receipt printer

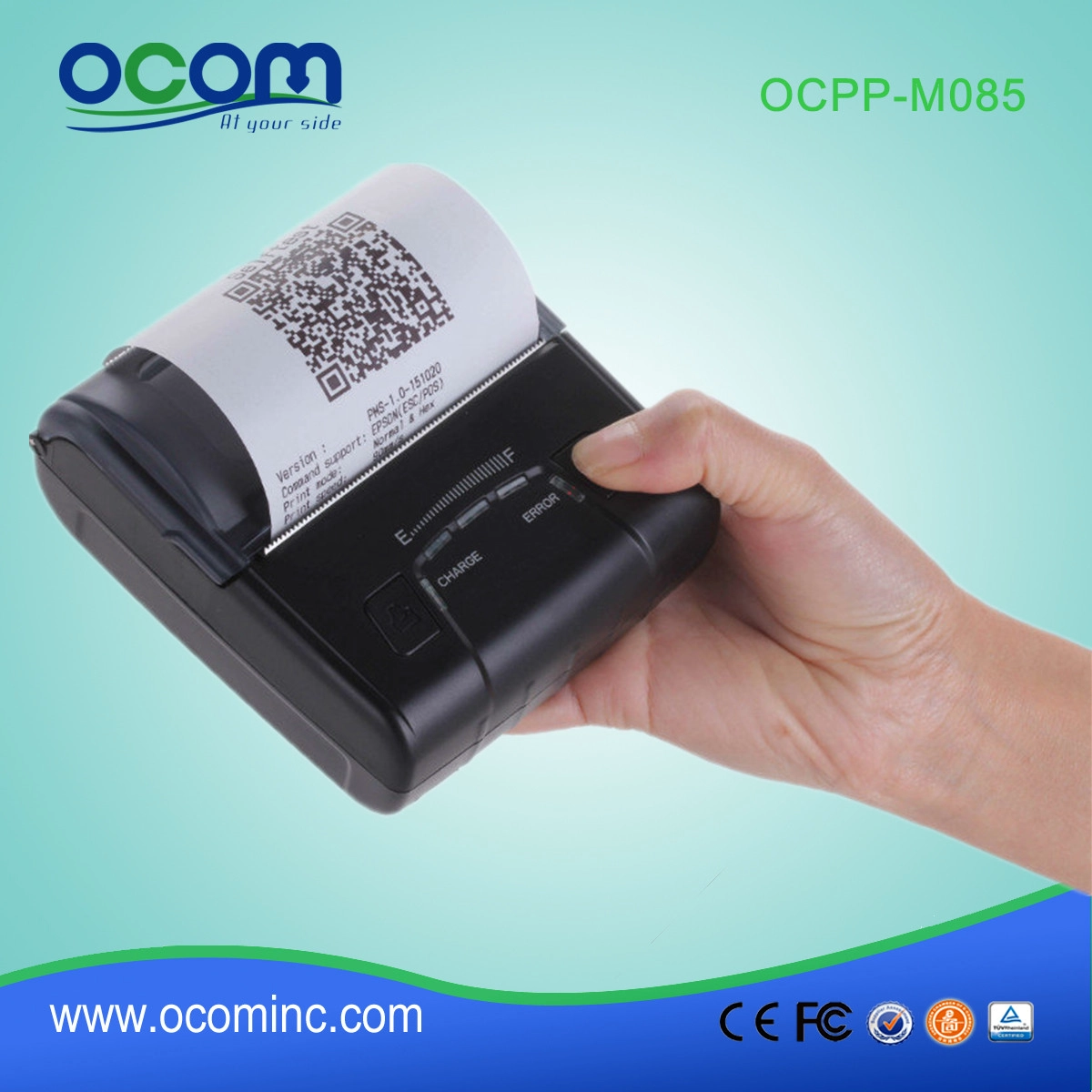

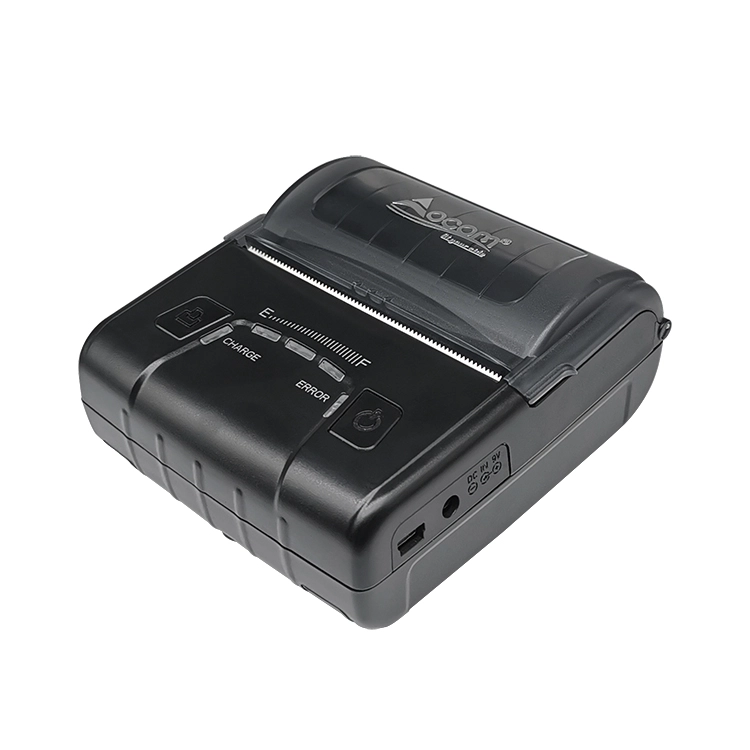

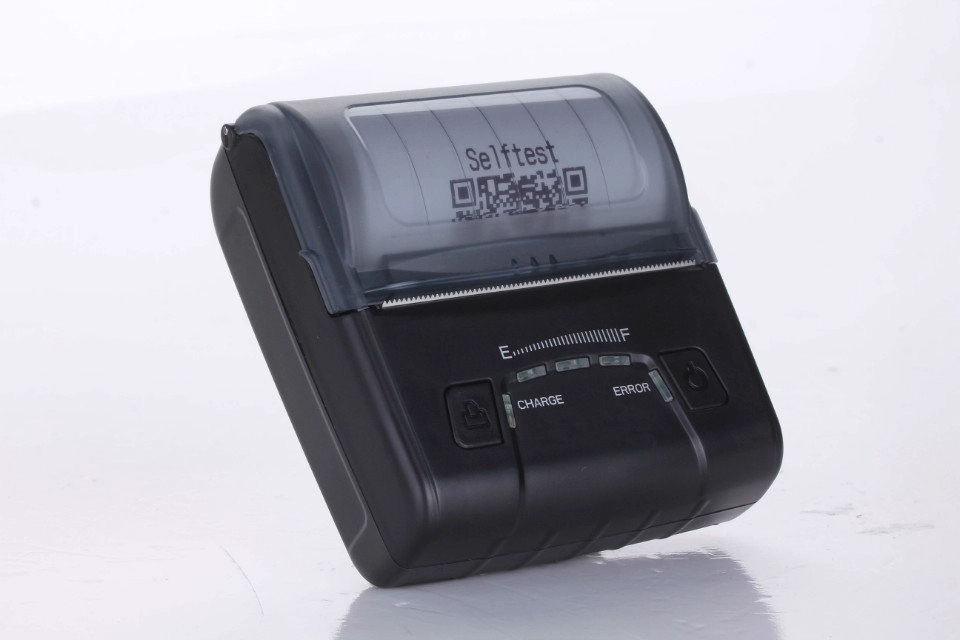

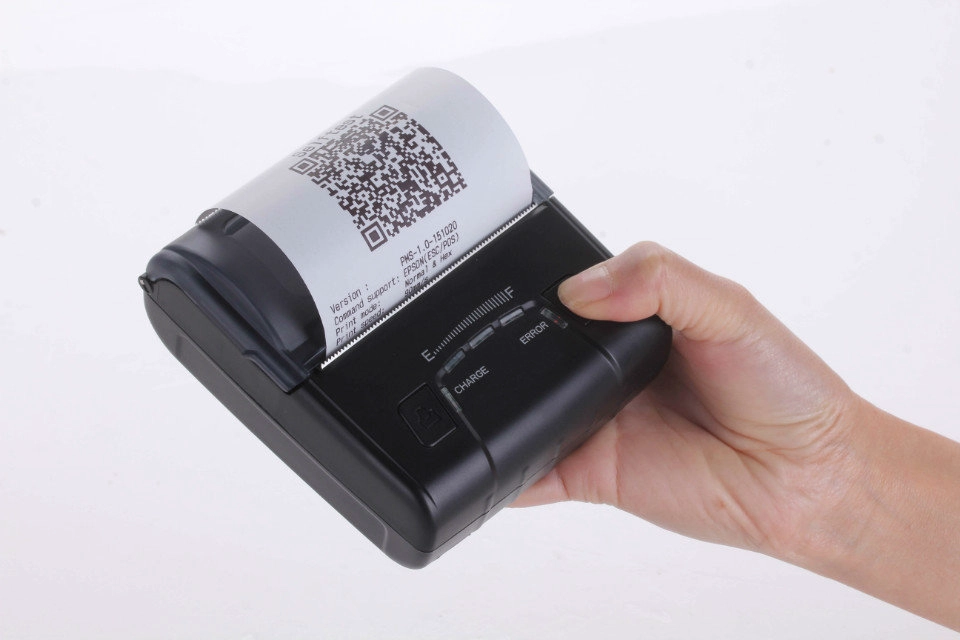

    (OCPP-M085) 80mm mini portable thermal receipt printer

    • Business style design, more fashion
    • Support 1.D,2.D bar code printing
    • While compatible with Windows, Linux, Android and IOS systems
    • With 2500mAh rechargeable lithium polymer battery,super battery lasting time, with smart power
    • saving and power consumption control functions , to ensure longer print time
    • Support USB, COM ,Bluetooth ,Wifi ,USB+Bluetooth(V2.0),USB+Bluetooth(V3.0+V4.0)
    • Special power remaining indicator light, to control the printer power at any time
    • Support sound and light reminder when lack of paper or printing abnormal
    • Anti fall of 1.5M cement floor

     80mm MiniPortable Thermal Receipt Printer

    (M/N:OCPP-M085)





    Features

    • Business style design,more fashion
    • Support 1.D,2.D bar codeprinting
    • While compatible withWindows, Linux, Android and IOS systems
    • With 2500mAh rechargeablelithium polymer battery,super battery lasting time, with smartpower saving and powerconsumption control functions , to ensure longer print time
    • Support USB, COM,Bluetooth ,Wifi ,USB+Bluetooth(V2.0),USB+Bluetooth(V3.0+V4.0)
    • Special power remainingindicator light, to control the printer power at any time
    • Support sound and lightreminder when lack of paper or printing abnormal
    • Anti fall of 1.5M cementfloor


    Application:

    Warehousing, transportation,logistics, supermarket, tobacco, hydropower reading, mobile government affairs,mobilepolice, postal and other industries


    Parameters

    Item

    Parameter

















    Print parameter

    Printing Method

    Thermal Line

    Effective Printing Width

     72mm

    Resolution

    576 dots/line8dots/mm203dpi

    Priting Speed

    90mm/S

    Interface

    USB (standard USB2.0 communication protocol, support Windows, Linux, Android, IOS)

    Bluetooth (Bluetooth2.0, Bluetooth3.0+4.0,support Android, IOS)

    WIFI (2.4GHZ, ATA, AP, ATA+AP mode)

    Line spacing

    3.75mmCan adjust line spacing by command

    Line No.

    Font A:48 character /Line

    Font B:64 character/Line

    Simple,traditional Chinese-24 lines

    Character

    The standard GB18030 simplified / traditional Chinese characters library

    Character Size

    ANK characterFont A1.5×3.0mm12×24 dots
    Font B
    1.1×2.1mm9×17 dots Simplified/Traditional3.0×3.0mm(24×24dots









    Bar code character

    Extended character set

    PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

    Bar code

    1D.Bar codeUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
    CODABAR/CODE93/CODE128

    2D.Bar codeQRCODE

    Graphics printing

    Graphics printing

    Supports bitmap download and print







    Power saving Mode

    Smart power saving

    Support

    Variable speed printing

    Support

    Consumption

    Support

    Dormancy

    Support

    Dection

    Sensor

    Lack of paper detection

    Indicator

    Power Display

    Support

    Charge Indicator

    Support

    Lack of paper

    Support

    Beep

    Lack of paper,printing abnormal alarm

    Paper

    Type

    Thermal

    Width

    79.5±0.5mm

    thickness

    ≤0.12mm

    Diameter

    ≤40mm

    Feed

    EasyClameshell feed

    Print commands

    Commands

    ESC/POS

    Power

    Type

    Rechargeable Lithium polymer battery

    Capacity

    2500mAh/7.4V, can be charged more than 800 times

    sustainable printing 150 meters or 4 hours under normal use

    Charger

    9.0V/2A

    Buffer

    Input

    4KB

    NV Flash

    40KB

    Physical features

    Weight

    285G

    Dimension

    114*103*50(MM)

    Environment

    Operating

    Temp5 ~ 45℃ Humidity10 ~ 80%

    Storage

    Temp-10 ~ 50℃ Humidity10 ~ 90%No Dew

    Reliability

    Print head life

    50KMPrinting Density≤12.5

    Software

    Driver

    Android,IOS,Linux,,WinXP,Win7,Win8,Win8.1,Win10
