(OCPP-80K)Barcode Thermal Printer 58 Mm No Ink Portable Printer Wifi Square Thermal Printer

  • Features:
  • It can be used as top paper coming printer and front paper coming printer
  • It’s built-in power adaptor,which avoid messy cord everywhere,saving much space
  • Support 8 kinds abundant interface combination
  • Supports multi 1D barcode and QR code printing
  • Support printer status monitoring function
  • Support printing queuing ticket function
  • 100M Ethernet port, ultra high speed data transmission
  • 256KB NV Logo storage and 256kb big buffer memory
  • 48 or 80mm adjustable paper separetor for option
  • 100KM long life printer head

(OCPP-80K)Barcode Thermal Printer 58 Mm No Ink Portable Printer Wifi Square Thermal Printer

 (M/N:OCPP-80K)













Features:

It can be used as top paper coming printer and front paper coming printer
It’s built-in power adaptor,which avoid messy cord everywhere,saving much space
Support 8 kinds abundant interface combination
Supports multi 1D barcode and QR code printing
Support printer status monitoring function
Support printing queuing ticket function
100M Ethernet port, ultra high speed data transmission
256KB NV Logo storage and 256kb big buffer memory
48 or 80mm adjustable paper separetor for option
100KM long life printer head


Specifications:

General



Model

OCPP-80K

Name

80mm desktop thermal printer with auto cutter

Color

Black

Interface

USB/USB+Lan/USB+BT/ USB+WiFi/URL+WIFI/URL+BT/USB+RS232

Power supply

Input:AC 100V-240V,50-60Hz,Output:DC 24V/2.5A

Cash drawer

DC 24V/1A

Graphics printing

Supports bitmap download and print ( each bitmap size Max.20K)

Printer head lifespan

100KM

Cutter

Auto cutter

Sensors

Paper out, cover open, cutter jam,paper jam and black mark

detection(Optional)

Buffer

Input buffer256K,NV Flash 256K

Accessories

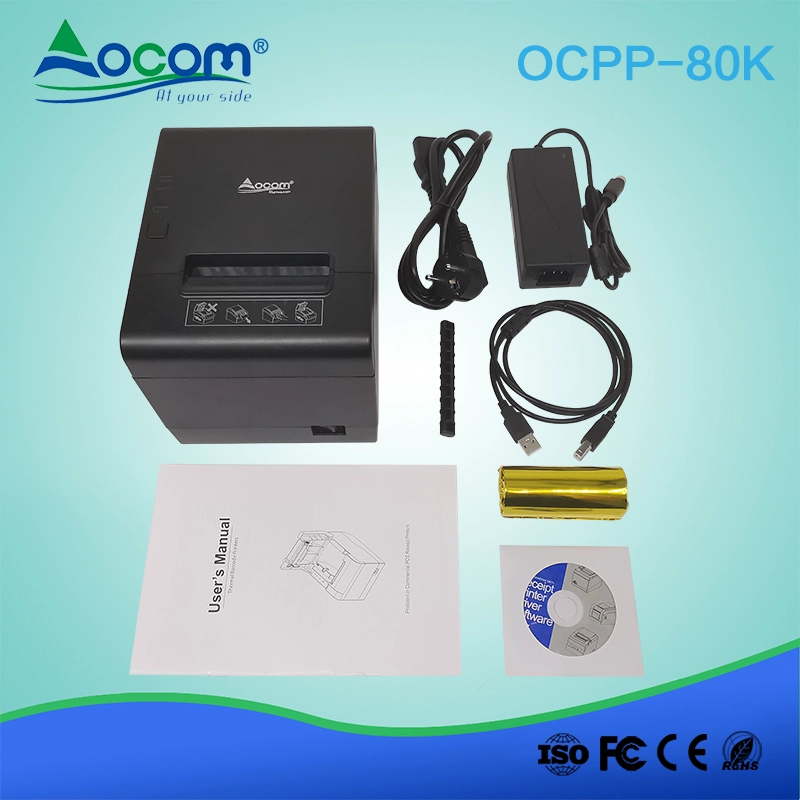

Data cable,power adaptor,power cord,paper roller,CD,manual, Paper separator(optional)

OS supporting

Compatible with iOS/ Android/ Windows

Safety standards

CE ,FCC,Rohs etc

Printing capability



Printing method

Direct thermal line

Resoluiton

576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi)

Printing speed

200mm/s (U/UR )
260mm/s (UL/U+BT/ U+WIFI)
300mm/s (URL/ URL+BT/ URL+WIFI)

Print width

72mm

Graphics printing

Supports bitmap download and print

Printing Command

Compatible with ESC/POS

Barcode and character



Barcode

1D barcode:

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/

CODABAR/CODE93/CODE128

2D barcode:QR CODE(Single USB or UR solution no QR code function)

Character

Standard GB18030 simplified / traditional Chinese Fonts

Character size

384dots/line, ANK character, Font: A: 12*24dots, 1.5(W)*3.0(H) mm

FontB:9*17dots ,1.1(W)*2.1(H)mm

Simplified/Traditional: 24*24dots, 3.0(W)*3.0(H)mm

Japanese/Korea

Optional



optional

User-defined language

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

Media



Paper type

Thermal roll paper

Paper width

48mm/52mm/56mm/64mm/68mm/76mm/80mm

Paper Thickness

0.06~0.08mm

Paper roll diameter

83mm Max

Paper separator

Optional

Physical



Dimension

196*145*135mm

Weight

1.65kg

Package box

300*190*180 mm

12 in 1 carton

615*370*535mm/21.5kg

Environment



Working temperature& humidity

0 to 45 degrees centigrade,   10%~80%   No condensation

Storage temperature& humidity

-20 to 60 degrees centigrade ,  10%~90%  No condensation
