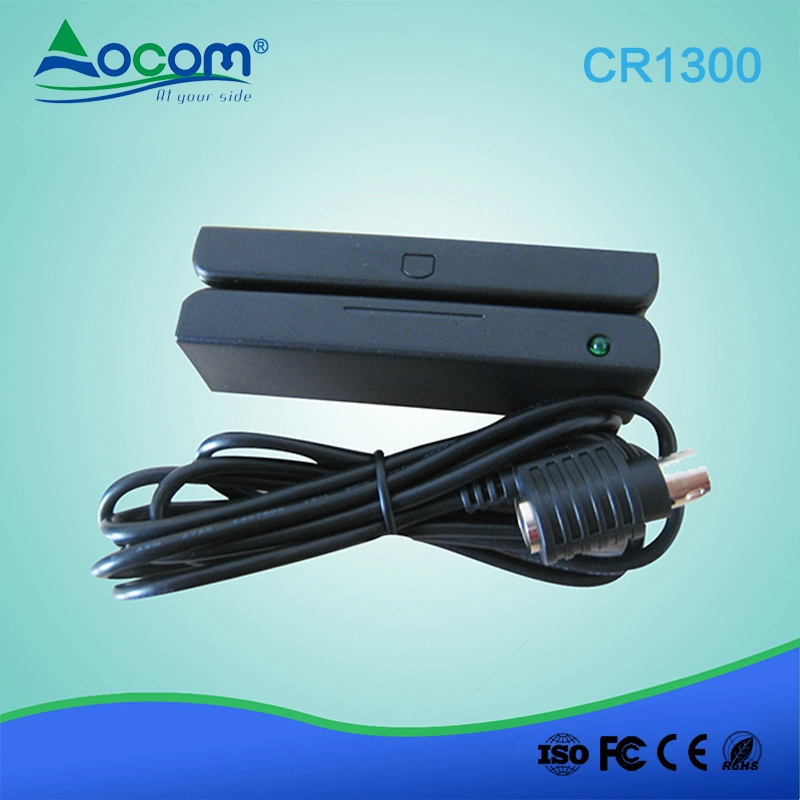

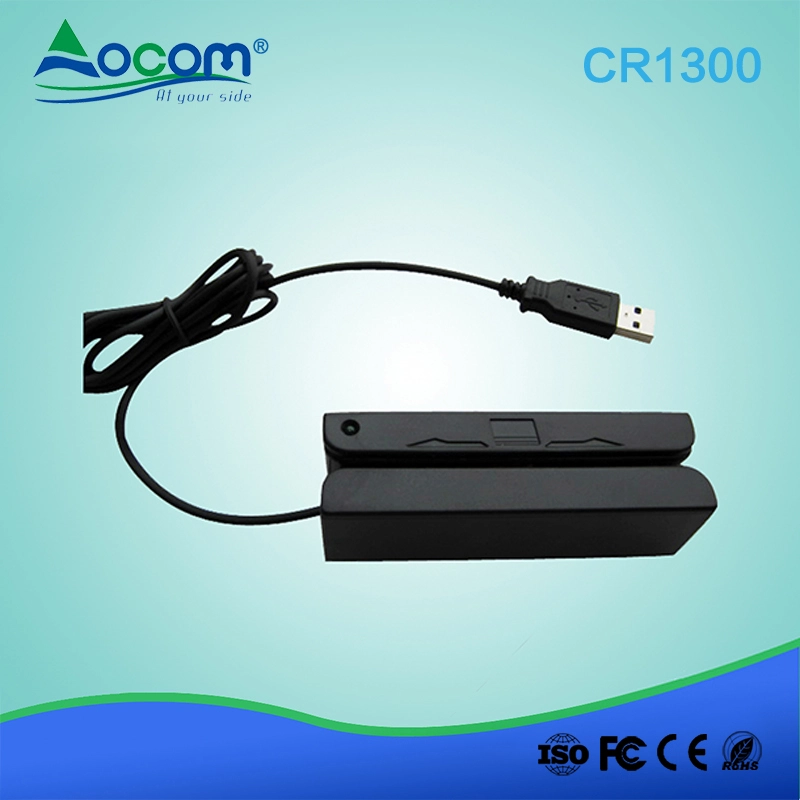

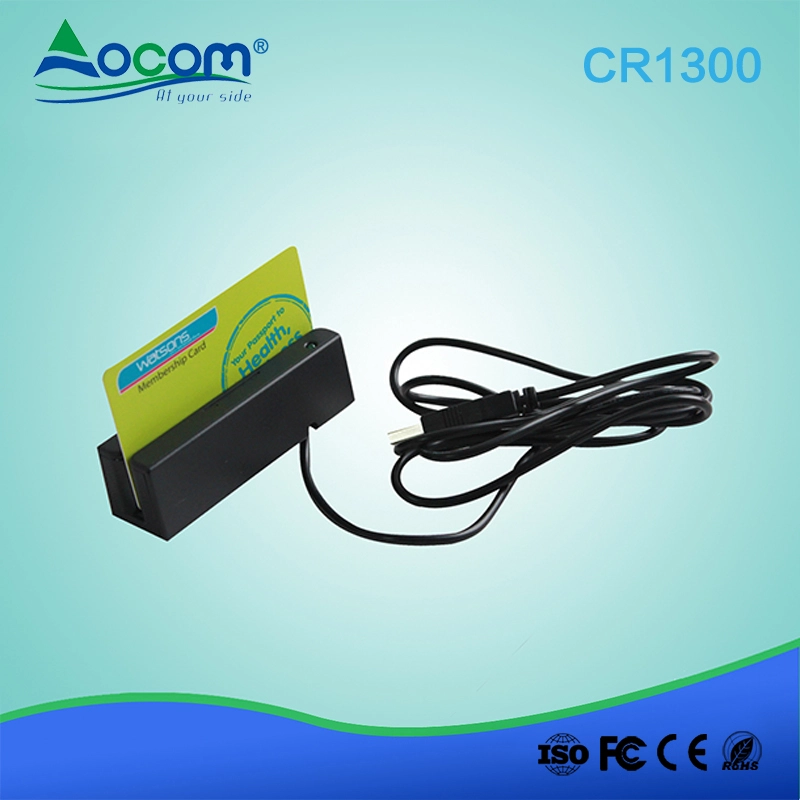

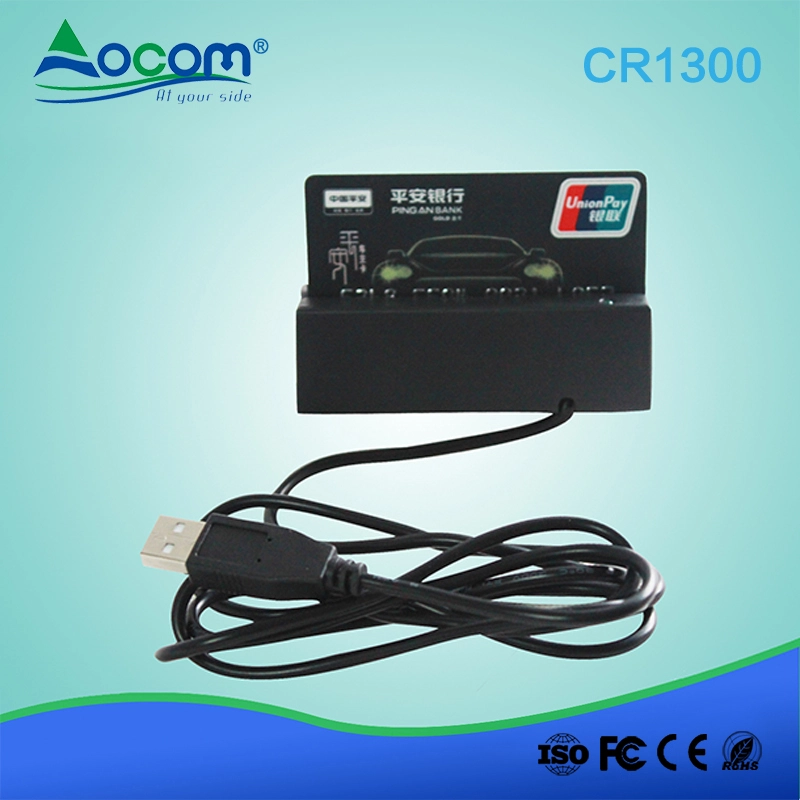

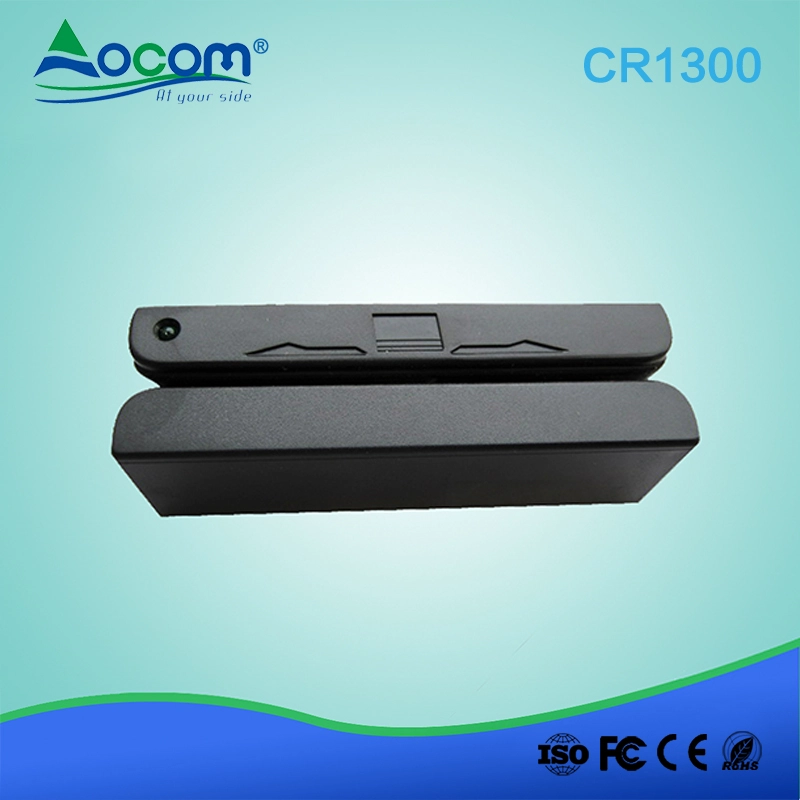

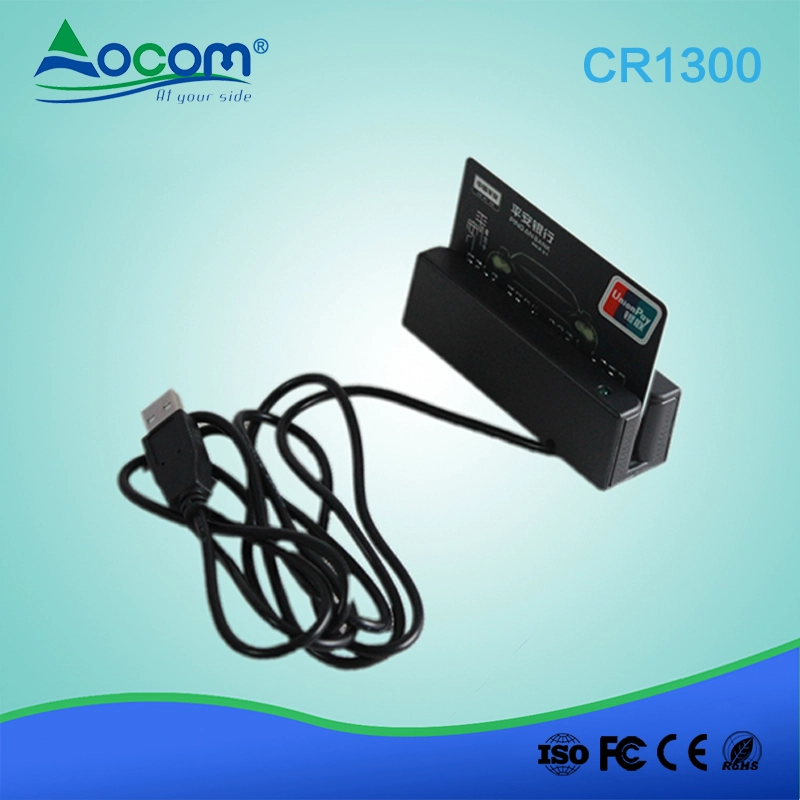

CR1300 POS swift machine credit cards MSR magnetic stripe card reader

  • Compatible with Android System.
  • All 3 tracks can set to 75/210 BPI;

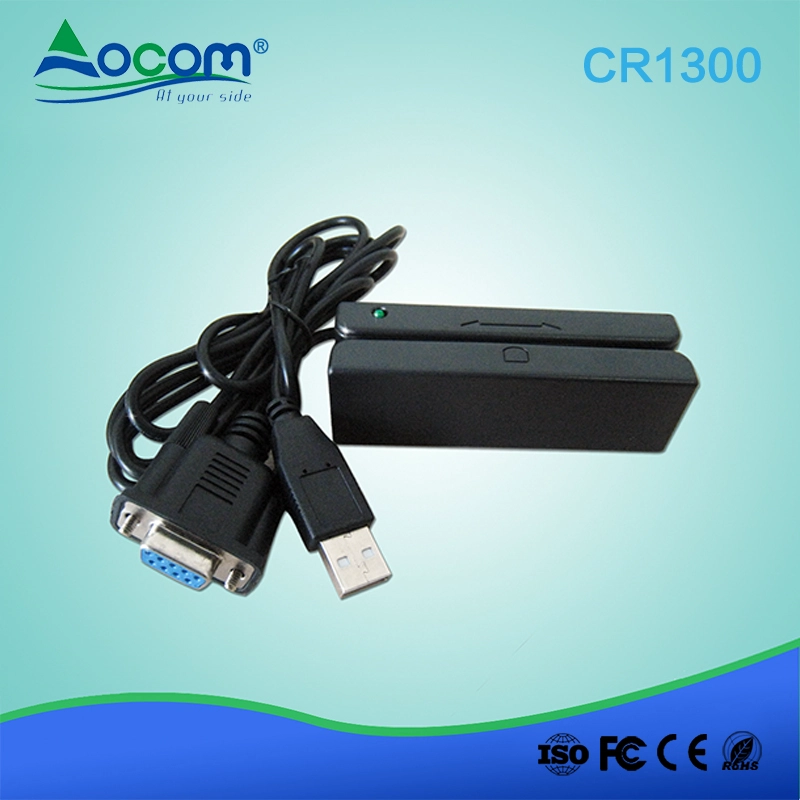

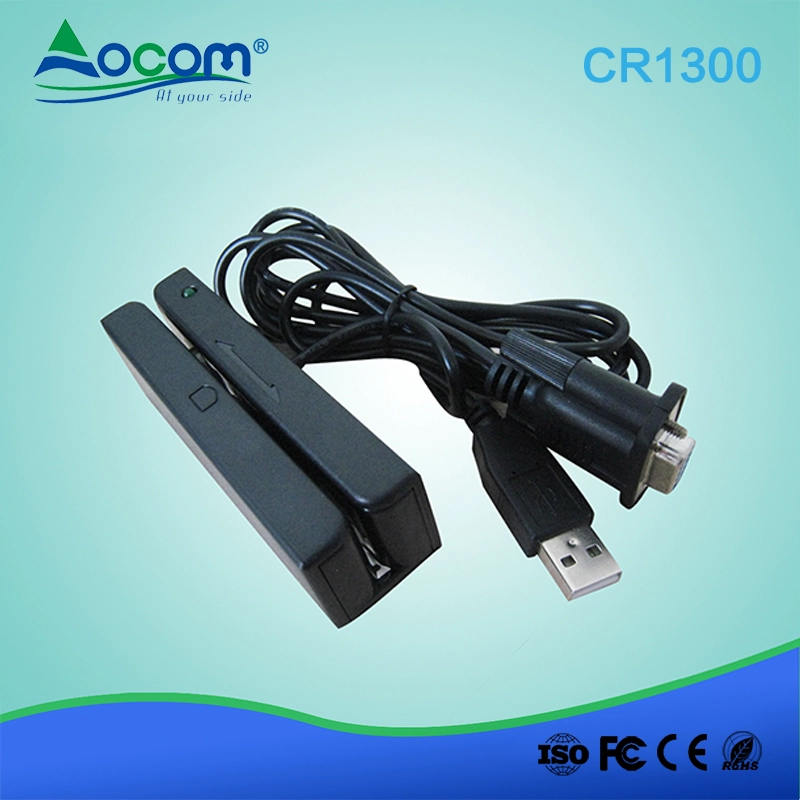

  • USB or Serial interface.
  • Long service life (500,000 card passes).
  • Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards.

Mini Magnetic Stripe Card Reader
(Model No.: CR1300)


Features:
  1. Compatible with Android System.
  2. All 3 tracks can set to 75/210 BPI;
  3. USB or Serial interface.
  4. Long service life (500,000 card passes).
  5. Suitable for all ISO7811/7812, ANSI, AAMVA and CA DMV magnetic cards.



Specifications:
Dimension 90mm(L) x 26mm(W) x 28mm(H)
Weight 85g(approx.)
Power Supply +5V DV ±5%
Power consumption 40mA (max.)
Operation Locus Indoor use
Card Standard ISO7811/7812
Track Position ISO 1 (IATA) ISO 2 (ABA) ISO 3 (MINTS)
Recording Density 210 BPI 75 BPI 210 BPI
Recording Capacity 79 Characters (7bits) 40 Characters (5bits) 107 Characters (5bits)
Interface USB / Serial
Card Thickness Plastic 0.76 ± 0.08mm
Head Function Read only 1.5mm
Operation Speed 10 ~ 150cm/sec
Life of Head 500,000 card passes (1 pass : one swipe)
Error Rate Less than 0.5%  (JSE Test card)
Temperature Storage : -30°C to +70°C Operating : -20°C to +70°C
Humidity


Storage : 0% to 95% RH Operating : 20% to 90% RH
