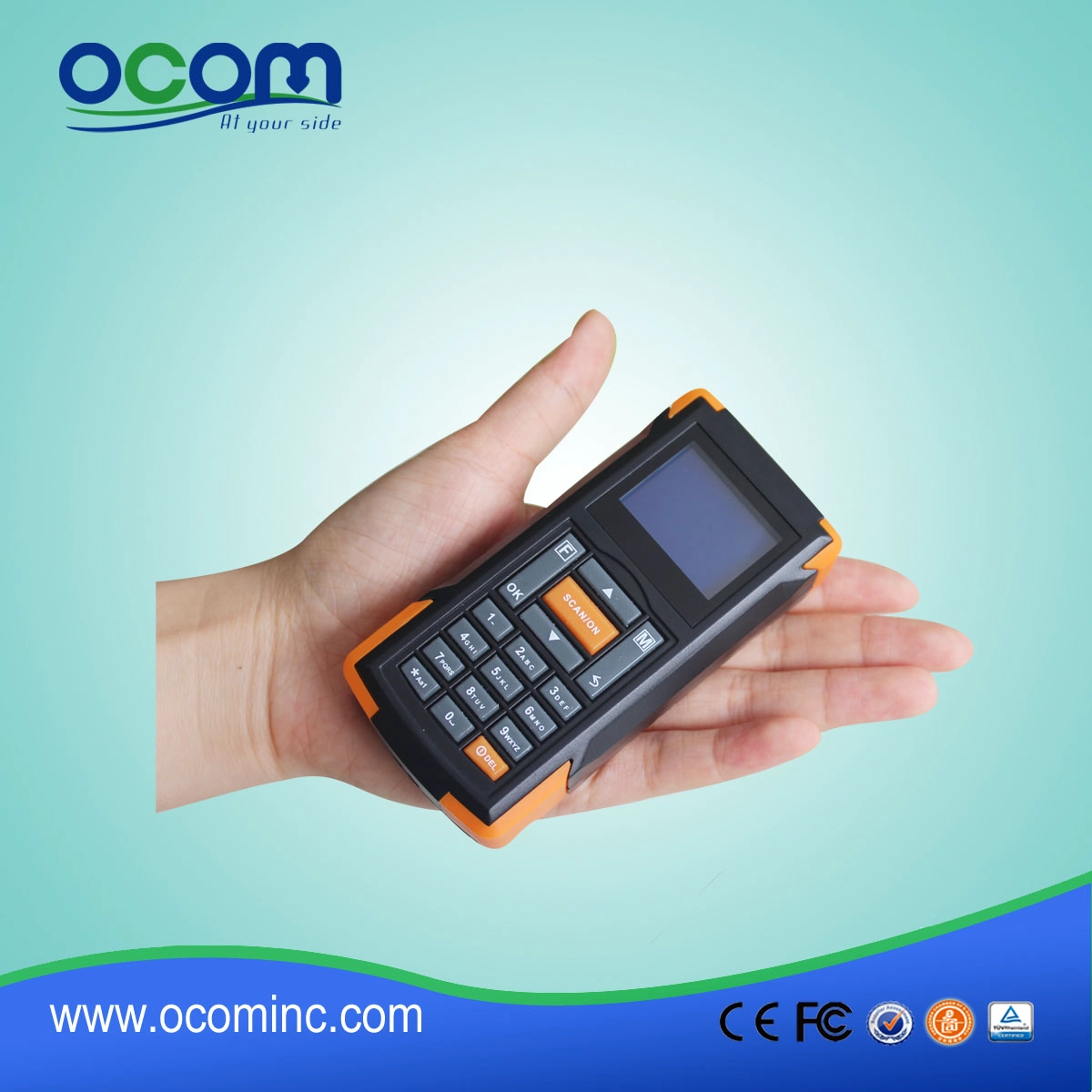

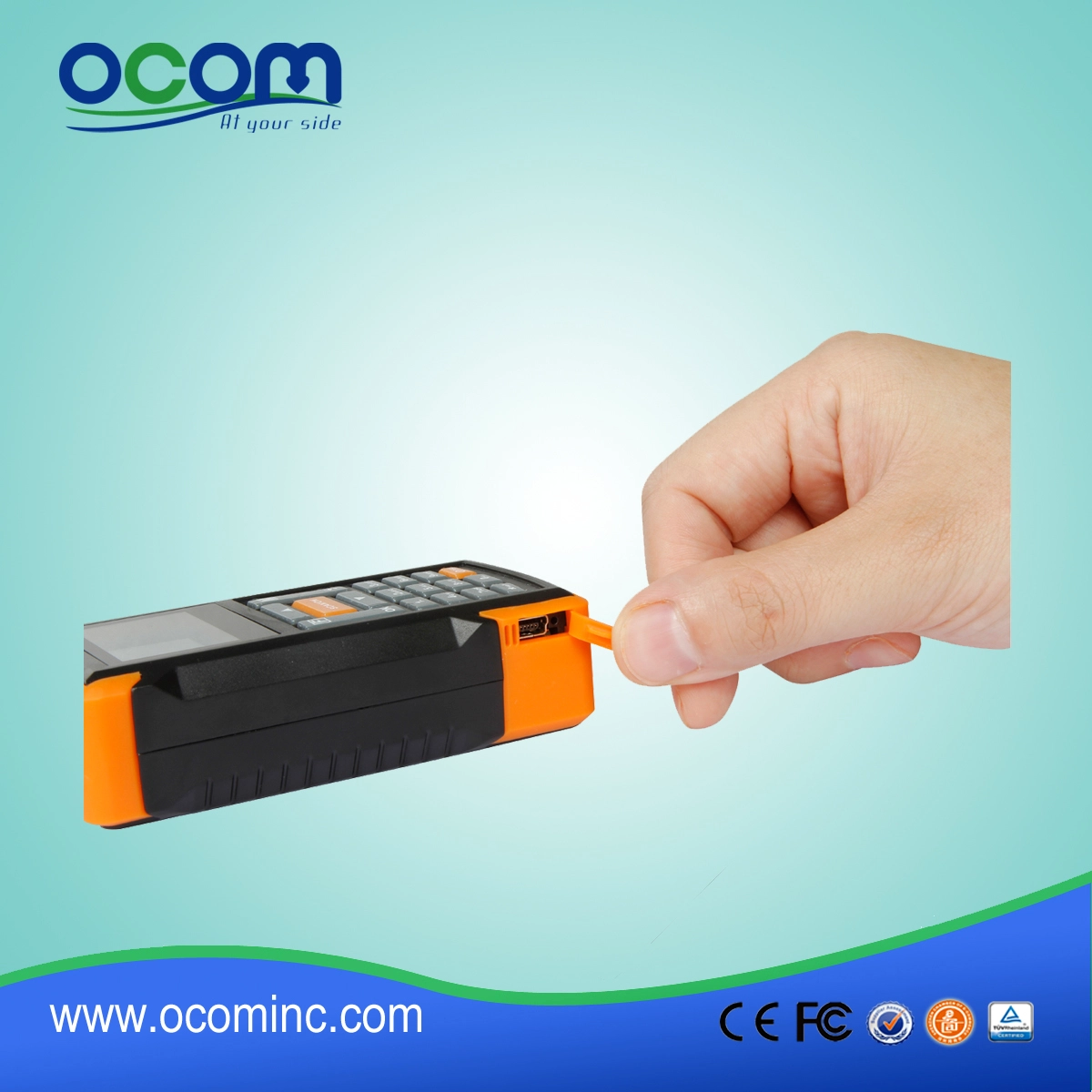

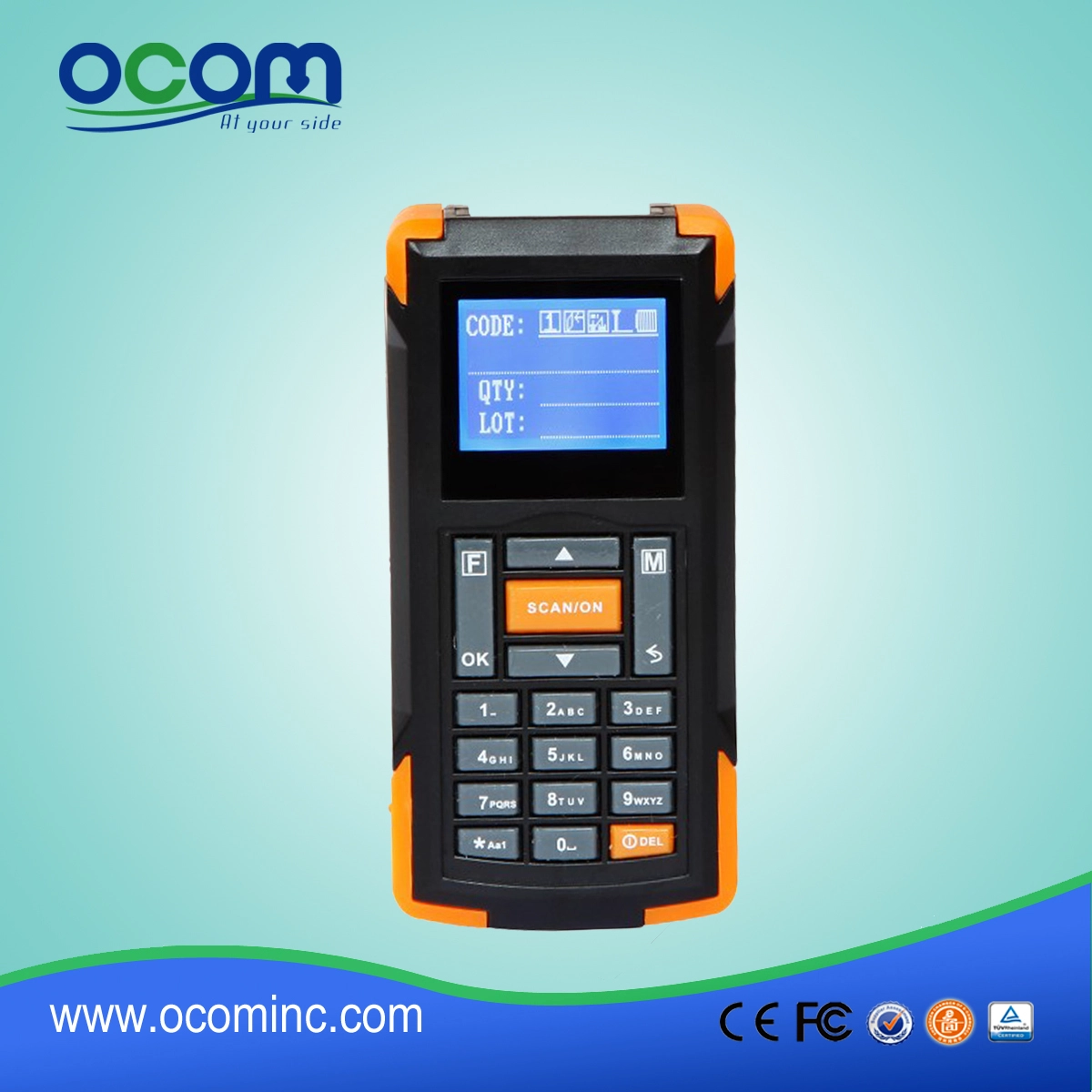

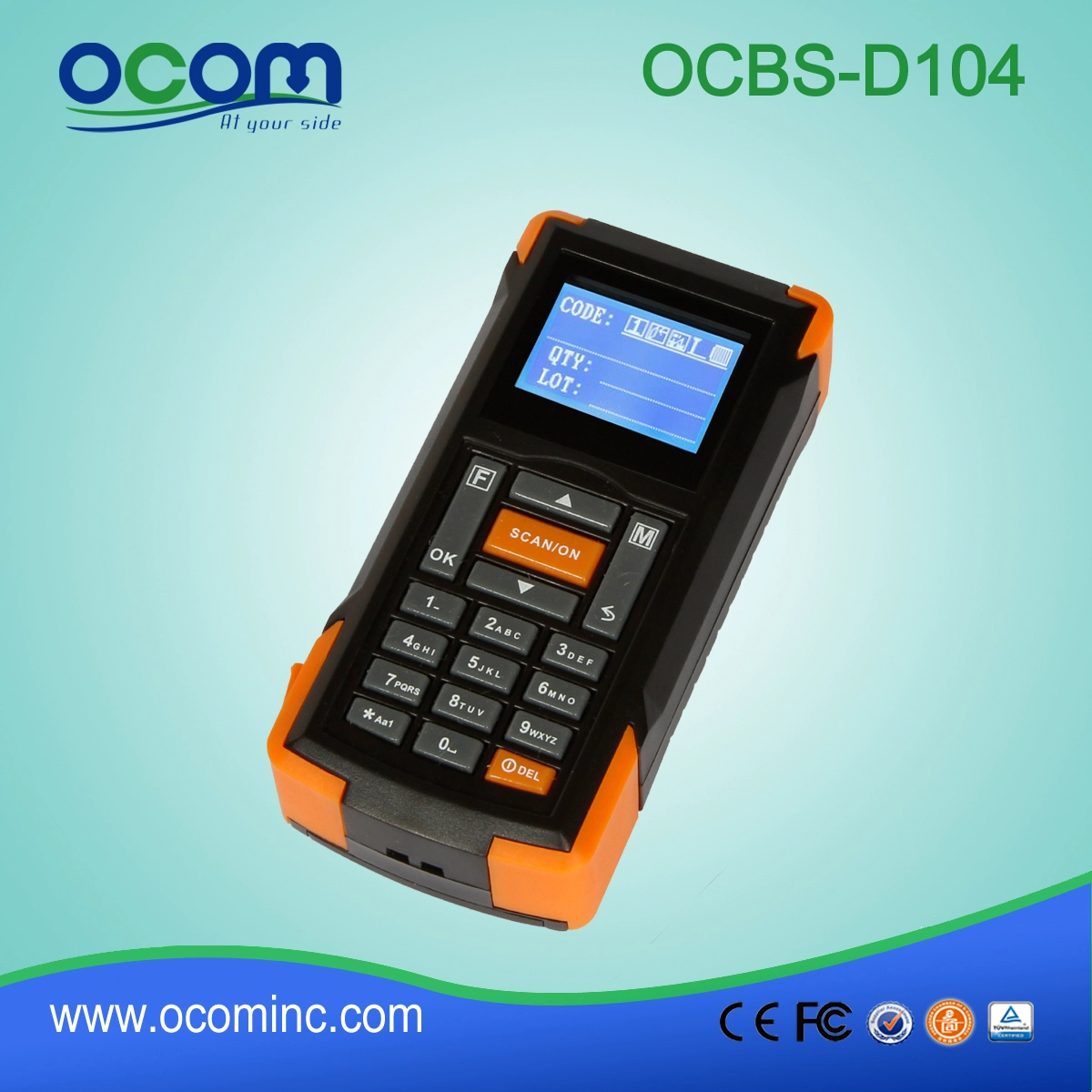

China factory USB Mini Portable Stocktaking Terminal-OCBS-D104
- Mini Portable Stocktaking Terminal
- Laser barcode scanner built in
- 1M memory can store 30000 bar codes
- Built-in rechargeable lithium ion battery (3.7V, 1900mAh)
- Auto-turn-off at low voltage
- Instantly store and bulk transfer mode,secure to keep the data
- Small size data collector :102mmX46mmX28mm
- Communications:
- USB cable
Specification:
|
Wireless Communications: |
|
|
Modulation |
GFSK |
|
Transmission rate |
200Kbps |
|
Power |
10dBm |
|
Transmission Distance |
Visual straight line distance 300 meters |
|
Antenna |
Built-in spring antenna |
|
Performance Characteristics |
|
|
Light Source |
650nm laser |
|
Supported barcodes |
EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codaber，Industoal 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI etc |
|
Scanner Type: |
Bi-directional |
|
Scan rate |
48±2 scan/second |
|
Scan distance |
10-520mm |
|
Scan width |
20mm@window，220mm@200mm |
|
Resolution |
0.10mm（pcs0.9） |
|
Depth of Field |
0～250mm（0.33mm，PCS 90%） |
|
Working Way |
Triggered or automatic (continuous mode) scanning |
|
Physical Characteristics |
|
|
Memory: |
1M (Can store 30,000 barcodes) |
|
Interfaces: |
Standard configuration mini USB receiver; RS232 and PS2 optional |
|
Current: |
96mA (working) 46mA(standby) |
|
Battery: |
Built-in rechargeable lithium ion battery (3.7V, 1900mAh) |
|
Material |
ABS+PC |
|
Dimension: |
102mmX46mmX28mm (Data Collector) 52mmX20mmX10mm (Receiver) |
|
Weight: |
130g (with battery) |
|
User Environment |
|
|
Operation Temperature |
-20 Degree C～45 Degree C |
|
Storage Temperature |
-20 Degree C～60 Degree C |
|
Humidity: |
5~95% relative humidity, non-condensing |
|
Safe |
|
|
EMI/RFI: |
CE & FCC DOC compliance |
|
Safety Standard |
The second national laser safety standards |
|
Ordering Information |
|
|
OCBS-D004 |
433MHZ Wireless Mini Portable Stocktaking Terminal |
|
OCBS-D104 |
USB Cable Mini Portable Stocktaking Terminal |
