tablet pc barcode scanner

  • tablet pc barcode scanner
  • 2.4 G wireless laser barcode scanner;
  • Scan Speed:100scans/sec;
  • Data transmission distance reaches 30m in open area;
  • Scan Time:30hours;

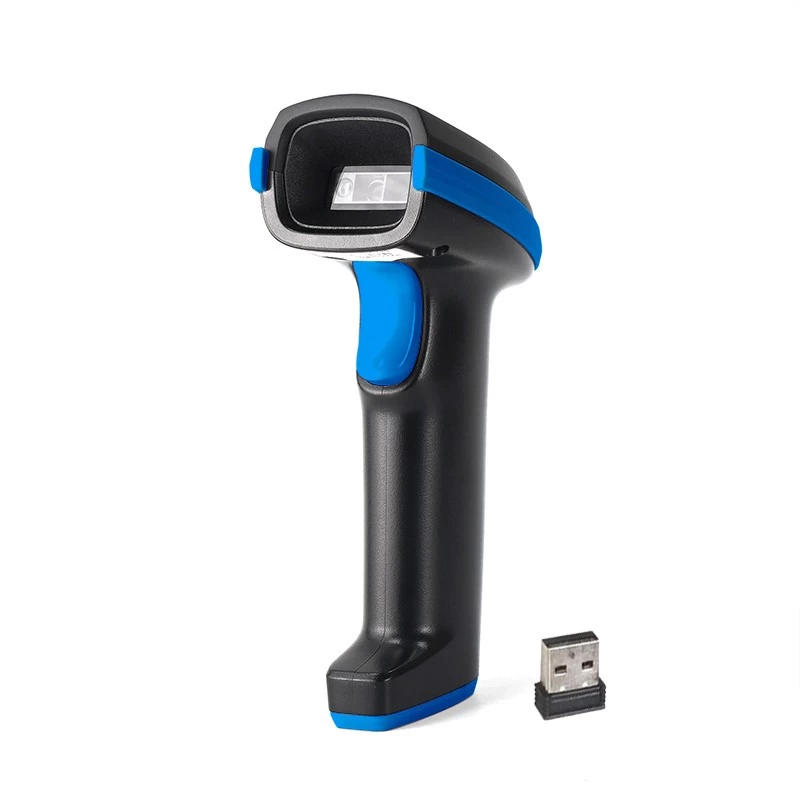

tablet pc barcode scanner
(Model: OCBS-W600 )

SPECIFICATION:

PHYSICAL CHARACTERSTICS
Light Source:
Visible Laser Diode (VLD) @ 650 nm-670nm
Scanner Dimensions:
164mm * 67mm * 95mm(W * H * D)
Receiver Dimensions:
130mm*45mm*129mm(W * H * D)
Material:
ABS+TPR /Aluminium alloy
Weight:
235g
Scanning Mode:
Hand-held; bidirectional Scanning Mode.
Indicator Light:
LED Red and Blue
Buzzer:
Buzzer Volume Adjustable
PERFORMANCE CHARACTERSTICS
Width of Scan Field:
60mm@30mmFrom engine face
98mm@100mmfrom engine face
Depth of Scan Field:
2.5-600mmContrast 0.9 Density 0.25
Scan Speed:
100 scans/sec
Scan Precision:
0.10mm4mil PCS0.9
Bit Error Rate:
1/(5million)
Decode Capability:
UPC/EAN, UPC/EAN with Supplementals, UCC/EAN128, Code39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5
Battery:
3.7V/750mAh,Li-ion
Charge Time:
3.0 Hours
Scan Time:
30 Hours
Current:
100mA (working); 40mA(standby)
Angles:
Pitch:60°; Tilt: 45°
Communication Distance:
30m
Working Frequency:
2.4G
Communication Interface:
USB
USER ENVIRONMENT CHARACTERSTICS
Temperature:
0degree C to 50degree C (Operating), -40degree Cto 70 degree C (Storage)
Relative Humidity:
5%-90%(Non-Condensing)
Drop Specification:
Withstands repeated 1.5m drops to concrete surface
Ambient Illumination:
0~100,000 LUX
Electrostatic Discharge:
Conforms to ±12KV air discharge and ±6KV of contact discharge
Safety Certificate:
CE, FCC, Class 2, RoHS

Product Details:
Wireless Laser Barcode Scanner  Laser Barcode Scanner wireless barcode scannerWireless Laser Barcode Scanner  Laser Barcode Scanner wireless barcode scannerWireless Laser Barcode Scanner  Laser Barcode Scanner wireless barcode scannerWireless Laser Barcode Scanner  Laser Barcode Scanner wireless barcode scannerWireless Laser Barcode Scanner  Laser Barcode Scanner wireless barcode scannerWireless Laser Barcode Scanner  Laser Barcode Scanner wireless barcode scannerWireless Laser Barcode Scanner  Laser Barcode Scanner wireless barcode scanner
