    China made low cost wireless laser barcode scanner-OCBS-W700China made low cost wireless laser barcode scanner-OCBS-W700China made low cost wireless laser barcode scanner-OCBS-W700

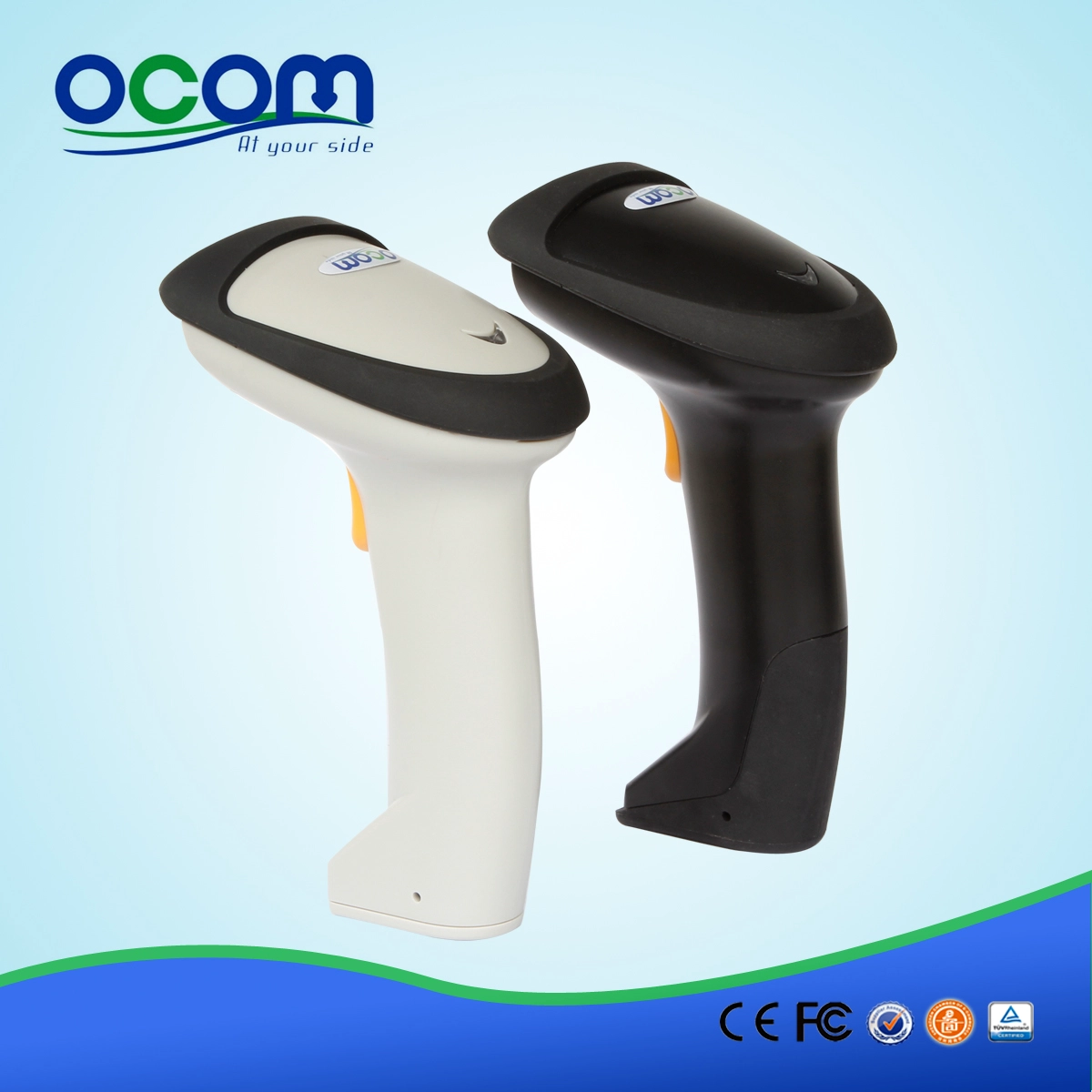

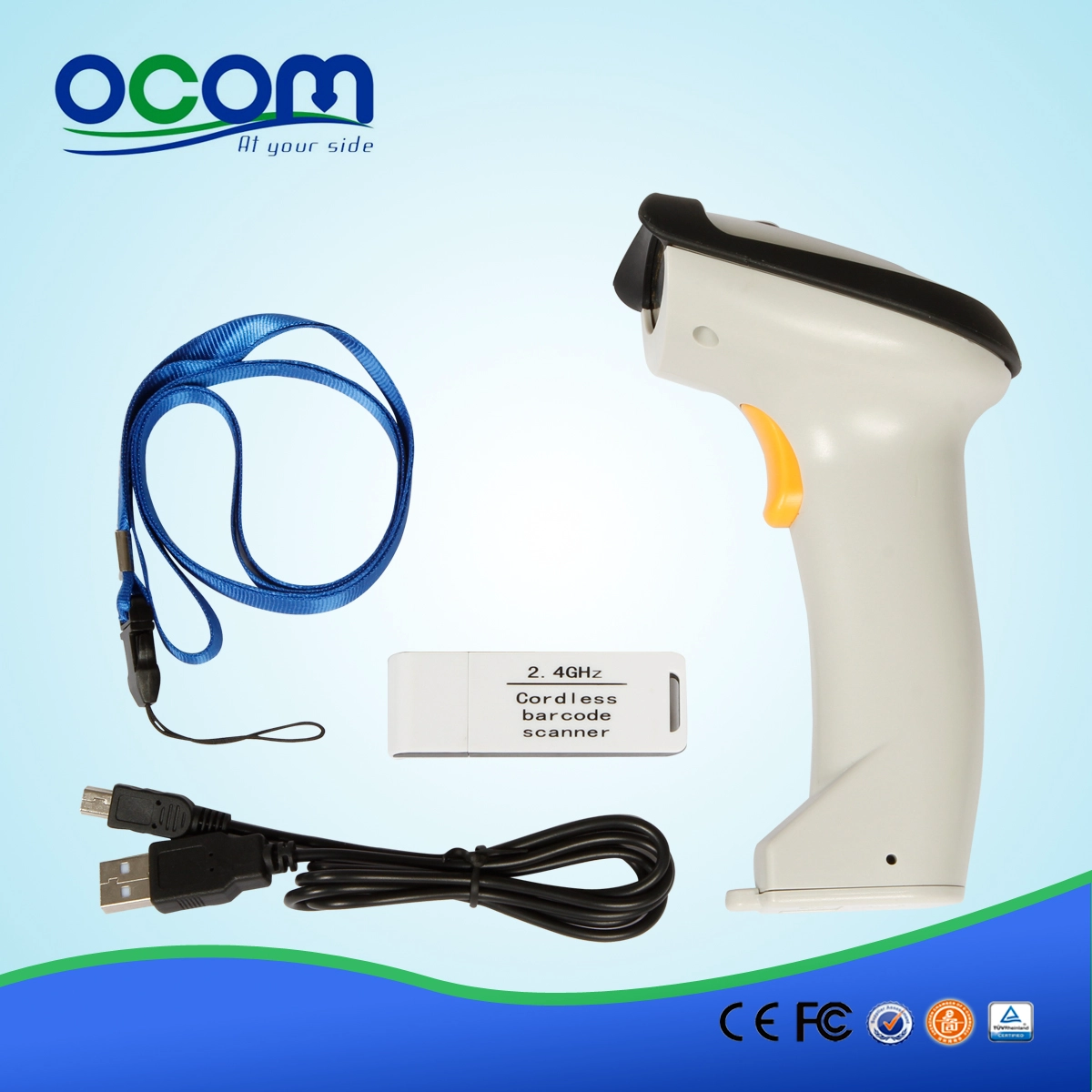

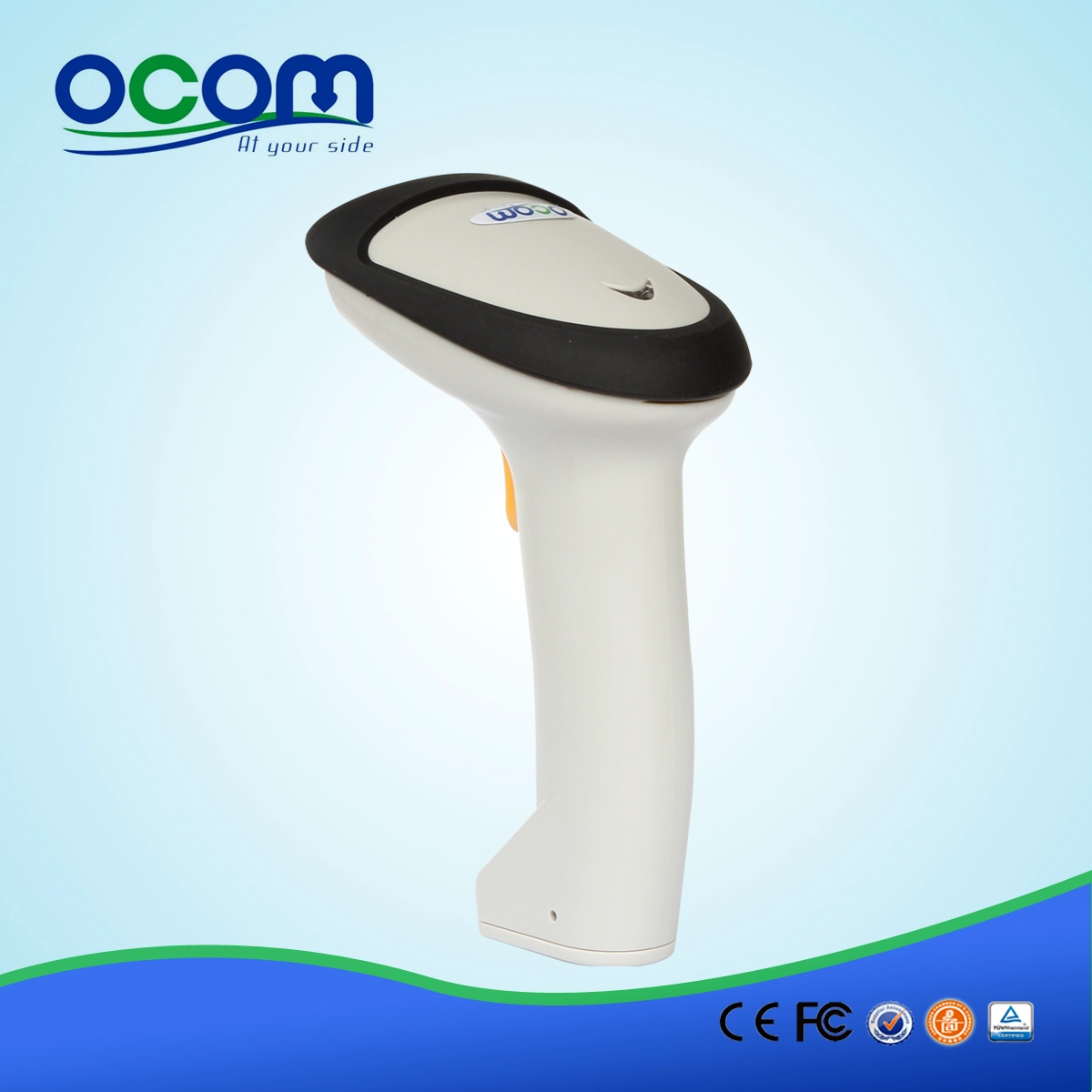

    China made low cost wireless laser barcode scanner-OCBS-W700

    • Integrated non-volatile memory (can store about 500 barcodes);
    • Outside communication distance can reach 100m, inside is 20m;
    • 20 scanners can work in the same field without interfering each other;
    • Plug and play;
    • 800mA big capacity Li-battery.

    Portable Wireless Barcode Scanner

    (Model: OCBS- W700 )

    Specifications:

    PHYSICAL CHARACTERSTICS
    Light Source:
    Visible Red Laser 650 nm
    Scanner Dimensions:
    160mm * 70mm * 40mm(W * H * D)
    Weight :
    300G
    Material:
    ABS + PC
    Scanning Mode:
    One line scanning; Manual / Automatic
    Indicator Way:
    Buzzer and Indicator Light
    PERFORMANCE CHARACTERSTICS
    Width of Scan Field:
    20mm@scanner window
    260mm@260mm
    Depth of Scan Field:
    4mil (0.1mm)/5-60mm
    5mil (0.12mm)/10-100mm
    10mil (0.25mm)/15-250mm
    35mil (0.89mm)/140-600mm
    43mil (1.1mm)/150-800mm
    Scan Speed:
    120 scans/sec
    Scan Precision:
    0.10mm (pcs0.9)
    Printing Contrast:
    Minimum 30% reflection difference
    Error Rate:
    1/(6million)
    Decode Capability:
    International general 1D barcodes
    Current:
    60mA (working); 5uA(standby)
    Scanning Corner:
    32°
    Scanning Elevation:
    68°
    Scanning Angle of Avertence:
    52°
    Working Frequency:
    2.4GHz
    Communication Distance:
    100m (Open Places)
    20m (Indoor)
    Communication Interface:
    USB
    USER ENVIRONMENT CHARACTERSTICS
    Drop Specification:
    2m free fall
    Laser Level:
    Level-1 laser safety standard
    Charge Power:
    DC5V
