Chinese Low Cost hot selling 2D Barcode Scanner-OCBS-2006Chinese Low Cost hot selling 2D Barcode Scanner-OCBS-2006Chinese Low Cost hot selling 2D Barcode Scanner-OCBS-2006Chinese Low Cost hot selling 2D Barcode Scanner-OCBS-2006

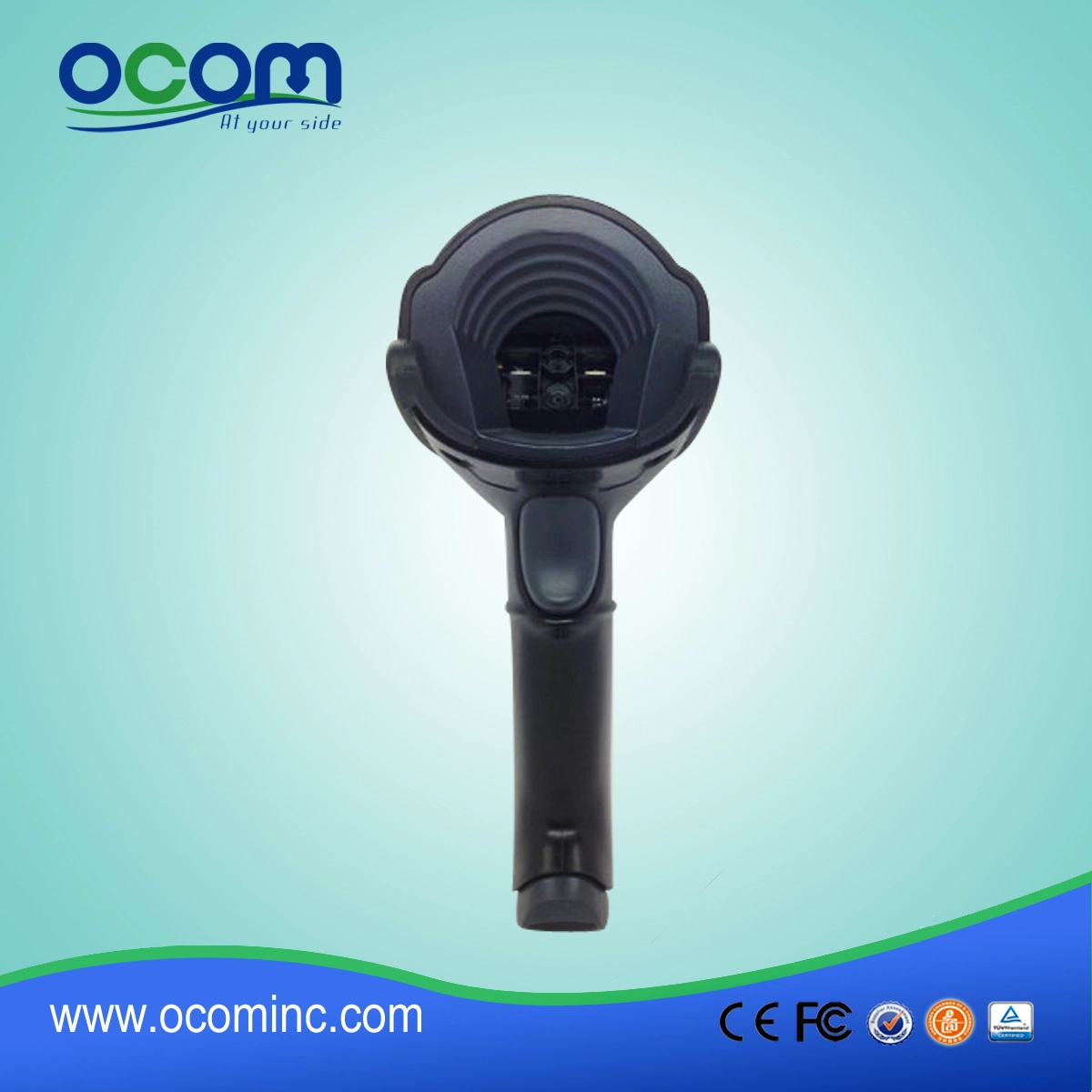

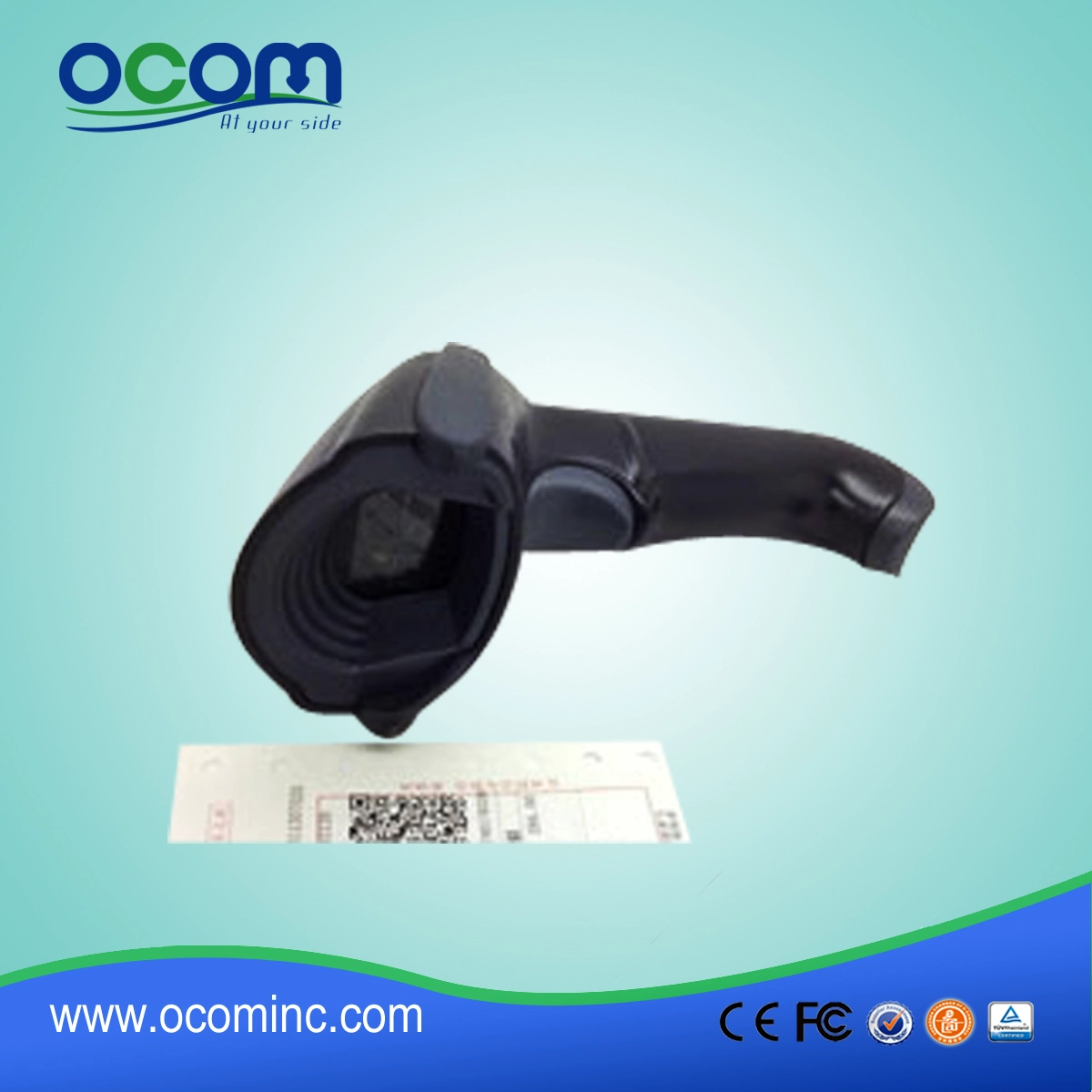

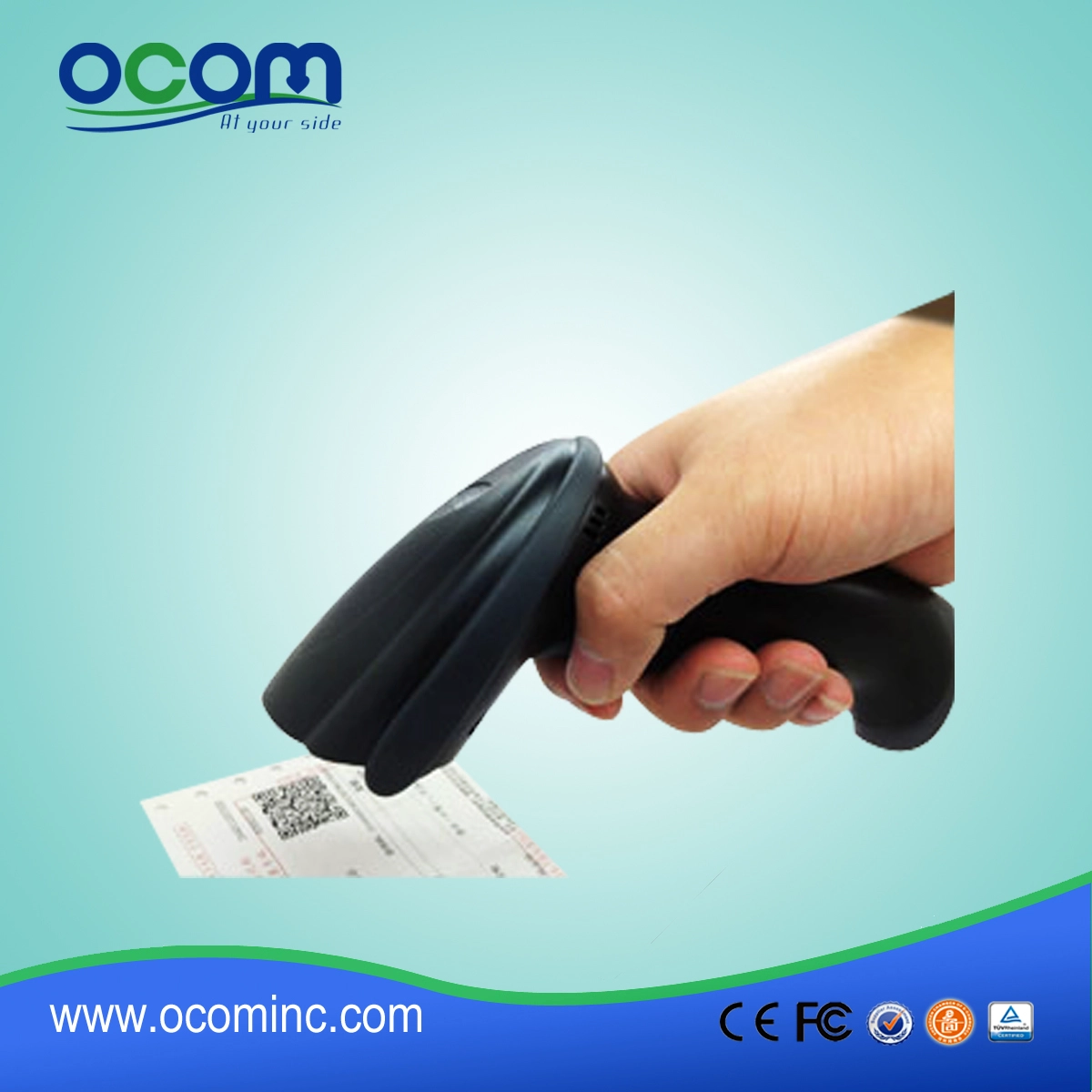

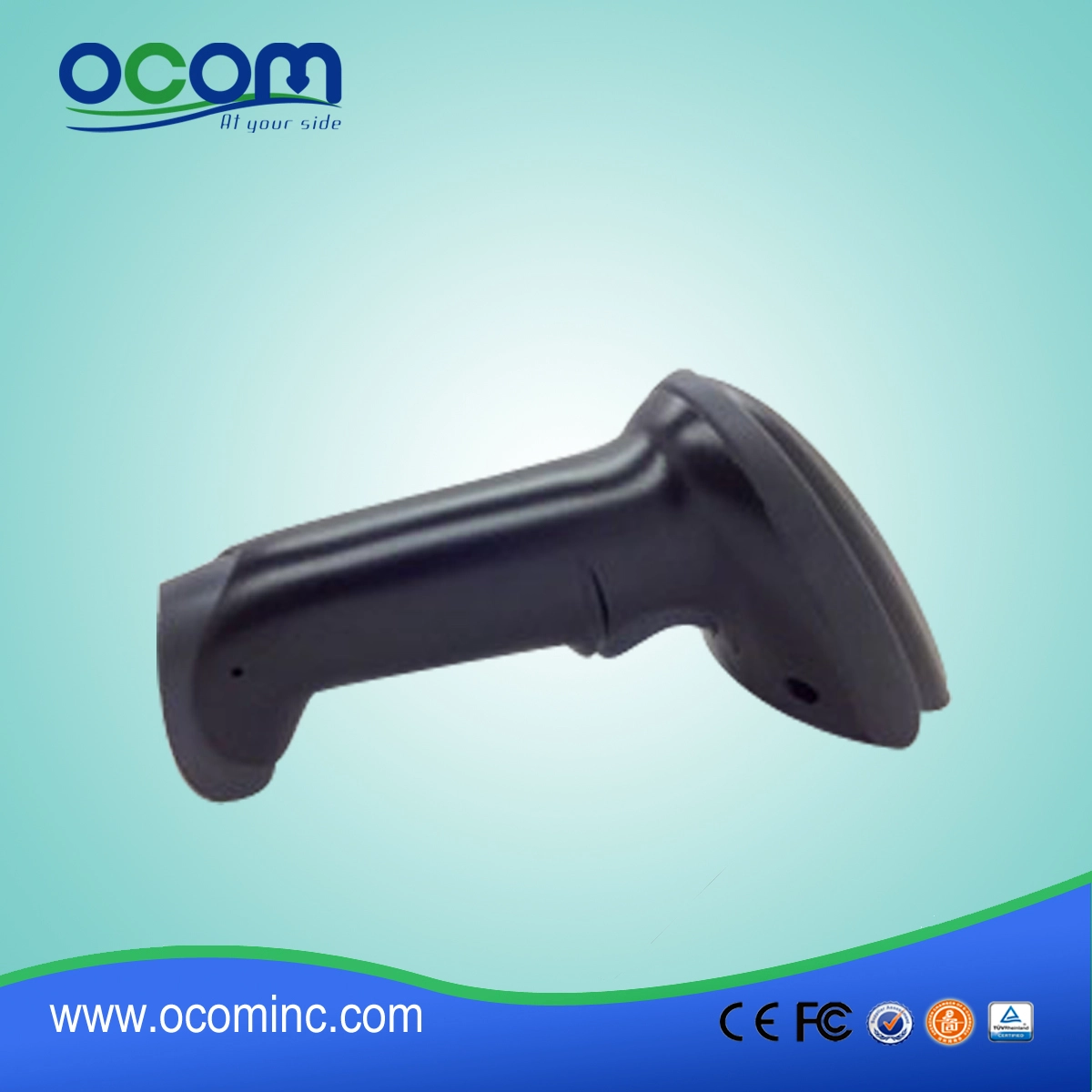

Chinese Low Cost hot selling 2D Barcode Scanner-OCBS-2006

  • Handheld barcode scanner for 1D/2D barcode;
  • CMOS image technology base;
  • RS232, USB, Keyboard Wedge interfaces supported;
  • FCC Part15 Class B, CE EMC Class B passed;

Handheld 2D Barcode Scanner

(Model: OCBS-2006)

Specification:

Performance Characteristics

Image Sensor

CMOS

Scan Mode

Two-dimensional images (900 x 650)

Scan angle

High Density HD: Level: 41.4 degree; Vertical: 32.2 degree
Standard distance SR: horizontal: 42.4 degree; Vertical: 33 degree
Long ER: horizontal: 31.6 degree; Vertical: 24.4 degree

Anti-jitter

Horizontal speed: 12.7cm

Identifiable print contrast

Minimum 18% reflectance difference

Illumination

0 ~ 100,000 LUX

Decoding capability

All 1D codes, 2D codes, QR code, PDF417, postal codes and OCR characters

shelf life

1 year

Roll/ Pitch

42 degree/ 68 degree

Physical Characteristics

Interface

USB, RS232, Keyboard Wedge

Power Consumption

2W (450 mA @ 5 V)

Input Voltage

5 +/-10%VDC @ 350 mA

Standby Power

0.4W (120 mA @ 5 V)

Weight

150 g

Dimensions

180 mm x 70 mm x 85 mm

User Environment

Operate Temperature

0 degree C to 55 degree C (32 degree F to 104 degree F)

Storage Temperature

-40 degree C to 60 degree C (-40°F to 140 degree F)

Humidity

5% - 95%(non-condensing)

Safe:

Certificates

FCC Part15 Class B, CE EMC Class B


Product Details:
