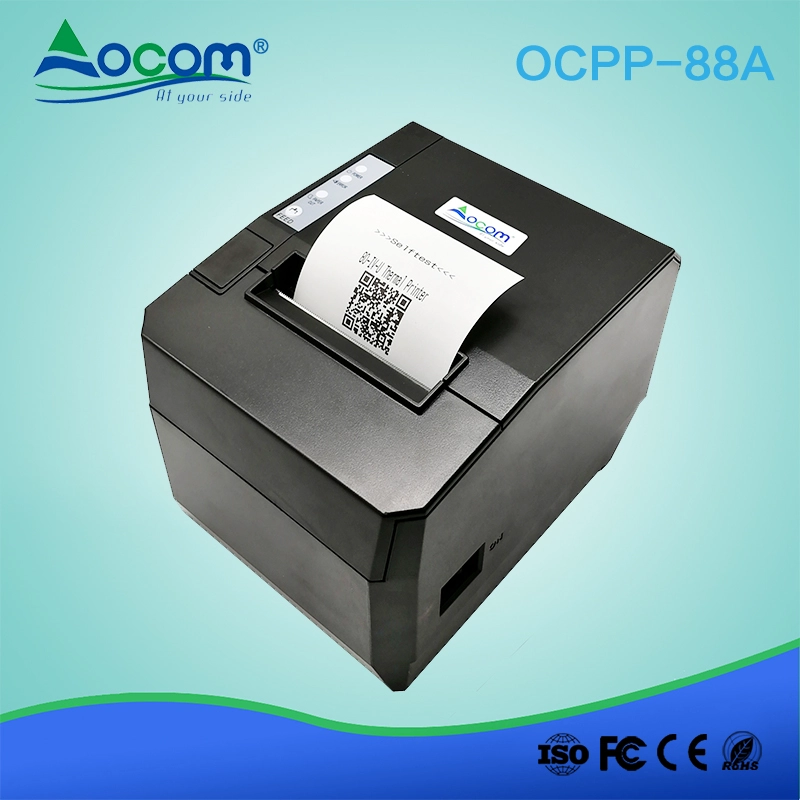

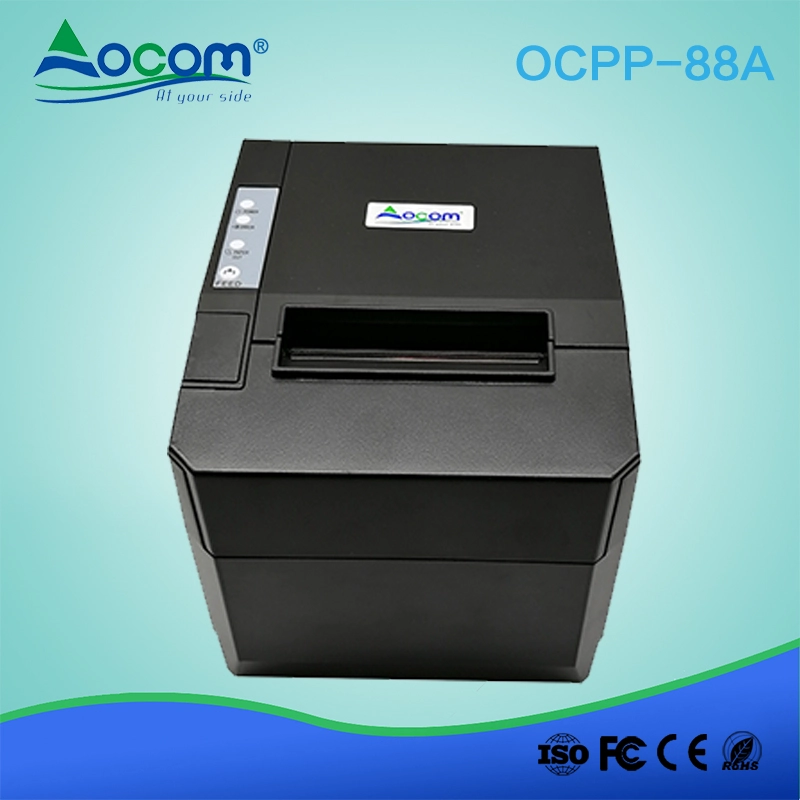

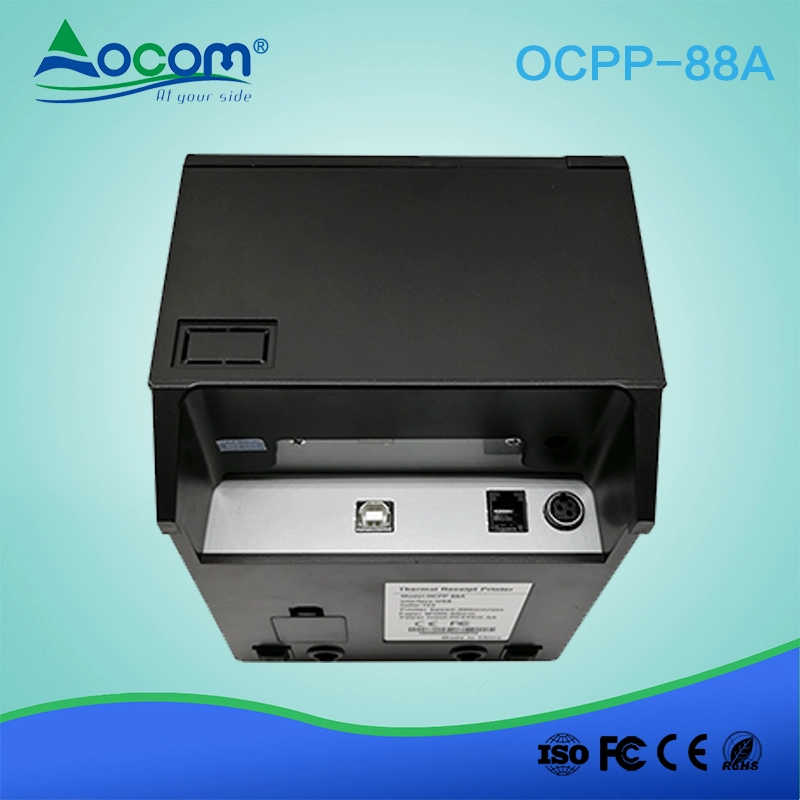

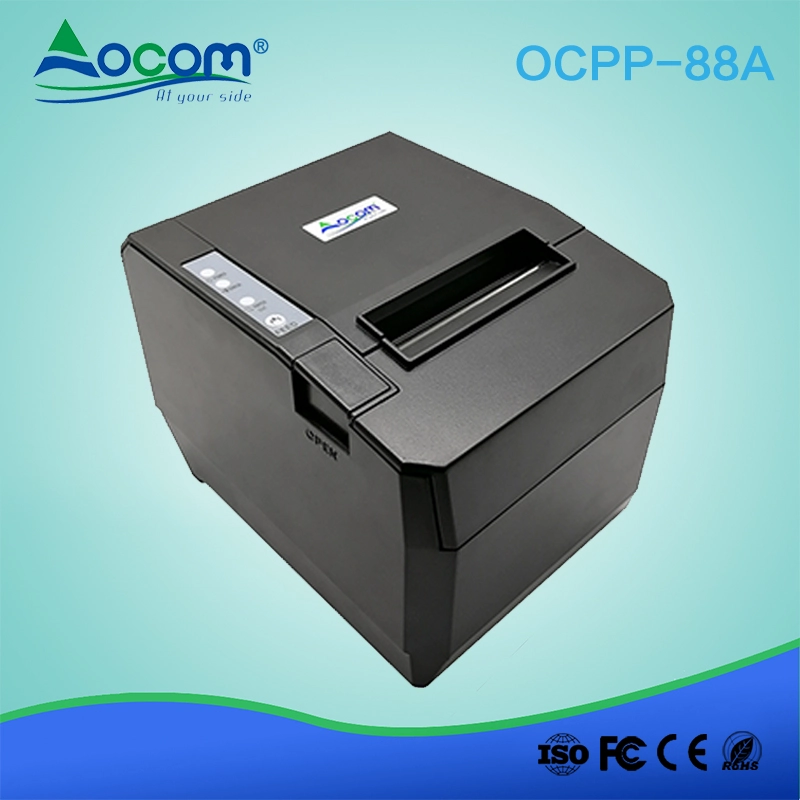

Desktop Auto Cutter Android POS 80mm Thermal PrinterDesktop Auto Cutter Android POS 80mm Thermal PrinterDesktop Auto Cutter Android POS 80mm Thermal PrinterDesktop Auto Cutter Android POS 80mm Thermal Printer

Desktop Auto Cutter Android POS 80mm Thermal Printer

  • High Speed 80mm Thermal Receipt Printer
  • Cutter: Auto-cutter and manual cutter for option;
  • Interface: USB, RS232, USB+LAN, USB+RS232, USB+RS232+LAN, USB+WIFI,  USB+Bluetooth, USB+LAN+WIFI,  USB+LAN+Bluetooth for option;
  • High printing speed: MAX=300mm/s;
  • MCBF(life): 100km;
  • 64K NV logo download printing;
  • Support sound and light alarm which is suitable for kitchen application(optional, active before shipment);
  • Support multiple 1D barcode and QR code printing;
  • Bluetooth version provide free SDK for Win CE, Android and IOS;
  • Support a variety of languages;
  • Driver avaiable for Windows and Linux;
  • Compatible with ESC/POS command.

Desktop Auto Cutter Android POS 80mm Thermal Printer

(Model No.: OCPP-88A)




Features:

1. Unique appearance with reliable mould;

2. High Printing Speed up to 300mm/second;

3. Optional auto Cutter ;

4. Cord and cordless communication for options

5. Multiple interfaces available: USB, , USB+ Serial+ LAN; and Wifi+USB, Bluetooth+USB

6. Sound and light alarm supported suitable for kitchen application;

7. Support multiple 1D and QR code types printing;

8. Support multi international languages;

9. SDK for Android and IOS available;

10. Reliable printer head with 100km life;

11. Compatible with EPSON ESC/POS commands.

Parameters:

Printing Method

Thermal line printing

Printing Character

576dots/line (default),  512dots/line;

Characters :  Simplified Chinese 24x24 point, support 18030 font library, support Taiwan and HK traditional (complex font),  ANK characters;

Font

A: 12*24dots,1.5(W)*3.0(H)mm;

B: 9*17dots,1.1(W)*2.1(H)mm

Simplified/Traditional : 24*24dots, 3.0(W)*3.0(H)mm

Barcode Type

JUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODABAR/ITF/CODE39/CODE93/CODE128, QR code

Printing Speed

250mm/sec for a single and two interface ,300mm/sec for three interfaces

Interface

USB,USB+ Serial+ LAN, Wifi+USB, Bluetooth+USB

Printing Command

Compatible with EPSON ESC/POS commands

Drivers

Win9X/ Window XP /Win2000/Win2003/Win Vista/ Win 7/ Win 8/win8.1/Linux, compatible with ESPON, SDK for Android and IOS available.

Paper Width

79.5±0.5mm( print width 72mm)

Paper Diameter

83mm

Paper Thickness

0.06-0.08mm

Cutter

Auto cutter (optional)

Printing Reliability

100km

Power

DC24V/2.5A

Temperature

0-45 degree C

Contrast Humidity

10-80%

External Dimension

190*145*145(mm)

Weight

1.60kg

Ordering information

P/N

Description

OCPP-88A-U

USB port, with auto cutter

OCPP-88A-URL

USB+Serial+Lan port, with auto cutter

OCPP-88A-W

Wifi+USB port, with auto cutter

OCPP-88A-BU

Bluetooth+USB, with auto-cutter

OCPP-88A-U0

USB port, without auto cutter

OCPP-88A-URL0

USB+Serial+Lan port, without auto cutter

OCPP-88A-W0

Wifi+USB port, without auto cutter

OCPP-88A-BU0

Bluetooth+USB, without auto-cutter



Power plug for option:
