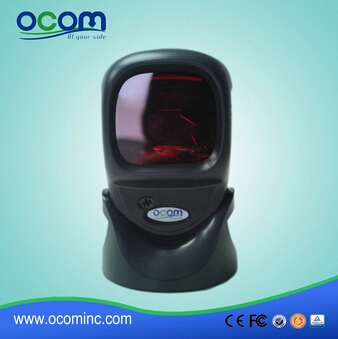

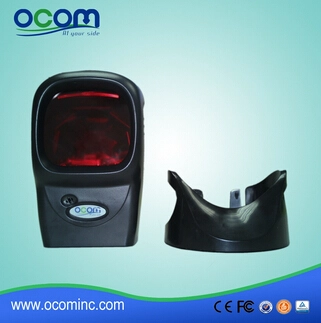

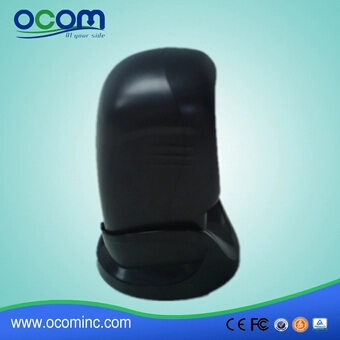

Desktop Omni directional Barcode ScannerDesktop Omni directional Barcode ScannerDesktop Omni directional Barcode Scanner

Desktop Omni directional Barcode Scanner

  • Desktop Omni-directional Barcode Scanner
  • 20 scanning lines five directions
  • NICAM power design, suitable for noisy environments
  • Appearance is concise and easy stable performance, in line with all kinds of business environment
  • Multiple/Single line scanning capability, meet different requirements
  • Multiple Interface: PS/2, RS232 or USB
  • Support automatic wake up function
  • Blue LED lights, loud buzzer hints

Desktop Omni directional Barcode Scanner

Model: OCBS-T008

Performance parameters

Light source

650 nm visible laser diode laser

System interface

KBW,RS232,USB

Physical parameters

Volume(Lx W x H)

Without stand: 140mm * 83mm * 75 mm
With stand:157 mm * 98.3 mm * 100 mm

Weight

Net Weight(282g);With stand(379g)

Stand

Fixed install stand

Color

Black

Electrical parameters

Input voltage

5.0 VDC+/-10%

Rated current

275mA

Power

2W

Laser Class

CDRH Class IIa; IEC 60825-1: Class I

Environmental parameter

operating temperature

0° C - 40° C

Storage Temperature

-40°C -70°C

Humidity

5% to 95% relative humidity (no condensation)

Antiknock characteristic

To withstand from 1.2 meters high drop.

Light resistance

indoor lighting, Sunlight, fluorescence,  incandescent light,  mercury vapor light,  sodium vapor light: 450 Ft Candles(4844 Lux)
daylight: 8000Ft Candles(86111 Lux)

Scanning parameters

Scanning mode

Omni directional 20 line, 5 directions,20 scan lines

Scanning speed

1500 times per second

Scanning Angle

0~360 degree(Omni-directional)

Scanning deviation

+/-50 degree

Printing contrast

Minimum 25% reflection difference

Scanning depth of filed

0~216mm@ 13mil(100%UPC/EAN)

Rated operating range

5 mil: (38%) 10~64mm

7.8 mil: (60%) 0~152mm

10.4mil: (80%) 0~190mm

13mil: (100%) 0~216mm

Lowest resolution

5mil

Decoding ability

UPC/EAN/JAN, UCC/EAN 128, Code128, Code 39, Code 39 Trioptic, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code bar, MSI etc.
